Abstract
本实用新型涉及核工程蓄水池技术领域，且公开了一种核工程蓄水池用便携式水面漂浮物清除装置，包括保护壳，所述保护壳的外表面固定连接有气囊，所述保护壳的内部侧壁上通过轴承转动连接有两个螺纹转轴，两个所述螺纹转轴关于所述保护壳的轴心对称分布，两个所述螺纹转轴的外表面均螺纹连接有螺纹套筒，两个所述螺纹套筒的外表面均铰接有连接杆。该核工程蓄水池用便携式水面漂浮物清除装置，将保护壳放置在蓄水池内即可，其可通过连接带操控，进而将保护壳移动至水面垃圾灰尘较多的水域，可适应不同大小的蓄水池，其通过将水过滤的方式清理水面，清理彻底，工作效果好，垃圾网桶容量大，安装牢固，可通过旋转螺纹转轴的方式快速更换，使用方便。
The utility model relates to the technical field of nuclear engineering water reservoirs, and discloses a portable water surface float removal device for nuclear engineering water reservoirs, comprising a protective shell, an airbag is fixedly connected to the outer surface of the protective shell, and the protective shell Two threaded shafts are rotatably connected to the inner side wall of the protective shell through bearings, the two threaded shafts are symmetrically distributed about the axis of the protective shell, and the outer surfaces of the two threaded shafts are threaded A connecting rod is hinged on the outer surface of each of the threaded sleeves. The nuclear engineering reservoir uses a portable water surface float removal device. The protective shell can be placed in the reservoir. It can be controlled by the connecting belt, and then the protective shell can be moved to the waters with more garbage and dust on the water surface. It can be adapted to different sizes. It cleans the water surface by filtering the water, cleans the water thoroughly, works well, the garbage net bucket has a large capacity, is firmly installed, can be quickly replaced by rotating the threaded shaft, and is easy to use.
Description
Technical Field
The utility model relates to a nuclear engineering cistern technical field specifically is a nuclear engineering cistern is with portable surface of water floater clearing device.
Background
The nuclear engineering storage pool is an infrastructure for temporarily storing nuclear power equipment (such as pressure vessels, compaction barrels, hanging brackets and the like) during maintenance of the nuclear power equipment. The storage pool is filled with deionized water for storing equipment in the pool, dust and the like in the air fall into water due to factors such as site environment, site construction operation and the like, a layer of dust film is formed on the water surface, and the dust is sunk into the water due to the damage to the tension of the water surface during the operation of the pool, so that the water quality is influenced, and meanwhile, under the irradiation of an underwater illuminating lamp, the dust suspended in the water can reflect light to influence the operation visibility.
The existing water quality treatment system is arranged on the storage pool, but the water quality treatment system is high in cost and low in filtering efficiency, common dust is treated and is in great waste, a part of water storage pool is cleaned through a net bag held by workers, manpower is wasted, the cleaning effect is poor, the cleaning speed is low, and the use is inconvenient.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a nuclear engineering cistern is with portable surface of water floater clearing device has solved being equipped with water treatment system in current storage pond, but because with high costs, filtration efficiency is low, is in very big waste to general dust processing, and partial cistern clears up through the handheld string bag of workman, extravagant manpower, and the cleaning effect is poor, and cleaning speed is slow, uses inconvenient problem.
(II) technical scheme
The utility model provides a following technical scheme: a portable water surface floating object removing device for a nuclear engineering reservoir comprises a protective shell, wherein an air bag is fixedly connected to the outer surface of the protective shell, two thread rotating shafts are rotatably connected to the inner side wall of the protective shell through a bearing and are symmetrically distributed about the axis of the protective shell, thread sleeves are respectively in threaded connection with the outer surfaces of the two thread rotating shafts, connecting rods are respectively hinged to the outer surfaces of the two thread sleeves, a partition plate is fixedly connected between the inner walls of the protective shell, two sliding grooves are formed in the upper surface of the partition plate, sliding plates are respectively in sliding connection with the insides of the two sliding grooves, the connecting rods are hinged to the sliding plates, a garbage net barrel is placed on the upper surface of the partition plate, through holes are respectively formed in the outer surfaces of the garbage net barrel and the partition plate, and a driving motor is, the water pump is characterized in that a propeller is fixedly connected to the output end of the driving motor, a water tank is fixedly connected to the inner bottom wall of the protective shell, a water pump is fixedly connected to the inner bottom wall of the protective shell, the water pumping end of the water pump is communicated with the water tank, the water discharging end of the water pump is connected with a water discharging pipe, and one end, far away from the water pump, of the water discharging pipe penetrates through and extends to the outer side of the protective shell.
Preferably, fixedly connected with cortex skirt curtain on the inner wall of protective housing, the inner wall of rubbish net bucket through the magic paste with cortex skirt curtain is connected.
Preferably, a guide plate is fixedly connected to the lower surface of the partition plate and is located above the water pump.
Preferably, the lower fixed surface of protective housing is connected with the mount pad, the lower surface of mount pad alternates and is provided with the connecting block, the bottom fixedly connected with balancing weight of connecting block, the surface of mount pad alternates and is provided with the screw thread round pin, the surface threaded connection of screw thread round pin has two nuts, two the nut about the mount pad symmetric distribution.
Preferably, a power supply is fixedly connected to the inner bottom wall of the protective shell.
Preferably, the outer surface of the protective shell is fixedly connected with two connecting belts, and the two connecting belts are symmetrically distributed around the propeller.
Preferably, the included angle between the threaded sleeve and the connecting rod ranges from thirty degrees to sixty degrees.
(III) advantageous effects
Compared with the prior art, the utility model provides a nuclear engineering cistern is with portable surface of water floater clearing device possesses following beneficial effect:
(1) this nuclear engineering cistern is with portable surface of water floater clearing device, when using, place the protective housing in the cistern, according to the work demand, rotatory different quality's balancing weight, make the protective housing be in about three centimetres under the surface of water, water can flow in the protective housing, dust rubbish can depend on the garbage net bucket, water passes through the garbage net bucket and filters the back, get into in the basin, through the water pump that sets up, the water pump is got rid of the water in the basin, make the protective housing remain throughout under the liquid level, guarantee the job stabilization operation of device.
(2) This portable surface of water floater clearing device for nuclear engineering cistern, when using, through the driving motor who sets up, driving motor drives the screw rotation, makes the protective housing remove in water, through the connecting band that sets up, the pulling connecting band makes the protective housing turn to, convenient operation, adaptable not cistern of equidimension.
(3) This nuclear engineering cistern is with portable surface of water floater clearing device, when using, when the rubbish wire bucket needs to be changed, separate cortex skirt curtain and rubbish wire bucket earlier, then rotatory screw thread pivot, make the screw sleeve drive the connecting rod rebound, the connecting rod drives the slide and removes, loosen the rubbish wire bucket, conveniently take and change the rubbish wire bucket, play the effect of conveniently clearing up rubbish, when the installation, place the rubbish wire bucket on the baffle, reverse rotation screw thread pivot, the same reason, make the slide press from both sides tight rubbish wire bucket, the installation is firm, and shelter from through cortex skirt curtain, avoid water to get into in the protective housing through the gap between rubbish wire bucket and the protective housing, and the work quality is improved.
(4) This nuclear engineering cistern is with portable surface of water floater clearing device, when using, place the protective housing in the cistern can, its accessible connecting band is controlled, and then removes the protective housing to the more waters of surface of water rubbish dust, the cistern of adaptable equidimension not, it is through the mode clearance surface of water filterable, the clearance is thorough, excellent in work effect, rubbish net bucket is capacious, the installation is firm, the mode quick replacement of the rotatory screw thread pivot of accessible, high durability and convenient use.
Drawings

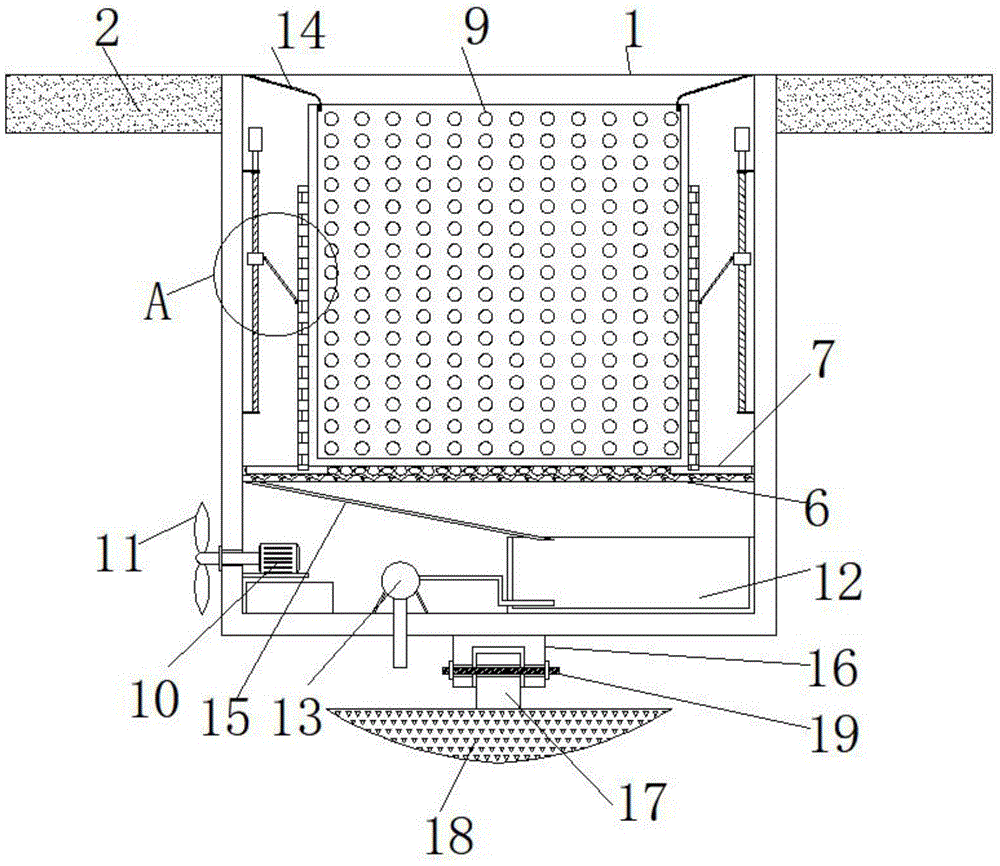

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is an enlarged view of the structure a in fig. 1 according to the present invention;
fig. 3 is a front view of the present invention.
In the figure: 1. a protective shell; 2. an air bag; 3. a threaded shaft; 4. a threaded sleeve; 5. a connecting rod; 6. a partition plate; 7. a chute; 8. a slide plate; 9. a garbage net can; 10. a drive motor; 11. a propeller; 12. a water tank; 13. a water pump; 14. a leather skirt curtain; 15. a baffle; 16. a mounting seat; 17. connecting blocks; 18. a balancing weight; 19. and (4) a threaded pin.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, a portable water surface floater removing device for a nuclear engineering reservoir comprises a protective shell 1, an air bag 2 is fixedly connected to the outer surface of the protective shell 1, two threaded rotating shafts 3 are rotatably connected to the inner side wall of the protective shell 1 through bearings, the two threaded rotating shafts 3 are symmetrically distributed about the axis of the protective shell 1, threaded sleeves 4 are respectively and threadedly connected to the outer surfaces of the two threaded rotating shafts 3, connecting rods 5 are respectively hinged to the outer surfaces of the two threaded sleeves 4, a partition plate 6 is fixedly connected between the inner walls of the protective shell 1, two sliding grooves 7 are respectively formed in the upper surface of the partition plate 6, sliding plates 8 are respectively and slidably connected to the inner parts of the two sliding grooves 7, the connecting rods 5 are hinged to the sliding plates 8, a garbage net barrel 9 is placed on the upper surface of the partition plate 6, through holes are respectively formed in the outer surfaces, the output fixedly connected with screw 11 of driving motor 10, fixedly connected with basin 12 on the inside diapire of protective housing 1, fixedly connected with water pump 13 on the inside diapire of protective housing 1, the end of drawing water of water pump 13 is linked together with basin 12, and the drainage end of water pump 13 is connected with the drain pipe, and the one end that water pump 13 was kept away from to the drain pipe runs through and extends to the outside of protective housing 1.
Further, fixedly connected with cortex skirt curtain 14 on the inner wall of protective housing 1, the inner wall of rubbish wire bucket 9 is connected with cortex skirt curtain 14 through the magic subsides, avoids in water gets into protective housing 1 through the gap between rubbish wire bucket 9 and the protective housing 1, improves operating mass.
Furthermore, the lower surface of the partition board 6 is fixedly connected with a guide plate 15, the guide plate 15 is positioned above the water pump 13, the effect of guiding the water is achieved, the water pump 13 and the driving motor 10 are protected from being wetted by the water, and the service life of the water pump is prolonged.
Further, the lower fixed surface of protective housing 1 is connected with mount pad 16, the lower surface of mount pad 16 alternates and is provided with connecting block 17, the bottom fixedly connected with balancing weight 18 of connecting block 17, the surface of mount pad 16 alternates and is provided with screw thread round pin 19, the surface threaded connection of screw thread round pin 19 has two nuts, two nuts are about mount pad 16 symmetric distribution, play the effect of conveniently changing the balancing weight 18 of different grade type, with the behavior that uses the difference, the protection scope of device has been enlarged.
Further, fixedly connected with power on the inside diapire of protective housing 1 improves the electric energy for the device work.
Furthermore, the outer surface of the protective shell 1 is fixedly connected with two connecting belts, the two connecting belts are symmetrically distributed around the propeller 11, and the protective shell 1 is controlled to move and turn by pulling the connecting belts.
Further, the included angle scope between threaded sleeve 4 and connecting rod 5 is thirty to sixty degrees, plays the effect of guaranteeing the device steady operation, avoids damaging the unable phenomenon of using because of the pivot that the angle is too big or the undersize causes.
To sum up, this nuclear engineering cistern is with portable surface of water floater clearing device, when using, place protective housing 1 in the cistern, according to the work demand, rotatory different quality's balancing weight 18, make protective housing 1 be in about three centimetres under the surface of water, water can flow in protective housing 1, dust rubbish can depend on rubbish net bucket 9, water passes through rubbish net bucket 9 and filters the back, get into in basin 12, through the water pump 13 that sets up, water pump 13 is with the log raft removal in the basin 12, make protective housing 1 remain throughout under the liquid level, guarantee the job stabilization operation of device.
This portable surface of water floater clearing device for nuclear engineering cistern, when using, through the driving motor 10 that sets up, driving motor 10 drives the screw 11 rotatory, makes protective housing 1 remove in water, through the connecting band that sets up, the pulling connecting band makes protective housing 1 turn to, convenient operation, adaptable not cistern of equidimension.
This nuclear engineering cistern is with portable surface of water floater clearing device, when using, when needs change rubbish wire bucket 9, earlier separate cortex skirt curtain 14 and rubbish wire bucket 9, then rotatory screw thread pivot 3, make threaded sleeve 4 drive and drive connecting rod 5 rebound, connecting rod 5 drives slide 8 and removes, loosen rubbish wire bucket 9, conveniently take and change rubbish wire bucket 9, play the effect of conveniently clearing up rubbish, when the installation, place rubbish wire bucket 9 on baffle 6, reverse rotation screw thread pivot 3, the same thing, make slide 8 press from both sides tight rubbish wire bucket 9, the installation is firm, and shelter from through cortex skirt curtain 14, avoid water to get into in protective housing 1 through the gap between rubbish wire bucket 9 and the protective housing 1, improve work quality.
This nuclear engineering cistern is with portable surface of water floater clearing device, when using, place protective housing 1 in the cistern can, its accessible connecting band is controlled, and then remove protective housing 1 to the more waters of surface of water rubbish dust, the cistern of adaptable equidimension not, it is through the mode clearance surface of water with water filterable, the clearance is thorough, excellent in work effect, garbage net bucket 9 is capacious, the installation is firm, the mode quick replacement of the rotatory screw thread pivot of accessible 3, high durability and convenient use.
It is to be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The standard parts used in the present application document can be purchased from the market, and can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts the conventional means matured in the prior art, the machines, the parts and the equipment adopt the conventional types in the prior art, the circuit connection adopts the conventional connection mode in the prior art, no specific description is provided here, meanwhile, the electric elements appearing in the specification are electrically connected with the external main controller and the mains supply, the peripheral controller mentioned in the specification can play a control role for the electric elements mentioned in the specification, and the peripheral controller is the conventional known equipment.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a nuclear engineering cistern is with portable surface of water floater clearing device, includes protective housing (1), its characterized in that: the outer surface of the protective shell (1) is fixedly connected with an air bag (2), the inner side wall of the protective shell (1) is rotatably connected with two threaded rotating shafts (3) through a bearing, the two threaded rotating shafts (3) are symmetrically distributed about the axis of the protective shell (1), the outer surfaces of the two threaded rotating shafts (3) are in threaded connection with threaded sleeves (4), the outer surfaces of the two threaded sleeves (4) are hinged with connecting rods (5), a partition plate (6) is fixedly connected between the inner walls of the protective shell (1), the upper surface of the partition plate (6) is provided with two sliding chutes (7), the insides of the two sliding chutes (7) are in sliding connection with sliding plates (8), the connecting rods (5) are hinged with the sliding plates (8), a garbage net barrel (9) is placed on the upper surface of the partition plate (6), and the outer surfaces of the garbage net barrel (9) and the partition plate (6) are provided, fixedly connected with driving motor (10) on the inside diapire of protective housing (1), output fixedly connected with screw (11) of driving motor (10), fixedly connected with basin (12) on the inside diapire of protective housing (1), fixedly connected with water pump (13) on the inside diapire of protective housing (1), the water pumping end of water pump (13) with basin (12) are linked together, the drainage end of water pump (13) is connected with the drain pipe, the one end that water pump (13) were kept away from to the drain pipe runs through and extends to the outside of protective housing (1).
2. The portable water surface floating object removing device for the nuclear engineering reservoir is characterized in that: fixedly connected with cortex skirt curtain (14) on the inner wall of protective housing (1), the inner wall of rubbish wire bucket (9) through the magic paste with cortex skirt curtain (14) are connected.
3. The portable water surface floating object removing device for the nuclear engineering reservoir is characterized in that: the lower surface of baffle (6) fixedly connected with guide plate (15), guide plate (15) are located the top of water pump (13).
4. The portable water surface floating object removing device for the nuclear engineering reservoir is characterized in that: the lower fixed surface of protective housing (1) is connected with mount pad (16), the lower surface interlude of mount pad (16) is provided with connecting block (17), the bottom fixedly connected with balancing weight (18) of connecting block (17), the surface interlude of mount pad (16) is provided with screw thread round pin (19), the surface threaded connection of screw thread round pin (19) has two nuts, two the nut about mount pad (16) symmetric distribution.
5. The portable water surface floating object removing device for the nuclear engineering reservoir is characterized in that: the power supply is fixedly connected to the inner bottom wall of the protective shell (1).
6. The portable water surface floating object removing device for the nuclear engineering reservoir is characterized in that: the outer surface of the protective shell (1) is fixedly connected with two connecting belts, and the two connecting belts are symmetrically distributed around the propeller (11).
7. The portable water surface floating object removing device for the nuclear engineering reservoir is characterized in that: the included angle range between the threaded sleeve (4) and the connecting rod (5) is thirty-sixty degrees.
