Abstract
The utility model discloses a novel anti-infection gynecological flusher, a slide way is vertically arranged in a connecting seat in a penetrating way, a connecting pipe is arranged in the slide way in a penetrating way, a connecting ring is fixedly arranged at one end of the slide way, the connecting ring is fixed with the connecting pipe, a flushing pipe is arranged at one end of the connecting pipe, the flushing pipe is fixedly spliced with the connecting pipe, an annular flange is fixedly arranged on the flushing pipe, an opening is arranged in the connecting seat in a penetrating way in a left-right direction, an L-shaped plate is hinged at the inner side end of the opening at the left side, a first torsional spring is arranged at the hinged part of the L-shaped plate, a stopper is arranged at the outer side end of the opening at the left side, the stopper is in sliding connection with the opening, the stopper is fixed by magnetic attraction, the stopper is in close contact with the L-shaped plate, a hanging rod is hinged in, realizing individual flushing with different liquid outlet amounts.
Description
Technical Field
The utility model relates to a gynaecology's field, concretely relates to novel prevent infecting gynaecology's flusher.
Background
Vaginal irrigation is one of the commonly used nursing operation technologies in gynecology, and the vaginal irrigator is used for guiding flushing fluid (disinfectant) in a container into the vagina to perform irrigation so as to achieve the purposes of cleaning the vagina, maintaining vaginal acid-base balance, promoting vaginal blood circulation, relieving congestion and edema of vaginal mucosa and other cleaning treatments, and is commonly used for vaginal preparation before gynecological operation, treatment of vaginitis and cervicitis, prevention of complications after cervical cancer radiotherapy and the like.
The traditional vaginal douche consists of a common rubber tube with the length of 1.5m and a long vascular clamp. One end (upper end) of the rubber tube is connected with a water tank filled with disinfectant, and the other end (lower end) of the rubber tube is clamped by long vascular forceps at a position 15cm away from the tube opening to control water flow and directly place the tube end in a vagina spread by the vaginal dilator for flushing. However, the gynecological ward needs to continuously wash different patients in daily life, cross infection is possible when one washing pipe end is shared, the long vascular clamp is only used for controlling water flow to be switched on and off, individual washing can not be carried out by adopting different water yields according to the actual conditions of the patients, and meanwhile, the common rubber pipe is opaque and is not easy to observe the internal conditions of the pipeline.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In order to overcome the defects of the prior art, the novel anti-infection gynecological flusher is provided, so that the cross infection phenomenon in use is avoided, different requirements of patients can be met, and personalized flushing with different liquid discharge amounts is realized.
(II) technical scheme
The utility model discloses a realize through following technical scheme: the utility model provides a novel anti-infection gynecologic irrigator, which comprises a connecting seat, wherein a slide way is arranged in the connecting seat in a vertical penetrating way, a connecting pipe penetrates through the slide way, a connecting ring is fixedly arranged at one end of the slide way and is fixed with the connecting pipe, one end of the connecting pipe is provided with a flushing pipe, the flushing pipe is fixedly inserted with the connecting pipe, an annular flange is fixedly arranged on the flushing pipe, openings are arranged in the connecting seat in a left-right penetrating manner, the inner side end of the opening on the left side is hinged with an L-shaped plate, a first torsion spring is arranged at the hinged position of the L-shaped plate, a limit block is arranged at the outer side end of the opening at the left side, the limiting block is connected with the opening in a sliding way, the limiting block is fixed with the opening by magnetic attraction, the limiting block is in close contact with the L-shaped plate, the opening on the right side is internally hinged with a suspension rod, and a second torsion spring is arranged at the hinged position of the suspension rod, and a suspension groove is arranged on the suspension rod in a penetrating way.
Further, hang the free end activity of pole and wear to be equipped with the wire winding pole, the fixed stopper that sets up in both ends of wire winding pole, the stopper with hang pole sliding connection, around being equipped with the bandage on the wire winding pole.
Further, the connecting pipe is a transparent silicone tube.
Further, the limiting block is matched with the opening in shape.
Furthermore, the connection part of the limiting block and the opening is correspondingly provided with a matched magnetic layer.
Further, the suspension bar is matched with the shape of the opening.
(III) advantageous effects
Compared with the prior art, the utility model, following beneficial effect has:
1. the end part of the connecting pipe is provided with the flushing pipe which can be quickly plugged, pulled, fastened and replaced, so that the flushing pipe can be conveniently replaced and used when corresponding to different patients, and further the cross infection caused by the direct contact flushing of the flushing part when the flushing pipe is flushed is avoided.
2. The connecting pipe passes through the connecting seat to be connected, and one side of connecting seat is equipped with hangs the pole, and the hanging of connecting pipe when using of can being convenient for is put, facilitates the use, and the opposite side of connecting seat is equipped with velocity of flow and adjusts the structure, the regulation of flow when the washing liquid of being convenient for washes.
Drawings

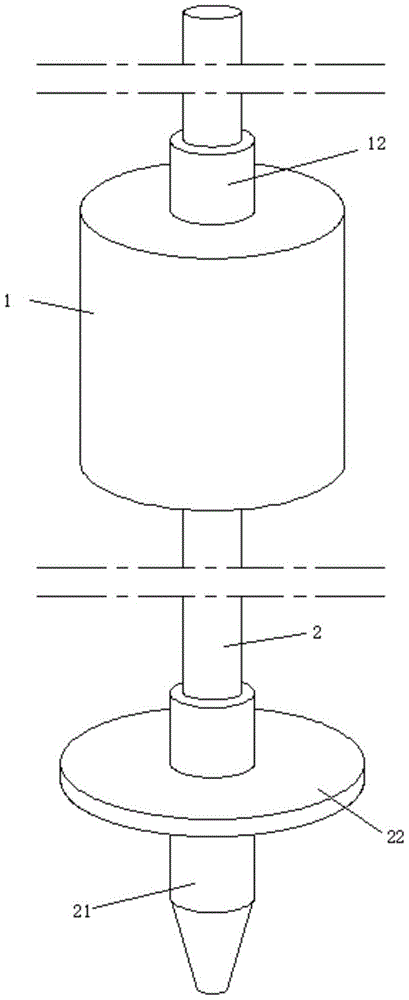

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a longitudinal sectional view of the connecting seat of the present invention.
Fig. 3 is a cross sectional view of the connecting seat of the present invention.
1-a connecting seat; 11-a slide; 12-a connecting ring; 2-connecting pipe; 21-a flushing pipe; 22-annular rib; 3-opening; 4-L-shaped plates; 41-a first torsion spring; 42-a limiting block; 43-a magnetic layer; 5-hanging rods; 51-a suspension groove; 6-a winding rod; 61-a limiting block; 62-binding band.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
The first embodiment:
the novel anti-infection gynecological flusher shown in fig. 1-3 comprises a connecting seat 1, a slide 11 penetrates through the connecting seat 1 from top to bottom, a connecting pipe 2 penetrates through the slide 11, a connecting ring 12 is fixedly arranged at one end of the slide 11, the connecting ring 12 is fixed with the connecting pipe 2, a flushing pipe 21 is arranged at one end of the connecting pipe 2, the flushing pipe 21 is fixedly connected with the connecting pipe 2 in an inserting manner, an annular flange 22 is fixedly arranged on the flushing pipe 21, an opening 3 penetrates through the connecting seat 1 from left to right, an L-shaped plate 4 is hinged to the inner side end of the opening 3 at the left side, a first torsion spring 41 is arranged at the hinged position of the L-shaped plate 4, a first limiting block 42 is arranged at the outer side end of the opening 3 at the left side, the first limiting block 42 is connected with the opening 3 in a sliding manner, the first limiting block 42 is fixed with the opening 3, a suspension rod 5 is hinged in the opening 3 on the right side, a second torsion spring 52 is arranged at the hinged position of the suspension rod 5, and a suspension groove 51 is arranged on the suspension rod 5 in a penetrating manner.
Preferably, hang the free end activity of pole 5 and wear to be equipped with wire winding pole 6, the fixed second stopper 61 that sets up in both ends of wire winding pole 6, second stopper 61 with hang pole 5 sliding connection, around being equipped with bandage 62 on the wire winding pole 6.
Furthermore, the connecting pipe 2 is a transparent silicone tube, and a 2.50m long transparent silicone tube which can be reused after high-temperature and high-pressure sterilization is adopted, so that the properties and the cleaning effect of the flushing fluid can be observed conveniently.
Furthermore, the first limiting block 42 is matched with the opening 3 in shape, so that the appearance is high.
Further, the hanging rod 5 is matched with the shape of the opening 3, and the appearance is high.
Second embodiment:
furthermore, a magnetic layer 43 is correspondingly disposed at the joint of the first limiting block 42 and the opening 3, so that the position of the first limiting block 42 is adjusted to be fixed by magnetic attraction after sliding up and down.
The working principle is as follows: when the irrigator is used for irrigating the vagina of a patient, the irrigator can be matched with the patient to realize the quick replacement and use of the corresponding one-to-one patient irrigator tube 21.
When the washing device is used, one end of the connecting pipe 2 is connected with an outlet of the washing liquid, then the unused washing pipe 21 is sleeved and fastened at the other end of the connecting pipe 2, the head part of the washing pipe 21 is aligned to the vagina of a patient, and the washing liquid is washed. The connecting pipe 2 can be suspended and supported on the hanging rack through the hanging rod 51 on the connecting seat 1, so that the connecting pipe 2 is prevented from being randomly placed on the ground, and the operation is convenient.
When in use, the hanging rod 5 is shifted outwards from the corresponding opening 3 and is hung on a hook on the hanging rack through the hanging groove 51 on the hanging rod. Meanwhile, after the hanger is hung, the hanger can be bound by the binding band 62, so that the hanger is prevented from loosening and falling off during hanging. When the bandage 62 is used, the wire winding rod 6 is upwards extracted through the second limiting block 61, so that the wire winding rod 6 extends out of the end part of the hanging rod 5, the bandage 62 which is arranged on the wire winding rod can be taken down, the hanging rod 5 is tightly tied with the hook through the bandage, and the two ends of the bandage 62 are provided with matched magic tapes, so that the bandage is easy to use. When the binding band 62 is not needed to be used, the binding band can be wound on the winding rod 6 and is contracted and clamped in the end part of the hanging rod 5, so that the storage is convenient.
When the flushing pipe 21 is used for flushing, the flushing flow can be adjusted correspondingly. During the adjustment, can stir the slip in first stopper 42 in the opening 3 that corresponds, and then make first stopper 42 realize the extrusion of different degrees to L template 4 for the degree of extrusion of connecting pipe 2 is also adjusted thereupon to the tip of L template 4, flow's when this realization washing liquid is spout from washing pipe 21 regulation, with the washing operation when satisfying medical personnel and corresponding the different demands of patient is adjusted. When the flushing pipe 21 is flushed, the annular rib 22 arranged on the outer side wall of the flushing pipe can realize certain blocking protection for splashing of the cleaning liquid when the flushing pipe is flushed, and the cleaning liquid is prevented from flowing back into the connecting pipe along the edge to cause pollution to the connecting pipe 2.
The above-described embodiments are merely illustrative of the preferred embodiments of the present invention and are not intended to limit the spirit and scope of the present invention. Without departing from the design concept of the present invention, various modifications and improvements made by the technical solution of the present invention by those skilled in the art should fall into the protection scope of the present invention, and the technical contents claimed by the present invention have been fully recorded in the claims.
Claims (6)
1. The utility model provides a novel prevent infecting gynaecology's flusher which characterized in that: comprises a connecting seat (1), a slide way (11) is arranged in the connecting seat (1) in a penetrating manner from top to bottom, a connecting pipe (2) is arranged in the slide way (11) in a penetrating manner, a connecting ring (12) is fixedly arranged at one end of the slide way (11), the connecting ring (12) is fixed with the connecting pipe (2), a flushing pipe (21) is arranged at one end of the connecting pipe (2), the flushing pipe (21) is fixedly connected with the connecting pipe (2) in an inserting manner, an annular flange (22) is fixedly arranged on the flushing pipe (21), an opening (3) is arranged in the connecting seat (1) in a penetrating manner from left to right, the inner side end of the left opening (3) is hinged with an L-shaped plate (4), a first torsion spring (41) is arranged at the hinged position of the L-shaped plate (4), a first limiting block (42) is arranged at the outer side end of the left opening (3), the first limiting block (42) is connected, the first limiting block (42) is in tight contact with the L-shaped plate (4), the opening (3) on the right side is internally hinged with a suspension rod (5), a second torsion spring (52) is arranged at the hinged position of the suspension rod (5), and a suspension groove (51) is arranged on the suspension rod (5) in a penetrating mode.
2. The novel infection-preventing gynecological irrigator according to claim 1, characterized in that: hang the free end activity of pole (5) and wear to be equipped with wire winding pole (6), the fixed second stopper (61) that sets up in both ends of wire winding pole (6), second stopper (61) with hang pole (5) sliding connection, around being equipped with bandage (62) on wire winding pole (6).
3. The novel infection-preventing gynecological irrigator according to claim 2, characterized in that: the connecting pipe (2) adopts a transparent silicone tube.
4. The novel infection-preventing gynecological irrigator according to claim 2, characterized in that: the first limiting block (42) is matched with the opening (3) in shape.
5. The novel infection-preventing gynecological irrigator according to claim 4, characterized in that: and a magnetic layer (43) matched with the first limiting block (42) is correspondingly arranged at the joint of the opening (3).
6. The novel infection-preventing gynecological irrigator according to claim 2, characterized in that: the hanging rod (5) is matched with the opening (3) in shape.
