CN212817437U

CN212817437U - Vaginal douche appliance

Info

Publication number: CN212817437U
Application number: CN202020640887.1U
Authority: CN
Inventors: 陈海平; 李敏燕
Original assignee: Second Affiliated Hospital of Guangzhou Medical University
Current assignee: Second Affiliated Hospital of Guangzhou Medical University
Priority date: 2020-04-25
Filing date: 2020-04-25
Publication date: 2021-03-30
Anticipated expiration: 2030-04-25

Abstract

The utility model discloses a vaginal irrigation appliance. A vaginal lavage appliance, comprising a dilator, an irrigator, and an irrigating tube connecting the dilator and the irrigator, wherein the dilator includes an upper duckbill piece and a lower duckbill piece, and the upper duckbill piece is behind the upper duckbill piece. The end and the rear end of the lower duckbill piece are hingedly combined to form a duckbill piece structure, the inner wall of the upper duckbill piece is provided with an inner lumen for the flushing pipe to be inserted and output, and the length of the inner lumen is shorter than that of the upper duckbill piece, The rear end of the upper duckbill piece is provided with a pipe clamp for clamping the flushing pipe. The utility model relates to a vaginal lavage appliance, which is simple to operate and can improve the therapeutic effect of patients and the working efficiency of medical staff.

Description

Vaginal douche appliance

Technical Field

The utility model relates to the technical field of medical auxiliary equipment, especially, relate to a vaginal lavage apparatus.

Background

Vaginal irrigation is one of the commonly used nursing technologies in gynecology, and can promote vaginal blood circulation, reduce vaginal secretion, relieve local irrigation and achieve the purpose of controlling and treating inflammation. Generally, a medical staff uses a disposable vaginal speculum, a disposable washing bag, a vaginal irrigation bag and other tools for vaginal irrigation.

In the process of vaginal irrigation, a medical worker generally holds the vaginal dilator with one hand and the washing tube with the other hand to flush water, but the vagina cannot be scrubbed with a brush or a cotton swab at the same time, so that the situation that the vagina is not washed cleanly is easy to occur, the treatment effect of a patient is influenced, and inconvenience is brought to the operation of the medical worker. There are vaginal dilators in the market, but ordinary vaginal dilator does not have the part that is used for fixed flushing pipe, and the flushing pipe can hang down naturally in the in-process of lavage vagina, and the flushing pipe can block medical personnel's sight, also can hinder medical personnel's arm operation tool, and this just needs medical personnel to change the flushing pipe ceaselessly and wash the instrument and clear up, can reduce patient's therapeutic effect, also can let medical personnel tired in the operation simultaneously, influences work efficiency.

How to solve the above problems is a technical problem to be solved urgently.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an easy operation and can improve patient's treatment and improve medical personnel's work efficiency's vaginal lavage apparatus.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a pair of vaginal lavage apparatus, including expander, flusher and connection the flushing pipe of expander and flusher, wherein, the expander includes duckbill piece and lower duckbill piece, go up duckbill piece rear end and the articulated duckbill piece formula structure that makes up of duckbill piece rear end go up the inner wall of duckbill piece and be equipped with the inner lumen that supplies the flushing pipe to insert and export and inner lumen length ratio last duckbill piece is short, the rear end of going up the duckbill piece is equipped with the pipe clamp that is used for cliping the flushing pipe.

Furthermore, go up the inboard of duckbilled piece still be equipped with the endoscope and go up that the duckbilled piece inner wall is embedded to have a data spool, a data line one end is passed the data spool and is connected with the endoscope and this data line other end and take the treater of display to be connected.

Furthermore, a water stop clip is arranged on the flushing pipe close to the upper duckbill sheet.

Furthermore, a hanging rope used for hanging the flusher on an externally-arranged infusion support is arranged on the flusher.

Further, the upper duckbill sheet and the lower duckbill sheet are made of transparent materials.

Due to the adoption of the structure, the utility model discloses the beneficial effect who has as follows:

the utility model relates to a vaginal lavage apparatus, through insert the flushing pipe and export interior lumen, then fix the rear end at last duckbill piece through the pipe clamp to fix the flushing pipe and replace the staff to grab and hold the flushing pipe in last duckbill piece, consequently can liberate medical personnel's a hand, be convenient for medical personnel use brush or cotton swab to clean the vagina with the operation of that hand of liberating out, structural design is ingenious, the medical personnel operation of being convenient for, consequently the utility model relates to a vaginal lavage apparatus easy operation can improve patient's treatment effect and improve medical personnel's work efficiency.

The invention will become more apparent from the following description when taken in conjunction with the accompanying drawings which illustrate embodiments of the invention.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required for the embodiments or the prior art descriptions will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without inventive labor.

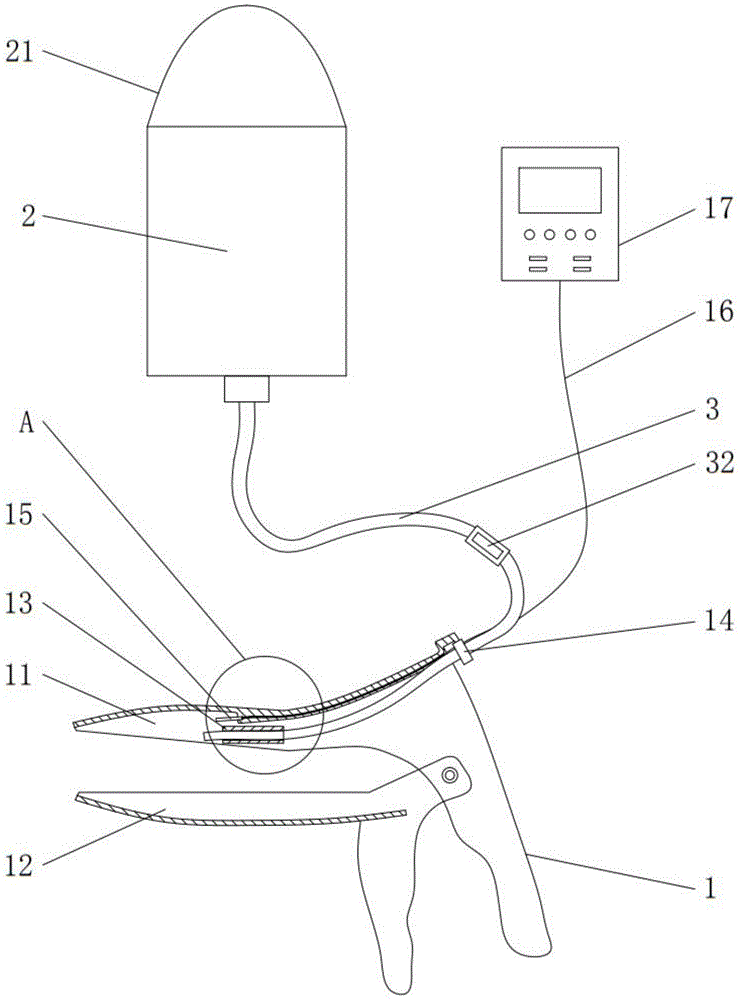

Fig. 1 is a schematic structural view of a vaginal douche device of the present invention; and the number of the first and second groups,

fig. 2 is a partial enlarged view of the point a of the vaginal douche device of the present invention.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, the utility model provides a vaginal lavage apparatus, including expander 1, flusher 2 and wash pipe 3 connecting expander 1 and flusher 2, wherein, expander 1 includes upper duckbill sheet 11 and lower duckbill sheet 12, upper duckbill sheet 11 rear end and lower duckbill sheet 12 rear end are articulated to make up into duckbill piece formula structure, the inner wall of upper duckbill sheet 11 is equipped with inner lumen 13 that supplies wash pipe 3 to insert and export and inner lumen 13 length is shorter than upper duckbill sheet 11, the rear end of upper duckbill sheet 11 is equipped with pipe clamp 14 that is used for cliping wash pipe 3; the flushing pipe 3 is hung in the upper duck mouth piece 11 through the matching of the inner tube cavity 13 and the tube clamp 14, so that one hand of medical staff can be liberated to operate a washing tool, the dilator 1 can be a disposable sterile vaginal dilator, and the flusher 2 can be a disposable enema flusher, so that the medical cost can be saved, and the burden of a patient can be relieved.

In the utility model, the inner side of the upper duck mouth piece 11 is also provided with an endoscope 15, the inner wall of the upper duck mouth piece 11 is embedded with a data line tube 18, one end of a data line 16 passes through the data line tube 18 to be connected with the endoscope 15, and the other end of the data line 16 is connected with a processor 17 with a display; the endoscope 15 can transmit the shot information to the processor 17 through the data line 16, the processor 17 displays the information through the display after the processing is finished, so that medical personnel can check the condition in the vagina through the endoscope 15, and the endoscope 15 can adopt a JE-F04 gynecological endoscope.

In the utility model, a water stop clip 32 is arranged on the flushing pipe 3 close to the upper duckbill sheet 11; can be used for controlling the flow or the stillness of the lavage liquid in the irrigation pipe 3, and is convenient for the operation of medical staff.

In the utility model, a hanging rope 21 for hanging the flusher 2 on an externally arranged infusion support is arranged on the flusher 2; the flusher 2 is conveniently suspended.

In the utility model, the upper duckbill sheet 11 and the lower duckbill sheet 12 are made of transparent materials; the transparent material is adopted to facilitate the light irradiation, and the transparent material can be a medical PVC material which is nontoxic.

The utility model discloses during the specific use, flusher 2 hangs on peripheral hardware infusion support through hanging rope 21, connect expander 1 and flusher 2 with flushing pipe 3, lumen 13 in the flushing pipe 3 front end passes, clip flushing pipe 3 with pipe clamp 14, medical personnel handheld expander 1 stretches into expander 1 in the patient vagina and opens, lavage liquid can follow 3 front ends of flushing pipe and flow after the switch of stagnant water clamp 32 is opened to another hand, then handheld washing tool can wash the vagina, medical personnel can observe the condition in the vagina through the display on treater 17 simultaneously.

The above description is directed to the preferred embodiment of the present invention. It is to be understood that the invention is not limited to the particular embodiments described above, and that devices and structures not described in detail are understood to be implemented in a manner common in the art; without departing from the scope of the invention, it is intended that the present invention shall not be limited to the above-described embodiments, but that the present invention shall include all the modifications and variations of the embodiments. Therefore, any simple modification, equivalent change and modification made to the above embodiments by the technical entity of the present invention all still fall within the protection scope of the technical solution of the present invention, where the technical entity does not depart from the content of the technical solution of the present invention.

Claims

1. A vaginal douche apparatus, comprising a dilator (1), a flusher (2) and a flushing pipe (3) connecting the dilator (1) and the flusher (2), characterized in that: expander (1) is including duck mouth piece (11) and lower duck mouth piece (12), go up duck mouth piece (11) rear end and the articulated duckbilled piece formula structure that makes up of duck mouth piece (12) rear end go up the inner wall of duck mouth piece (11) and be equipped with inner lumen (13) that supply wash pipe (3) to insert and export and inner lumen (13) length ratio is short than last duck mouth piece (11), the rear end of going up duck mouth piece (11) is equipped with pipe clamp (14) that are used for cliping wash pipe (3).

2. A vaginal douche apparatus as claimed in claim 1 wherein: the inner side of the upper duckbill sheet (11) is also provided with an endoscope (15) and a data line tube (18) is embedded in the inner wall of the upper duckbill sheet (11), one end of a data line (16) penetrates through the data line tube (18) to be connected with the endoscope (15) and the other end of the data line (16) is connected with a processor (17) with a display.

3. A vaginal douche apparatus as claimed in claim 2 wherein: a water stop clip (32) is arranged on the flushing pipe (3) close to the upper duck mouth piece (11).

4. A vaginal douche apparatus as claimed in claim 1 wherein: the flusher (2) is provided with a hanging rope (21) for hanging the flusher (2) on an externally arranged infusion support.

5. A vaginal douche apparatus as claimed in claim 1 or claim 2 wherein: the upper duck mouth piece (11) and the lower duck mouth piece (12) are both made of transparent materials.
