Abstract

The utility model belongs to the technical field of the medical treatment auxiliary assembly technique and specifically relates to a novel constraint clothing, including constraint clothing body, the adjustable flexible restraint band in constraint clothing body back, constraint clothing body both sides are equipped with left arm sleeve and right arm sleeve, and left arm sleeve and right arm sleeve front end are equipped with left hand portion and tie the cover with right hand portion, all are equipped with a palm supporting pad in left hand portion tie the cover and the right hand portion tie the cover. The utility model discloses a novel constraint clothing, to tie the clothing body and dress on one's body the patient, adjust flexible about band and magic subsides and tie its constraint clothing body on one's body the patient, then wear into left arm sleeve and right arm sleeve respectively with patient's both arms after, its both hands cover is established into in left hand constraint cover and the right hand constraint cover, realize its constraint to both hands through the about band of left hand and the about band of right hand and zip fastener, this constraint clothing is dressed simply, can tie its patient's both hands effectively, the problem of struggling its both hands and scratching medical personnel has been solved to the patient.

Description

Novel bound clothes

Technical Field

The utility model belongs to the technical field of medical auxiliary equipment technique and specifically relates to a novel constraint clothing.

Background

During the process of diagnosing and curing patients, medical staff often encounter patients with mental disorders caused by mental stimulation or patients with sudden onset of psychosis. Under the control of pathological psychology, they often cannot cooperate with the treatment of medical staff, and have the action of suicide or attack and hurt others. In such situations, medical personnel should quickly take emergency treatment measures to protect their own and other patients' life safety and apply medication to the patient at a later time. For mentally disordered patients, the patient is typically fixed in a bed and then restrained and restrained from wild behavior by a restraining strap.

Among the current constraint device, there is the structure complicacy, be not convenient for control the patient of morbidity to the constraint device on, the constraint in-process again, the auxiliary member of constraint device causes the secondary damage to the patient easily. The existing partial binding device is simple in structure, but has insufficient binding force, so that the pressing force of a single binding structure on a patient is too large easily in the using process, or the patient breaks away due to insufficient binding, and the patient or other people are injured.

SUMMERY OF THE UTILITY MODEL

In order to overcome current patient's disease and struggle on the constraint device and cause self to harm and scratch medical personnel not enough, the utility model provides a novel constraint clothing will tie the clothing body and dress on one's body the patient, tie its constraint clothing body on one's body through adjusting flexible about band and magic subsides, then wear into left arm sleeve and right arm sleeve with patient's both arms respectively after, its both hands cover is established in left hand portion constraint cover and the right hand portion constraint cover, realizes its constraint to both hands through left hand portion constraint area and right hand portion constraint area and zip fastener.

The utility model provides a technical scheme that its technical problem adopted is: the utility model provides a novel constraint clothing, includes the constraint clothing body, the adjustable flexible about band in constraint clothing body back, constraint clothing body both sides are equipped with left arm sleeve and right arm sleeve respectively, left arm sleeve and right arm sleeve front end are equipped with left hand portion constraint cover and right hand portion constraint cover respectively, all be equipped with a palm supporting pad in left hand portion constraint cover and the right hand portion constraint cover.

Furthermore, the middle part of the front end of the binding clothes body is connected and buckled through a magic tape.

Furthermore, the connecting end of the left arm sleeve and the left hand binding sleeve is bound and locked by the left hand binding belt.

Furthermore, the connecting end of the right arm sleeve and the right hand binding sleeve is bound and locked by the right hand binding belt.

Furthermore, the middle parts of the outer surface layers of the left hand binding sleeve and the right hand binding sleeve are connected through zippers.

Furthermore, the palm support pad is made of hard soft rubber.

Furthermore, a finger placing groove group for placing five fingers is arranged at the front end of the upper end surface of the palm supporting pad.

Furthermore, the left-hand binding sleeve and the right-hand binding sleeve are made of breathable fabrics.

The beneficial effects of the utility model are that, the utility model discloses a novel constraint clothing, to tie the clothing body and dress on one's body in the patient, tie its constraint clothing body on one's body through adjusting flexible about band and magic subsides, then wear into left arm sleeve and right arm sleeve respectively with the patient both arms after, its both hands cover is established into in left hand constraint cover and the right hand constraint cover, realize its constraint to both hands through the about band of left hand and the about band of right hand and zip fastener, this constraint clothing dress is simple, can tie its patient both hands effectively, the problem of struggling its both hands and scratching medical personnel has been solved to the patient.

Drawings

The present invention will be further explained with reference to the drawings and examples.

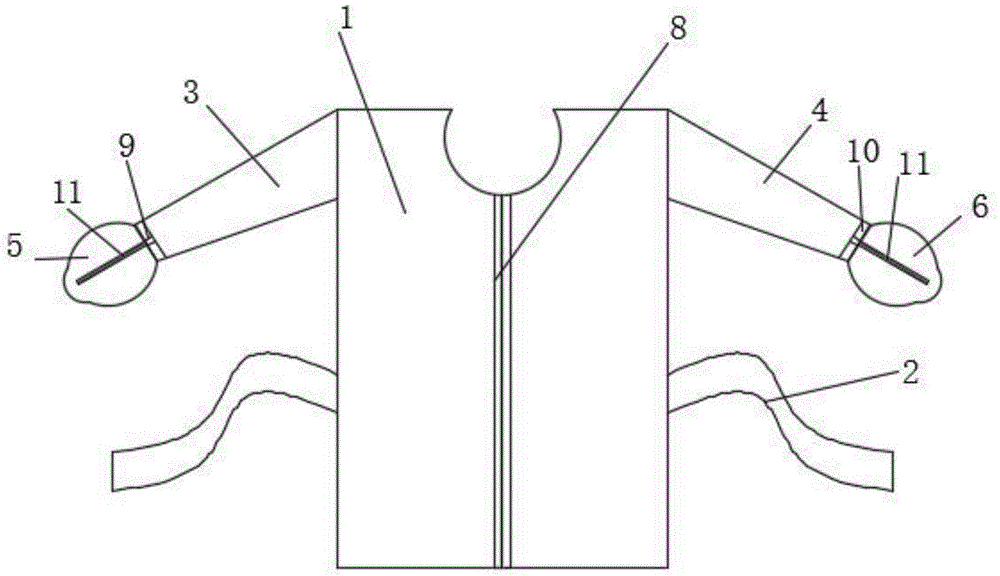

Fig. 1 is a schematic structural diagram of the present invention;

FIG. 2 is a schematic view of the left hand restraint of FIG. 1;

fig. 3 is a schematic view of the palm support pad of fig. 2.

In the figure, 1, a corset body, 2, an adjustable telescopic restraint belt, 3, a left arm sleeve, 4, a right arm sleeve, 5, a left hand restraint sleeve, 6, a right hand restraint sleeve, 7, a palm support pad, 8, a magic tape, 9, a left hand restraint belt, 10, a right hand restraint belt, 11, a zipper and 12, a finger placing groove group.

Detailed Description

Fig. 1 is the utility model discloses a structural schematic diagram, a novel constraint clothing, including constraint clothing body 1, the adjustable flexible about band 2 in 1 back of constraint clothing body, 1 both sides of constraint clothing body are equipped with left arm sleeve 3 and right arm sleeve 4 respectively, left arm sleeve 3 and 4 front ends of right arm sleeve are equipped with left hand portion constraint cover 5 and right hand portion constraint cover 6 respectively, all be equipped with a palm supporting pad 7 in left hand portion constraint cover 5 and the right hand portion constraint cover 6.

As shown in figure 1, the middle part of the front end of the body of the binding clothes 1 is connected and buckled through a magic tape 8. The magic tape 8 is convenient for wearing and taking off the clothes of the binding clothes body 1.

As shown in figure 1, the connecting end of the left arm sleeve 3 and the left hand part constraining sleeve 5 is constrained and locked by the left hand part constraining belt 9.

As shown in figure 1, the connecting end of the right arm sleeve 4 and the right hand binding sleeve 6 is bound and locked by the right hand binding belt 10.

Referring to fig. 1 and 2, the middle parts of the outer surface layers of the left hand binding sleeve 5 and the right hand binding sleeve 6 are connected through a zipper 11.

As shown in fig. 2 and 3, the palm support pad 7 is made of hard soft rubber. The comfort level of the palm of the patient in the supporting process is improved.

As shown in fig. 3, a finger placing groove group 12 for placing five fingers is provided at the front end of the upper end surface of the palm support pad 7. The finger placing groove group 12 is used for placing five fingers of a clamping and embedding patient.

Referring to fig. 1 and 2, the left and right hand cuffs 5 and 6 are made of breathable fabric. The air permeability of the palm of the patient is improved.

During the use, will tie clothing body 1 and dress on one's body the patient, paste 8 with its tie clothing body 1 and tie on one's body the patient through adjusting flexible about band 2 and magic, then wear into left arm sleeve 3 and right arm sleeve 4 back respectively with patient's both arms, its both hands cover is established in left hand portion tie cover 5 and right hand portion tie cover 6, realize its tie to both hands through about band 9 of left hand portion and about band 10 of right hand portion and zip fastener 11, this tie clothing dress is simple, can tie its patient both hands effectively, the problem of patient struggling its both hands and scratching medical personnel has been solved.

The foregoing description is intended to be illustrative rather than limiting, and it will be appreciated by those skilled in the art that many modifications, variations or equivalents may be made without departing from the spirit and scope of the invention as defined in the appended claims.

Claims

1. The utility model provides a novel constraint clothing, includes constraint clothing body (1), characterized by, adjustable flexible about band (2) in constraint clothing body (1) back, constraint clothing body (1) both sides are equipped with left arm sleeve (3) and right arm sleeve (4) respectively, left arm sleeve (3) and right arm sleeve (4) front end are equipped with left hand portion constraint cover (5) and right hand portion constraint cover (6) respectively, all be equipped with one palm supporting pad (7) in left hand portion constraint cover (5) and the right hand portion constraint cover (6).

2. The novel bound clothes of claim 1, wherein the middle part of the front end of the bound clothes body (1) is connected and buckled through a magic tape (8).

3. The novel bound clothes of claim 1, wherein the connecting end of the left arm sleeve (3) and the left hand binding sleeve (5) is bound and locked by a left hand binding belt (9).

4. The novel bound clothes of claim 1, wherein the connecting end of the right arm sleeve (4) and the right hand binding sleeve (6) is bound and locked by a right hand binding belt (10).

5. The novel bound clothes of claim 1, wherein the middle parts of the outer surface layers of the left hand bound sleeve (5) and the right hand bound sleeve (6) are connected through a zipper (11).

6. The new type of corset according to claim 1, characterized in that the palm support pad (7) is made of hard soft gel.

7. The novel bound clothes of claim 1, wherein the palm support pad (7) is provided with finger placing grooves (12) at the front end of the upper end face for placing five fingers.

8. The novel restraining coat according to claim 1, wherein the left-hand (5) and right-hand (6) restraining sleeves are made of breathable fabric.
