本实用新型公开了一种高塔式全自动化特种砂浆生产线，它包括高塔框架、物料仓、外加剂投料斗、斗式提升机和气力输送装置，所述气力输送装置设置在高塔框架的底层，所述气力输送装置的出料口通过管道连接外加剂投料斗，所述斗式提升机设置在高塔框架的侧面并从高塔框架的底层延伸至顶层，所述物料仓固定在高塔框架的顶层，所述斗式提升机适于将砂石物料运输至物料仓内。本实用新型提供一种高塔式全自动化特种砂浆生产线，它可以对外加剂粉料和砂石物料分开运输。
The utility model discloses a high-tower-type fully automatic special mortar production line, which comprises a high-tower frame, a material bin, an admixture feeding hopper, a bucket elevator and a pneumatic conveying device. The bottom layer, the discharge port of the pneumatic conveying device is connected to the admixture feeding hopper through a pipeline, the bucket elevator is arranged on the side of the high tower frame and extends from the bottom layer of the high tower frame to the top layer, and the material bin is fixed on the high tower frame. The top layer of the tower frame, the bucket elevator is suitable for transporting sand and gravel materials into the material bin. The utility model provides a high-tower type fully automatic special mortar production line, which can be transported separately from the powder of the admixture and the material of sand and gravel.
Description
Technical Field
The utility model relates to a high tower full automatization special type mortar production line.
Background
At present, when mortar used in the construction industry is produced, a plurality of powder materials are required to be mixed in proportion and then stirred, so that a finished mortar product is obtained. The powder can be divided into the powdered additive powder of tiny and grit granule slightly bigger, and these two kinds of materials adopt same kind of charging equipment to transport usually, then store in the material storehouse, mix by the mixer again, and if tiny powdered additive powder transports grit granule lifting means, can lead to the additive powder to appear raise dust and powder and remain phenomenons such as, and the material loading effect is poor, causes environmental pollution and raw and other materials extravagant.
Disclosure of Invention
The utility model aims to solve the technical problem that, overcome prior art not enough, provide a high tower full automatization special type mortar production line, it can separately transport to admixture powder and sand stone material.
In order to solve the technical problem, the technical scheme of the utility model is that:
a high tower type full-automatic special mortar production line comprises a high tower frame, a material bin, an additive feeding hopper, a bucket elevator and a pneumatic conveying device, wherein the pneumatic conveying device is arranged at the bottom layer of the high tower frame, a discharge port of the pneumatic conveying device is connected with the additive feeding hopper through a pipeline, the bucket elevator is arranged on the side surface of the high tower frame and extends to the top layer from the bottom layer of the high tower frame, the material bin is fixed at the top layer of the high tower frame, and the bucket elevator is suitable for conveying gravel materials into the material bin.
Further, pneumatic conveyor includes additive storage storehouse and delivery tank, the discharge gate of additive storage storehouse passes through the pipeline and links to each other with the feed inlet of delivery tank, the discharge gate of delivery tank passes through the pipeline and links to each other with the additive feeding hopper.
Furthermore, the feed inlet of the bucket elevator is positioned at the bottom layer of the high tower frame, and the discharge outlet of the bucket elevator is connected with the feed inlet of the material bin.
Further, the device comprises a weighing device and a mixing machine, wherein the bottom of the material bin is connected with a feeding port of the weighing device through a pipeline, a discharging port at the bottom of the weighing device is connected with a feeding port of the mixing machine, and a discharging port of the additive feeding hopper is connected with a feeding port of the mixing machine.
Further, including finished product storehouse in bulk, packagine machine and packing belt feeder, the feed inlet in finished product storehouse in bulk links to each other with the discharge gate that mixes the machine, the discharge gate in finished product storehouse in bulk links to each other with packagine machine's feed inlet, the packing belt feeder is fixed at the bottom of high tower frame and is located packagine machine's discharge gate below.
Having adopted above-mentioned technical scheme, the utility model discloses a bucket elevator and pneumatic conveyor separately transport grit material and admixture powder, make the admixture powder can fully transport in the blender to the appearance of raise dust has been avoided. Two kinds of materials separately transport's mode for the effect of material transport is better, and efficiency is higher.
Drawings

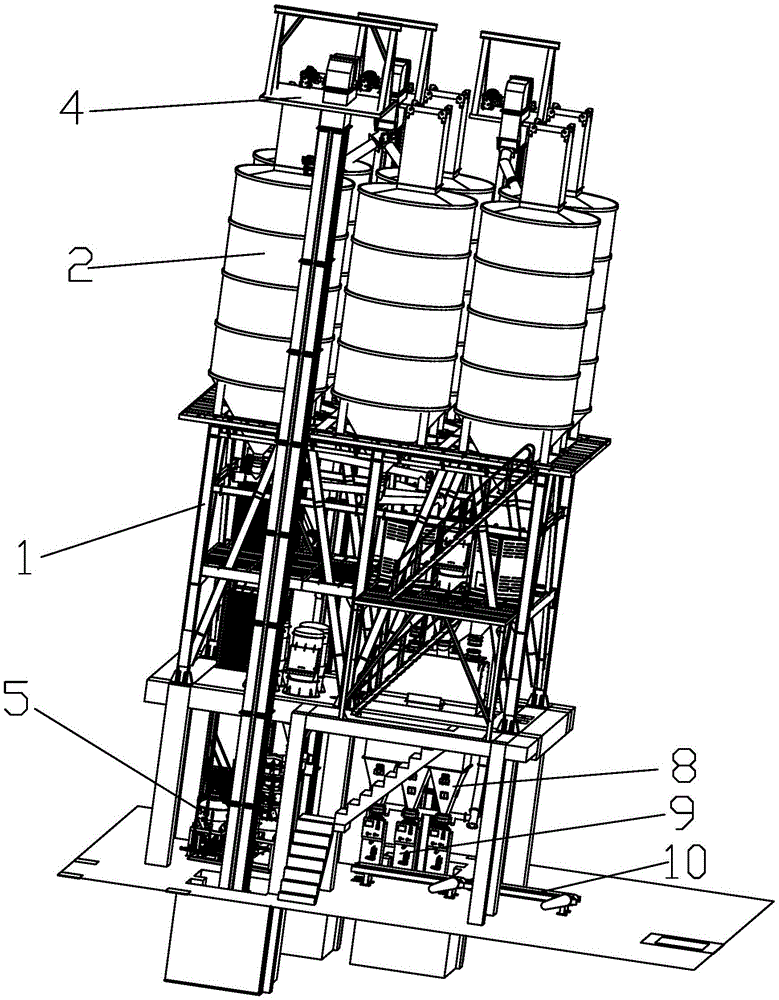

FIG. 1 is a front view of a high tower type fully automatic special mortar production line of the present invention;
FIG. 2 is a schematic view of the structure of FIG. 1 with the tall tower frame removed;
fig. 3 is a schematic view of the bucket elevator and the material bin of the present invention;
fig. 4 is a schematic structural view of the pneumatic conveying device of the present invention.
Detailed Description
In order that the present invention may be more readily and clearly understood, the following detailed description of the present invention is provided in connection with the accompanying drawings.
As shown in fig. 1 to 4, a high tower type full-automatic special mortar production line comprises a high tower frame 1, a material bin 2, an additive feeding hopper 3, a bucket elevator 4 and an air conveying device 5. The pneumatic conveying device 5 is arranged at the bottom layer of the high tower frame 1, a discharge port of the pneumatic conveying device 5 is connected with the additive feeding hopper 3 through a pipeline, and additive powder is sent into the additive feeding hopper 3 by the pneumatic conveying device 5 through pressure; bucket elevator 4 sets up in high tower frame 1's side and extends to the top layer from high tower frame 1's bottom, and material storehouse 2 is fixed at high tower frame 1's top layer, and the feed inlet of bucket elevator 4 is located high tower frame 1's bottom, and the discharge gate of bucket elevator 4 links to each other with the feed inlet of material storehouse 2, and bucket elevator 4 is suitable for transporting the grit material to in the material storehouse 2.
As shown in FIGS. 2 and 4, the pneumatic conveying device 5 comprises an additive storage bin 51 and a delivery tank 52, wherein a discharge port of the additive storage bin 51 is connected with a feed port of the delivery tank 52 through a pipeline, and a discharge port of the delivery tank 52 is connected with an additive feeding hopper 3 through a pipeline. The air pressure valve is arranged on the sending tank 52, high pressure is generated in the tank after ventilation, the additive powder is sent into the additive feeding hopper 3, the additive powder in the tank can be fully sent without residue, the whole sending process is carried out in the sending tank 52, the additive feeding hopper 3 and the pipeline, and no dust is generated.
As shown in figure 2, the device comprises a weighing device 6 and a mixing machine 7, wherein the bottom of a material bin 2 is connected with a feeding hole of the weighing device 6 through a pipeline, a discharging hole at the bottom of the weighing device 6 is connected with a feeding hole of the mixing machine 7, and a discharging hole of an additive feeding hopper 3 is connected with a feeding hole of the mixing machine 7. The weighing device 6 is used for measuring and weighing the sandstone materials falling from the material bin 2 according to the production requirements, and the sandstone materials and the additive powder are fully mixed and stirred in the mixer 7 to obtain the bulk mortar finished product.
As shown in fig. 2, the device comprises a bulk finished product bin 8, a packaging machine 9 and a packaging belt conveyor 10, wherein a feeding port of the bulk finished product bin 8 is connected with a discharging port of the mixing machine 7, a discharging port of the bulk finished product bin 8 is connected with a feeding port of the packaging machine 9, and the packaging belt conveyor 10 is fixed at the bottom layer of the high tower frame 1 and is positioned below the discharging port of the packaging machine 9. The mortar finished products in bulk enter a bulk finished product bin 8 from a mixing machine 7, and are packed by a packing machine 9, and the packed mortar finished products are transported by a packing belt conveyor 10.
The above embodiments further describe the technical problems, technical solutions and advantages of the present invention in detail, it should be understood that the above embodiments are only specific embodiments of the present invention, and are not intended to limit the present invention, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. A high tower type full-automatic special mortar production line is characterized in that: the device comprises a high tower frame (1), a material bin (2), an additive feeding hopper (3), a bucket elevator (4) and a pneumatic conveying device (5), wherein the pneumatic conveying device (5) is arranged at the bottom layer of the high tower frame (1), a discharge port of the pneumatic conveying device (5) is connected with the additive feeding hopper (3) through a pipeline, the bucket elevator (4) is arranged on the side surface of the high tower frame (1) and extends to the top layer from the bottom layer of the high tower frame (1), the material bin (2) is fixed at the top layer of the high tower frame (1), and the bucket elevator (4) is suitable for conveying sandstone materials into the material bin (2).
2. The high tower type full-automatic special mortar production line according to claim 1, characterized in that: the pneumatic conveying device (5) comprises an additive storage bin (51) and a sending tank (52), wherein a discharge hole of the additive storage bin (51) is connected with a feed inlet of the sending tank (52) through a pipeline, and a discharge hole of the sending tank (52) is connected with an additive feeding hopper (3) through a pipeline.
3. The high tower type full-automatic special mortar production line according to claim 1, characterized in that: the feed inlet of bucket elevator (4) is located the bottom of high tower frame (1), the discharge gate of bucket elevator (4) links to each other with the feed inlet of material storehouse (2).
4. The high tower type full-automatic special mortar production line according to claim 1, characterized in that: the device comprises a weighing device (6) and a mixing machine (7), wherein the bottom of a material bin (2) is connected with a feed inlet of the weighing device (6) through a pipeline, a discharge outlet at the bottom of the weighing device (6) is connected with a feed inlet of the mixing machine (7), and a discharge outlet of an additive feeding hopper (3) is connected with a feed inlet of the mixing machine (7).
5. The high tower type full-automatic special mortar production line according to claim 4, characterized in that: including finished product storehouse in bulk (8), packagine machine (9) and packing belt feeder (10), the feed inlet in finished product storehouse in bulk (8) links to each other with the discharge gate that mixes machine (7), the discharge gate in finished product storehouse in bulk (8) links to each other with the feed inlet of packagine machine (9), packing belt feeder (10) are fixed in the bottom of high tower frame (1) and are located the discharge gate below of packagine machine (9).
