Abstract
The utility model relates to an electrical cabinet field discloses an regulator cubicle convenient to installation and debugging and maintenance. The method comprises the following steps: the cabinet body, the internal inner chamber of having seted up of cabinet, locate respectively the inner chamber lateral wall first frame and second frame, with first frame and second frame sliding fit's mounting panel, the mounting panel is relative the one end of mounting panel carries out rotary motion, locates the mounting panel top with the cabinet body cooperation is used for the restriction the stop device of mounting panel position. The utility model discloses a cooperation setting of first frame, second frame, mounting panel and stop device has made things convenient for the staff to install, debug and maintain the internal components and parts of cabinet.
Description
Technical Field
The utility model relates to an electrical cabinet field, in particular to regulator cubicle convenient to installation and debugging and maintenance.
Background
The electrical cabinet is a cabinet which is manufactured by steel materials and used for protecting circuit elements from working normally. The electric cabinet manufacturing material is generally divided into hot rolled steel and cold rolled steel, and is widely applied to the chemical industry, the environmental protection industry, the power system, the metallurgical system, the industry, the nuclear power industry, the fire safety monitoring and traffic industry and the like. The existing electrical cabinet is characterized in that the position structure of the electrical element mounted inside the electrical cabinet is mostly fixedly connected with the electrical cabinet, when the electrical element is mounted, debugged and maintained, the electrical cabinet is obstructed by the upper and lower left and right cabinet walls of the electrical cabinet, the sight line is dark, and the overhaul difficulty is brought to workers.
SUMMERY OF THE UTILITY MODEL
For solving the technical problem, the utility model provides a regulator cubicle convenient to installation and debugging and maintenance sets up through first frame, second frame, mounting panel and stop device's cooperation, has made things convenient for the staff to install, debug and maintain the internal components and parts of cabinet.
In order to achieve the above purpose, the technical scheme of the utility model is as follows:
an electrical cabinet convenient to install, debug and overhaul, comprising:
the refrigerator comprises a cabinet body, wherein an inner cavity is formed in the cabinet body;
locate respectively the inner chamber lateral wall first frame and second frame, with first frame and second frame sliding type complex mounting panel, the mounting panel is relative the one end of mounting panel carries out rotary motion, locates the mounting panel top with the cabinet body cooperation is used for the restriction the stop device of mounting panel position.
Realize above-mentioned technical scheme, when installing and debugging and overhauing the internal components and parts of cabinet, through stop device, make the mounting panel can remove on first frame and second frame, when the one end of mounting panel removed and can not remove, the relative mounting panel one end that can not remove of the other end of mounting panel rotated, made the components and parts of mounting panel expose outside the cabinet body, made things convenient for staff's installation and debugging and maintenance.
As an optimized proposal of the utility model, the two ends of the cabinet body are provided with the cabinet doors for opening and closing the cabinet body.
Realize above-mentioned technical scheme, through setting up the cabinet door, make the cabinet body have dustproof, waterproof and fireproof's function, improved the security performance of the cabinet body greatly.
As a preferred scheme of the present invention, linear chutes and arc chutes butted with the linear chutes are symmetrically formed in the first frame in the vertical direction; and a through groove along the height direction of the second frame is formed in the second frame.
Realize above-mentioned technical scheme, through the setting of sharp spout, arc spout and logical groove, made things convenient for the removal of mounting panel.
As a preferred scheme of the utility model, a pulley matched with the linear chute and the arc chute is arranged on one side of the mounting plate, which is close to the first frame; a sliding rod is sleeved on one side of the mounting plate and matched with the through groove; and a handle for pulling the mounting plate to move is arranged on the mounting plate.
Realize above-mentioned technical scheme, through manual pulling handle, make the mounting panel remove, specifically, at slide bar and lead to groove cooperation and pulley and sharp spout cooperation, when the pulling mounting panel was to can not removing, only need the pulling to be close to the handle of first frame one side, made the one end of mounting panel rotate on the slide bar, and the pulley of mounting panel then entered into the arc spout by sharp spout, made things convenient for withdrawing from of mounting panel.
As an optimized scheme of the utility model, stop device includes: the device comprises a fixed seat, a supporting spring, a limiting rod and a limiting bolt; the fixed seats are arranged at the top of the mounting plate at intervals, the supporting springs are arranged in the fixed seats, and the limiting rods are connected to the supporting springs; the cabinet body is provided with a threaded hole corresponding to the limiting rod, and the limiting bolt in threaded connection with the cabinet body is arranged in the threaded hole.
When the mounting plate can move, the limiting bolt is rotated firstly, the limiting rod abutting against the limiting bolt moves downwards, the supporting spring is in a compressed state, and then the mounting plate is pulled to move through the steps.
To sum up, the utility model discloses following beneficial effect has: when installing and debugging and overhauing the internal components and parts of cabinet, through stop device, make the mounting panel can remove on first frame and second frame, when the one end of mounting panel removed and can not remove, the relative mounting panel one end that can not remove of the other end of mounting panel rotated, made the components and parts of mounting panel expose outside the cabinet body, made things convenient for staff's installation and debugging and maintenance.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

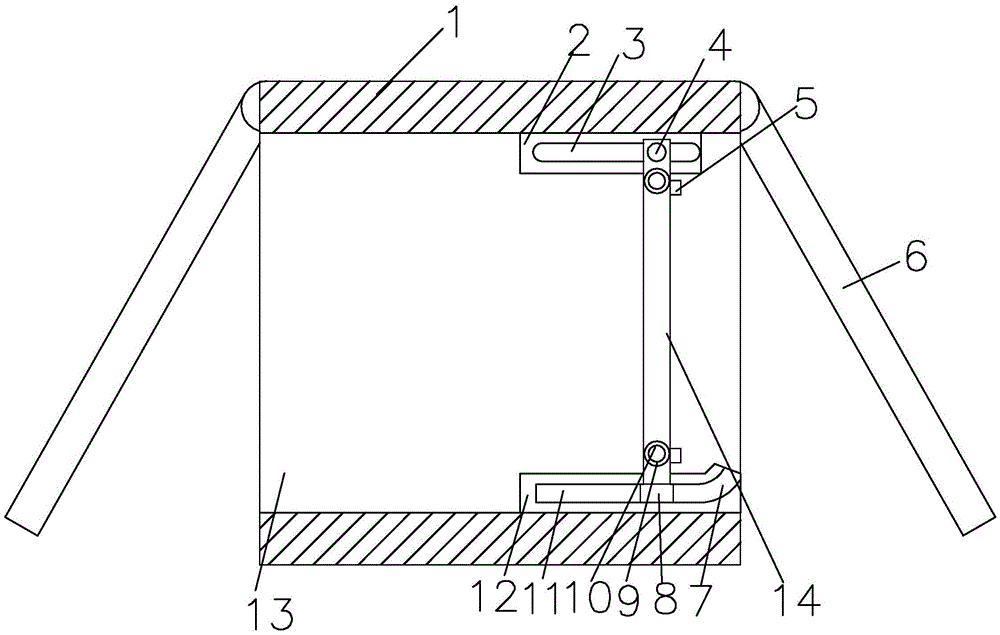

Fig. 1 is a schematic top view of the present invention.
Fig. 2 is a schematic diagram of the structure viewed from the right side of the present invention.
The corresponding part names indicated by the numbers and letters in the drawings:
1. a cabinet body; 2. a second frame; 3. a through groove; 4. a slide bar; 5. a handle; 6. a cabinet door; 7. an arc-shaped chute; 8. a pulley; 9. a fixed seat; 10. a limiting rod; 11. a linear chute; 12. a first frame; 13. an inner cavity; 14. mounting a plate; 15: a limit bolt; 16. supporting the spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Examples
As shown in fig. 1 to 2, the utility model relates to an regulator cubicle convenient to installation and debugging and maintenance, include: the cabinet comprises a cabinet body 1, an inner cavity 13 is arranged in the cabinet body 1, and cabinet doors 6 for opening and closing the cabinet body 1 are arranged at two ends of the cabinet body 1. Through setting up cabinet door 6, make the cabinet body 1 have dustproof, waterproof and fireproof function, improved the security performance of the cabinet body 1 greatly.
Specifically, locate first frame 12 and second frame 2 of inner chamber 13 lateral wall respectively, with first frame 12 and second frame 2 sliding fit's mounting panel 14, mounting panel 14 carries out rotary motion, locates the mounting panel 14 top and cooperates with cabinet body 1 for the stop device of limiting mounting panel 14 position relative to the one end of mounting panel 14.
Wherein, the first frame 12 is provided with linear chutes 11 and arc chutes 7 which are connected with the linear chutes 11 in an up-down symmetrical manner; the second frame 2 is provided with a through groove 3 along the height direction of the second frame 2. Through the arrangement of the straight chute 11, the arc chute 7 and the through groove 3, the mounting plate 14 is convenient to move.
A pulley 8 matched with the linear chute 11 and the arc chute 7 is arranged on one side of the mounting plate 14, which is close to the first frame 12; a sliding rod 4 is sleeved on one side of the mounting plate 14, and the sliding rod 4 is matched with the through groove 3; a handle 5 for pulling the mounting plate 14 to move is arranged on the mounting plate 14. Through manual pulling handle 5, make mounting panel 14 remove, specifically, at slide bar 4 and logical groove 3 cooperation and pulley 8 and the cooperation of sharp spout 11, when pulling mounting panel 14 to can not moving, only need the pulling handle 5 that is close to first frame 12 one side, make the one end of mounting panel 14 rotate on slide bar 4, and pulley 8 of mounting panel 14 then enters into arc spout 7 by sharp spout 11, makes things convenient for withdrawing from of mounting panel 14.
Stop device includes: the fixing seat 9, the supporting spring, the limiting rod 10 and the limiting bolt; the top of the mounting plate 14 is provided with fixed seats 9 at intervals, supporting springs are arranged in the fixed seats 9, and limiting rods 10 are connected to the supporting springs; a threaded hole corresponding to the limiting rod 10 is formed in the cabinet body 1, and a limiting bolt in threaded connection with the cabinet body 1 is arranged in the threaded hole. When the mounting plate 14 can move, the limit bolt is rotated to make the limit rod 10 abutting against the limit bolt move downwards, the support spring is in a compressed state, and then the mounting plate 14 is pulled to move.
In this embodiment, when installing and debugging and examining and repairing the components and parts in the cabinet body 1, through stop device, make mounting panel 14 can remove on first frame 12 and second frame 2, when the one end of mounting panel 14 removed and can not remove, the one end that the relative mounting panel 14 of the other end of mounting panel 14 can not remove rotates, makes the components and parts of mounting panel 14 expose outside the cabinet body 1, makes things convenient for staff's installation and debugging and maintenance.
The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
Claims (5)
1. The utility model provides an regulator cubicle convenient to installation and debugging and maintenance which characterized in that includes:
the refrigerator comprises a cabinet body, wherein an inner cavity is formed in the cabinet body;
locate respectively the inner chamber lateral wall first frame and second frame, with first frame and second frame sliding type complex mounting panel, the mounting panel is relative the one end of mounting panel carries out rotary motion, locates the mounting panel top with the cabinet body cooperation is used for the restriction the stop device of mounting panel position.
2. The electrical cabinet convenient to install, debug and overhaul as claimed in claim 1, wherein two ends of the cabinet body are provided with cabinet doors for opening and closing the cabinet body.
3. The electrical cabinet convenient to install, debug and overhaul as claimed in claim 1, wherein the first frame is provided with linear chutes and arc chutes in up-down symmetry, wherein the arc chutes are butted with the linear chutes; and a through groove along the height direction of the second frame is formed in the second frame.
4. The electrical cabinet convenient to install, debug and overhaul as claimed in claim 3, wherein a pulley cooperating with the linear chute and the arc chute is arranged on the mounting plate on a side close to the first frame; a sliding rod is sleeved on one side of the mounting plate and matched with the through groove; and a handle for pulling the mounting plate to move is arranged on the mounting plate.
5. The electrical cabinet convenient to install, debug and overhaul as claimed in claim 1, wherein the limiting device comprises: the device comprises a fixed seat, a supporting spring, a limiting rod and a limiting bolt; the fixed seats are arranged at the top of the mounting plate at intervals, the supporting springs are arranged in the fixed seats, and the limiting rods are connected to the supporting springs; the cabinet body is provided with a threaded hole corresponding to the limiting rod, and the limiting bolt in threaded connection with the cabinet body is arranged in the threaded hole.
