Abstract

The utility model discloses an electric medical bed pusher with lifting function, which comprises a bed frame, wherein a sickbed headboard and a sickbed footboard are respectively and fixedly arranged at two ends of the bed frame, guardrails are movably arranged at two sides of the bed frame, a fixed bed board, a second movable board and a first movable board are sequentially arranged at the top of the bed frame from the sickbed footboard to the sickbed headboard, four corners of the bottom of the bed frame are respectively provided with a fixed base, a first support leg is fixedly inserted in the fixed base, the first support leg is movably connected with a second support leg through a fixed knob, the second support leg is fixedly arranged on a bottom object placing board, the center relative positions of the bottom object placing board, the second movable board and the first movable board are respectively provided with a hydraulic press, the top of the hydraulic press is provided with a hydraulic telescopic rod, and the lifting can be controlled by the hydraulic press and the movable board, the effect of lifting is adjusted to the button, uses manpower sparingly, convenient operation.

Description

Electric medical manipulator with lifting function
Technical Field
The utility model belongs to the technical field of the sick bed, concretely relates to electronic medical bed with raising and lowering functions.
Background
The medical sickbed can also be called a medical bed, a nursing bed and the like, is used when a patient is in hospital, and is mainly used in various hospitals, village and town health hospitals, community health service centers and the like. There are many classifications of medical beds, including the following: according to the material, divide into ABS medical sick bed, full stainless steel medical sick bed, half stainless steel medical sick bed, full steel system plastic-sprayed medical sick bed etc. according to the material, divide into electronic medical sick bed and manual medical sick bed according to the function, wherein electronic medical sick bed can divide into five function electronic medical sick beds and three function electronic medical sick beds etc. again, manual medical sick bed can divide into two medical sick beds of shaking, single medical sick bed, dull and stereotyped medical sick bed again, according to whether can remove the branch, can divide into wheeled medical sick bed and indicate right angle medical sick bed, wherein electronic medical sick bed generally all is portable band pulley, in addition, there are some other special function's sick beds, for example: an ultra-low three-function electric bed, a home nursing bed, a medical bed with a bed pan, a scald turning bed, a rescue bed, a mother and child bed, a baby bed, a child bed, an ICU monitoring bed, an examination bed and the like.
At present, sickbeds used by most hospitals basically rely on manual work to push, so that time and labor are wasted, the pushing force is not uniform enough, the patients are easy to bump, the physical health of the patients is further influenced, the sickbeds are not favorable for doctors to use, and certain inconvenience is brought to the people.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome current defect, an electronic medical bed with raising and lowering functions is provided to solve the sick bed that most uses of present hospital that proposes in the above-mentioned background art and rely on the manual work to promote basically, not only waste time and energy, the power of promoting is not enough even moreover, lead to the patient to produce easily and jolt, and then influence the healthy of patient, and also do not benefit to doctor's use, give people and bring certain inconvenient problem.
In order to achieve the above object, the utility model provides a following technical scheme: an electric medical bed with a lifting function comprises a bed frame, a sickbed head plate and a sickbed tail plate are respectively and fixedly arranged at two ends of the bed frame, a bed frame cross shaft is fixedly arranged in the bed frame, guardrails are movably arranged at two sides of the bed frame, a fixed bed plate, a second movable plate and a first movable plate are sequentially arranged at the top of the bed frame from the sickbed tail plate to the sickbed head plate, movable plate bottom frames are respectively arranged at the bottoms of the second movable plate and the first movable plate, the first movable plate and the fixed bed plate are movably connected through a rotating shaft I, four corners of the bottom of the bed frame are respectively provided with a fixed base II, a first supporting leg I is fixedly inserted and fixed in the fixed base II, the first supporting leg I is movably connected with a second supporting leg II through a fixed rotating knob, the bottoms of the second supporting leg II are respectively and fixedly arranged on a bottom object placing plate, and hydraulic presses are respectively, and a hydraulic telescopic rod is arranged at the top of the hydraulic press.
Preferably, a first fixed base is fixedly arranged on one side of the sickbed headboard, a transfusion bottle telescopic rod is movably inserted into the first fixed base, a hook base is movably arranged at the top of the transfusion bottle telescopic rod, and medicine bottle hooks are equidistantly arranged on the circumferential side of the transfusion bottle telescopic rod.
Preferably, the fixed controller that is provided with in one side that the transfusion bottle telescopic link was kept away from to sick bed headboard places the box, sick bed headboard upper end is provided with the spring wire, the one end fixedly connected with sick bed mobile control switch of spring wire, the size that the box was placed to the controller is greater than sick bed mobile control switch, the positive lower extreme of sick bed footboard is provided with sick bed lift controller, sick bed lift controller passes through the wire with sick bed mobile control switch and hydraulic press from internal connection of bed.
Preferably, a fixable rotating shaft is movably connected between the bedstead and the guardrails, a control handle is arranged outside the fixable rotating shaft, the fixed base II and the upper ends of the first supporting legs are sequentially connected in a penetrating manner through fixing screws, the opposite surfaces of the first supporting legs are fixedly provided with fixing cross shafts, the lower ends of the bottoms of the two sides of the bedstead are provided with airing rods, and the airing rods are fixedly connected with the upper ends of the first supporting legs at the same side.
Preferably, the inside activity of putting the thing board in bottom is provided with the table, table bottom both ends all are provided with table articulated shaft and table landing leg, thing board bottom surface four corners is all provided with the wheel base in the bottom, the fixed support that is provided with in wheel base bottom, the support bottom is provided with the wheel.
Preferably, the outside of hydraulic press is provided with the elasticity safety cover, elasticity safety cover fixed connection puts the top of thing board and the bottom of fly leaf underframe in the bottom, the inside fixed fly leaf underframe cross axle that is provided with of fly leaf underframe, the top of hydraulic telescoping rod and the fixed welding in center of the fly leaf underframe cross axle of the inside setting of fly leaf underframe, first fly leaf is provided with the cross axle with the hydraulic telescoping rod junction, the cross axle both ends are provided with pivot two, the fixed welding of pivot two is on the fly leaf underframe of first fly leaf bottom, the inside pivot pearl that is provided with of pivot two.
Compared with the prior art, the utility model provides an electronic medical bed with raising and lowering functions possesses following beneficial effect:
1. the utility model can be controlled by the hydraulic telescopic rod to lift through the hydraulic press and the movable plate, so as to achieve the effect of adjusting the lifting by the button, save labor and facilitate operation, the fixed seat is arranged through the head board of the sickbed, the transfusion bottle telescopic rod is inserted into the fixed seat, so as to reduce the space occupied by the transfusion bottle placing rack, the length of the telescopic rod can be freely adjusted, and the telescopic rod can be freely taken down, so that the hanging water of a patient can be conveniently adjusted or taken down according to the self requirement;
2. the bed head controller is arranged to facilitate the patient to adjust the bed height according to the requirement, the speed is fast, time and labor are saved, the arrangement of the fixed cross shaft between the first support leg and the second support leg is used for enhancing the stability between the support legs, and the fixed rotating knob between the support legs can enable the bed body to be lifted integrally according to the adjustment tightness;
3. the wheels are arranged to facilitate the movement of the sickbed, the table plate is inserted to save space and facilitate dining of patients, the support of the dining table can be clamped and fixed outside the guardrail, the stability is enhanced, the hydraulic press is shielded by the elastic protective cover to play a role in beauty, and the motor shaft of the motor at the lower end of the sickbed can be driven to drive the wheel shaft to rotate through the arranged sickbed movement control switch, so that the wheel shaft drives the wheels to move the sickbed, thereby facilitating doctors to quickly move the patients, and saving time and labor;
the part that does not relate to in the device all is the same with prior art or can adopt prior art to realize, the utility model has the advantages of being scientific and reasonable in structure, convenience safe in utilization provides very big help for people.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description, do not constitute a limitation of the invention, in which:

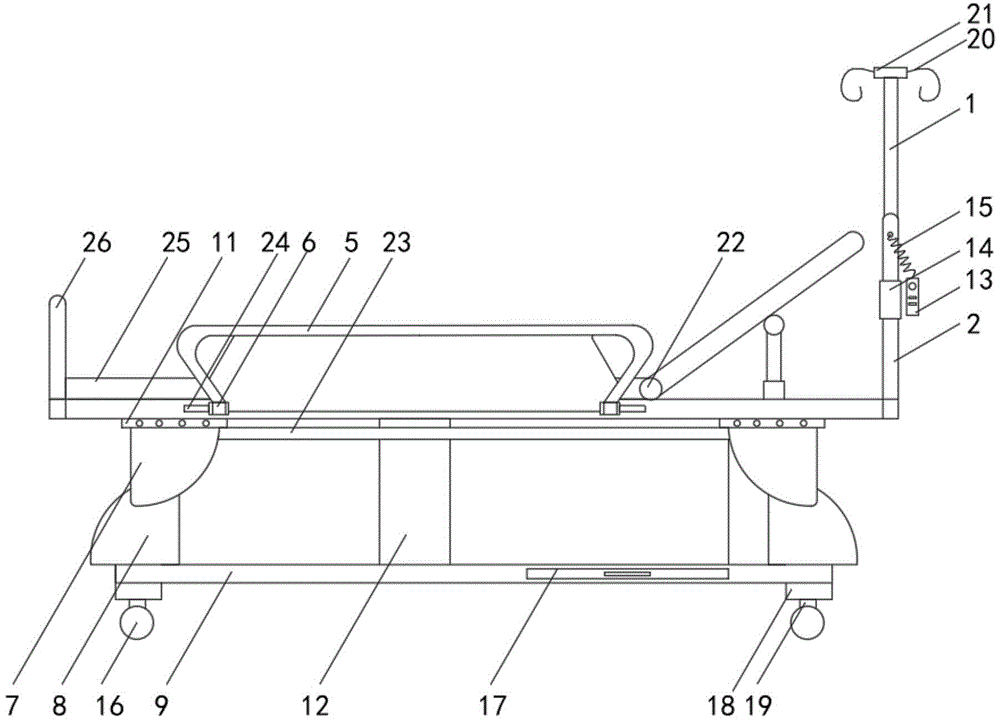

fig. 1 is a schematic structural view of an electric medical manipulator with a lifting function;
FIG. 2 is a schematic view of the middle side of an electric medical manipulator with lifting function;
FIG. 3 is a schematic structural view of a side section of an electric medical manipulator with a lifting function;
fig. 4 is a schematic structural view of a connection detail of a hydraulic telescopic rod and a first movable plate in the electric medical bed stretcher with a lifting function;
FIG. 5 is a schematic structural view of a table plate of the electric medical pushing bed with a lifting function;
FIG. 6 is a schematic view showing the inner details of the rotating shaft of the electric medical manipulator with lifting function;
in the figure: 1. a transfusion bottle telescopic rod; 2. a hospital bed headboard; 3. a first fixed base; 4. a bed lifting controller; 5. a guardrail; 6. the rotating shaft can be fixed; 7. a first support leg; 8. a second support leg; 9. a bottom storage plate; 10. A second fixed base; 11. fixing screws; 12. an elastic protective cover; 13. a sickbed movement control switch; 14. A controller placement box; 15. a spring wire; 16. a wheel; 17. a table plate; 18. a wheel base; 19. a support; 20. a medicine bottle hook; 21. a hook base; 22. a first rotating shaft; 23. an airing rod; 24. a control handle; 25. fixing the bed plate; 26. a sickbed tail plate; 27. fixing a torque; 28. a hydraulic telescopic rod; 29. A hydraulic press; 30. fixing the cross shaft; 31. a first movable plate; 32. a transverse shaft of the bottom frame of the movable plate; 33. a second movable plate; 34. a movable plate bottom frame; 35. a bed frame cross shaft; 36. a bed frame; 37. a table board hinge shaft; 38. A table leg; 39. a horizontal axis; 40. a second rotating shaft; 41. a spindle bead.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: an electric medical bed with a lifting function comprises a bed frame 36, a sickbed headboard 2 and a sickbed footboard 26 are respectively and fixedly arranged at two ends of the bed frame 36, a bed frame cross shaft 35 is fixedly arranged inside the bed frame 36, guardrails 5 are movably arranged at two sides of the bed frame 36, a fixed bed board 25, a second movable board 33 and a first movable board 31 are sequentially arranged at the top of the bed frame 36 from the sickbed footboard 26 to the sickbed headboard 2, a movable board bottom frame 34 is arranged at the bottoms of the second movable board 33 and the first movable board 31, the first movable board 31 and the fixed bed board 25 are movably connected through a first rotating shaft 22, a fixed base II 10 is respectively arranged at four corners at the bottom of the bed frame 36, a support leg I7 is fixedly inserted into the fixed base II 10, the support leg I7 is movably connected with the support leg II 8 through a fixed rotating knob 27, the bottom of the support leg II 8 is fixedly arranged on a bottom object placing board 9, hydraulic press 29 is respectively arranged at, the hydraulic press 29 top is provided with hydraulic telescoping rod 28, can be controlled by hydraulic telescoping rod 28 through the setting fly leaf of hydraulic press 29 and fly leaf and go up and down, reaches the effect that the button was adjusted and is gone up and down, uses manpower sparingly, convenient operation.
The utility model discloses in, it is preferred, fixed unable adjustment base 3 that is provided with in sick bed headboard 2 one side, unable adjustment base 3 inside activity is pegged graft and is had transfusion bottle telescopic link 1, the top activity of transfusion bottle telescopic link 1 is provided with couple base 21, the week side equidistance of transfusion bottle telescopic link 1 is provided with medicine bottle couple 20, it has the space that transfusion bottle telescopic link 1 reduces the transfusion bottle rack and occupy to peg graft through sick bed headboard 2 setting unable adjustment base one 3, the telescopic link can freely adjust length, freely take down, it adjusts or takes off according to self needs to be hung to the patient of being convenient for.
In the utility model, preferably, a controller placing box 14 is fixedly arranged on one side of the sickbed headboard 2 far away from the transfusion bottle telescopic rod 1, a spring wire 15 is arranged at the upper end of the sickbed headboard 2, one end of the spring wire 15 is fixedly connected with a sickbed moving control switch 13, a motor shaft of a motor at the lower end of the sickbed can be driven to drive a wheel shaft to rotate through the arranged sickbed moving control switch 13, so that the wheel shaft drives a wheel 16 to move the sickbed, thereby facilitating a doctor to move a patient quickly, time and labor are saved, the size of the controller placing box 14 is larger than that of the sickbed moving control switch 13, a sickbed lifting controller 4 is arranged at the lower end of the front side of the sickbed tailboard 26, the sickbed lifting controller 4 is connected with the sickbed moving control switch 13 and a hydraulic press 29 through leads from the interior of the sickbed, the arrangement of the sickbed tailer controller is convenient for the doctor, the speed is fast, and time and labor are saved.
The utility model discloses in, it is preferred, swing joint can fix pivot 6 between bedstead 36 and guardrail 5, can fix the 6 outside control handle 24 that is provided with of pivot, fixed screw 11 through connection is adopted with the upper end of landing leg 7 in proper order to two 10 unable adjustment bases, the fixed cross axle 30 that is provided with of the opposite face of landing leg 7, bedstead 36 both sides bottom lower extreme is provided with sunning pole 23, the upper end of landing leg 7 of sunning pole 23 fixed connection homonymy, the setting of the fixed cross axle 30 between landing leg 7 and the landing leg two 8 is for strengthening the stability between the landing leg, fixed turn round 27 can make bed body whole lift according to adjusting the elasticity between the landing leg.
The utility model discloses in, it is preferred, the inside activity of putting thing board 9 in the bottom is provided with table 17, table 17 bottom both ends all are provided with table articulated shaft 37 and table landing leg 38, thing board 9 bottom surface four corners is all provided with wheel base 18 in the bottom, the fixed support 19 that is provided with in wheel base 18 bottom, support 19 bottom is provided with wheel 16, the removal of the sick bed of being convenient for through the setting of wheel 16, the setting of inserting through table 17 has both saved the space and also has been convenient for patient to have dinner, but the support joint of dining table is fixed in the 5 outsides of guardrail, the reinforcing stability.
The utility model discloses in, it is preferred, the outside of hydraulic press 29 is provided with elasticity protection cover 12, elasticity protection cover 12 fixed connection is in the bottom put the top of thing board 9 and the bottom of fly leaf underframe 34, fly leaf underframe 34 inside fixed be provided with fly leaf underframe cross axle 32, the top of hydraulic telescoping rod 28 and the fixed welding in center of the fly leaf underframe cross axle 32 of the inside setting of fly leaf underframe 34, first fly leaf 31 is provided with cross axle 39 with the 28 junction of hydraulic telescoping rod, cross axle 39 both ends are provided with pivot two 40, the fixed welding of pivot two 40 is on the fly leaf underframe 34 of first fly leaf 31 bottom, the inside pivot pearl 41 that is provided with of pivot two 40, sheltered from hydraulic press 29 through setting up of elasticity protection cover 12 and played pleasing to the eye effect, it is convenient for place daily necessities to put the setting up of thing board.
The utility model discloses a theory of operation and use flow: when in use, the sickbed is pushed to a place to be placed by the wheels 16, the power supply is connected, the mattress which is matched and separated with the fixed bed board 25 and the first movable board 31 and the second movable board 33 is laid on the bed, the upper body of the hydraulic telescopic rod 28 which is corresponding to the first movable board 31 is controlled by the controller, the first movable board 31 and the fixed bed board 25 form an angle, a medicine bottle which needs water adjustment is hung on the medicine bottle hook 20 for water adjustment, the hydraulic telescopic rod 28 which corresponds to the second movable board 33 can be adjusted to lower the second movable board 33 to form a chair shape, articles for daily use can be placed on the object placing board, towels and small clothes can be aired on the airing rod 23, the small clothes can be taken out by the table board 17 to be clamped above the guardrails 5 for dining, the motor shaft of the motor at the lower end of the sickbed can be driven to drive the wheel shaft to rotate by the sickbed movement control switch 13, thereby the wheel axle drives the wheel 16 to move the sickbed, thereby facilitating the doctor to move the patient quickly and saving time and labor.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. An electronic medical shallow with raising and lowering functions, includes bedstead (36), its characterized in that: the bed frame comprises a bed frame (36), a bed head plate (2) and a bed tail plate (26) are fixedly connected to two ends of the bed frame (36) respectively, a bed frame cross shaft (35) is fixedly arranged in the bed frame (36), guardrails (5) are movably arranged on two sides of the bed frame (36), a fixed bed plate (25), a second movable plate (33) and a first movable plate (31) are sequentially arranged on the top of the bed frame (36) from the bed tail plate (26) to the bed head plate (2), movable plate bottom frames (34) are respectively arranged at the bottoms of the second movable plate (33) and the first movable plate (31), the first movable plate (31) is movably connected with the fixed bed plate (25) through a rotating shaft I (22), two fixed bases (10) are respectively arranged at four corners of the bottom of the bed frame (36), a first supporting leg (7) is fixedly inserted in the second fixed bases (10), and the first supporting leg (7) is movably connected with a second supporting leg (8) through, the bottom of the second support leg (8) is fixedly arranged on a bottom object placing plate (9), hydraulic devices (29) are arranged at the center opposite positions of the bottom object placing plate (9), the second movable plate (33) and the first movable plate (31), and hydraulic telescopic rods (28) are arranged at the tops of the hydraulic devices (29).
2. The electric medical manipulator with the lifting function as claimed in claim 1, wherein: fixed unable adjustment base (3) are fixed to sick bed headboard (2) one side, unable adjustment base (3) inside activity is pegged graft and is had transfusion bottle telescopic link (1), the top activity of transfusion bottle telescopic link (1) is provided with couple base (21), the week side equidistance of transfusion bottle telescopic link (1) is provided with medicine bottle couple (20).
3. The electric medical manipulator with the lifting function as claimed in claim 1, wherein: the fixed controller that is provided with in one side of hanging bottle telescopic link (1) is kept away from in sick bed headboard (2) places box (14), sick bed headboard (2) upper end is provided with spring line (15), the one end fixedly connected with sick bed mobile control switch (13) of spring line (15), the size that box (14) were placed to the controller is greater than sick bed mobile control switch (13), sick bed tailboard (26) front lower extreme is provided with sick bed lift controller (4), sick bed lift controller (4) are passed through the wire with sick bed mobile control switch (13) and hydraulic press (29) and are followed bed body internal connection.
4. The electric medical manipulator with the lifting function as claimed in claim 1, wherein: the multifunctional bed is characterized in that a fixable rotating shaft (6) is movably connected between the bed frame (36) and the guardrail (5), a control handle (24) is arranged outside the fixable rotating shaft (6), the upper ends of the second fixed base (10) and the first supporting leg (7) are sequentially connected in a penetrating manner through fixing screws (11), a fixed cross shaft (30) is fixedly arranged on the opposite surface of the first supporting leg (7), airing rods (23) are arranged at the lower ends of the bottoms of the two sides of the bed frame (36), and the airing rods (23) are fixedly connected with the upper ends of the first supporting legs (7) on the same side.
5. The electric medical manipulator with the lifting function as claimed in claim 1, wherein: the inside activity of putting thing board (9) in bottom is provided with table (17), table (17) bottom both ends all are provided with table articulated shaft (37) and table landing leg (38), thing board (9) bottom surface four corners is put in the bottom all is provided with wheel base (18), wheel base (18) bottom is fixed and is provided with support (19), support (19) bottom is provided with wheel (16).
6. The electric medical manipulator with the lifting function as claimed in claim 1, wherein: the outside of hydraulic press (29) is provided with elasticity protection cover (12), elasticity protection cover (12) fixed connection is in the bottom put the top of thing board (9) and the bottom of fly leaf underframe (34) in the bottom, fly leaf underframe (34) inside fixed be provided with fly leaf underframe cross axle (32), the top of hydraulic telescoping rod (28) and the center fixed weld of the fly leaf underframe cross axle (32) of fly leaf underframe (34) inside setting, first fly leaf (31) are provided with cross axle (39) with hydraulic telescoping rod (28) junction, cross axle (39) both ends are provided with pivot two (40), pivot two (40) fixed weld is on fly leaf underframe (34) of first fly leaf (31) bottom, pivot two (40) inside is provided with pivot pearl (41).
