The utility model provides an ultra-thin dry and comfortable bamboo fiber sanitary towel, which belongs to the technical field of sanitary towels. The ultrathin dry bamboo fiber sanitary towel sequentially comprises a hydrophilic surface layer, a flow guide layer, an absorption layer and a breathable leakproof bottom layer from top to bottom, wherein the hydrophilic surface layer is composed of an upper polylactic acid fiber layer and a lower bamboo fiber layer; the flow guide layer is a chemically bonded non-woven fabric; the absorption layer is formed by wrapping water absorption paper by melt-blown cloth, and the water absorption paper is provided with a diversion trench formed by a plurality of pressing trenches; the breathable and leak-proof bottom layer is a PE breathable film. The surface layer adopts a double carding process, polylactic acid fibers are skin-friendly, soft and low in friction, bamboo fibers quickly draw liquid, and the bamboo fibers have antibacterial activity and can prevent irritation caused by friction and bacteria at private parts; the chemical bonding flow guide layer has excellent moisture-proof flow guide effect, and can still keep dry and cool after being absorbed for many times; three pressure grooves on the absorption layer form diversion grooves, and menstrual blood quickly diffuses and permeates into the water absorption layer; the sanitary towel is more comfortable to wear when the thickness is less than 1.5 mm.
Description
Technical Field
The utility model belongs to the technical field of sanitary towel, concretely relates to ultra-thin dry and comfortable type bamboo fibre sanitary towel.
Background
The sanitary towel is a material with absorption capacity, the main material is cotton, non-woven fabric, paper pulp or high molecular polymer and high molecular polymer composite paper formed by the above material composites, the design of the side edge is mainly used for preventing side leakage, and because the sanitary towel can be in a certain angle with the sanitary towel body during use, the sanitary towel is easier to rub with a groin part, so the sanitary towel using the side edge of the soft material is more favored by women. The back adhesive of the sanitary towel is a waterproof material, and can retain menstrual blood in the sanitary towel for absorbing the menstrual blood flowing out from the vagina when women have menstrual flow.
At present, dry sanitary napkins prepared from spunlace nonwoven fabrics are popular. The spunlace nonwoven fabric has the advantages of air permeability, flexibility, light weight and easy decomposition. Further, the dryness of the sanitary napkin is closely related to the surface material of the sanitary napkin, and the requirement is also put on the absorption core of the sanitary napkin, etc., and the design of the absorption core of the existing sanitary napkin is usually too thick to reduce the comfort level due to the special purpose of the sanitary napkin for absorbing menstrual blood, but the water absorption and water locking performance is not improved significantly because of the simple increase of the thickness or the number of layers of the core.
The current sanitary towel adopts polymer composite paper or dustless paper as the absorption core, and its touch is relatively poor, and consumer experiences not good enough, and the cotton core fine and handy core sanitary towel who uses soft dress as the advantage has then improved the comfort level effectively, has improved consumer and has experienced, and the absorption rate is also comparatively fast, but the absorbed amount is also general, and thickness is great, produces vexed wet sense easily, causes the peculiar smell, breeds the bacterium, is unfavorable for consumer's health.
With the change of modern life concept, more and more women pay attention to the comprehensive quality of comfort, cleanness and performance of the feminine hygiene product, and the sanitary napkin is required to have natural and non-irritating fabric and soft hand feeling, and is expected to keep the surface dry and reduce the breeding of bacteria. The existing sanitary towel can not meet the increasingly high overall requirements of the contemporary women on the sanitary towel.
SUMMERY OF THE UTILITY MODEL
The utility model provides an ultra-thin dry and comfortable bamboo fiber sanitary towel to solve the problem that the contact feeling of the prior sanitary towel is relatively poor and bacteria is easy to breed.
In order to achieve the above object, the technical solution of the present invention is:
the ultrathin dry bamboo fiber sanitary towel sequentially comprises a hydrophilic surface layer, a flow guide layer, an absorption layer and a breathable leakproof bottom layer from top to bottom, wherein the hydrophilic surface layer is composed of an upper polylactic acid fiber layer and a lower bamboo fiber layer; the flow guide layer is a chemically bonded non-woven fabric; the absorption layer is formed by wrapping water absorption paper by melt-blown cloth, and the water absorption paper is provided with a diversion trench formed by a plurality of pressing trenches; the breathable and leak-proof bottom layer is a PE breathable film.
Preferably, the absorbent paper is formed by mixing wood pulp, ES fibers and SAP super absorbent resin.
Preferably, the absorbent paper is provided with three pressing grooves, and the pressing grooves are arranged along the length direction of the absorbent paper.
Preferably, the pressing grooves are respectively a first pressing groove, a second pressing groove and a third pressing groove, the first pressing groove is arranged in the middle of the absorbent paper, the second pressing groove and the third pressing groove are arranged on two sides of the first pressing groove and are bent along the direction of the first pressing groove, and the three pressing grooves form a structure similar to a Chinese character 'chuan'.
Preferably, the absorbent paper is two-layered.
Preferably, the thickness ratio of the polylactic acid fiber layer to the bamboo fiber layer in the hydrophilic surface layer is (3: 7) - (7: 3), and the gram weight of the hydrophilic surface layer is 40-60 gsm.
Preferably, the sanitary napkin is less than 1.5mm thick.
The utility model has the advantages that:
1. the surface course adopts two carding processes in this application, and polylactic acid fibre is close to the skin softness and is low friction, and bamboo fibre draws liquid fast, and has antibacterial, prevents the stimulation that private parts arouse because of friction and bacterium.
2. This application adopts chemical bonding water conservancy diversion layer, and it separates wet water conservancy diversion effect excellence, absorbs the back many times, still can keep dry and comfortable nature, avoids breeding the bacterium.
3. The absorbing layer is meltblowing cloth parcel paper that absorbs water in this application, and three indent formation guiding gutters on the paper that absorbs water, and the rapid diffusion of menses permeates the paper layer that absorbs water of absorbing layer, and the paper layer absorbed amount that absorbs water is more than the meltblowing cloth layer.
4. The sanitary towel of this application thickness is less than 1.5mm, and it is more comfortable to dress, and no burden is fit for daytime and motion and uses very much.
Drawings
Fig. 1 is a schematic view of the layer structure of the present invention.

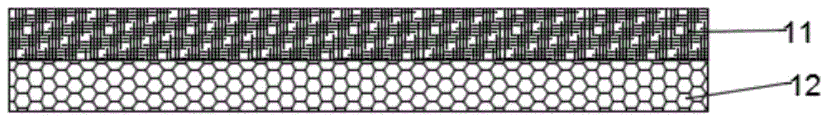

Fig. 2 is a schematic view of the structure of the hydrophilic surface layer of the present invention.
Fig. 3 is a schematic view of the structure of the absorption layer of the present invention.
Fig. 4 is a schematic view of the water-absorbing layer of the present invention.
In the figure: 1-a hydrophilic surface layer; 2-a flow guiding layer; 3-an absorbing layer; 4-breathable and leak-proof bottom layer; 11-polylactic acid fiber layer; 12-a bamboo fiber layer; 31-melt-blown fabric; 32-absorbent paper; 33-pressing groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
It should be noted that all the directional indicators (such as upper, lower, left, right, front and rear … …) in the embodiment of the present invention are only used to explain the relative position relationship between the components, the motion situation, etc. in a specific posture (as shown in the drawings), and if the specific posture is changed, the directional indicator is changed accordingly.
In addition, descriptions in the present application as to "first", "second", and the like are for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicit to the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.
In the present application, unless expressly stated or limited otherwise, the terms "connected" and "fixed" are to be construed broadly, e.g., "fixed" may be fixedly connected or detachably connected, or integrally formed; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In addition, the technical solutions between the embodiments of the present invention can be combined with each other, but it is necessary to be able to be realized by a person having ordinary skill in the art as a basis, and when the technical solutions are contradictory or cannot be realized, the combination of such technical solutions should be considered to be absent, and is not within the protection scope of the present invention.
Referring to fig. 1 to 4, the ultrathin dry bamboo fiber sanitary napkin sequentially comprises a hydrophilic surface layer 1, a diversion layer 2, an absorption layer 3 and a breathable leakproof bottom layer 4 from top to bottom, wherein the hydrophilic surface layer 1 is composed of an upper polylactic acid fiber layer 11 and a lower bamboo fiber layer 12; the thickness ratio of the polylactic acid fiber layer 11 to the bamboo fiber layer 12 in the hydrophilic surface layer is (3: 7) - (7: 3), and the gram weight of the hydrophilic surface layer is 40-60 gsm; the flow guide layer 2 is a chemically bonded non-woven fabric; the absorption layer 3 is formed by wrapping water absorption paper 32 by melt-blown cloth 31, and a diversion trench formed by a plurality of pressing trenches 33 is arranged on the water absorption paper 32; the breathable and leak-proof bottom layer 4 is a PE breathable film.
In the sanitary napkin, the hydrophilic surface layer 1 adopts spunlace cloth made by a double carding process, and consists of bamboo fibers and polylactic acid fibers, the upper layer is a polylactic acid fiber layer, the lower layer is a bamboo fiber layer, and the polylactic acid fibers are soft and low-friction and skin-friendly, so that a user feels comfortable; the bamboo fiber liquid is capable of rapidly drawing liquid, has antibacterial effect, and can prevent irritation of private parts caused by friction and bacteria. The flow guide layer 2 is a chemical bonding non-woven fabric, the chemical bonding flow guide layer has excellent moisture-proof flow guide effect, and can still keep dry and cool after being absorbed for many times. The absorbing layer 3 is the melt-blown fabric wrapped absorbent paper, the two sides of a piece of absorbent paper are folded downwards to form a mutual holding structure during preparation, the absorbent paper is made to form a two-layer structure, the melt-blown fabric is placed on the absorbent paper to be held downwards and folded, and the absorbent paper is wrapped inside the melt-blown fabric. The absorbent paper is provided with a plurality of pressure grooves to form diversion grooves, and menstrual blood rapidly diffuses and permeates into the absorbent paper layer of the absorption layer. The thickness of the sanitary towel is less than 1.5 mm. Make the dress more laminating, no burden is fit for daytime and motion and uses very much.
Further, the absorbent paper is formed by mixing wood pulp, ES fibers and SAP super absorbent resin. The absorbent paper layer has strong water absorption, the absorption multiple of the absorbent paper layer is more than 20 times, and the thickness of the absorbent paper layer is small.
Preferably, the absorbent paper has three pressing grooves 33, and the pressing grooves 33 are arranged along the length direction of the absorbent paper. Preferably, the pressing grooves 33 are respectively a first pressing groove, a second pressing groove and a third pressing groove, the first pressing groove is arranged in the middle of the absorbent paper, the second pressing groove and the third pressing groove are arranged on two sides of the first pressing groove and are bent along the direction of the first pressing groove, and the three pressing grooves form a structure similar to a Chinese character 'chuan'. The first indent, second indent, third indent can be quick carry out the water conservancy diversion with the menses, the second indent of both sides, third indent can also avoid the menses side leakage.
The utility model has the advantages that:
(1) the surface layer adopts a double carding process to realize the vertical lapping of two fibers, and is fixed by a spunlace process; the polylactic acid fiber improves the softness of the surface layer and reduces the friction at the upper layer, and the bamboo fiber keeps absorbing at the lower layer, and simultaneously prevents the irritation of bacteria to private parts.
(2) The traditional flow guide layer is a hot air non-woven fabric, has deviation in moisture insulation effect and particularly absorbs moisture for multiple times; the chemical adhesive flow guide layer is used, the fiber flow guide effect is good, the chemical adhesive can block menstrual blood, and the dryness after repeated absorption is kept.
(3) The absorbent paper is wrapped by the melt-blown cloth on the absorbent layer, the core body is not easy to deform, the three cutting grooves are in a structure, menstrual blood quickly permeates into the absorbent paper layer of the absorbent layer, and the absorption capacity of the absorbent paper layer is greater than that of the melt-blown cloth layer; keeping the dryness of the absorption layer;
(4) the thickness of the sanitary towel is less than 1.5mm, the sanitary towel is more comfortable to wear and more breathable, and is suitable for being used in the daytime.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (6)
1. The ultrathin dry bamboo fiber sanitary towel is characterized by sequentially comprising a hydrophilic surface layer, a flow guide layer, an absorption layer and a breathable leakproof bottom layer from top to bottom, wherein the hydrophilic surface layer is composed of an upper polylactic acid fiber layer and a lower bamboo fiber layer; the flow guide layer is a chemically bonded non-woven fabric; the absorption layer is formed by wrapping water absorption paper by melt-blown cloth, and the water absorption paper is provided with a diversion trench formed by a plurality of pressing trenches; the breathable and leak-proof bottom layer is a PE breathable film.
2. The ultrathin dry bamboo fiber sanitary napkin as claimed in claim 1, wherein the absorbent paper has three pressing grooves, and the pressing grooves are arranged along the length direction of the absorbent paper.
3. The ultrathin dry bamboo fiber sanitary napkin of claim 2, wherein the compressed grooves are a first compressed groove, a second compressed groove and a third compressed groove, the first compressed groove is arranged in the middle of the absorbent paper, the second compressed groove and the third compressed groove are arranged on two sides of the first compressed groove and are bent along the direction of the first compressed groove, and the three compressed grooves form a structure similar to a Chinese character 'chuan'.
4. The ultra-thin dry bamboo fiber sanitary napkin as claimed in any one of claims 1 to 3, wherein the absorbent paper is two-layered.
5. The ultrathin dry bamboo fiber sanitary napkin as claimed in claim 4, wherein the hydrophilic facing layer has a grammage of 40-60 gsm.
6. The ultra-thin dry bamboo fiber sanitary napkin as claimed in claim 5, wherein the sanitary napkin is less than 1.5mm thick.
