The utility model provides a sieve material device is smashed to seasoning, including the sieve feed cylinder, the below frame of sieve feed cylinder is put on a storage cylinder, it has the setting aside material pole to stretch into in the sieve feed cylinder, the bottom surface and all sides lower parts of sieve feed cylinder are provided with the sieve mesh, the lower extreme of setting aside material pole is fixed with the setting aside board of laying along the circumferencial direction, the upper portion of setting aside board has the cutter that can smash the seasoning, the utility model discloses the setting aside material and the crushing structure that utilize the segmentation design can carry out the screening material with the seasoning and discharge and smash great accumulational material through the cutter and sieve, can satisfy directly sieve the material after the flavouring shaping and handle, efficient.

Description

Sieve material device is smashed to seasoning

Technical Field

The utility model relates to a sieve material device is smashed to seasoning.

Background

In the existing chicken essence production process, the chicken essence needs to be sieved for the second time after being dried and shaped, the sieving efficiency is low due to the fact that manual operation is often adopted for sieving materials, the quality is not uniform due to manual control, the chicken essence with large particles needs to be centrally treated for further treatment, the process is complicated, the U-shaped mesh sieve is adopted for sieving materials in the original structure, the efficiency is low, and the large particles can influence the screen to discharge materials, so that the efficiency is not reduced easily.

Disclosure of Invention

The utility model discloses improve above-mentioned problem, promptly the to-be-solved technical problem of the utility model is that current chicken essence production process sieve material structure work efficiency is low.

The utility model discloses a concrete implementation scheme is: the utility model provides a sieve material device is smashed to seasoning, includes the sieve feed cylinder, the below of sieve feed cylinder is shelved on a storage cylinder, it has the kickoff pole to stretch into in the sieve feed cylinder, the bottom surface and all sides lower parts of sieve feed cylinder are provided with the sieve mesh, the lower extreme of kickoff pole is fixed with the kickoff board of laying along the circumferencial direction, the upper portion of kickoff board has the cutter that can smash the seasoning.

Further, the height of the cutter is higher than the height of the sieve holes on the side part of the sieve material cylinder.

Furthermore, the material poking rod is obliquely arranged from one side to the other side along the rotating direction.

Furthermore, lugs are fixed at two ends of the screen material cylinder, the lugs are erected at the upper end of the storage cylinder, a valve capable of being opened and closed is arranged at the lower end of the storage cylinder, and the upper edge of the storage cylinder is higher than the height of screen holes at the side part of the screen material cylinder.

Further, the cutter has a plurality of layers.

Further, the upper portion of dialling the material pole still is fixed with the striker plate of toper, the striker plate is the toper and leaves the clearance of material whereabouts between periphery and the sieve feed cylinder.

Furthermore, the top of the screening barrel extends to form an outward-opening feeding port, and the material shifting rod is driven by a motor to rotate.

Compared with the prior art, the utility model discloses following beneficial effect has: the utility model discloses utilize the material of dialling of segmentation design and crushing structure can sieve the material discharge with the seasoning and smash great accumulational material through the cutter and sieve, can satisfy directly sieve the material after the flavouring shaping and handle, efficient.

Drawings

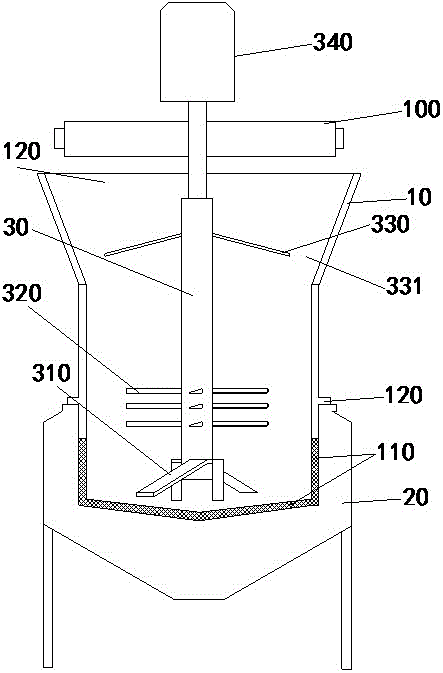

Fig. 1 is a schematic structural diagram of the present invention.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.

As shown in fig. 1, a seasoning grinding and screening device, comprises a screening cylinder 10, the lower part of the screening cylinder is placed on a storage cylinder 20, a material stirring rod 30 is inserted into the screening cylinder 10, screen holes 110 are arranged on the bottom surface and the lower part of the peripheral side of the screening cylinder, a material stirring plate 310 arranged along the circumferential direction is fixed at the lower end of the material stirring rod, and a cutter 320 capable of grinding seasoning is arranged on the upper part of the material stirring plate.

In this embodiment, the height of the cutting knife is higher than the height of the sieve holes at the side of the sieve barrel, the material poking rod is obliquely arranged from one side to the other side along the rotating direction, and the cutting knife 320 has multiple layers.

The during operation, the material gets into from the top of sieve feed cylinder, the material of suitable size directly gets into storage cylinder 10 through the sieve mesh 110 of sieve feed cylinder 10 bottom and lateral part, thereby the in-process that sieves utilizes the switch board 310 of switch lever 30 bottom to realize scattering the efficiency of sieving that more is favorable to the material of dialling of material, thereby the switch board 310 unloads to the structure can be with piling up on the sieve mesh surface and the material that can't sieve is raised to upper portion thereby is cut by the cutter on upper portion and reaches the effect of smashing and sieving.

In this embodiment, in order to make things convenient for when the material gets into can disperse directly to pass the cutter and fall into switch board week side, the upper portion of setting out material pole 30 still is fixed with the striker plate 330 of toper, striker plate 330 is the toper and leaves the clearance 331 that the material falls between periphery and the sieve feed cylinder.

Lugs 120 are fixed at two ends of the screen cylinder 10, the lugs 120 are erected at the upper end of the storage cylinder 20, the lower end of the storage cylinder is provided with a valve which can be opened and closed, and the upper edge of the storage cylinder is higher than the height of screen holes at the side part of the screen cylinder, so that materials cannot fall to the outer side of the storage cylinder from the screen holes at the side part.

In order to better guide the materials, the top of the screening cylinder is extended to form an outward-opening feeding port, the material stirring rod is driven by the motor 340 to rotate, the motor 340 is integrally fixed on the rack and fixed relative to the ground, the screening cylinder is generally placed at the discharging end of the seasoning conveying belt to receive the materials, and the storage cylinder is fixed on the rack and used for storing the screened and crushed materials.

Any technical solution disclosed in the present invention is, unless otherwise stated, disclosed a numerical range if it is disclosed, and the disclosed numerical range is a preferred numerical range, and any person skilled in the art should understand that: the preferred ranges are merely those values which are obvious or representative of the technical effect which can be achieved. Because numerical value is more, can't be exhaustive, so the utility model discloses just disclose some numerical values with the illustration the technical scheme of the utility model to, the numerical value that the aforesaid was enumerated should not constitute right the utility model discloses create the restriction of protection scope.

If the terms "first," "second," etc. are used herein to define parts, those skilled in the art will recognize that: the terms "first" and "second" are used merely to distinguish one element from another in a descriptive sense and are not intended to have a special meaning unless otherwise stated.

Also, above-mentioned the utility model discloses if disclose or related to mutually fixed connection's spare part or structure, then, except that other the note, fixed connection can understand: a detachable fixed connection (for example using bolts or screws) is also understood as: non-detachable fixed connections (e.g. riveting, welding), but of course, fixed connections to each other may also be replaced by one-piece structures (e.g. manufactured integrally using a casting process) (unless it is obviously impossible to use an integral forming process).

In addition, the terms used in any aspect of the present disclosure as described above to indicate positional relationships or shapes include similar, analogous, or approximate states or shapes unless otherwise stated.

The utility model provides an arbitrary part both can be assembled by a plurality of solitary component parts and form, also can be the solitary part that the integrated into one piece technology was made.

Finally, it should be noted that the above embodiments are only used for illustrating the technical solutions of the present invention and not for limiting the same; although the present invention has been described in detail with reference to preferred embodiments, it should be understood by those skilled in the art that: the invention can be modified or equivalent substituted for some technical features; without departing from the spirit of the present invention, it should be understood that the scope of the claims is intended to cover all such modifications and variations.

Claims

1. The utility model provides a sieve material device is smashed to seasoning, its characterized in that, includes the sieve feed cylinder, the below frame of sieve feed cylinder is put on a storage cylinder, it has the kickoff pole to stretch into in the sieve feed cylinder, the bottom surface and all sides lower parts of sieve feed cylinder are provided with the sieve mesh, the lower extreme of kickoff pole is fixed with the kickoff board of laying along the circumferencial direction, the upper portion of kickoff board has the cutter that can smash the seasoning.

2. The seasoning crushing and screening device as claimed in claim 1, wherein the height of the cutter is higher than the height of the screen hole at the side of the screen cylinder.

3. The seasoning crushing and screening device as claimed in claim 1, wherein the poking rod is arranged to be inclined downward from one side to the other side in the rotating direction.

4. The seasoning crushing and screening device as claimed in claim 1, wherein lugs are fixed at two ends of the screening cylinder, the lugs are arranged at the upper end of the storage cylinder, the lower end of the storage cylinder is provided with a valve which can be opened and closed, and the upper edge of the storage cylinder is higher than the height of the side screen holes of the screening cylinder.

5. The seasoning crushing and screening device according to claim 1, wherein the cutter has a plurality of layers.

6. The seasoning crushing and screening device as claimed in any one of claims 1 to 3, wherein a conical baffle plate is further fixed to the upper portion of the material poking rod, and a gap for material falling is reserved between the periphery of the baffle plate and the material sieving barrel.

7. The seasoning crushing and screening device as claimed in claim 1, wherein the top of the screen cylinder is extended with an outward-opened feeding port, and the material poking rod is driven by a motor to rotate.
