The utility model discloses an electrical construction installation device, which belongs to the technical field of electrical construction, and comprises a base, wherein the top of the base is movably connected with a lifting platform, the top of the lifting platform is fixedly connected with a guardrail, the inside of the lifting platform is provided with splicing grooves and the splicing grooves are divided into two groups, the lifting platform is movably connected with an extension plate through the splicing grooves, the extension plate is spliced into the splicing grooves near one side of the lifting platform, the top of the extension plate is welded with a control rod, in the electrical construction process, the extension plate is moved by the control rod to slide out along the splicing grooves, the top of the extension plate can stand up constructors to carry out installation construction, the construction area of the constructors is increased on the premise of not moving the base, the moving times of the base and the lifting platform can be reduced without repeatedly moving the lifting platform to carry out installation at different positions, time and labor are saved, and the installation efficiency is improved.

Description

Electrical construction installation device
Technical Field
The utility model relates to an electrical construction technical field specifically is an electrical construction installation device.
Background
Electrical is a general term in disciplines or engineering fields such as production, transmission, distribution, use of electrical energy and electrical equipment manufacturing, and is a science that creates, maintains and improves limited space and environment by taking electrical energy, electrical equipment and electrical technology as means, covers three aspects of conversion, utilization and research of electrical energy, including basic theory, application technology, facility equipment and the like, and generally requires climbing equipment to perform auxiliary operation in electrical construction and installation processes.
The patent number is CN 209703971U's publication an electrical construction installation device, constructor stands on construction platform, play the guard action to constructor's personal safety through the guardrail frame, the column casing and the support column that are equipped with play the auxiliary stay effect to construction platform, it is comparatively safe to use, be equipped with the toolbox, be convenient for deposit the gadget of construction usefulness, conveniently take, reduce constructor's working strength, improve work efficiency, overall structure is simple, low in cost, therefore, the clothes hanger is strong in practicability, and is easy to popularize.
The electric construction installation device has the following defects that 1, the workbench of the electric construction installation device is fixed in structure and cannot be adjusted in size, the engineering quantity is usually large in the electric construction process, the position which can be contacted with the workbench is limited, the climbing device is required to be continuously moved to be installed at different positions in actual use, time and labor are consumed, and the installation efficiency is reduced; 2. in the electric construction installation process, because the construction amount is great, the number of materials required to be used is large, and the number of materials capable of bearing on the workbench is limited, the workbench needs to be continuously lifted in the actual installation process to carry out material carrying and installation, the construction burden is increased, the efficiency is influenced, the frequent lifting of the workbench is easy to improve the abrasion, the service life of the ascending device is influenced, and therefore the electric construction installation device is provided.
SUMMERY OF THE UTILITY MODEL
The utility model provides an electrical construction installation device aims at the size that can adjust table surface in a flexible way, can accomplish the electrical installation construction of more areas in fixed place, reduces the base and removes the number of times, need not simultaneously that lift table surface also can be convenient to the table surface on the transportation material.
The utility model provides a specific technical scheme as follows:
the utility model provides a pair of electrical construction installation device, the on-line screen storage device comprises a base, base top swing joint has the elevating platform, elevating platform top fixedly connected with guardrail, inside inserting groove and the inserting groove of having seted up of elevating platform are two sets of, the elevating platform has the extension board through inserting groove swing joint, the extension board is close to elevating platform one side and pegs graft to the inserting groove inside, the welding of extension board top has the control lever, the control lever top extends to the elevating platform top, base top one side is installed electric lift pole and is four, electric lift pole power take off end fixedly connected with carries the flitch, it is on a parallel with the elevating platform top to carry the flitch top, the lifter controller is installed to guardrail surface one side, lifter controller signal output part is connected with electric lift pole signal input part.
Optionally, the base top has been seted up the spout and the spout is four, the control lever is located inside the spout.
Optionally, the surface of the extension plate is provided with a plurality of hinges, and the top of the extension plate is movably connected with a baffle plate through the hinges.
Optionally, the base bottom fixedly connected with connecting rod and connecting rod are four, the truckle is installed to the connecting rod bottom.
The utility model has the advantages as follows:
1. the top swing joint of base has the elevating platform, constructor stands and ascends a height the operation at the top of elevating platform, the inserting groove has been seted up and has the extension board through inserting groove swing joint in the inside of elevating platform, the extension board is close to the inside that elevating platform one side inserted the inserting groove and the extension board top is fixed with the control lever that runs through the elevating platform top, the extension board can slide along the inserting groove, in the electrical construction process, remove the extension board through the control lever, make the extension board along the inserting groove roll-off, the constructor that also can stand at the top of extension board this moment carries out the construction, constructor's area of can having increased under the prerequisite of unmovable base, when carrying out great engineering construction, can reduce the removal number of times of base and elevating platform, need not to remove the elevating platform repeatedly and carry out the installation of different positions, time saving and labor saving, the installation effectiveness is improved.
2. The top of the base is provided with an electric lifting rod, the power output end of the electric lifting rod is fixed with a carrying plate, the carrying plate is positioned on one side of the lifting platform, the top of the carrying plate is parallel to the top of the lifting platform, one side of the surface of the guardrail is provided with a lifting rod controller, the signal output end of the lifting rod controller is connected with the signal input end of the electric lifting rod, the electric lifting rod drives the rod bodies to synchronously lift by using the transmission mode of synchronous spiral rotation of the lead rods, the rod bodies can be firmly locked at any height within a specified height to work, the lifting rod controller can control the operation of a power assembly inside the electric lifting rod, the lifting of the carrying plate is controlled by controlling the lifting of the electric lifting rod, in the actual use process, the height of the lifting platform is unchanged, if a construction assembly is needed in the installation process of constructors, the shortening of the electric lifting rod can be controlled by the lifting rod controller, and then the height of the control carrying plate is reduced, constructors on the ground place the required materials at the top of the carrying plate, after the loading is completed, the electric lifting rod is extended through the lifting rod controller, and then the carrying plate is enabled to carry the materials to the position which can be taken by the constructors at the top of the lifting platform, the material transportation at the top of the lifting platform can be completed on the premise of not needing the reciprocating lifting of the lifting platform, the construction burden is reduced, the overall efficiency is improved, the abrasion of the frequent lifting of the lifting platform on the mechanical performance is reduced, and the service life of the lifting platform is prolonged.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

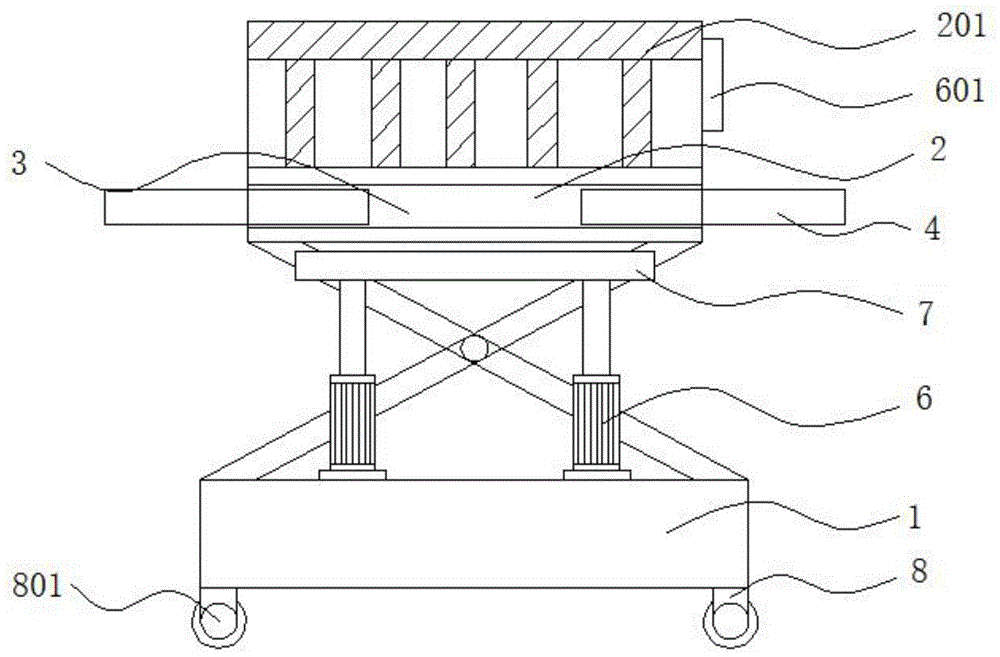

Fig. 1 is a schematic overall structure diagram of an electrical construction installation device according to an embodiment of the present invention;
fig. 2 is a schematic side view of an electrical construction installation apparatus according to an embodiment of the present invention;
fig. 3 is a schematic view of a surface structure of an elevating platform and an extension plate of the electrical construction installation device according to the embodiment of the present invention.
In the figure: 1. a base; 2. a lifting platform; 201. a guardrail; 202. a chute; 3. inserting grooves; 4. an extension plate; 401. a control lever; 5. a hinge; 501. a baffle plate; 6. an electric lifting rod; 601. a lifter controller; 7. a carrier plate; 9. a connecting rod; 901. and a caster.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention clearer, the present invention will be described in further detail with reference to the accompanying drawings, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
An electrical construction installation apparatus according to an embodiment of the present invention will be described in detail with reference to fig. 1 to 3.
Referring to fig. 1, 2 and 3, an electrical construction installation device provided by an embodiment of the present invention comprises a base 1, wherein a lifting platform 2 is movably connected to the top of the base 1, a guardrail 201 is fixedly connected to the top of the lifting platform 2, two sets of insertion grooves 3 are formed in the lifting platform 2, the lifting platform 2 is movably connected with extension plates 4 through the insertion grooves 3, the extension plates 4 are inserted into the insertion grooves 3 near one side of the lifting platform 2, a control rod 401 is welded to the top of the extension plates 4, the top of the control rod 401 extends to the top of the lifting platform 2, electric lifting rods 6 are installed on one side of the top of the base 1, the number of the electric lifting rods 6 is four, a carrying plate 7 is fixedly connected to the power output end of the electric lifting rods 6, the top of the carrying plate 7 is parallel to the top of the lifting platform 2, a lifting rod controller 601 is installed on one side of the surface of the guardrail 201, the signal output end of the lifting rod controller 601 is connected with the signal input end of the electric lifting rod 6.
Illustratively, in the electrical construction process, the extension plate 4 is moved by the control rod 401 to slide out along the insertion slot 3, so that the top of the extension plate 4 can stand for construction personnel to perform installation construction, the construction area of the construction personnel is increased on the premise of not moving the base 1, the moving times of the base 1 and the lifting platform 2 can be reduced during large engineering construction, the lifting platform 2 does not need to be moved repeatedly to perform installation at different positions, time and labor are saved, the installation efficiency is improved, if construction components are needed during the installation process of the construction personnel, the electric lifting rod 6 can be controlled by the lifting rod controller 601 to be shortened, the height of the carrying plate 7 is controlled to be reduced, the construction personnel on the ground can place needed materials at the top of the carrying plate 7, so that the carrying plate 7 can carry the materials to the position which can be taken by the personnel at the top of the lifting platform 2, the material transportation to the top of the lifting platform 2 can be completed on the premise of not needing the reciprocating lifting of the lifting platform 2, the construction burden is reduced, and the overall efficiency is improved.
Referring to fig. 1 and 3, the top of the base 1 is provided with four sliding grooves 202, and the control rod 401 is located inside the sliding grooves 202.
As an example, the top of the base 1 is provided with a sliding groove, the control rod 202 is located inside the sliding groove 202, and the sliding groove 202 can limit the moving range of the control rod 401 without affecting the normal movement of the control rod 401 and the extension plate 4, so as to control the extension length of the extension plate 4.
Referring to fig. 3, the surface of the extension plate 4 is provided with a plurality of hinges 5, and the top of the extension plate 4 is movably connected with a baffle 501 through the hinges 5.
Illustratively, the surface mounting of extension board 4 has hinge 5 and has baffle 501 through hinge 5 swing joint, when extension board 4 takes out the use, rotates baffle 501 along hinge 5 and stands baffle 501 to the both sides of extension board 4, plays the guard action to the constructor at extension board 4 top, prevents to fall, receives baffle 501 to the top of extension board 4 along hinge 5 when extension board 4 does not use, does not influence the normal storage of extension board 4.
Referring to fig. 1 and 2, four connecting rods 9 are fixedly connected to the bottom of the base 1, and casters 901 are mounted at the bottoms of the connecting rods 9.
By way of example, the connecting rod 9 fixed at the bottom of the base 1 can support the base 1, the caster 901 is installed at the bottom of the connecting rod 9, and the base 1 can be conveniently moved under the action of the caster 901.
When in use, the top of the base 1 is movably connected with the lifting platform 2, the lifting platform 2 can be lifted up and down in height, a constructor stands at the top of the lifting platform 2 to perform ascending operation, the lifting platform 2 is internally provided with an inserting groove 3 and is movably connected with an extending plate 4 through the inserting groove 3, one side of the extending plate 4 close to the lifting platform 2 is inserted into the inserting groove 3, the top of the extending plate 4 is fixedly provided with a control rod 401 penetrating through the top of the lifting platform 2, the extending plate 4 can slide along the inserting groove 3, in the electrical construction process, the extending plate 4 is moved by the control rod 401 to slide out along the inserting groove 3, the top of the extending plate 4 can also be erected by the constructor for installation and construction, the construction area of the constructor is increased on the premise of not moving the base 1, and the moving times of the base 1 and the lifting platform 2 can be reduced during larger engineering construction, the lifting platform 2 does not need to be moved repeatedly to carry out installation at different positions, time and labor are saved, the installation efficiency is improved, the extension plate 4 is retracted into the lifting platform 2 after the lifting platform is used, the occupied space of the lifting platform 2 can be reduced, a guardrail 201 fixed at the top of the lifting platform 2 can protect constructors at the top of the lifting platform 2 and avoid falling, a sliding groove is formed in the top of the base 1, the control rod 202 is positioned in the sliding groove 202, the sliding groove 202 can limit the moving range of the control rod 401 on the premise of not influencing the normal movement of the control rod 401 and the extension plate 4, the extension length of the extension plate 4 is further controlled, a hinge 5 is arranged on the surface of the extension plate 4, a baffle 501 is movably connected with the hinge 5, when the extension plate 4 is taken out for use, the baffle 501 is rotated along the hinge 5 to erect the baffle 501 to two sides of the extension plate 4, and the constructors at the top, the anti-falling device is prevented from falling, when the extension plate 4 is not used, the baffle plate 501 is collected to the top of the extension plate 4 along the hinge 5, the normal collection of the extension plate 4 is not influenced, the electric lifting rod 6 is installed at the top of the base 1, the carrying plate 7 is fixed at the power output end of the electric lifting rod 6, the carrying plate 7 is positioned at one side of the lifting platform 2, the top of the carrying plate 7 is parallel to the top of the lifting platform 2, the lifting rod controller 601 is installed at one side of the surface of the guardrail 201, the signal output end of the lifting rod controller 601 is connected with the signal input end of the electric lifting rod 6, the electric lifting rod 6 drives all rod bodies to synchronously lift by using the transmission mode of synchronous spiral rotation of all the lead screws, the height can be firmly locked at any height within the specification, the lifting rod controller 601 can control the operation of the power assembly in the electric lifting rod 6, and further control the lifting of the carrying plate 7 by controlling the lifting of the electric, in the actual use process, the height of the lifting platform 2 is unchanged, if a constructor needs a construction assembly in the installation process, the height of the lifting platform can be controlled to shorten the electric lifting rod 6 through the lifting rod controller 601, so as to control the height of the carrying plate 7 to be reduced, the constructor on the ground can place required materials on the top of the carrying plate 7, after loading is completed, the electric lifting rod 6 is extended through the lifting rod controller 601, so that the carrying plate 7 can carry the materials to the position which can be taken by the constructor on the top of the lifting platform 2, the material transportation on the top of the lifting platform 2 can be completed on the premise of not needing the reciprocating lifting of the lifting platform 2, the construction burden is reduced, the overall efficiency is improved, the abrasion of the lifting platform 2 to the mechanical performance is reduced, the service life of the lifting platform 2 is prolonged, the connecting rod 9 fixed on the bottom of the base 1 can play a supporting role on the base 1, and the bottom, the base 1 can be moved conveniently under the action of the caster 901.
It should be noted that the utility model relates to an electrical construction installation device, including base 1, elevating platform 2, guardrail 201, spout 202, inserting groove 3, extension board 4, control lever 401, hinge 5, baffle 501, electric lift pole 6, lifter controller 601, carry carrier board 7, connecting rod 9, truckle 901, the part is the general standard component or the part that technical staff in the field knows, and its structure and principle all can learn through the technical manual or learn through conventional experimental method for this technical staff.
Wherein, the electric lifting rod 6 and the lifting rod controller 601 are conventional prior art products, the model of the electric lifting rod 6 is XTL100 type, the model of the lifting rod controller 601 is HCW-001 type, and the internal structure is not explained.
It is apparent that those skilled in the art can make various changes and modifications to the embodiments of the present invention without departing from the spirit and scope of the embodiments of the present invention. Thus, if such modifications and variations of the embodiments of the present invention fall within the scope of the claims and their equivalents, the present invention is also intended to include such modifications and variations.

Claims (4)

1. The electric construction installation device comprises a base (1) and is characterized in that the top of the base (1) is movably connected with a lifting table (2), the top of the lifting table (2) is fixedly connected with a guardrail (201), insertion grooves (3) are formed in the lifting table (2) and the insertion grooves (3) are divided into two groups, the lifting table (2) is movably connected with an extension plate (4) through the insertion grooves (3), one side, close to the lifting table (2), of the extension plate (4) is inserted into the insertion grooves (3), a control rod (401) is welded at the top of the extension plate (4), the top of the control rod (401) extends to the top of the lifting table (2), electric lifting rods (6) are installed on one side of the top of the base (1), the number of the electric lifting rods (6) is four, and a carrying plate (7) is fixedly connected with the power output ends of the electric lifting rods (6), the top of the carrying plate (7) is parallel to the top of the lifting platform (2), a lifting rod controller (601) is installed on one side of the surface of the guardrail (201), and the signal output end of the lifting rod controller (601) is connected with the signal input end of the electric lifting rod (6).
2. An electric construction installation device according to claim 1, wherein the base (1) is provided with four sliding grooves (202) at the top, and the control rods (401) are located inside the sliding grooves (202).
3. An electrical construction installation device according to claim 1, wherein the extension plate (4) is surface-mounted with hinges (5) and the number of hinges (5) is multiple, and the top of the extension plate (4) is movably connected with a baffle plate (501) through the hinges (5).
4. An electric construction installation device according to claim 1, wherein the base (1) is fixedly connected with four connecting rods (9) at the bottom, and casters (901) are installed at the bottom of the connecting rods (9).
