CN210885009U

CN210885009U - Equipment hoisting alignment device for wind power generation

Info

Publication number: CN210885009U
Application number: CN201921444060.7U
Authority: CN
Inventors: 王成君; 杨国正; 景圆圆; 连森浩; 鲍业光
Original assignee: China Nuclear Industry Mechanical Engineering Co ltd
Current assignee: China Nuclear Industry Mechanical Engineering Co ltd
Priority date: 2019-09-02
Filing date: 2019-09-02
Publication date: 2020-06-30
Anticipated expiration: 2029-09-02

Abstract

The utility model discloses an equipment lifts by crane aligning device for wind power generation, the on-line screen storage device comprises a base, the top of base is fixed with the mount pad, the top of mount pad is seted up flutedly, first motor is installed to the bottom of base, the output shaft of first motor has first pivot, first pivot runs through the base and is connected with the carousel. The utility model discloses the space position of equipment is adjusted to the convenience, makes things convenient for equipment and equipment rack to aim at, need not artifical end equipment and adjusts, and factor of safety is high, has improved work efficiency.

Description

Equipment hoisting alignment device for wind power generation

Technical Field

The utility model relates to a wind power generation equipment technical field especially relates to an equipment lifts by crane aligning device for wind power generation.

Background

The wind power generation is a renewable energy power generation with the most mature technology except the hydroelectric power generation, the installed capacity of the wind power generation accounts for the vast majority of the installed total capacity of the whole renewable energy power generation, and the wind power generation comprises a wind generating set, a tower frame for supporting the generating set, a storage battery charging controller, an inverter, an unloader, a grid-connected controller, a storage battery pack and the like.

The whole equipment needs to be hoisted when the wind power generation equipment is installed, the existing installation method enables the whole equipment to be hoisted through a crane, the alignment adjustment is inconvenient, potential safety hazards exist by means of manual adjustment, and the working efficiency is not high.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art, and providing an equipment hoisting and aligning device for wind power generation.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a lifting alignment device for wind power generation equipment comprises a base, wherein a mounting seat is fixed to the top of the base, a groove is formed in the top of the mounting seat, a first motor is installed at the bottom of the base, an output shaft of the first motor is connected with a first rotating shaft, the first rotating shaft penetrates through the base and is connected with a rotating disc, a sliding rail is arranged at the bottom of the rotating disc, mounting frames are fixed to one end of the top of the rotating disc, two mounting frames are fixed with a second rotating shaft, a second motor is installed on the side face of each mounting frame, an output shaft of the second motor is fixedly connected with the second rotating shaft, a roller shaft is connected to the second rotating shaft through a flat key, a steel wire rope is wound on the roller shaft, a supporting column is fixed to the top of the rotating disc, a cross rod is installed on the top of the side face of the supporting column, a convex block is fixed, a screw rod is installed in the first chute, a second bevel gear is fixedly sleeved on the screw rod, a third motor is installed on one side, away from the first chute, of the support column, an output shaft of the third motor is inserted into the first chute and connected with a third rotating shaft, a first bevel gear is fixedly sleeved on the third rotating shaft and meshed with the second bevel gear for transmission, a first slider is sleeved on the screw rod through threads, a first fixed shaft is fixed on the side surface of the first slider, a mounting plate is rotatably connected onto the first fixed shaft, a second chute is formed in the top of the mounting plate, a third fixed shaft is fixed in the second chute, a second slider is movably sleeved on the third fixed shaft, a second fixed shaft is installed on the top of the second slider and rotatably connected with a convex block, and a connecting seat is fixed at one end, away from the roller shaft, of the steel wire rope, the bottom of the connecting seat is fixed with a hook, one end of the bottom of the connecting seat is fixed with a telescopic rod, and the bottom of the telescopic rod is provided with a camera.

Preferably, the bottom of base is provided with the landing leg, the quantity of landing leg is four, the universal wheel is installed to the bottom of landing leg.

Preferably, the operating platform is installed to the one end at base top, the display screen is installed at the top of operating platform.

Preferably, the bottom of the side face of the supporting column is fixed with three brackets, one end of each bracket, far away from the supporting column, is welded with the top of the rotating disc, and the brackets are circumferentially arranged on the side face of the supporting column.

Preferably, first pulley is installed at the top of support column, the side-mounting of mounting panel has the second pulley, wire rope and first pulley and second pulley sliding connection.

Preferably, the telescopic rod is perpendicular to the upper surface of the base.

Compared with the prior art, the beneficial effects of the utility model are that:

when the device works, the equipment to be lifted is fixed on the hook, the second motor is started, the second motor drives the second rotating shaft, the second rotating shaft drives the roller shaft, the roller shaft drives the steel wire rope to be rolled, the steel wire rope to be rolled drives the connecting seat, the connecting seat drives the hook, the hook drives the equipment to be lifted, the equipment is lifted to the top of the equipment frame, the equipment and the equipment frame are simultaneously shot by observing the display screen until the camera so as to be lifted in the vertical direction, the first motor is started by observing the display screen, the first motor drives the first rotating shaft, the first rotating shaft drives the rotating disc, the rotating disc drives the supporting column, the supporting column drives the first sliding block, the first sliding block drives the mounting plate, the mounting plate drives the second pulley, the third motor is started, the third motor drives the third rotating shaft, the third rotating shaft drives the first bevel gear, the first bevel gear drives the second bevel gear, the lead screw passes through screw thread transmission and drives first slider, and first slider drives the mounting panel, and the mounting panel slides in the second spout around first fixed axle motion and second slider this moment, finely tunes the horizontal direction position of equipment and equipment rack, is convenient for adjust the spatial position of equipment, makes things convenient for equipment and equipment rack to aim at, and it is high to need not artifical manual adjustment factor of safety, has improved work efficiency.

Drawings

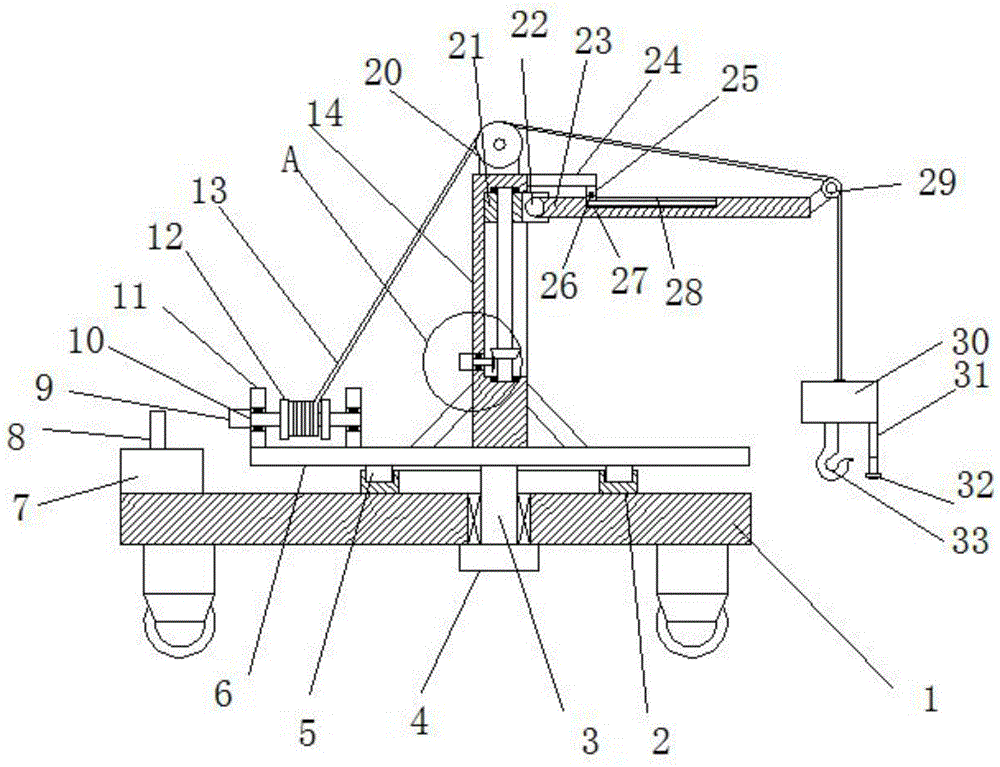

Fig. 1 is a schematic structural view of an apparatus hoisting alignment device for wind power generation according to the present invention;

fig. 2 is an installation schematic view of a mounting plate of an equipment hoisting alignment device for wind power generation according to the present invention;

fig. 3 is an enlarged schematic view of a part a of the apparatus hoisting alignment device for wind power generation according to the present invention.

In the figure: the device comprises a base 1, a mounting base 2, a first rotating shaft 3, a first motor 4, a sliding rail 5, a rotating disc 6, an operating table 7, a display screen 8, a second motor 9, a second rotating shaft 10, a mounting frame 11, a roller shaft 12, a steel wire rope 13, a supporting column 14, a third motor 15, a third rotating shaft 16, a first bevel gear 17, a second bevel gear 18, a screw rod 19, a first pulley 20, a first sliding block 21, a first fixing shaft 22, a mounting plate 23, a cross rod 24, a convex block 25, a second fixing shaft 26, a second sliding block 27, a third fixing shaft 28, a second pulley 29, a connecting base 30, a telescopic rod 31, a camera 32 and a hook 33.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, an equipment hoisting alignment device for wind power generation comprises a base 1, a mounting base 2 is fixed on the top of the base 1, a groove is formed on the top of the mounting base 2, a first motor 4 is installed on the bottom of the base 1, an output shaft of the first motor 4 is connected with a first rotating shaft 3, the first rotating shaft 3 penetrates through the base 1 and is connected with a rotating disc 6, a slide rail 5 is arranged on the bottom of the rotating disc 6, a mounting frame 11 is fixed on one end of the top of the rotating disc 6, two mounting frames 11 are fixed with a second rotating shaft 10, a second motor 9 is installed on the side surface of the mounting frame 11, an output shaft of the second motor 9 is fixedly connected with the second rotating shaft 10, the second rotating shaft 10 is connected with a roller shaft 12 through a flat key, a steel wire rope 13 is wound on the roller shaft 12, a support pillar 14 is fixed on the top of the, a first sliding groove is formed in the side surface of the supporting column 14, a screw rod 19 is installed in the first sliding groove, a second bevel gear 18 is fixedly sleeved on the screw rod 19, a third motor 15 is installed on one side, away from the first sliding groove, of the supporting column 14, an output shaft of the third motor 15 is inserted into the first sliding groove and connected with a third rotating shaft 16, a first bevel gear 17 is fixedly sleeved on the third rotating shaft 16 and is in meshed transmission with the second bevel gear 18, a first sliding block 21 is sleeved on the screw rod 19 through threads, a first fixing shaft 22 is fixed on the side surface of the first sliding block 21, a mounting plate 23 is rotatably connected on the first fixing shaft 22, a second sliding groove is formed in the top of the mounting plate 23, a third fixing shaft 28 is fixed in the second sliding groove, a second sliding block 27 is movably sleeved on the third fixing shaft 28, a second fixing shaft 26 is installed on the top of the second sliding block 27, a connecting seat 30 is fixed at one end of the steel wire rope 13 far away from the roller shaft 12, a hook 33 is fixed at the bottom of the connecting seat 30, an expansion link 31 is fixed at one end of the bottom of the connecting seat 30, and a camera 32 is installed at the bottom of the expansion link 31.

Wherein, the bottom of base 1 is provided with the landing leg, and the quantity of landing leg is four, and the universal wheel is installed to the bottom of landing leg.

Wherein, operation panel 7 is installed to the one end at base 1 top, and display screen 8 is installed at the top of operation panel 7.

Wherein, the bottom of the side of the support column 14 is fixed with a bracket, one end of the bracket far away from the support column 14 is welded with the top of the turntable 6, the number of the brackets is three, and the brackets are circumferentially arranged on the side of the support column 14.

Wherein, the top of support column 14 is installed with first pulley 20, and the side of mounting panel 23 is installed with second pulley 29, and wire rope 13 and first pulley 20 and second pulley 29 sliding connection.

Wherein, the telescopic rod 31 is perpendicular to the upper surface of the base 1.

The working principle is as follows: when the device works, a device to be lifted is fixed on a hook 33, a second motor 9 is started, the second motor 9 drives a second rotating shaft 10, the second rotating shaft 10 drives a roller shaft 12, the roller shaft 12 drives a steel wire rope 13 to be wound, the steel wire rope 13 is wound to drive a connecting seat 30, the connecting seat 30 drives a hook 33, the hook 33 drives the device to be lifted, the device is lifted to the top of a device frame, the device and the device frame are simultaneously shot by a camera 32 through observing a display screen 8 to be convenient to lift the device in the vertical direction, the first motor 4 is started through observing the display screen, the first motor 4 drives a first rotating shaft 3, the first rotating shaft 3 drives a rotating disc 6, the rotating disc 6 drives a supporting column 14, the supporting column 14 drives a first sliding block 21, the first sliding block 21 drives a mounting plate 23, the mounting plate 23 drives a second pulley 29, a third motor 15 is started, the third motor 15 drives a third rotating shaft 16, the, first bevel gear 17 drives second bevel gear 18, second bevel gear 18 drives lead screw 19, lead screw 19 drives first slider 21 through screw transmission, first slider 21 drives mounting panel 23, mounting panel 23 moves and second slider 27 slides in the second spout around first fixed axle 22 this moment, finely tune the horizontal direction position of equipment and equipment rack, be convenient for adjust the spatial position of equipment, make things convenient for equipment and equipment rack to aim at, it is high to need not artifical manual adjustment factor of safety, and work efficiency is improved.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides an equipment lifts by crane aligning device for wind power generation, includes base (1), its characterized in that, the top of base (1) is fixed with mount pad (2), the top of mount pad (2) is seted up flutedly, first motor (4) are installed to the bottom of base (1), the output shaft of first motor (4) is connected with first pivot (3), first pivot (3) run through base (1) and are connected with carousel (6), the bottom of carousel (6) is provided with slide rail (5), the one end at carousel (6) top is fixed with mounting bracket (11), two mounting bracket (11) are fixed with second pivot (10), the side-mounting of mounting bracket (11) has second motor (9), the output shaft and the second pivot (10) fixed connection of second motor (9), second pivot (10) are connected with roller (12) through flat key, the steel wire rope (13) is wound on the roll shaft (12), a supporting column (14) is fixed to the top of the rotary table (6), a cross rod (24) is installed at the top of the side face of the supporting column (14), a convex block (25) is fixed to one end of the bottom of the cross rod (24), a first sliding groove is formed in the side face of the supporting column (14), a lead screw (19) is installed in the first sliding groove, a second bevel gear (18) is fixedly sleeved on the lead screw (19), a third motor (15) is installed on one side, far away from the first sliding groove, of the supporting column (14), an output shaft of the third motor (15) is inserted into the first sliding groove and connected with a third rotating shaft (16), a first bevel gear (17) is fixedly sleeved on the third rotating shaft (16), the first bevel gear (17) is in meshed transmission with the second bevel gear (18), and a first sliding block (21) is sleeved on, the side of first slider (21) is fixed with first fixed axle (22), it is connected with mounting panel (23) to rotate on first fixed axle (22), the second spout has been seted up at the top of mounting panel (23), second spout internal fixation has third fixed axle (28), second slider (27) have been cup jointed in the activity on third fixed axle (28), second fixed axle (26) are installed at the top of second slider (27), second fixed axle (26) rotate with lug (25) and are connected, the one end that roller (12) were kept away from in wire rope (13) is fixed with connecting seat (30), the bottom of connecting seat (30) is fixed with couple (33), the one end of connecting seat (30) bottom is fixed with telescopic link (31), camera (32) are installed to the bottom of telescopic link (31).

2. The equipment hoisting alignment device for wind power generation according to claim 1, wherein the base (1) is provided with four legs at the bottom, and universal wheels are mounted at the bottom of the legs.

3. The equipment hoisting alignment device for wind power generation according to claim 1, wherein an operation table (7) is installed at one end of the top of the base (1), and a display screen (8) is installed at the top of the operation table (7).

4. The equipment hoisting alignment device for wind power generation according to claim 1, wherein brackets are fixed at the bottom of the side surface of the supporting column (14), one end of each bracket far away from the supporting column (14) is welded with the top of the turntable (6), the number of the brackets is three, and the brackets are distributed on the side surface of the supporting column (14) in a circumferential display manner.

5. An equipment hoisting alignment device for wind power generation according to claim 1 wherein the top of the supporting column (14) is mounted with a first pulley (20), the side of the mounting plate (23) is mounted with a second pulley (29), and the wire rope (13) is slidably connected with the first pulley (20) and the second pulley (29).

6. The device for lifting and aligning a wind power plant according to claim 1, characterized in that said telescopic rod (31) is perpendicular to the upper surface of the base (1).
