Abstract
本实用新型公开了一种纺织纱线染色装置，包括染色壳体以及设于染色壳体上方的供液壳体，所述染色壳体包括上色腔、以及与上色腔连通的染液回收腔，所述染液回收腔内设有挤压辊，所述上色腔内设有导纱辊，所述导纱辊上设有若干分流环槽，所述导纱辊下方设有过滤组件以及清扫结构，上色腔与供液壳体之间连接有回液管，所述回液管上设有抽液泵；所述供液壳体底部连接有排液管，所受排液管上连分液管若干，所述分液管端部连接喷头，所述喷头分别设于分流环槽上。本实用新型通过设置过滤网带对染液进行过滤，可以滤掉染液中的杂质，进行更好的回收利用，提高染液的利用率的同时，提高纱线染色的质量，避免二次利用的染液污染纱线。
The utility model discloses a textile yarn dyeing device, which comprises a dyeing shell and a liquid supply shell arranged above the dyeing shell. The dyeing shell comprises a dyeing cavity and a dye liquor recovery connected with the dyeing cavity The dye liquor recovery cavity is provided with a squeezing roller, the coloring cavity is provided with a yarn guide roller, the yarn guide roller is provided with a number of shunt ring grooves, and a filter assembly is arranged under the yarn guide roller and a cleaning structure, a liquid return pipe is connected between the coloring chamber and the liquid supply casing, and a liquid suction pump is arranged on the liquid return pipe; the bottom of the liquid supply casing is connected with a liquid discharge pipe, and the liquid discharge pipe A number of liquid distribution pipes are connected to the top, and the ends of the liquid distribution pipes are connected with spray heads, and the spray heads are respectively arranged on the distribution ring grooves. The utility model filters the dye liquor by arranging the filter mesh belt, so that impurities in the dye liquor can be filtered out, and better recycling can be carried out, and the utilization rate of the dye liquor can be improved, at the same time, the quality of yarn dyeing can be improved, and the secondary utilization can be avoided. dye liquor contaminates the yarn.
Description
Technical Field
The utility model relates to a textile processing technology field, concretely relates to weaving yarn dyeing apparatus.
Background
The spinning idea is a general name taken from spinning and weaving, and the existing spinning is not only the traditional hand-made spinning and weaving, but also includes textiles for clothing, industry and decoration produced by non-woven fabric technology, modern three-dimensional weaving technology, modern electrostatic nano-net forming technology and the like; a spinning tube is a storage device for existing spun yarns, which is the only most convenient and quick storage device, and has been widely used in the market.
Yarn dyeing is a very important ring in the textile process. Chinese patent "201820852318.6" discloses a yarn dyeing apparatus for a spinning machine, which can facilitate simultaneous and orderly dyeing of a plurality of yarns. However, in the implementation process of the above technical scheme, the recovered dye solution is directly used without treatment, and the doped impurities can affect the next dyeing cycle and seriously reduce the yarn dyeing quality.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to prior art's weak point, provide a weaving yarn dyeing apparatus, aim at handles the dye liquor that retrieves and carry out reuse, avoids the dye liquor of secondary use to influence the quality that the yarn dyed.
The technical scheme of the utility model: a textile yarn dyeing device comprises a dyeing shell and a liquid supply shell arranged above the dyeing shell, wherein the dyeing shell comprises a coloring cavity and a dye liquor recovery cavity communicated with the coloring cavity, an extrusion roller is arranged in the dye liquor recovery cavity, a yarn guide roller is arranged in the coloring cavity, a plurality of shunting ring grooves are formed in the yarn guide roller, a filtering component and a cleaning structure are arranged below the yarn guide roller, a liquid return pipe is connected between the coloring cavity and the liquid supply shell, and a liquid suction pump is arranged on the liquid return pipe; the bottom of the liquid supply shell is connected with a liquid discharge pipe, a plurality of liquid distribution pipes are connected to the liquid discharge pipe, the end parts of the liquid distribution pipes are connected with spray heads, and the spray heads are respectively arranged above the liquid distribution ring grooves;
the filter assembly comprises roll shafts, a roller arranged on the outer surface of the roll shafts, filter mesh belts and a rotating motor, wherein the roll shafts are provided with two groups, the filter mesh belts are arranged on the roller in a transmission manner, and the rotating motor is matched with any one of the roll shafts;
clean the structure including the brush cleaner, with brush cleaner fixed connection's otter board and fix the storage box on coloring the chamber lateral wall, storage box and otter board butt, the lower surface contact of brush cleaner and otter board.
Furthermore, a driving motor is arranged at the top of the liquid supply shell, and a stirring rod is arranged in the liquid supply shell and connected with the driving motor.
Furthermore, a pressing plate matched with the shunting ring groove is arranged on the extrusion roller.
Furthermore, a V-shaped filter screen is arranged below the squeezing roller in the dye liquor recovery cavity.
The utility model has the advantages that:
the utility model discloses a set up the filter mesh area and filter the dye liquor, can filter the impurity in the dye liquor, carry out better recycle, when improving the utilization ratio of dye liquor, improve the quality of yarn dyeing, avoid the dye liquor of reutilization to pollute the yarn; wherein, the transmission of filter mesh belt makes the position of actual filtration constantly change, can avoid filter mesh belt to take place to block up, and the structure of cleaning that sets up can clear up filter mesh belt.
Drawings

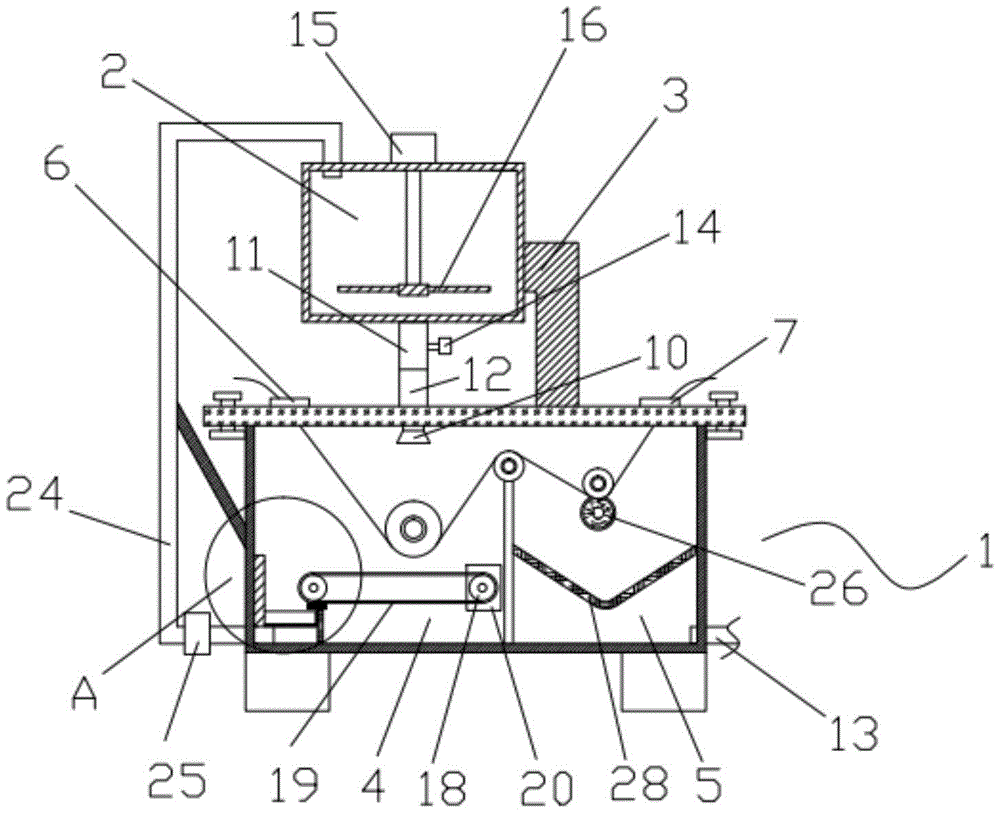

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of part a of the present invention;
fig. 3 is a schematic structural view of the yarn guide roller and the squeeze roller of the present invention.
1. The dyeing machine comprises a dyeing shell 2, a liquid supply shell 3, a support frame 4, a coloring cavity 5, a dye liquor recovery cavity 6, a wire inlet 7, a wire outlet 8, a yarn guide roller 9, a shunting ring groove 10, a spray head 11, a liquid discharge pipe 12, a liquid distribution pipe 13, a liquid discharge pipe 14, an electromagnetic valve 15, a driving motor 16, a stirring rod 17, a roll shaft 18, a roller 19, a filter mesh belt 20, a rotating motor 21, a cleaning brush 22, a mesh plate 23, a storage box 24, a liquid return pipe 25, a liquid suction pump 26, an extrusion roller 27, a pressing plate 28 and a filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be understood that the terms "front", "back", "vertical", "left", "right", "up", "down", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element being referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
The textile processing and dyeing device shown in fig. 1 to 3 comprises a dyeing shell 1 and a liquid supply shell 2 arranged above the dyeing shell 1, wherein the liquid supply shell 2 is fixed above the dyeing shell 1 through a support frame 3. Dyeing shell 1 including color chamber 4 and with color liquor recovery chamber 5 that color chamber 4 communicates, color chamber 4 one side and be equipped with inlet wire 6, color liquor recovery chamber 5 one side is equipped with outlet 7 to be equipped with yarn guide roller 8 in the position of color chamber 4 and color liquor recovery chamber 5 intercommunication. The yarn guide roller 8 is provided with a plurality of shunting ring grooves 9 which can enable yarn dyeing to be carried out simultaneously and orderly.
The above-mentioned color chamber 4 in be equipped with a thread guide roller 8, this thread guide roller 8 top is equipped with shower nozzle 10, shower nozzle 10 corresponds with the position of locating the reposition of redundant personnel annular 9 on the thread guide roller 8 in the color chamber 4. A liquid discharge pipe 11 is arranged at the bottom of the liquid supply shell 2, an electromagnetic valve 14 is arranged on the liquid discharge pipe 11, a liquid distribution pipe 12 is connected on the liquid discharge pipe 11, the liquid distribution pipe 12 extends into the coloring cavity 4, and a nozzle 10 is connected at one end extending into the coloring cavity 4. The dye liquor is sprayed from the spray head 10 to dye the yarn passing through the coloring chamber 4.
The top of the liquid supply shell 2 is provided with a driving motor 15, a stirring rod 16 is arranged in the liquid supply shell 2, and the stirring rod 16 is connected with an output shaft of the driving motor 15. The driving motor 15 drives the stirring rod 16 to rotate, so that the dye liquor in the liquor supply shell 2 is stirred, and the dye liquor is prevented from precipitating.
The coloring cavity 4 is internally provided with a filtering component and a cleaning structure. Wherein, the filter assembly comprises two roll shafts 17, a roller 18 arranged on the outer surface of the roll shafts 17, a filter mesh belt 19 in transmission connection between the roller 18 and a rotating motor 20, the rotating motor 20 is matched with any roll shaft 17, and in the embodiment, the rotating motor is connected with the roll shaft 17 close to the dye liquor recovery cavity 5. The transmission of the filter mesh belt 19 enables the actual filtering position to be changed continuously, and the filter mesh belt 19 can be prevented from being blocked.
Clean the structure including the brush cleaner 21, with brush cleaner 21 fixed connection's otter board 22 and fix the storage case 23 on coloring the 4 lateral walls in chamber, storage case 23 and otter board 22 butt, the upper surface contact of brush cleaner 21 and otter board 22. The cleaned impurities enter the storage tank 23. A liquid return pipe 24 is connected between the coloring cavity 4 and the liquid supply shell 2, a liquid pump 25 is arranged on the liquid return pipe 24, and it should be noted that the liquid return pipe 24 is arranged below the containing box 23, so that the screen plate 22 can further filter the dyeing liquid.
In addition, a yarn guide roller 8 is arranged in the dye liquor recovery cavity 5, an extrusion roller 26 matched with the yarn guide roller 8 is arranged, and a pressing plate 27 matched with the shunting ring groove 9 is arranged on the extrusion roller 26. A V-shaped filter screen 28 is arranged below the squeezing roller 26 in the dye liquor recovery cavity 5, and a liquid outlet pipe 13 is arranged below the filter screen 28.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
