The utility model discloses a vegetable processing and cleaning device, which comprises a stirring and leaching tank, a spraying and washing cavity and a draining and drying cavity; the vegetable washing method comprises the following steps that firstly, vegetables are conveyed into a stirring and leaching tank through a first-stage conveyor belt, washing water is introduced into the stirring and leaching tank, stirring is assisted through an electric stirring shaft, washing efficiency is improved, the vegetables are conveyed to a spraying and washing cavity through the first-stage conveyor belt after washing is finished, the vegetables are transferred to a second-stage conveyor belt, the vegetables are washed again through a high-pressure spray head, the effect of further cleaning is achieved, meanwhile, redundant water on the surfaces of the vegetables is washed away, and water is drained through draining side edges in the spraying process, so that redundant water is removed as far as possible; second grade conveyer belt end-to-end connection is to the transfer tank, and transfer tank department will spray vegetables after the washing and progressively shift to the dry intracavity through artifical or hoisting device, opens and rotates the motor, and it is rotatory to drive the drying bucket, rolls out the drop of water, reaches dry effect, has both improved drying efficiency through the divided slope division board, prevents simultaneously that vegetables from receiving the damage.
Description
Technical Field
The utility model relates to a vegetables processing equipment technical field specifically is a vegetables processing belt cleaning device.
Background
In the field of food processing, it is necessary to wash vegetables. The existing cleaning process generally adopts the mode that vegetables are placed in a cleaning tank to be manually cleaned, so that the time and the labor are wasted, the labor intensity of workers is high, the working efficiency is low, and the requirement of automatic production is not met. The vegetables are stained with a lot of water after being cleaned, the water falls to the ground when the vegetables are manually moved, the workshop environment is polluted, and meanwhile, the stained vegetables are not easy to store, and the quality of the vegetables is influenced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a vegetables processing belt cleaning device to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a vegetable processing and cleaning device comprises a stirring and leaching tank, a spraying and washing cavity and a draining and drying cavity; a primary conveyor belt is arranged in the stirring and leaching tank, water inlet pipes are arranged on two sides of the stirring and leaching tank, an electric stirring shaft is arranged between the water inlet pipes, and a flexible blade is arranged on the electric stirring shaft; a spraying and washing cavity is formed in one side of the stirring and leaching tank, and the tail end of the primary conveyor belt is connected to the spraying and washing cavity; a secondary conveyor belt is arranged at the bottom of the spraying and washing cavity, draining side edges are arranged on two sides of the secondary conveyor belt, and draining hollow holes are formed in the draining side edges; the upper end of the spraying and washing cavity is provided with a plurality of spraying pipelines, and the tail ends of the spraying pipelines are provided with high-pressure spray heads; a draining and drying cavity is arranged on the side edge of the spraying and washing cavity and comprises a drying barrel and an inclined partition plate; a plurality of inclined partition plates are uniformly spaced in the drying barrel, a drying cavity is formed between the inclined partition plates, and hollow holes are formed in the side surface of the drying cavity; the drying barrel bottom is provided with fixed baseplate, and the fixed baseplate below is provided with the axis of rotation, and the axis of rotation end-to-end connection is to rotating motor.
Preferably, equal transmission motors are arranged below the primary conveyor belt and the secondary conveyor belt, the output ends of the transmission motors are connected to the transmission rollers, and the tail end of the primary conveyor belt is in lap joint with the starting end of the secondary conveyor belt.
Preferably, the two ends of the electric stirring shaft are connected to the stirring motor, the tail end of the water inlet pipe is downwards inclined to the bottom of the stirring and leaching tank, and the electric stirring shafts are horizontally fixed on the two side walls of the stirring and leaching tank.
Preferably, the side edge of the drying cavity is provided with a feeding hole, and a sealable baffle is arranged at the feeding hole.
Preferably, the inclined partition plate is provided with continuous wave-shaped grooves, and the wave-shaped grooves and the inclined partition plate are integrally formed.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses simple structure, the practicality is strong, carry vegetables to the stirring leaching tank in through the one-level conveyer belt earlier, let in the washing water in the stirring leaching tank, through the supplementary stirring of electric (mixing) shaft, improve the cleaning efficiency, carry to spraying and wash the chamber through the one-level conveyer belt after the washing is accomplished, transport to the second grade conveyer belt, wash vegetables once more through high pressure nozzle, reach further clear effect, flush away the unnecessary moisture on vegetables surface simultaneously, carry out the waterlogging caused by excessive rainfall side in the spraying process, get rid of unnecessary moisture as far as; second grade conveyer belt end-to-end connection is to the transfer tank, and transfer tank department will spray vegetables after the washing and progressively shift to the dry intracavity through artifical or hoisting device, opens and rotates the motor, and it is rotatory to drive the drying bucket, rolls out the drop of water, reaches dry effect, has both improved drying efficiency through the divided slope division board, prevents simultaneously that vegetables from receiving the damage.
Drawings

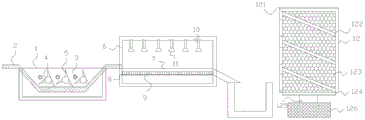

Fig. 1 is a schematic view of the overall structure of the present invention.
In the figure: 1. stirring the leaching tank; 2. a primary conveyor belt; 3. a water inlet pipe; 4. an electric stirring shaft; 5. a flexible blade; 6. a spray rinsing cavity; 7. a secondary conveyor belt; 8. draining the side edge; 9. draining and hollowing; 10. a spray pipe; 11. a high pressure spray head; 12. a draining and drying cavity; 121. drying the barrel; 122. an inclined partition plate; 123. a drying chamber; 124. a fixed base; 125. a rotating shaft; 126. the motor is rotated.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Referring to fig. 1, the present invention provides a technical solution: a vegetable processing and cleaning device comprises a stirring and leaching tank 1, a spraying and washing cavity 6 and a draining and drying cavity 12; a primary conveyor belt 2 is arranged in the stirring and leaching tank 1, water inlet pipes 3 are arranged on two sides of the stirring and leaching tank 1, an electric stirring shaft 4 is arranged between the water inlet pipes 3, and a flexible blade 5 is arranged on the electric stirring shaft 4; a spraying and washing cavity 6 is formed in one side of the stirring and leaching tank 1, and the tail end of the primary conveyor belt 2 is connected to the spraying and washing cavity 6; a secondary conveyor belt 7 is arranged at the bottom of the spraying and washing cavity 6, draining side edges 8 are arranged on two sides of the secondary conveyor belt 7, and draining hollowed holes 9 are formed in the draining side edges 8; the upper end of the spraying and washing cavity 6 is provided with a plurality of spraying pipelines 10, and the tail ends of the spraying pipelines 10 are provided with high-pressure spray heads 11; a draining and drying cavity 12 is arranged on the side edge of the spraying and washing cavity 6, and the draining and drying cavity 12 comprises a drying barrel 121 and an inclined partition plate 122; a plurality of inclined partition plates 122 are uniformly arranged in the drying barrel 121, a drying cavity 123 is formed between the inclined partition plates 122, and hollow holes are formed in the side surface of the drying cavity 123; the bottom of the drying barrel 121 is provided with a fixed base 124, a rotating shaft 125 is arranged below the fixed base 124, and the tail end of the rotating shaft 125 is connected to a rotating motor 126.
Further, equal transmission motors are arranged below the primary conveyor belt 2 and the secondary conveyor belt 7, the output ends of the transmission motors are connected to the transmission rollers, and the tail end of the primary conveyor belt 2 is in lap joint with the starting end of the secondary conveyor belt 7.
Furthermore, 4 both ends of electric stirring shaft are connected to agitator motor, 3 terminal downward sloping of inlet pipe to stirring leaching tank 1 bottoms, and a plurality of electric stirring shaft 4 level is fixed on stirring leaching tank 1 both sides wall.
Further, the side of the drying cavity 123 is provided with a feed inlet, and the feed inlet is provided with a sealable baffle.
Further, the inclined partition plate 122 is provided with continuous wave-shaped grooves, and the wave-shaped grooves are integrally formed with the inclined partition plate 122.
The working principle is as follows: a primary conveyor belt 2 is arranged in the stirring and leaching tank 1, water inlet pipes 3 are arranged on two sides of the stirring and leaching tank 1, an electric stirring shaft 4 is arranged between the water inlet pipes 3, and a flexible blade 5 is arranged on the electric stirring shaft 4; a spraying and washing cavity 6 is formed in one side of the stirring and leaching tank 1, and the tail end of the primary conveyor belt 2 is connected to the spraying and washing cavity 6; a secondary conveyor belt 7 is arranged at the bottom of the spraying and washing cavity 6, draining side edges 8 are arranged on two sides of the secondary conveyor belt 7, and draining hollowed holes 9 are formed in the draining side edges 8; the upper end of the spraying and washing cavity 6 is provided with a plurality of spraying pipelines 10, and the tail ends of the spraying pipelines 10 are provided with high-pressure spray heads 11; firstly, conveying vegetables into a stirring and leaching tank 1 through a first-stage conveyor belt 2, introducing cleaning water into the stirring and leaching tank 1, assisting in stirring through an electric stirring shaft 4, improving the cleaning efficiency, conveying the cleaned vegetables to a spraying and washing cavity 6 through the first-stage conveyor belt 2, transferring the cleaned vegetables to a second-stage conveyor belt 7, washing the vegetables again through a high-pressure spray head 11 to achieve the effect of further cleaning, flushing away excessive moisture on the surfaces of the vegetables, draining through a draining side edge 8 in the spraying process, and removing the excessive moisture as much as possible;
a draining and drying cavity 12 is arranged on the side edge of the spraying and washing cavity 6, and the draining and drying cavity 12 comprises a drying barrel 121 and an inclined partition plate 122; a plurality of inclined partition plates 122 are uniformly arranged in the drying barrel 121, a drying cavity 123 is formed between the inclined partition plates 122, and hollow holes are formed in the side surface of the drying cavity 123; drying bucket 121 bottom is provided with fixed baseplate 124, fixed baseplate 124 below is provided with axis of rotation 125, axis of rotation 125 end-to-end connection rotates motor 126, 7 end-to-end connection of second grade conveyer belt to the transfer tank, transfer tank department is through artifical or hoisting device, will spray vegetables after the washing and progressively shift to in dry chamber 123, open rotation motor 126, it is rotatory to drive drying bucket 121, roll out the drop of water, reach dry effect, both improved drying efficiency through divided slope division board 122, prevent simultaneously that vegetables from receiving the damage.
It is worth noting that: the whole device realizes control over the device through the master control button, and the device matched with the control button is common equipment, belongs to the existing mature technology, and is not repeated for the electrical connection relation and the specific circuit structure.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a vegetables processing belt cleaning device which characterized in that: comprises a stirring and leaching tank (1), a spraying and washing cavity (6) and a draining and drying cavity (12); a primary conveyor belt (2) is arranged in the stirring and leaching tank (1), water inlet pipes (3) are arranged on two sides of the stirring and leaching tank (1), an electric stirring shaft (4) is arranged between the water inlet pipes (3), and a flexible blade (5) is arranged on the electric stirring shaft (4); a spraying and washing cavity (6) is formed in one side of the stirring and leaching tank (1), and the tail end of the primary conveyor belt (2) is connected to the spraying and washing cavity (6); a secondary conveyor belt (7) is arranged at the bottom of the spraying and washing cavity (6), draining side edges (8) are arranged on two sides of the secondary conveyor belt (7), and draining hollowed-out holes (9) are formed in the draining side edges (8); a plurality of spraying pipelines (10) are arranged at the upper end of the spraying and washing cavity (6), and a high-pressure spray head (11) is arranged at the tail end of each spraying pipeline (10); a draining and drying cavity (12) is arranged on the side edge of the spraying and washing cavity (6), and the draining and drying cavity (12) comprises a drying barrel (121) and an inclined partition plate (122); a plurality of inclined partition plates (122) are uniformly arranged in the drying barrel (121), a drying cavity (123) is formed between the inclined partition plates (122), and hollow holes are formed in the side surface of the drying cavity (123); the drying machine is characterized in that a fixed base (124) is arranged at the bottom of the drying barrel (121), a rotating shaft (125) is arranged below the fixed base (124), and the tail end of the rotating shaft (125) is connected to a rotating motor (126).
2. A vegetable processing and cleaning device as defined in claim 1, wherein: the equal transmission motor is arranged below the first-level conveying belt (2) and the second-level conveying belt (7), the output end of the transmission motor is connected to the transmission roller, and the tail end of the first-level conveying belt (2) is in lap joint with the starting end of the second-level conveying belt (7).
3. A vegetable processing and cleaning device as defined in claim 1, wherein: electric stirring shaft (4) both ends are connected to agitator motor, and intake pipe (3) end downward sloping is to stirring leaching tank (1) bottom, and a plurality of electric stirring shaft (4) level is fixed on stirring leaching tank (1) both sides wall.
4. A vegetable processing and cleaning device as defined in claim 1, wherein: the side of the drying cavity (123) is provided with a feeding hole, and a sealable baffle is arranged at the feeding hole.
5. A vegetable processing and cleaning device as defined in claim 1, wherein: the inclined partition plate (122) is provided with continuous wave-shaped grooves, and the wave-shaped grooves and the inclined partition plate (122) are integrally formed.
