Abstract
The utility model discloses a material conveying mechanism for spot welding of a spot welding machine, which comprises a base, a supporting plate fixedly connected with the upper side of the base, a top plate fixedly connected with the upper side of the supporting plate, an electric telescopic rod fixedly connected with the lower side of the top plate, a first connecting block fixedly connected with the lower end of the electric telescopic rod, an electric welding head fixedly installed at the lower side of the first connecting block, a conveying frame below the electric welding head, a first rotary drum rotatably connected with one end of the conveying frame, a first motor fixedly installed at one side of the conveying frame, and the output end of the first motor fixedly connected with the first rotary drum, a second rotary drum rotatably connected with the other end of the conveying frame far away from the first rotary drum, a conveying belt sleeved between the second rotary drum and the first rotary drum, a plurality of placing grooves arranged on the conveying belt, a long rod fixedly connected with the inner, the spot welding machine is convenient for material conveying, simple to operate and convenient for clamping workpieces, so that the spot welding machine works stably.
Description
Technical Field
The utility model relates to a material conveying mechanism, in particular to spot welder is material conveying mechanism for spot welding belongs to spot welder technical field.
Background
The spot welding machine is divided into a universal type and a special type according to the purpose; according to the number of welding points welded simultaneously, the welding device is divided into a single-point type, a double-point type and a multi-point type; according to the conductive mode, the conductive film is divided into a single-sided one and a double-sided one; the device is divided into pedal type, motor-cam type, pneumatic type, hydraulic type and composite type according to the transmission mode of a pressurizing mechanism, and is divided into non-automation and automation according to the operating characteristics; according to the installation method, the device is divided into a fixed type, a movable type or a portable type; according to the moving direction of the movable electrode of the welding machine, the movable electrode has a vertical stroke and an arc stroke; according to the supply mode of electric energy, there are power frequency welding machine, pulse welding machine and frequency conversion welding machine.
Traditional material conveying mechanism for welding machine spot welding does not set up clamping device, leads to the spot welder when spot welding, and the work piece takes place the skew, influences work piece spot welding, exists not enoughly.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome prior art's defect, provide a material conveying mechanism for spot welder spot welding.
In order to solve the technical problem, the utility model provides a following technical scheme:
the utility model relates to a material conveying mechanism for spot welding of a spot welding machine, which comprises a base, wherein the upper side of the base is fixedly connected with a supporting plate, the upper side of the supporting plate is fixedly connected with a top plate, the lower side of the top plate is fixedly connected with an electric telescopic rod, the lower end of the electric telescopic rod is fixedly connected with a first connecting block, the lower side of the first connecting block is fixedly provided with an electric welding head, the lower part of the electric welding head is provided with a conveying frame, one end of the conveying frame is rotatably connected with a first rotary drum, one side of the conveying frame is fixedly provided with a first motor, the output end of the first motor is fixedly connected with the first rotary drum, the other end of the conveying frame, which is far away from the first rotary drum, is rotatably connected with a second rotary drum, a conveying belt is sleeved between the second rotary drum and the first rotary drum, and the adjacent ends of the two long rods are fixedly connected with the two sides of the supporting block, the upper side of the supporting block is fixedly connected with a first fixing block, a sliding groove is arranged at the upper side of the first fixed block, a second motor is fixedly arranged at one side of the first fixed block, and the output end of the second motor passes through the first fixed block and is fixedly connected with a threaded rod, two ends of the threaded rod are rotationally connected with the inner wall of the chute, the two ends of the threaded rod are respectively sleeved with a sliding block, the upper sides of the sliding blocks are respectively fixedly connected with a connecting rod, a second fixing block is arranged above the connecting rods, the second fixed blocks are fixedly connected to the upper sides of the first fixed blocks, the second fixed blocks are provided with elongated slots, the connecting rods penetrate through the elongated grooves and are fixedly connected with second connecting blocks, and the adjacent sides of the two second connecting blocks are fixedly connected with extrusion blocks.
As an optimal technical scheme of the utility model, threaded rod both ends external screw thread sets up on the contrary.
As an optimal technical scheme of the utility model, the internal thread has all been seted up to the slider, slider and threaded rod threaded connection.
As an optimal technical scheme of the utility model, slider and spout sliding connection, connecting rod and elongated slot sliding connection.
As an optimized technical solution of the utility model, the standing groove equidistance is arranged.
As an optimal technical scheme of the utility model, the extrusion piece is symmetrical about the conveyer belt, the extrusion piece is equipped with the friction surface.
The utility model discloses the beneficial effect who reaches is:
the utility model provides a spot welder is material conveying mechanism for spot welding, puts the work piece in the standing groove, starts first motor, and first motor drives first rotary drum and rotates, and first rotary drum and second rotary drum drive the conveyer belt and rotate to carry the work piece, the material of being convenient for is carried, easy operation, and the suitability is high.
The second motor is started, the electric threaded rod of the second motor rotates, the threaded rod drives the sliding block to be close to, the sliding block slides in the sliding groove to be limited, the sliding block drives the connecting rod to move, therefore, the two extrusion blocks clamp the workpiece, the electric telescopic rod is utilized to enable the electric welding head to descend to perform spot welding operation on the workpiece, the workpiece is convenient to clamp, and the spot welding machine can work stably.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

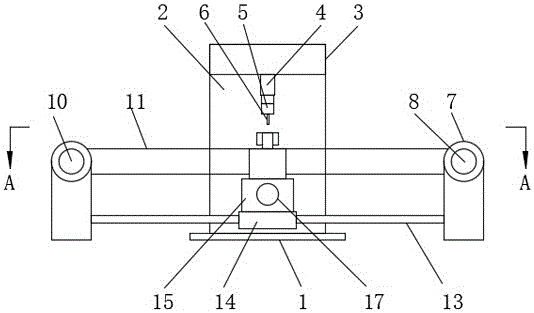

fig. 1 is a schematic front structural view of the present invention;
fig. 2 is a sectional view of the first fixing block of the present invention;
fig. 3 is a schematic structural view of a second fixing block of the present invention;
fig. 4 is a cross-sectional view taken along a line a-a of fig. 1;
fig. 5 is an enlarged view of the structure at B in fig. 4 of the present invention.
In the figure: 1. a base; 2. a support plate; 3. a top plate; 4. an electric telescopic rod; 5. a first connection block; 6. an electric welding head; 7. a transfer frame; 8. a first rotating drum; 9. a first motor; 10. a second rotating drum; 11. a conveyor belt; 12. a placement groove; 13. a long rod; 14. a support block; 15. a first fixed block; 16. a chute; 17. a second motor; 18. a threaded rod; 19. a slider; 20. a connecting rod; 21. a second fixed block; 22. a long groove; 23. A second connecting block; 24. and extruding the block.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Example 1
As shown in figures 1-5, a material conveying mechanism for spot welding of a spot welding machine comprises a base 1, a supporting plate 2 is fixedly connected to the upper side of the base 1, a top plate 3 is fixedly connected to the upper side of the supporting plate 2, an electric telescopic rod 4 is fixedly connected to the lower side of the top plate 3, a first connecting block 5 is fixedly connected to the lower end of the electric telescopic rod 4, an electric welding head 6 is fixedly installed on the lower side of the first connecting block 5, a conveying frame 7 is arranged below the electric welding head 6, one end of the conveying frame 7 is rotatably connected with a first rotary drum 8, a first motor 9 is fixedly installed on one side of the conveying frame 7, the output end of the first motor 9 is fixedly connected with the first rotary drum 8, the other end of the conveying frame 7, which is far away from the first rotary drum 8, is rotatably connected with a second rotary drum 10, a conveying belt 11 is sleeved between the second rotary drum 10 and the first rotary drum, and the adjacent ends of the two long rods 13 are fixedly connected with the two sides of the supporting block 14, the upper side of the supporting block 14 is fixedly connected with a first fixing block 15, the upper side of the first fixing block 15 is provided with a sliding chute 16, one side of the first fixing block 15 is fixedly provided with a second motor 17, and the output end of the second motor 17 passes through the first fixed block 15 and is fixedly connected with a threaded rod 18, the two ends of the threaded rod 18 are rotatably connected with the inner wall of the chute 16, the two ends of the threaded rod 18 are both sleeved with a sliding block 19, the upper sides of the sliding blocks 19 are both fixedly connected with a connecting rod 20, a second fixed block 21 is arranged above the connecting rod 20, and the second fixed blocks 21 are all fixedly connected to the upper side of the first fixed block 15, the second fixed blocks 21 are all provided with elongated slots 22, the connecting rods 20 all penetrate through the elongated slots 22 and are fixedly connected with second connecting blocks 23, and one sides of the two adjacent second connecting blocks 23 are all fixedly connected with extrusion blocks 24.
The internal thread has all been seted up to slider 19, slider 19 and threaded rod 18 threaded connection, the slider 19 of being convenient for removes, the standing groove 12 equidistance is arranged, the transported substance material of being convenient for, the screw thread opposite settings in 18 both ends of threaded rod is convenient for drive two sliders 19 relative movement, slider 19 and spout 16 sliding connection, connecting rod 20 and elongated slot 22 sliding connection, the spacing of being convenient for, extrusion piece 24 is symmetrical about conveyer belt 11, extrusion piece 24 is equipped with the friction surface, the centre gripping material of being convenient for.
Specifically, the utility model discloses during the use, put the work piece in standing groove 12, start first motor 9, first motor 9 drives first rotary drum 8 and rotates, first rotary drum 8 and second rotary drum 10 drive conveyer belt 11 and rotate, thereby carry the work piece, start second motor 17, second motor 17 electric threaded rod 18 rotates, threaded rod 18 drives slider 19 and is close to, slider 19 slides spacingly in spout 16, slider 19 drives connecting rod 20 and removes, thereby make two 24 tight work pieces of clamp of extrusion piece, utilize electric telescopic handle 4 to make electric welding head 6 descend and carry out spot welding operation to the work piece.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The material conveying mechanism for spot welding of the spot welding machine comprises a base (1) and is characterized in that a supporting plate (2) is fixedly connected to the upper side of the base (1), a top plate (3) is fixedly connected to the upper side of the supporting plate (2), an electric telescopic rod (4) is fixedly connected to the lower side of the top plate (3), a first connecting block (5) is fixedly connected to the lower end of the electric telescopic rod (4), an electric welding head (6) is fixedly mounted to the lower side of the first connecting block (5), a conveying frame (7) is arranged below the electric welding head (6), a first rotary drum (8) is rotatably connected to one end of the conveying frame (7), a first motor (9) is fixedly mounted to one side of the conveying frame (7), the output end of the first motor (9) is fixedly connected with the first rotary drum (8), and a second rotary drum (10) is rotatably connected to the other end, far away from the first rotary drum (8), of the conveying, a conveyor belt (11) is sleeved between the second rotary drum (10) and the first rotary drum (8), a plurality of placing grooves (12) are formed in the conveyor belt (11), long rods (13) are fixedly connected to the inner walls of the two sides of the lower end of the conveying frame (7), two adjacent ends of the long rods (13) are fixedly connected to the two sides of the supporting block (14), a first fixed block (15) is fixedly connected to the upper side of the supporting block (14), a sliding groove (16) is formed in the upper side of the first fixed block (15), a second motor (17) is fixedly mounted on one side of the first fixed block (15), a threaded rod (18) fixedly connected to the output end of the second motor (17) penetrates through the first fixed block (15), the two ends of the threaded rod (18) are rotatably connected with the inner walls of the sliding groove (16), and sliding blocks (19) are sleeved at the two ends, the upper side of the sliding block (19) is fixedly connected with a connecting rod (20), a second fixing block (21) is arranged above the connecting rod (20), the second fixing block (21) is fixedly connected to the upper side of the first fixing block (15), an elongated slot (22) is formed in the second fixing block (21), the connecting rod (20) penetrates through the elongated slot (22) and is fixedly connected with a second connecting block (23), and two extruding blocks (24) are fixedly connected to one adjacent side of the second connecting block (23).
2. The spot welding machine material conveying mechanism according to claim 1, characterized in that: the external threads at the two ends of the threaded rod (18) are arranged oppositely.
3. The spot welding machine material conveying mechanism according to claim 1, characterized in that: the sliding blocks (19) are all provided with internal threads, and the sliding blocks (19) are in threaded connection with the threaded rods (18).
4. The spot welding machine material conveying mechanism according to claim 1, characterized in that: the sliding block (19) is connected with the sliding groove (16) in a sliding mode, and the connecting rod (20) is connected with the long groove (22) in a sliding mode.
5. The spot welding machine material conveying mechanism according to claim 1, characterized in that: the placing grooves (12) are arranged at equal intervals.
6. The spot welding machine material conveying mechanism according to claim 1, characterized in that: the squeezing blocks (24) are symmetrical with respect to the conveyor belt (11), and the squeezing blocks (24) are provided with friction surfaces.
