Abstract

The utility model relates to the technical field of dust collectors, and discloses an anti-clogging wet dust collector capable of circulating water. The upper surface of the processing box is provided with a processing port, the upper surface of the processing box is fixedly connected with a working box, the upper surface and the lower surface of the working box are both provided with a working port, and the upper surface of the working box is sealed with a cover plate . The anti-clogging wet dust collector capable of circulating water can prevent the device from being installed to a certain extent through the cooperation of the servo motor, the rotating shaft, the driving sprocket, the driven sprocket, the chain, the main shaft, the fixing frame, the cleaning bucket and the control board. Blocking, prolonging the service time of the device, through the cooperation of the outlet pipe, the filter box, the high-pressure pump, the buffer plate, the treatment box and the nozzle, the water resources can be recycled and the practicability is improved.

Description

Anti-blocking wet dust collector capable of recycling water

Technical Field

The utility model relates to a dust remover technical field specifically is a can circulate jam wet dust collector of water.

Background

At present, a wet dust collector is commonly called as a demister, which is a device for enabling dust-containing gas to be in close contact with liquid (generally water), catching particles or enabling the particles to be enlarged or kept in a fixed container to achieve the effect of separating water from dust by utilizing the inertia collision of water drops and the particles or the full mixing action and other actions of the water and the dust.

Disclosed in chinese patent publication No. CN207270987U is a wet dust collector, this wet dust collector passes through driving motor and drives the high-speed operation of rotation main shaft, make the epaxial stirring fan blade of rotation will spray the water of mouth injection and smash, let in the waste gas dust and the water intensive mixing contact that sprays, with the dust clean up in the waste gas, be connected with two connecting rods through rotating the main shaft bottom, and the scraper blade and the water storage box inner wall laminating of connecting rod one end are in the same place, it strikes off totally with the remaining spot of water storage box inner wall to make the scraper blade strike off when rotating the main shaft rotation in-process, the dirty water emergence sediment phenomenon in the water storage box has also been avoided simultaneously, prevent that sewage conveying pipe from appearing blockking up, but this kind of: the driving motor drives the rotating main shaft to rotate at a high speed, so that the scraper blade rotates at a high speed on the inner side wall of the water storage tank, the scraper blade and the water storage tank work for a long time to enable the water storage tank to generate certain abrasion, the water storage tank is easy to damage, meanwhile, the water fluidity in the water storage tank is large, the stability of the device is affected, and energy is wasted, so that the anti-blocking method is not good, the practicability is low, and the popularization and the use are not facilitated.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a can circulate water anti-clogging wet dust collector, it drives the rotation main shaft and carries out high-speed operation to have solved driving motor, and then make the scraper blade carry out high-speed operation at the inside wall of water storage box, the scraper blade can make the water storage box produce certain wearing and tearing with water storage box long-term work, lead to the water storage box to damage more easily, simultaneously the rivers mobility in the cistern is than great, influence the stability of device, and waste the energy relatively, therefore this kind of anti-clogging method is relatively not good, the practicality is lower, be unfavorable for the problem of using widely.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: an anti-blocking wet dust collector capable of recycling water comprises a bottom plate, wherein four groups of supporting columns are fixedly connected to the left end of the upper surface of the bottom plate, a processing box is fixedly connected to the top ends of the supporting columns, a processing port is formed in the upper surface of the processing box, a working box is fixedly connected to the upper surface of the processing box, working ports are formed in the upper surface and the lower surface of the working box, a cover plate is arranged on the upper surface of the working box in a sealing manner, an output pipe is communicated with the top end of the right side surface of the working box, an input pipe is communicated with the bottom end of the left side surface of the processing box, an input valve is arranged on the input pipe, a cleaning bucket is arranged in the processing box, cleaning bristles are arranged on the outer side wall of the cleaning bucket, a plurality of leakage holes are formed in the cleaning bucket, through holes are formed in the, a servo motor is arranged inside the bottom end of the working box, the output end of the servo motor is fixedly connected with a rotating shaft, the bottom end of the rotating shaft is fixedly connected with a driving chain wheel, a chain is connected between the driving chain wheel and a driven chain wheel in a transmission manner, a buffer plate is arranged inside the top end of the working box, a buffer cavity is arranged inside the buffer plate, the lower surface of the buffer plate is communicated with a plurality of groups of spray heads, four groups of connecting rods are fixedly connected with the outer side wall of the buffer plate, the outer side wall of each connecting rod is fixedly connected with the side wall of the inner cavity of the working box, a delivery pipe is communicated with the lower surface of the treatment box, a delivery valve is arranged on the delivery pipe, a filter box is fixedly connected with the right end of the upper surface of the bottom plate, a filter opening is formed in the upper surface, the rose box right flank fixedly connected with high-pressure pump, the high-pressure pump input end is portable to be passed the rose box right flank and stretch into inside the rose box top, and the high-pressure pump output end is portable to be passed the top of work box right flank and portable inside stretching into the buffer board.

Preferably, the top fixedly connected with backup pad in the work box, the multiunit intercommunicating pore has been seted up in the backup pad, is provided with the absorption sponge in the backup pad, adsorb sponge lateral wall and the contact of work box inner wall, apron lower surface four corners fixedly connected with fixed block, fixed block lower surface and absorption sponge upper surface contact.

Preferably, the bottom end of the driving sprocket is fixedly connected with an auxiliary shaft, the bottom end of the left side wall of the inner cavity of the working box is fixedly connected with an auxiliary plate, and the upper surface of the auxiliary plate is rotatably connected with the bottom end of the auxiliary shaft.

Preferably, the right end of the inner side wall of the working box is fixedly connected with a control plate, and the left end of the lower surface of the control plate is rotatably connected with the top end of the main shaft.

Preferably, the left end of the servo motor is fixedly connected with a stabilizing plate, and the left side surface of the stabilizing plate is fixedly connected with the bottom end of the left side wall of the inner cavity of the working box.

Preferably, the four corners of the lower surface of the bottom plate are fixedly connected with pillars, the bottoms of the pillars are fixedly connected with a base, and the bottoms of the base are fixedly connected with anti-slip pads.

(III) advantageous effects

The utility model provides a can circulate water prevent blockking up wet dust collector, possess following beneficial effect:

1. this can circulation water prevent blockking up wet dust collector through servo motor, axis of rotation, drive sprocket, driven sprocket, chain, main shaft, mount, clean cooperation of fighting and control panel, can prevent to a certain extent that the device from blockking up, extension fixture's live time through the cooperation of contact tube, rose box, high-pressure pump, buffer board, processing case and shower nozzle, can recycle the water resource, has improved the practicality.

2. This can circulation water prevent blockking up wet dust collector through the mating reaction of adsorbing sponge and backup pad, can carry out further processing to the waste gas after handling, through the effect of connecting rod, can fix the buffer board, through the effect of support column, can fix the stability in use who handles the case, improves the device.

Drawings

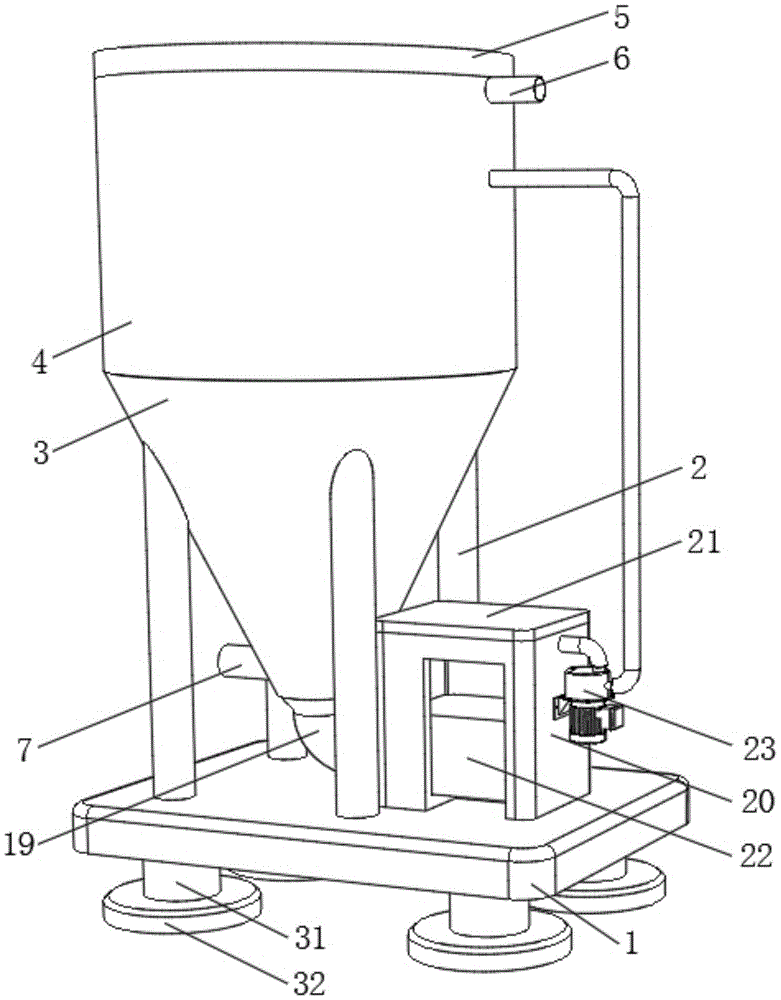

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic sectional view of the treatment tank of the present invention;

FIG. 3 is a schematic sectional view of the working box of the present invention

Fig. 4 is a partially enlarged view of a portion a in fig. 2.

In the figure: 1. a base plate; 2. a support pillar; 3. a treatment tank; 4. a work box; 5. a cover plate; 6. an output pipe; 7. an input tube; 8. cleaning the bucket; 9. a fixed mount; 10. a main shaft; 11. a driven sprocket; 12. a servo motor; 13. a rotating shaft; 14. a drive sprocket; 15. a chain; 16. a buffer plate; 17. a spray head; 18. a connecting rod; 19. a delivery pipe; 20. a filter box; 21. a top plate; 22. a filter layer; 23. a high pressure pump; 24. a support plate; 25. adsorbing the sponge; 26. a fixed block; 27. an auxiliary shaft; 28. an auxiliary plate; 29. a control panel; 30. a stabilizing plate; 31. a pillar; 32. a base.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: an anti-blocking wet dust collector capable of recycling water comprises a bottom plate 1, wherein four groups of supporting columns 2 are fixedly connected to the left end of the upper surface of the bottom plate 1, a processing box 3 is fixedly connected to the top ends of the supporting columns 2, a processing opening is formed in the upper surface of the processing box 3, a working box 4 is fixedly connected to the upper surface of the processing box 3, working openings are formed in the upper surface and the lower surface of the working box 4, a cover plate 5 is mounted on the upper surface of the working box 4 in a sealing mode, an output pipe 6 is communicated with the top end of the right side surface of the working box 4, an input pipe 7 is communicated with the bottom end of the left side surface of the processing box 3, an input valve is arranged on the input pipe 7, a cleaning bucket 8 is arranged inside the processing box 3, cleaning bristles are arranged on the outer side wall of the cleaning bucket 8, a plurality of leakage holes are formed in, the outer side wall of the main shaft 10 is fixedly connected with a driven chain wheel 11, a servo motor 12 is arranged inside the bottom end of the working box 4, the output end of the servo motor 12 is fixedly connected with a rotating shaft 13, the bottom end of the rotating shaft 13 is fixedly connected with a driving chain wheel 14, a chain 15 is connected between the driving chain wheel 14 and the driven chain wheel 11 in a transmission manner, a buffer plate 16 is arranged inside the top end of the working box 4, a buffer cavity is arranged inside the buffer plate 16, the lower surface of the buffer plate 16 is communicated with a plurality of groups of spray heads 17, the outer side wall of the buffer plate 16 is fixedly connected with four groups of connecting rods 18, the outer side wall of the connecting rods 18 is fixedly connected with the inner cavity side wall of the working box 4, the lower surface of the processing box 3 is communicated with a delivery pipe 19, the delivery pipe 19 is provided with a delivery valve, the right end of the delivery pipe 19 penetrates through the bottom end of the left side face of the filter box 20 and extends into the bottom end of the filter box 20, the right side face of the filter box 20 is fixedly connected with a high-pressure pump 23, the input end of the high-pressure pump 23 can movably penetrate through the right side face of the filter box 20 and extend into the top end of the filter box 20, and the output end of the high-pressure pump 23 can movably penetrate through the top end of the right side face of the working box 4 and movably extend into the buffer plate 16.

Specifically, in order to improve the treatment effect to dirty gas, the inside top fixedly connected with backup pad 24 of work box 4, the multiunit intercommunicating pore has been seted up on the backup pad 24, be provided with on the backup pad 24 and adsorb sponge 25, adsorb the contact of sponge 25 lateral wall and 4 inside walls of work box, 5 lower surface four corners fixedly connected with fixed block 26 of apron, fixed block 26 lower surface and adsorption sponge 25 upper surface contact, it places on backup pad 24 to adsorb sponge 25, it is more convenient when can making the staff change adsorption sponge 25.

Specifically, in order to support the driving sprocket 14 to a certain extent, an auxiliary shaft 27 is fixedly connected to the bottom end of the driving sprocket 14, an auxiliary plate 28 is fixedly connected to the bottom end of the left side wall of the inner cavity of the working box 4, and the upper surface of the auxiliary plate 28 is rotatably connected to the bottom end of the auxiliary shaft 27.

Specifically, in order to assist the driven sprocket 11 to rotate more stably, the right end of the inner side wall of the working box 4 is fixedly connected with a control plate 29, and the left end of the lower surface of the control plate 29 is rotatably connected with the top end of the main shaft 10.

Specifically, in order to fix the servo motor 12 and enable the servo motor 12 to work more stably, the left end of the servo motor 12 is fixedly connected with the stabilizing plate 30, and the left side surface of the stabilizing plate 30 is fixedly connected with the bottom end of the left side wall of the inner cavity of the working box 4.

Specifically, in order to make the device more stable fix in a suitable position, the equal fixedly connected with pillar 31 in bottom surface four corners of bottom plate 1, pillar 31 bottom fixedly connected with base 32, base 32 bottom fixedly connected with slipmat.

When the device is used, a proper amount of water is input into the treatment box 3, the input pipe 7 is connected with a pipe fitting for introducing the dust-containing gas from the outside, the dust-containing gas is introduced into the treatment box 3, the water in the treatment box 3 can adsorb dust in the dust-containing gas to a certain extent, the dust-containing gas enters the treatment box 3 under the driving of an external air pump, the water in the treatment box 3 can be prevented from escaping from the input pipe 7, a proper amount of water is input into the filter box 20, the high-pressure pump 23 is started, the water in the filter box 20 is conveyed to the buffer plate 16 by the high-pressure pump 23, finally the water is sprayed out from the spray head 17 in a spraying state, the dust-falling treatment is carried out on the gas in the working box 4, the treated gas passes through the adsorption sponge 25 and then escapes from the output pipe 6, the phenomenon that more sludge is precipitated on the side wall of the inner cavity of the treatment box 3 can be prevented, and the, the servo motor 12 is started, the servo motor 12 drives the rotating shaft 13 to rotate, the rotating shaft 13 drives the driving sprocket 14 to rotate, the driven sprocket 11 can rotate under the transmission action of the chain 15, the driven sprocket 11 drives the main shaft 10 to rotate, the cleaning bucket 8 can rotate under the connection action of the fixing frame 9, the cleaning wool on the outer surface of the cleaning bucket 8 is in contact with the inner side wall of the treatment box 3 to prevent sludge from accumulating inside the treatment box 3, the device can be prevented from being blocked, a worker can control the rotating time of the servo motor 12 to enable the cleaning bucket 8 to periodically clean the inner side wall of the treatment box 3, the damage to the treatment box 3 is reduced, meanwhile, water resources can be recycled, water inside the treatment box 3 is transmitted from the delivery pipe 19 and enters the inside of the filter box 20, and the filter layer 22 inside the filter box 20 can filter the guided water, the water body can be reused, and the practicability is improved.

In conclusion, this can circulate anti-clogging wet dust collector of water, through servo motor 12, axis of rotation 13, driving sprocket 14, driven sprocket 11, chain 15, main shaft 10, mount 9, clean fill 8 and control panel 29's cooperation, can prevent to a certain extent that the device from blockking up, the live time of extension device, through the cooperation of eduction tube 19, rose box 20, high-pressure pump 23, buffer board 16, processing case 3 and shower nozzle 17, can recycle the water resource, the practicality has been improved, through the cooperation of absorption sponge 25 and backup pad 24, can carry out further processing to the waste gas after handling, through the effect of connecting rod 18, can fix buffer board 16, through the effect of support column 2, can fix processing case 3, improve the stability in utilization of device.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An anti-clogging wet dust collector capable of circulating water, comprising a bottom plate (1), characterized in that: the left end of the upper surface of the bottom plate (1) is fixedly connected with four groups of support columns (2), and the support columns (2) ) top end is fixedly connected with a processing box (3), the upper surface of the processing box (3) is provided with a processing port, the upper surface of the processing box (3) is fixedly connected with a working box (4), and the upper surface of the working box (4) The upper surface of the working box (4) is sealed with a cover plate (5), the top of the right side of the working box (4) is connected with an output pipe (6), and the processing box (3) ) The bottom end of the left side is communicated with an input pipe (7), an input valve is provided on the input pipe (7), a cleaning bucket (8) is arranged inside the processing box (3), and the outside of the cleaning bucket (8) The wall is provided with cleaning hairs, the cleaning bucket (8) is provided with a plurality of groups of leak holes, the top and bottom ends of the cleaning bucket (8) are provided with through holes, and the top of the cleaning bucket (8) is fixedly connected with a fixing frame (9), A main shaft (10) is fixedly connected to the top of the fixing frame (9), a driven sprocket (11) is fixedly connected to the outer side wall of the main shaft (10), and a servo motor (12) is arranged inside the bottom end of the working box (4). , the output end of the servo motor (12) is fixedly connected with a rotating shaft (13), the bottom end of the rotating shaft (13) is fixedly connected with a driving sprocket (14), the driving sprocket (14) and the driven chain A chain (15) is drivingly connected between the wheels (11), a buffer plate (16) is arranged inside the top of the working box (4), a buffer cavity is arranged inside the buffer plate (16), and the lower surface of the buffer plate (16) communicates with each other. There are multiple groups of spray heads (17), and four groups of connecting rods (18) are fixedly connected to the outer side wall of the buffer plate (16). A lead-out pipe (19) is communicated with the lower surface of the processing box (3), a lead-out valve is provided on the lead-out pipe (19), and a filter box (20) is fixedly connected to the right end of the upper surface of the bottom plate (1). ) is provided with a filter port on the upper surface, the upper surface of the filter box (20) is covered with a top plate (21), the bottom end of the filter box (20) is provided with a filter layer (22), and the right end of the outlet pipe (19) passes through the filter box ( 20) The bottom end of the left side and extends into the bottom end of the filter box (20), the right side of the filter box (20) is fixedly connected with a high-pressure pump (23), and the input end of the high-pressure pump (23) can move through The right side of the filter box (20) extends into the top of the filter box (20), and the output end of the high-pressure pump (23) can move through the top of the right side of the work box (4) and can move into the buffer plate (16) internal.

2. An anti-clogging wet dust collector capable of circulating water according to claim 1, characterized in that a support plate (24) is fixedly connected to the inner top of the working box (4), and the support plate (24) A plurality of groups of communication holes are provided on the support plate (24), and an adsorption sponge (25) is arranged on the support plate (24). Four corners are fixedly connected with fixing blocks (26), and the lower surface of the fixing blocks (26) is in contact with the upper surface of the adsorption sponge (25).

3. The anti-clogging wet dust collector capable of circulating water according to claim 1, wherein the bottom end of the driving sprocket (14) is fixedly connected with an auxiliary shaft (27), and the working box (4) ) The bottom end of the left side wall of the inner cavity is fixedly connected with an auxiliary plate (28), and the upper surface of the auxiliary plate (28) is rotatably connected with the bottom end of the auxiliary shaft (27).

4. The anti-clogging wet dust collector capable of circulating water according to claim 1, characterized in that: a control board (29) is fixedly connected to the right end of the inner side wall of the working box (4), and the control board ( 29) The left end of the lower surface is rotatably connected with the top end of the main shaft (10).

5 . The anti-clogging wet dust collector capable of circulating water according to claim 1 , wherein a stabilization plate ( 30 ) is fixedly connected to the left end of the servo motor ( 12 ), and the stabilization plate ( 30 ) The side surface is fixedly connected with the bottom end of the left side wall of the inner cavity of the working box (4).

6. The anti-clogging wet dust collector capable of circulating water according to claim 1, characterized in that: the four corners of the lower surface of the bottom plate (1) are fixedly connected with pillars (31), and the bottom of the pillars (31) The end is fixedly connected with a base (32), and the bottom end of the base (32) is fixedly connected with a non-slip pad.
