Abstract

The utility model discloses a mechanical part cleaning device, which comprises a cleaning pool; a lifting type cleaning basket is arranged in the cleaning pool, and lifting structures are arranged on the left side and the right side of the cleaning basket; the left side and the right side of the cleaning pool are both provided with a support frame, and a support arm is connected between the two support frames; the supporting arm is provided with a rotating motor, the output end of the rotating motor is connected with an electric telescopic rod, one end of the electric telescopic rod, far away from the rotating motor, is provided with an industrial cleaning brush plate, and the industrial cleaning brush plate is provided with industrial brush wires; the opposite surfaces of the two supporting racks are respectively provided with a cleaning agent spray head and a flushing spray head; the cleaning agent spray head is communicated with a feeding tank through a conveying pipe; the washing nozzle is communicated with a water supply tank through a water delivery pipe. The utility model discloses spray the cleaner, scrub, wash and dry, each process ring is detained mutually, seamless, very big improvement machine part's cleaning performance.

Description

Mechanical parts belt cleaning device
Technical Field
The utility model relates to the technical field of machinery, specifically be a machine parts belt cleaning device.
Background
In the spare part processing field, remain easily on the mechanical parts that the processing obtained on the lathe has iron fillings or greasy dirt, if not clear away in time, must influence the work efficiency after the assembly, the method in the past is through manual cleaning, can consume a large amount of manpowers like this to manual cleaning's effect is not good, still has a small amount of pieces to remain, and traditional washing washs the back, can not carry out drying process to the spare part after wasing, and the suitability is relatively poor.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a machine parts belt cleaning device to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a mechanical part cleaning device comprises a cleaning pool; a lifting type cleaning basket is arranged in the cleaning pool, and lifting structures are arranged on the left side and the right side of the cleaning basket; the left side and the right side of the cleaning pool are both provided with a support frame, and a support arm is connected between the two support frames; the support arm is provided with a rotating motor, the output end of the rotating motor is connected with an electric telescopic rod, one end of the electric telescopic rod, far away from the rotating motor, is provided with an industrial cleaning brush plate matched with the radian of the cleaning basket, and the industrial cleaning brush plate is provided with industrial brush wires; the opposite surfaces of the two supporting racks are respectively provided with a cleaning agent spray head and a flushing spray head; the cleaning agent spray head is communicated with a feed tank through a feed delivery pipe, and a stirring structure is arranged in the feed tank; the washing nozzle is communicated with a water supply tank through a water pipe, and the water supply tank is communicated with the material supply tank through the water pipe; and a drying fan set is installed on one side of the rotating motor.
Preferably, a discharge port is formed in the bottom of the cleaning basket, a material supporting plate is hinged to the discharge port, and the material supporting plate and the discharge port are matched to complete discharging work of the cleaned mechanical part.
Preferably, the water supply tank is internally provided with an electric heater for heating water in the water supply tank, thereby improving the cleaning efficiency.
Preferably, one side of the cleaning pool is provided with a water outlet communicated with a water discharge pipe, the water discharge pipe is provided with a water discharge valve, the water outlet is provided with a filter screen, and the filter screen is used for filtering impurities separated from the machine part during cleaning so as to prevent the water outlet and the water discharge valve from being blocked.
Preferably, the cleaning agent spray head is provided with the atomizing nozzle, so that the spraying uniformity of the cleaning agent is improved, and the cleaning efficiency is improved.
Preferably, the water conveying pipe between the washing nozzle and the water supply tank is provided with a booster pump, so that the boosting effect is achieved, and the washing quality and efficiency of the washing nozzle are further enhanced.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a rotating electrical machines of setting on wasing the pond drives the industry washing brush board on the electric telescopic handle, carries out omnidirectional rotatory washing, scrubbing work to the machine part who washs in the basket via industry brush silk, and the impurity that washs falls in the basket drops to wasing the pond through wasing, avoids secondary pollution, and the cleaning performance is better.
2. The utility model discloses an install the cleaner shower nozzle that washs basket one side and carry out even cleaner spraying work to the machine part before scrubbing for wash more thoroughly, the shower nozzle through wasing the basket opposite side carries out the omnidirectional to the machine part after the scrubbing and sprays, the spray rinsing work, and the impurity and the cleaner of adhesion on the effectual machine part of cleaing away are easy and simple to handle.
3. The utility model discloses a set up and carry out timely stoving, drying work to the mechanical part after wasing the completion at the drying fan group on washing basket top, prevent that the part from rustting etc..
4. The utility model discloses each process ring is detained mutually, seamless connection, very big improvement machine part's cleaning performance.
Drawings

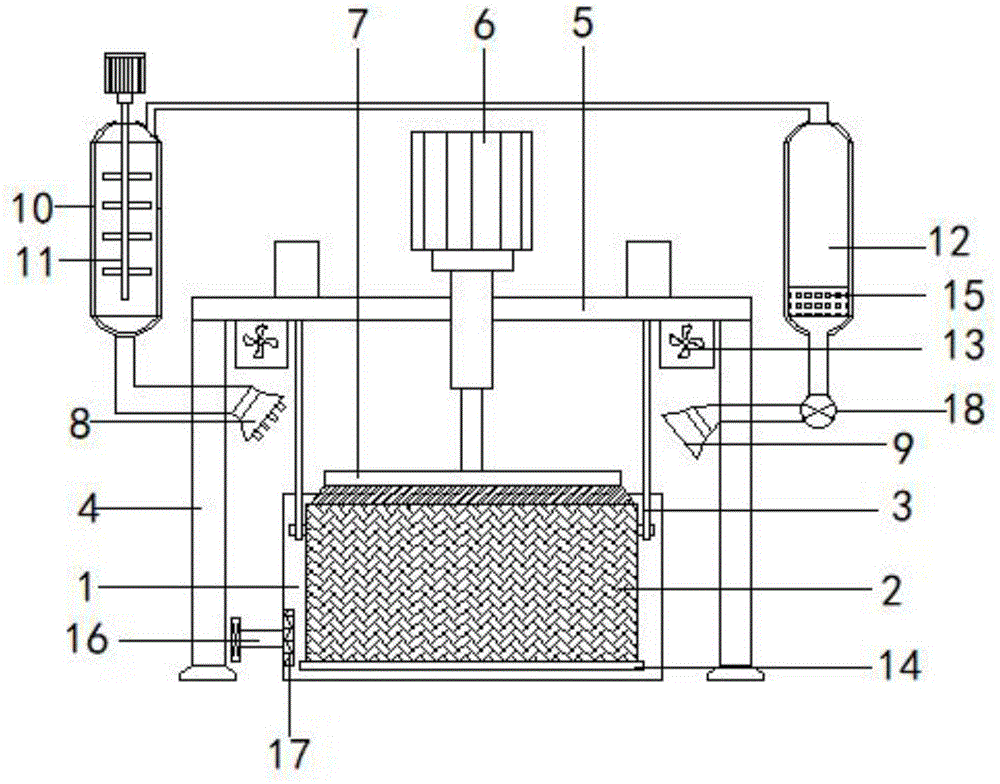

Fig. 1 is a schematic view of the overall structure of the present invention.
In the figure: 1. a cleaning tank; 2. cleaning the basket; 3. a lifting structure; 4. a support frame; 5. a support arm; 6. a rotating electric machine; 7. industrial cleaning brush plates; 8. a cleaning agent spray head; 9. washing the spray head; 10. a feeding tank; 11. a stirring structure; 12. a water supply tank; 13. a drying fan set; 14. a material supporting plate; 15. an electric heater; 16. a drain pipe; 17. a filter screen; 18. a booster pump.
Detailed Description
The technical solutions in the embodiments of the present invention will be eliminated and fully described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Referring to fig. 1, the present invention provides a technical solution: a mechanical part cleaning device comprises a cleaning pool 1; a lifting cleaning basket 2 is arranged in the cleaning pool 1, and lifting structures 3 are arranged on the left side and the right side of the cleaning basket 2; the left side and the right side of the cleaning pool 1 are both provided with a support frame 4, and a support arm 5 is connected between the two support frames 4; a rotating motor 6 is installed on the supporting arm 5, the output end of the rotating motor 6 is connected with an electric telescopic rod, one end of the electric telescopic rod, far away from the rotating motor 6, is provided with an industrial cleaning brush plate 7 matched with the radian of the cleaning basket 2, and industrial brush wires are installed on the industrial cleaning brush plate 7; the opposite surfaces of the two supporting frames 4 are respectively provided with a cleaning agent spray head 8 and a washing spray head 9; the cleaning agent nozzle 8 is communicated with a feeding tank 10 through a conveying pipe, and a stirring structure 11 is arranged in the feeding tank 10; the washing nozzle 9 is communicated with a water supply tank 12 through a water pipe, and the water supply tank 12 is communicated with the feeding tank 10 through the water pipe; a drying fan set 13 is installed on one side of the rotating motor 6.
Further, the bottom of the cleaning basket 2 is provided with a discharge hole, and a material supporting plate 14 is hinged to the discharge hole.
Further, an electric heater 15 is installed inside the water supply tank 12.
Furthermore, a water outlet is arranged on one side of the cleaning pool 1, the water outlet is communicated with a water discharge pipe 16, a water discharge valve is arranged on the water discharge pipe 16, and a filter screen 17 is arranged on the water outlet.
Furthermore, an atomizing nozzle is arranged on the cleaning agent spray head 8.
Further, a booster pump 18 is installed on the water pipe between the shower head 9 and the water supply tank 12.
The working principle is as follows: the utility model discloses during the use, its external power source is put through earlier to operating personnel, to adding the washing water in wasing pond 1, then will hold in the palm flitch 14 and pass through the hinge joint in the bottom of washing basket 2, treat after that abluent machine part puts into washing basket 2 in, will wash basket 2 through elevation structure 3 and descend to washing pond 1 in to keep certain distance with the diapire that washs pond 1.
In the corresponding cleaner that operating personnel will wash machine part and use added feed tank 10, then carry the water in the water supply tank 12 to feed tank 10 through the raceway to through stirring structure 11 with water and cleaner intensive mixing, then carry the cleaner after will diluting to cleaning agent shower nozzle 8 through the conveying pipeline, spray the work through atomizing nozzle to machine part's surface. After spraying and accomplishing, operating personnel adjusts the height of industry washing brush board 7 through electric telescopic handle and brushes silk and machine part direct contact up to industry, then starts rotating electrical machines 6 and drives industry brush silk and carry out abundant, comprehensive cleaning work to machine part's surface, and the impurity that washs falls etc. and drops to cleaning tank 1 in through cleaning basket 2, avoids secondary pollution, and the cleaning performance is better. After the mechanical parts are brushed and washed, an operator starts the booster pump 18, water is conveyed to the washing nozzle 9 through the water conveying pipe, the mechanical parts after being brushed and washed are sprayed and washed in an all-dimensional mode through the washing nozzle 9, impurities and cleaning agents adhered to the mechanical parts are effectively removed, and the operation is simple and convenient.
After the washing is accomplished, operating personnel rises washing basket 2 through elevating system 3 for washing basket 2 is kept away from and is washd pond 1, then opens the drainage, the drain valve on 16, makes the sewage in the washing pond 1 discharge washing pond 1 via outlet and drain pipe 16. Meanwhile, the drying fan set 13 at the top end of the cleaning basket 2 is started to perform timely drying and drying work on the mechanical parts after cleaning is completed, so that the parts are prevented from rusting and the like. The utility model discloses each process ring is detained mutually, seamless connection, very big improvement machine part's cleaning performance.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. A mechanical parts belt cleaning device which characterized in that: comprises a cleaning pool (1); a lifting type cleaning basket (2) is arranged in the cleaning pool (1), and lifting structures (3) are arranged on the left side and the right side of the cleaning basket (2); the left side and the right side of the cleaning pool (1) are respectively provided with a supporting rack (4), and a supporting arm (5) is connected between the two supporting racks (4); a rotating motor (6) is installed on the supporting arm (5), the output end of the rotating motor (6) is connected with an electric telescopic rod, an industrial cleaning brush plate (7) matched with the radian of the cleaning basket (2) is installed at one end, far away from the rotating motor (6), of the electric telescopic rod, and industrial brush wires are installed on the industrial cleaning brush plate (7); a cleaning agent spray head (8) and a washing spray head (9) are respectively arranged on the opposite surfaces of the two supporting racks (4); the cleaning agent spray head (8) is communicated with a feed tank (10) through a feed delivery pipe, and a stirring structure (11) is arranged in the feed tank (10); the washing nozzle (9) is communicated with a water supply tank (12) through a water pipe, and the water supply tank (12) is communicated with the feeding tank (10) through the water pipe; and a drying fan set (13) is arranged on one side of the rotating motor (6).
2. The machine part cleaning device according to claim 1, wherein: a discharge hole is formed in the bottom of the cleaning basket (2), and a material supporting plate (14) is hinged to the discharge hole.
3. The machine part cleaning device according to claim 1, wherein: an electric heater (15) is installed inside the water supply tank (12).
4. The machine part cleaning device according to claim 1, wherein: a water outlet is formed in one side of the cleaning pool (1) and communicated with a water discharge pipe (16), a water discharge valve is mounted on the water discharge pipe (16), and a filter screen (17) is arranged on the water outlet.
5. The machine part cleaning device according to claim 1, wherein: and an atomizing nozzle is arranged on the cleaning agent spray head (8).
6. The machine part cleaning device according to claim 1, wherein: a booster pump (18) is arranged on the water delivery pipe between the washing spray head (9) and the water supply tank (12).
