Abstract
本实用新型涉及信息采集设备技术领域，且公开了一种港口车辆信息采集设备，解决了目前采集装置不能根据需要整体灵活移动，以及消耗市电损耗能源的问题，其包括底座，所述底座上端中部连接有支杆，本实用新型，通过底座、支杆、连接杆和采集摄像机的设置，使得采集摄像机能够灵活设置于不同位置，对需要采集信息的地方进行信息采集；通过第二电机驱动丝杆转动，使得移动块带动连杆将光伏板推动绕支撑杆转动角度，以适应太阳光照射方向角度，同时，通过第一电机驱动第二齿轮与第一齿轮啮合，使得转轴带动转动板旋转，使得光伏板能够随太阳转动方向进行调节，从而最大限度接收太阳光，利用太能发电，有效的降低了能源消耗。
The utility model relates to the technical field of information collection equipment, and discloses a port vehicle information collection equipment, which solves the problems that the current collection device cannot move flexibly as a whole as required, and consumes commercial power and consumes energy. The utility model comprises a base, an upper end of the base The middle part is connected with a support rod. The utility model, through the setting of the base, the support rod, the connecting rod and the collection camera, enables the collection camera to be flexibly arranged in different positions, and collects information at the place where information needs to be collected; the second motor drives the wire The rod rotates, so that the moving block drives the connecting rod to push the photovoltaic panel to rotate around the supporting rod to adapt to the angle of the sunlight irradiation direction. At the same time, the first motor drives the second gear to mesh with the first gear, so that the shaft drives the rotating plate to rotate, The photovoltaic panels can be adjusted with the direction of the sun's rotation, so as to receive sunlight to the maximum extent, use solar energy to generate electricity, and effectively reduce energy consumption.
Description
Technical Field
The utility model belongs to the technical field of information acquisition equipment, specifically be a port vehicle information acquisition equipment.
Background
The existing information acquisition device is usually fixedly installed in a certain place, and the position can not be flexibly changed according to the needs.
Disclosure of Invention
To the above situation, for overcoming prior art's defect, the utility model provides a port vehicle information acquisition equipment, the effectual present collection system of having solved can not the whole nimble removal as required to and consume the problem of the commercial power loss energy.
In order to achieve the above object, the utility model provides a following technical scheme: a port vehicle information acquisition device comprises a base, wherein a support rod is connected to the middle of the upper end of the base, a connecting rod is connected to one side of the upper portion of the support rod, an acquisition camera is installed on one side of the lower end of the connecting rod, a fixed seat is connected to the top end of the support rod, a first shell is connected to the middle of the upper end of the fixed seat, a rotating shaft is rotatably connected to the center inside the first shell, the upper end of the rotating shaft extends to the upper portion of the first shell in a penetrating manner and is connected with a rotating plate, a first gear is connected to the lower portion of the rotating shaft relative to the inside of the first shell, one end of the first gear is meshed with a second gear, a first motor is connected to the lower end of the second gear and is installed inside the first shell, a protective cover is sleeved at the lower end of, one side of the upper end of the rotating plate is connected with a second shell, a second motor is installed on one side of the interior of the second shell, the output end of the second motor is connected with a lead screw, one end of the lead screw is connected with a supporting plate, the supporting plate is connected with the inner wall of the second shell, the outer end of the lead screw is connected with a moving block, the upper end of the moving block is hinged with a connecting rod, the other end of the connecting rod is hinged with a photovoltaic plate, and an.
Preferably, branch is hollow form, and branch internal connection has the power, power and the equal electric connection of collection camera, first motor, second motor and photovoltaic board.
Preferably, a reinforcing plate is connected between the lower end of the fixed seat and the support rod.
Preferably, the lower end of the rotating shaft is connected with a bearing seat with the connecting end of the first shell, the rotating shaft penetrates through the first shell and is provided with a through hole, and a bearing is embedded in the through hole.
Preferably, the first shell is arranged in a cylindrical structure, and the second shell is arranged in a cuboid structure.
Preferably, the inner wall of the protective cover is provided with an annular groove corresponding to the rolling connection part of the universal ball.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) the utility model, through the arrangement of the base, the support rod, the connecting rod and the collecting camera, the collecting camera can be flexibly arranged at different positions to collect information of places needing collecting information;
(2) the lead screw is driven to rotate through the second motor, so that the moving block drives the connecting rod to push the photovoltaic panel to rotate around the supporting rod, the photovoltaic panel is adapted to the sunlight irradiation direction angle, meanwhile, the second gear is driven to be meshed with the first gear through the first motor, the rotating shaft drives the rotating panel to rotate, the photovoltaic panel can be adjusted along with the sun rotation direction, sunlight is received to the maximum extent, solar energy is utilized for power generation, and energy consumption is effectively reduced.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.
In the drawings:

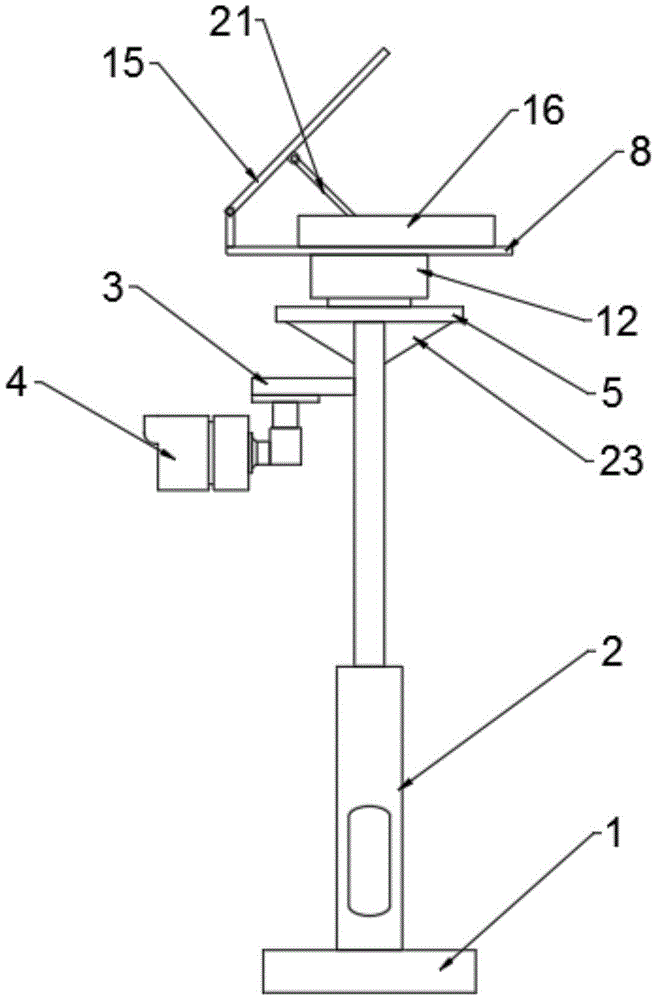

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic view of an installation structure of a first motor according to the present invention;
fig. 3 is an enlarged schematic view of a in fig. 2 according to the present invention;
in the figure: 1. a base; 2. a strut; 3. a connecting rod; 4. a collecting camera; 5. a fixed seat; 6. a first housing; 7. a rotating shaft; 8. a rotating plate; 9. a first gear; 10. a second gear; 11. a first motor; 12. a protective cover; 13. a ball transfer unit; 14. a support bar; 15. a photovoltaic panel; 16. a second housing; 17. a second motor; 18. a screw rod; 19. a support plate; 20. a moving block; 21. a connecting rod; 22. a long groove; 23. a reinforcing plate; 24. a bearing seat; 25. a bearing; 26. an annular groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the first embodiment, as shown in fig. 1, 2 and 3, the present invention comprises a base 1, a supporting rod 2 is connected to the middle of the upper end of the base 1, a connecting rod 3 is connected to one side of the upper portion of the supporting rod 2, a collecting camera 4 is installed at one side of the lower end of the connecting rod 3 for shooting and collecting vehicle information, a fixing seat 5 is connected to the top end of the supporting rod 2, a first housing 6 is connected to the middle of the upper end of the fixing seat 5, a rotating shaft 7 is connected to the center of the inside of the first housing 6, a rotating plate 8 is connected to the upper end of the rotating shaft 7 extending above the first housing 6, a first gear 9 is connected to the lower portion of the rotating shaft 7 relative to the inside of the first housing 6, a second gear 10 is connected to one end of the first gear 9 in a meshing manner, a first motor 11 is connected to the lower end of the second gear 10, the first motor 11 drives the second, the lower end of the rotating plate 8 is sleeved with a protective cover 12 relative to the outside of the first shell 6, the outer wall of the first shell 6 is circumferentially connected with a universal ball 13, the universal ball 13 is connected with the inner wall of the protective cover 12 in a rolling way, one side of the upper end of the rotating plate 8 is connected with a support rod 14, the upper end of the support rod 14 is hinged with a photovoltaic plate 15, one side of the upper end of the rotating plate 8 is connected with a second shell 16, one side of the inside of the second shell 16 is provided with a second motor 17 for driving a screw rod 18 to rotate, so that a moving block 20 drives a connecting rod 21 to adjust the angle of the photovoltaic plate 15, the output end of the second motor 17 is connected with the screw rod 18, one end of the screw rod 18 is connected with a support plate 19, the support plate 19 is connected with the inner wall of the second shell 16, the outer end, facilitating movement of link 21 along slot 22.
Second embodiment, on the basis of first embodiment, branch 2 is hollow form, and 2 internal connection of branch have a power, and the power is convenient for provide the energy to each part with the equal electric connection of collection camera 4, first motor 11, second motor 17 and photovoltaic board 15.
Third embodiment, on the basis of first embodiment, be connected with reinforcing plate 23 between 5 lower extremes of fixing base and the branch 2, be convenient for strengthen fixing base structural strength and stability.
Fourth embodiment, on the basis of first embodiment, the lower extreme of pivot 7 is connected with bearing frame 24 with first casing 6 link, and pivot 7 runs through first casing 6 department and has seted up the through-hole, and the inside bearing 25 that inlays of through-hole is equipped with.
In the fifth embodiment, in addition to the first embodiment, the first housing 6 is provided in a cylindrical configuration, and the second housing 16 is provided in a rectangular parallelepiped configuration.
Sixth embodiment, on the basis of the first embodiment, an annular groove 26 is formed in the inner wall of the shield 12 at the rolling connection position corresponding to the ball 13, so that when the rotating plate 8 rotates, the shield 12 rotates at the outer end of the first housing 6 to limit the position of the ball 13.
The working principle is as follows: when the device is used, the device is placed in a place where information needs to be collected, the running vehicle is shot through the collecting camera 4 to collect information, in addition, the device can utilize solar energy to generate electricity through the arrangement of the photovoltaic panel 15, energy needed by the device is provided, after the device is positioned, the lead screw 18 is driven to rotate through the second motor 17, the moving block 20 drives the connecting rod 21 to push the photovoltaic panel 15 to rotate around the supporting rod 14, so as to adapt to the sunlight irradiation direction angle, meanwhile, the second gear 10 is driven to be meshed with the first gear 9 through the first motor 11, so that the rotating shaft 7 drives the rotating plate 8 to rotate, so that the photovoltaic panel 15 can be adjusted along with the sunlight rotation direction, and sunlight is received to the maximum.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a harbour vehicle information acquisition equipment, includes base (1), its characterized in that: the middle part of the upper end of the base (1) is connected with a supporting rod (2), one side of the upper part of the supporting rod (2) is connected with a connecting rod (3), one side of the lower end of the connecting rod (3) is provided with a collecting camera (4), the top end of the supporting rod (2) is connected with a fixing seat (5), the middle part of the upper end of the fixing seat (5) is connected with a first shell (6), the center of the inner part of the first shell (6) is rotatably connected with a rotating shaft (7), the upper end of the rotating shaft (7) penetrates and extends to the upper part of the first shell (6) to be connected with a rotating plate (8), the lower part of the rotating shaft (7) is internally connected with a first gear (9) relative to the first shell (6), one end of the first gear (9) is meshed with a second gear (10), the lower end of the second gear (10) is connected with a first motor, first casing (6) outer wall circumference is connected with universal ball (13), universal ball (13) and protection casing (12) inner wall roll connection, rotor plate (8) upper end one side is connected with bracing piece (14), bracing piece (14) upper end articulates there is photovoltaic board (15), rotor plate (8) upper end one side is connected with second casing (16), second motor (17) are installed to inside one side of second casing (16), second motor (17) output is connected with lead screw (18), lead screw (18) one end is connected with extension board (19), extension board (19) and second casing (16) inner wall connection, lead screw (18) outer end is connected with movable block (20), movable block (20) upper end articulates there is connecting rod (21), the connecting rod (21) other end is articulated with photovoltaic board (15), elongated slot (22) have been seted up for connecting rod (21) run through department in second casing (16) upper end.
2. The port vehicle information collection device as set forth in claim 1, wherein: branch (2) are hollow form, and branch (2) internal connection has the power, power and the equal electric connection of collection camera (4), first motor (11), second motor (17) and photovoltaic board (15).
3. The port vehicle information collection device as set forth in claim 1, wherein: and a reinforcing plate (23) is connected between the lower end of the fixed seat (5) and the supporting rod (2).
4. The port vehicle information collection device as set forth in claim 1, wherein: the bearing seat (24) is connected with the connecting end of the lower end of the rotating shaft (7) and the first shell (6), the rotating shaft (7) penetrates through the first shell (6) and is provided with a through hole, and a bearing (25) is embedded in the through hole.
5. The port vehicle information collection device as set forth in claim 1, wherein: the first shell (6) is arranged in a cylindrical structure, and the second shell (16) is arranged in a cuboid structure.
6. The port vehicle information collection device as set forth in claim 1, wherein: and an annular groove (26) is formed in the inner wall of the protective cover (12) corresponding to the rolling connection position of the universal ball (13).
