Abstract
The utility model discloses a multi-functional fine arts teaching desk, including desktop and drawing board, the bottom four corners of desktop all is fixed with the supporting leg, and the inside of desktop is provided with the drawer, the drawing board groove has been seted up to the upper surface of desktop, the drawing board has been placed to the inside in drawing board groove, the back activity of drawing board is fixed with the vaulting pole, and the both sides of drawing board all are fixed with the paintbox, this kind of multi-functional fine arts teaching desk, through having seted up the drawing board groove on the desktop, be used for blocking the drawing board slope, the support plane of slope is provided, be convenient for mr teaching and student observation, be provided with demountable assembly's paintbox through the avris at the drawing board, be used for placing pigment, and convenient in the same direction as hand, the function is comprehensive, improve teaching effect greatly.
Description
Technical Field
The utility model relates to a desk field specifically is a multi-functional fine arts teaching desk.
Background
The desk is used for a school, the desks for learning in a school hall are unified into a desk, art classes are one of art classes, the students need to draw for learning on an art class, teachers can explain the desks, but the school can not provide a special art teaching desk for the students due to the art classes, and therefore the desk suitable for other subjects and art subjects is needed.
The desk that uses at present, its function is more single, and other disciplines and fine arts disciplines can't share, and is extremely inconvenient when fine arts teaching, does not have the drawing board of special support drawing paper, and pigment can't be placed in good order, causes fine arts class hour, and mr can only make the drawing on the horizontally desktop, and the student still must walk before the desk, overlooks and observes, influences teaching quality and efficiency.
In order to solve the problems, a multifunctional art teaching desk is provided.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome prior art's defect, provide a multi-functional fine arts teaching desk, in order to solve above-mentioned technical problem, the utility model provides a following technical scheme:
the utility model relates to a multi-functional fine arts teaching desk, including desktop and drawing board, the bottom four corners of desktop all is fixed with the supporting leg for prop up the desktop, just the inside of desktop is provided with the drawer, the drawing board groove has been seted up to the upper surface of desktop, is used for accomodating the drawing board, placed in the inside in drawing board groove the drawing board for the drawing paper is placed in the slope, the back activity of drawing board is fixed with the vaulting pole for prop up the drawing board, just the both sides of drawing board all are fixed with the paintbox for place pigment.
Preferably, an inner groove is formed in the inner side of the bottom of the drawing board groove, and a plurality of positioning holes are formed in the inner groove.
Preferably, one end of the supporting rod is rotatably fixed on the drawing board through a movable ring, and a rubber ball is fixed at the other end of the supporting rod.
Preferably, a plurality of threaded holes are formed in the two sides of the drawing board, threaded rods are fixed to the threaded holes, and the pigment box is in threaded connection with the threaded rods.
Preferably, an iron sheet is embedded in the top of the front face of the drawing board.
Compared with the prior art, the utility model discloses the beneficial effect who reaches is: through having seted up the drawing board groove on the desktop for block the drawing board slope, provide the support plane of slope, the teacher of being convenient for imparts knowledge to students and observes, is provided with removable assecmbly's paintbox through the avris at the drawing board, is used for placing pigment, and convenient handy, and the function is comprehensive, improves teaching effect greatly, is convenient for simultaneously with desk of other disciplines' sharing.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

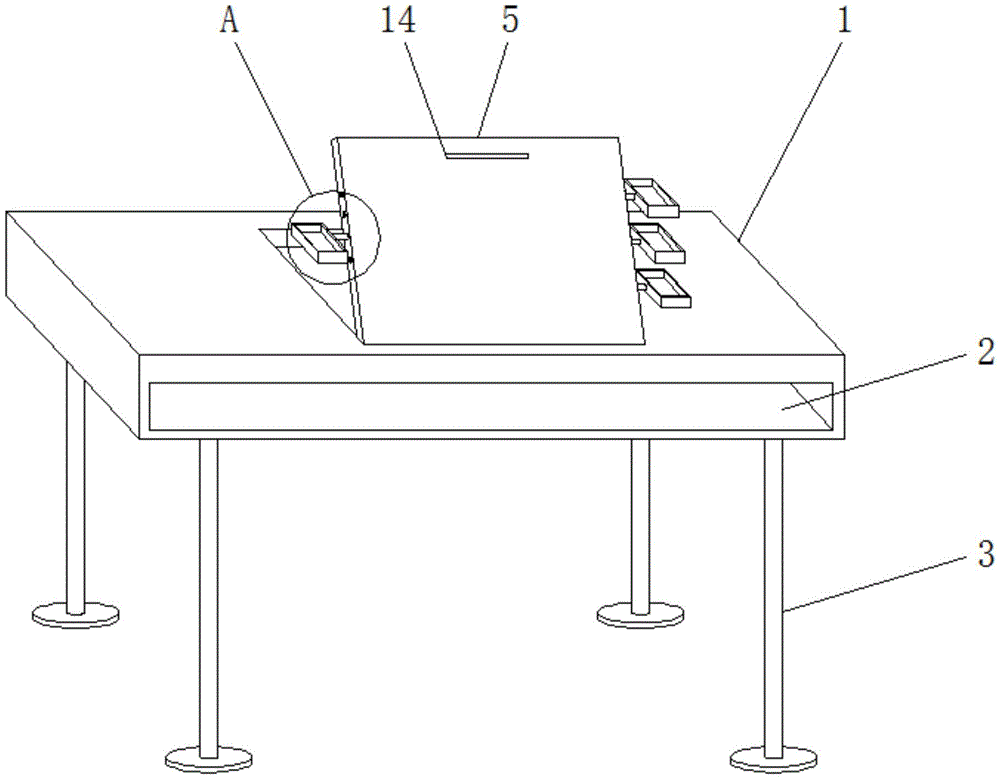

FIG. 1 is a schematic view of the overall structure of a multifunctional desk for art teaching of the present invention;
FIG. 2 is a schematic view of the top surface of the desktop of FIG. 1 according to the present invention;
fig. 3 is a schematic structural diagram of the back side of the drawing board in fig. 1 according to the present invention;
FIG. 4 is an enlarged schematic view of A of FIG. 1;
in the figure: 1. a desktop; 2. supporting legs; 3. a drawer; 4. drawing a board slot; 5. a drawing board; 6. an inner tank; 7. Positioning holes; 8. a movable ring; 9. a stay bar; 10. a rubber ball; 11. a threaded hole; 12. a threaded rod; 13. A paint box; 14. iron sheets.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Examples
As shown in fig. 1-4, a multi-functional fine arts teaching desk, including desktop 1 and drawing board 5, the bottom four corners of desktop 1 all is fixed with supporting leg 2, and the inside of desktop 1 is provided with drawer 3 for put into the textbook, drawing board groove 4 has been seted up to the upper surface of desktop 1, drawing board 5 has been placed to the inside in drawing board groove 4, be convenient for take out and accomodate, drawing board 5's back activity is fixed with vaulting pole 9 for prop up drawing board 5, and drawing board 5's both sides all are fixed with paintbox 13, are used for putting into the dyestuff.
In this embodiment, the bottom inboard of drawing board groove 4 has seted up inside groove 6, and has seted up a plurality of locating holes 7 on inside groove 6, is convenient for fix vaulting pole 9.
In this embodiment, the one end of vaulting pole 9 is fixed in drawing board 5 through the activity ring 8 rotatable that is equipped with on, and its other end is fixed with rubber ball 10, is convenient for firmly fix and angle modulation.
In this embodiment, a plurality of screw holes 11 have all been seted up to the both sides of drawing board 5, and all be fixed with threaded rod 12 on the screw hole 11, the installation of being convenient for, 13 threaded connection of paintbox are on threaded rod 12 for put into pigment.
In this embodiment, an iron sheet 14 is embedded in the top of the front surface of the drawing board 5, and the magnetic block is used for adsorbing and pressing the drawing paper.
The utility model discloses a principle and advantage: when a student goes to fine arts, the drawing board 5 is taken out of the drawing board groove 4, the drawing board 5 is supported to incline by the support rods 9 on the back side, the rubber balls 10 are inserted into the inner grooves 6, the support rods 9 are fixed, the inclination angles of the drawing board 5 are adjusted by being placed in the different inner grooves 6, then the threaded rods 12 are fixed on the side sides of the drawing board 5, the pigment boxes 13 are fixed on the threaded rods 12, pigment is added, drawing paper is placed on the drawing board 5 and is attracted to the iron sheets 14 through the magnets to be tightly pressed and fixed, then drawing is started, the teacher can explain while drawing, students can conveniently learn, the teacher can respectively detach the threaded rods 12 and the pigment boxes 13 when teaching other courses, the support rods 9 are folded and pasted on the back side of the drawing board 5, the drawing board 5 is put in the drawing board groove 4, the desktop 1 can be kept flat, the whole structure is simple, the swivel is convenient, the speed is high, the function is comprehensive, is convenient for art and other course teaching.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. The utility model provides a multi-functional fine arts teaching desk, includes desktop (1) and drawing board (5), its characterized in that: the bottom four corners of desktop (1) all is fixed with supporting leg (2), just the inside of desktop (1) is provided with drawer (3), drawing board groove (4) have been seted up to the upper surface of desktop (1), the inside of drawing board groove (4) has been placed drawing board (5), the back activity of drawing board (5) is fixed with vaulting pole (9), just the both sides of drawing board (5) all are fixed with paintbox (13).
2. The multifunctional art teaching desk of claim 1, wherein: an inner groove (6) is formed in the inner side of the bottom of the drawing board groove (4), and a plurality of positioning holes (7) are formed in the inner groove (6).
3. The multifunctional art teaching desk of claim 1, wherein: one end of the support rod (9) is rotatably fixed on the drawing board (5) through a movable ring (8) which is arranged, and the other end of the support rod is fixed with a rubber ball (10).
4. The multifunctional art teaching desk of claim 1, wherein: a plurality of threaded holes (11) are formed in the two sides of the drawing board (5), threaded rods (12) are fixed to the threaded holes (11), and the pigment boxes (13) are in threaded connection with the threaded rods (12).
5. The multifunctional art teaching desk of claim 1, wherein: an iron sheet (14) is embedded in the top of the front face of the drawing board (5).
