CN212431817U - UV roller coat production line cooling device - Google Patents
UV roller coat production line cooling device Download PDFInfo
- Publication number
- CN212431817U CN212431817U CN202020543244.5U CN202020543244U CN212431817U CN 212431817 U CN212431817 U CN 212431817U CN 202020543244 U CN202020543244 U CN 202020543244U CN 212431817 U CN212431817 U CN 212431817U
- Authority
- CN
- China
- Prior art keywords
- heat exchanger
- production line
- cooling device
- support
- refrigeration case
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
本实用新型公开一种UV辊涂生产线冷却装置，包括支架、制冷箱水槽、换热器和制冷箱阻水器，制冷箱水槽的两端固定在支架的底层，换热器的两端固定在支架上，且与制冷箱水槽垂直排列，制冷箱阻水器位于换热器的一侧，且与换热器相互平行，制冷箱阻水器的两端也固定在支架上。本实用新型设计一种全新的UV辊涂生产线排水汽散热的冷却装置，该装置通过制冷箱水槽、换热器和制冷箱阻水器三者相互配合，夹杂热量的水汽通过制冷箱阻水器和换热器可以完成脱水和制冷，从而保证生产线内干燥低温的环境，有效的保证了产品的品质。
The utility model discloses a cooling device for a UV roller coating production line. The refrigerating box water blocker is located on one side of the heat exchanger and is parallel to the heat exchanger, and the two ends of the refrigerating box water blocker are also fixed on the support. The utility model designs a brand-new cooling device for draining and dissipating steam from a UV roller coating production line. And the heat exchanger can complete dehydration and refrigeration, so as to ensure a dry and low temperature environment in the production line, and effectively ensure the quality of the product.
Description
Technical Field
The utility model relates to a UV roller coat field especially relates to a UV roller coat production line cooling device.
Background
The UV roller coating production line can produce more water vapor and heat in the UV roller coating, the water vapor and the heat need to be discharged in time, the effect of the conventional exhaust mode in the UV roller coating is not obvious, the main reason is that the produced water vapor and heat can be condensed again and drip into the production line when passing through an exhaust device, and the heat can be remained in the exhaust device, so that the subsequent heat is difficult to discharge, therefore, how to effectively solve the water vapor and the heat on the UV roller coating production line is a problem which needs to be solved urgently in the industry at present.
SUMMERY OF THE UTILITY MODEL
Based on above, the utility model provides a UV roller coat production line cooling device to solve current UV roller coat production line and go up steam and the not thorough problem of heat discharge.
To achieve the purpose, the utility model adopts the following technical proposal:
the utility model provides a UV roller coat production line cooling device, includes support, refrigeration case basin, heat exchanger and refrigeration case hinder hydrophone, the bottom at the support is fixed at the both ends in refrigeration case basin, the both ends of heat exchanger are fixed on the support, and with refrigeration case basin vertical arrangement, refrigeration case hinders hydrophone and is located one side of heat exchanger, and is parallel to each other with the heat exchanger, and refrigeration case hinders both ends of hydrophone and also fixes on the support.
As an optimized mode of the utility model, the both sides of the refrigeration box water tank are provided with water tank side plates.
As an optimized mode of the utility model, the heat exchanger side groove is installed additional at the both ends of heat exchanger, the heat exchanger side groove is fixed on the support.
As an optimized mode of the utility model, the heat exchanger kerve is equipped with additional to the bottom of heat exchanger, the top in refrigeration case basin is fixed in the installation of heat exchanger kerve.
As an optimized mode of the utility model, a water inlet pipe and a water outlet pipe have still been seted up on one end of heat exchanger.
The utility model has the advantages that:
the utility model relates to a brand-new UV roller coat production line water vapour radiating cooling device, the device hinder the hydrophone three through refrigeration case basin, heat exchanger and refrigeration case and mutually support, and it hinders hydrophone and heat exchanger and can accomplish dehydration and refrigeration to be mingled with thermal steam through the refrigeration case to guarantee the interior dry microthermal environment of production line, the effectual quality of guaranteeing the product.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings that are required to be used in the description of the embodiments of the present invention will be briefly described below.

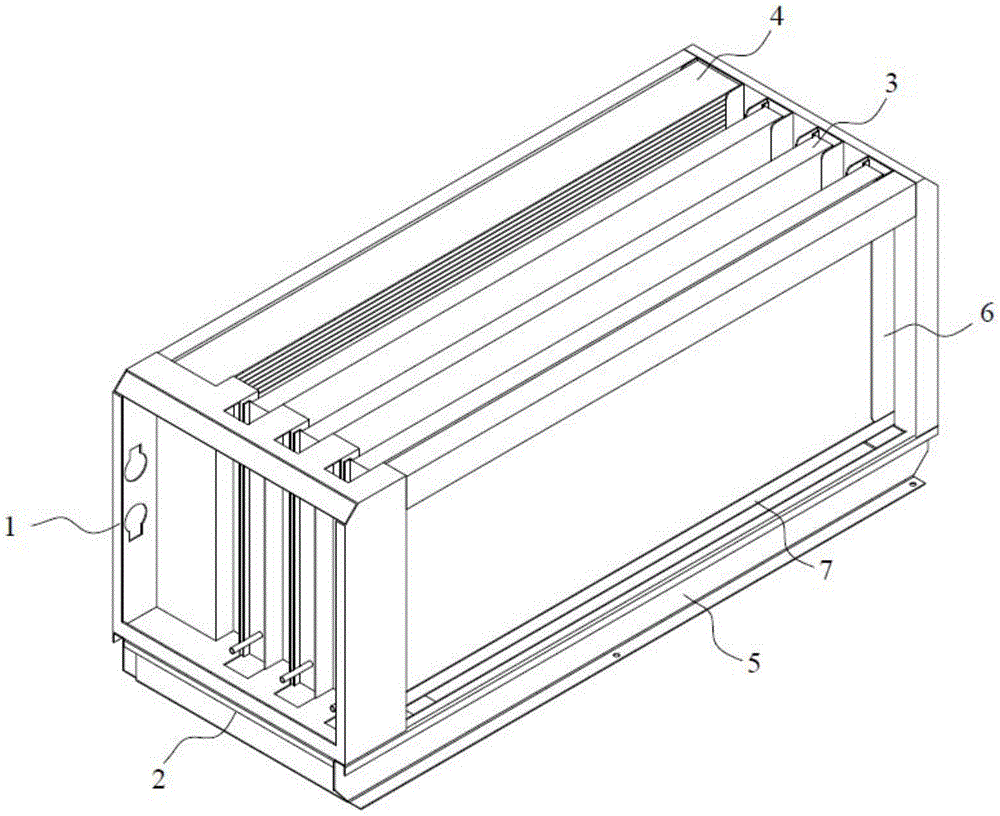

FIG. 1 is a schematic view of a cooling device of a UV roller coating production line provided by an embodiment of the present invention;
fig. 2 is a schematic diagram of a heat exchanger of a cooling device of a UV roller coating production line provided by an embodiment of the present invention.
Detailed Description
In order to make the technical problem solved by the present invention, the technical solution adopted by the present invention and the technical effect achieved by the present invention clearer, the following will combine the accompanying drawings to describe the technical solution of the embodiments of the present invention in further detail.
As shown in fig. 1-2, the present embodiment provides a cooling device for a UV roller coating production line, which mainly includes a support 1, a refrigeration tank water tank 2, a heat exchanger 3 and a refrigerator water stopper 4, wherein two ends of the refrigeration tank water tank 2 are fixed on the bottom layer of the support 1, two ends of the heat exchanger 3 are fixed on the support 1, a plurality of heat exchangers 3 are arranged on the support 1 in parallel and are arranged perpendicular to the refrigeration tank water tank 2, the refrigeration tank water stopper 4 is located on one side of the heat exchanger 3 and is parallel to the heat exchanger 3, and two ends of the refrigeration tank water stopper 4 are also fixed on the support 1. This embodiment designs a brand-new UV roller coat production line cooling device that steam drainage is radiating, and the device hinders 4 three of hydrophone mutually supporting through refrigeration case basin 2, heat exchanger 3 and refrigeration case, and it hinders hydrophone 4 and heat exchanger 3 and can accomplish dehydration and refrigeration to be mingled with thermal steam through the refrigeration case to guarantee the interior dry microthermal environment of production line, the effectual quality of guaranteeing the product.
The both sides of refrigeration case basin 2 in this embodiment are provided with basin curb plate 5, be used for protecting basin curb plate 5 and prevent that steam from leaking from both sides, heat exchanger side channel 6 is equipped with additional at the both ends of heat exchanger 3, heat exchanger side channel 6 is fixed on support 1, heat exchanger kerve 7 is equipped with additional in the bottom of heat exchanger 3, heat exchanger kerve 7 installation is fixed in the top of refrigeration case basin 2, preferably, inlet tube 301 and outlet pipe 302 have been seted up to one of heat exchanger 3 in this embodiment, and inlet tube 301 is located the below, outlet pipe 302 is located the top, this mode of seting up can guarantee that inside water level keeps at higher level, thereby carry out thorough cooling to the hot-air of flowing through.
It should be noted that the foregoing is only a preferred embodiment of the present invention and the technical principles applied. It will be understood by those skilled in the art that the present invention is not limited to the particular embodiments described herein, but is capable of various obvious changes, rearrangements and substitutions as will now become apparent to those skilled in the art without departing from the scope of the invention. Therefore, although the present invention has been described in greater detail with reference to the above embodiments, the present invention is not limited to the above embodiments, and may include other equivalent embodiments without departing from the scope of the present invention.
Claims (5)
1. The utility model provides a UV roller coat production line cooling device, its characterized in that, includes that support, refrigeration case basin, heat exchanger and refrigeration case hinder hydrophone, the bottom at the support is fixed at the both ends in refrigeration case basin, the both ends of heat exchanger are fixed on the support, and with refrigeration case basin vertical arrangement, refrigeration case hinders hydrophone and is located one side of heat exchanger, and is parallel to each other with the heat exchanger, and refrigeration case hinders both ends of hydrophone and also fixes on the support.
2. The UV roller coating production line cooling device as claimed in claim 1, wherein water tank side plates are arranged on two sides of the water tank of the refrigeration box.
3. The cooling device for the UV roller coating production line according to claim 1, wherein heat exchanger side grooves are additionally arranged at two ends of the heat exchanger and fixed on a support.
4. The cooling device for the UV roller coating production line as claimed in claim 3, wherein a heat exchanger bottom groove is additionally arranged at the bottom end of the heat exchanger, and the heat exchanger bottom groove is fixedly arranged above a refrigeration box water groove.
5. The cooling device for the UV roller coating production line according to claim 1, wherein one end of the heat exchanger is further provided with a water inlet pipe and a water outlet pipe.
