Abstract

The utility model discloses a belt conveyor mechanical transmission device, including the bottom plate with set up the belt feeder on the bottom plate, the belt feeder is including first band pulley, second band pulley and driving belt the both sides are equipped with first mount pad and second mount pad respectively around the bottom plate surface, first band pulley rotates and installs on first mount pad, the second band pulley rotates and installs on the second mount pad, still be equipped with elevating system and the actuating mechanism that can drive the driving belt rotation on the bottom plate, elevating system can drive the vertical oscilaltion of second mount pad, actuating mechanism still includes the speed adjusting mechanism that can adjust the driving belt rotational speed, carries goods through the belt feeder, and then reduces people's intensity of labour, can adjust the transport angle of belt feeder, can adapt to the loading wagon of different heights; the rotating speed of the belt can be adjusted according to different goods; the device has the advantages of simple structure, low cost, convenient use, high efficiency and wide application range.

Description

Belt feeder mechanical transmission
Technical Field
The utility model relates to a machinery transportation technical field, in particular to belt feeder mechanical transmission.
Background
In modern logistics transportation industry, need transport the product to each place of whole nation and sell, this just needs to carry out loading and unloading, and traditional loading and unloading are all gone on through the manual work, need constantly to remove the product then place the car on, and is inefficient like this, and intensity of labour is big. For some products which are transported by a crane, the products are generally large products which cannot be transported by manpower, and for small products, the problem of high cost exists if the products are transported by the crane, and for the problems, equipment for conveniently transporting the products to a vehicle is necessary.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a belt feeder mechanical transmission can carry the convenience, and handling efficiency is high, and is with low costs, and intensity of labour is little, can be suitable for the height of different transport moreover.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a belt feeder mechanical transmission, is in including bottom plate and setting belt feeder on the bottom plate, the belt feeder is including first band pulley, second band pulley and driving belt both sides are equipped with first mount pad and second mount pad respectively around the bottom plate surface, first band pulley rotates and installs on first mount pad, the second band pulley rotates and installs on the second mount pad still be equipped with elevating system and energy band on the bottom plate and move driving belt pivoted actuating mechanism, elevating system can drive the vertical oscilaltion of second mount pad, actuating mechanism is still including the speed adjusting mechanism that can adjust the driving belt rotational speed.
Furthermore, the lifting mechanism comprises a hydraulic cylinder arranged on the bottom plate, a piston rod of the hydraulic cylinder is fixedly connected with a second mounting seat, transverse sliding grooves are symmetrically formed in the second mounting seat, moving blocks are rotatably mounted at two ends of a rotating shaft of the second belt wheel through bearings respectively, the moving blocks are movably arranged in the transverse sliding grooves, and an elastic part capable of enabling the transmission belt to keep tension is connected between one side of each transverse sliding groove and each moving block.
Further, the number of the hydraulic cylinders is two.
Furthermore, the driving mechanism comprises a motor mounting seat arranged on the bottom plate, the motor mounting seat is provided with a motor, a rotating shaft of the motor is provided with a first bevel gear, and one end of the rotating shaft of the first belt wheel, which is close to the motor, is provided with a second bevel gear capable of being meshed with the first bevel gear.
Furthermore, the speed regulating mechanism comprises a track arranged on the motor mounting seat, a movable plate is movably arranged in the track, the motor is arranged on the movable plate, a third bevel gear is arranged on a rotating shaft of the motor, and a fourth bevel gear which can be meshed with the third bevel gear is arranged on one side of the second bevel gear on the rotating shaft of the first belt wheel.
Further, the moving plate is fixed on the motor mounting seat through bolts and nuts.
Preferably, a plurality of movable wheels are arranged on the lower surface of the bottom plate at intervals.
Further, the elastic member is a spring.
To sum up, the utility model discloses for its beneficial effect of prior art is:
compared with the prior art, the mechanical transmission device of the belt conveyor has the advantages that the structure is reasonable and simple, the existing belt conveyor is arranged on the bottom plate, goods are conveyed through the belt conveyor, the labor intensity of people is further reduced, one end of the belt conveyor is connected with the lifting mechanism, the conveying angle of the belt conveyor can be further adjusted, and loading trucks with different heights can be further adapted; meanwhile, the rotating speed of the belt can be regulated through a speed regulating mechanism, so that the rotating speed of the belt can be regulated according to different goods; in addition, the lower end of the bottom plate is provided with the movable wheel, so that one end of the device can be convenient; the device has the advantages of simple structure, low cost, convenient use, high efficiency and wide application range.
Drawings

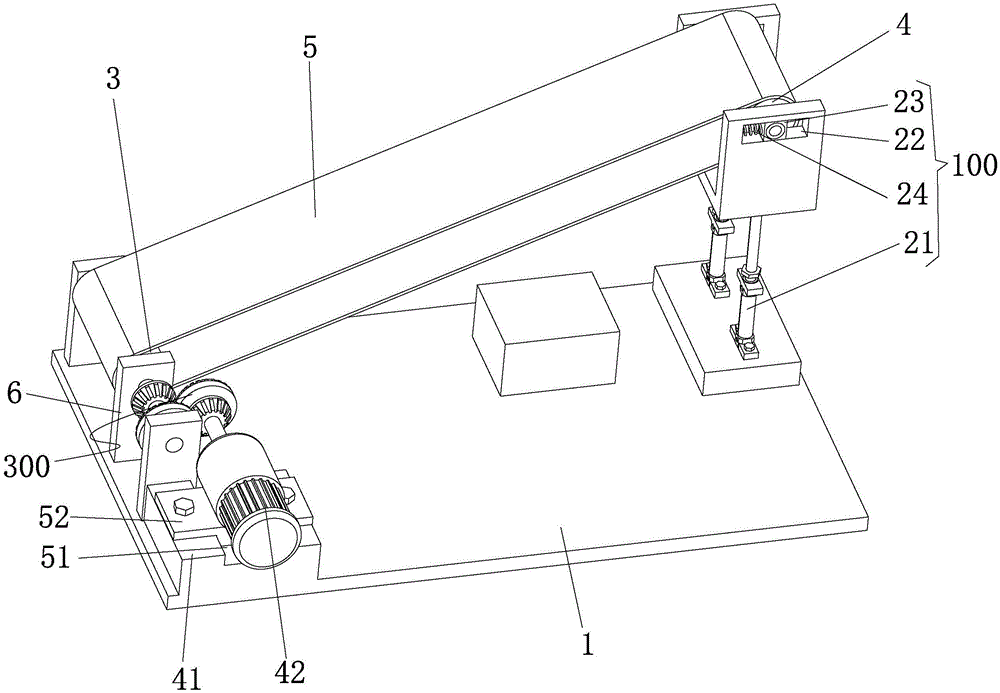

Fig. 1 is a perspective view of the present invention;
fig. 2 is a schematic front view of the present invention;
fig. 3 is a schematic top view of the present invention.
Description of reference numerals:
1. a base plate; 3. a first pulley; 4. a second pulley; 5. a drive belt; 6. a first mounting seat; 7. a second mounting seat; 100. a lifting mechanism; 200. a drive mechanism; 300. a speed regulating mechanism; 21. a hydraulic cylinder; 22. a transverse chute; 23. a moving block; 24. an elastic member; 41. a mounting seat; 42. a motor; 43. a first bevel gear; 44. a second bevel gear; 51. a track; 52. moving the plate; 53. a third bevel gear; 54. and a fourth bevel gear.
Detailed Description
The invention will be further described with reference to the following description and embodiments in conjunction with the accompanying drawings:
the mechanical transmission device of the belt conveyor shown in fig. 1 to 3 has the following specific implementation mode: the belt conveyor comprises a bottom plate 1 and a belt conveyor arranged on the bottom plate 1, a plurality of movable wheels are arranged on the lower surface of the bottom plate 1 at intervals, the belt conveyor comprises a first belt wheel 3, a second belt wheel 4 and a transmission belt 5, a first mounting seat 6 and a second mounting seat 7 are respectively arranged on the front side and the rear side of the surface of the bottom plate 1, the first belt wheel 3 is rotatably mounted on the first mounting seat 6, the second belt wheel 4 is rotatably mounted on the second mounting seat 7, the bottom plate 1 is further provided with a lifting mechanism 100 and a driving mechanism 200 capable of driving the transmission belt 5 to rotate, the lifting mechanism 100 can drive the second mounting seat 7 to vertically lift up and down, the driving mechanism 200 further comprises a speed regulating mechanism 300 capable of regulating the rotating speed of the transmission belt 5, the existing belt conveyor is arranged on the bottom plate 1, goods are conveyed through the belt conveyor, and the labor intensity of people is further reduced, one end of the belt conveyor is connected with the lifting mechanism 100, so that the conveying angle of the belt conveyor can be adjusted, and the belt conveyor can adapt to loading vehicles with different heights; simultaneously, the rotational speed accessible speed adjusting mechanism 300 of drive belt 5 carries out the speed governing to can adjust the rotational speed of belt according to the goods of difference, this device simple structure, with low costs, convenient to use, it is efficient, application scope is wide.
In the present invention, the lifting mechanism 100 includes a hydraulic cylinder 21 disposed on the bottom plate 1, the number of the hydraulic cylinders 21 is preferably two, the piston rods of the hydraulic cylinders 21 are fixedly connected with the second mounting base 7, the second mounting seat 7 is symmetrically provided with transverse sliding grooves 22, two ends of a rotating shaft of the second belt wheel 4 are respectively provided with a moving block 23 through bearings in a rotating manner, the moving blocks 23 are movably arranged in the transverse sliding grooves 22, an elastic piece 24 which can keep the tension of the transmission belt 5 is connected between one side of the transverse sliding chute 22 and the moving block 23, the elastic element 24 is preferably a spring, and works through the two hydraulic cylinders 21 to drive the second mounting base 7 to lift, furthermore, the conveying angle of the belt conveyor can be adjusted, and the transmission belt 5 keeps tension through the elastic piece 24, so that the belt conveyor keeps normal operation, and normal operation of equipment is guaranteed.
The utility model discloses in actuating mechanism 200 is including setting up motor mount pad 41 on bottom plate 1 motor mount pad 41 is equipped with motor 42 be equipped with first bevel gear 43 in motor 42's the axis of rotation be equipped with in the axis of rotation of first band pulley 3 and be close to motor 42's one end be equipped with can with the second bevel gear 44 of first bevel gear 43 meshing, through first bevel gear 43 and second bevel gear 44 meshing, rethread first band pulley 3 drives driving belt 5 and rotates, simple structure, convenient to use.
In the utility model, the speed adjusting mechanism 300 comprises a track 51 arranged on a motor mounting seat 41, a moving plate 52 is movably arranged in the track 51, the motor 42 is arranged on the moving plate 52, a third bevel gear 53 is arranged on a rotating shaft of the motor 42, a fourth bevel gear 54 capable of meshing with the third bevel gear 53 is arranged on one side of a second bevel gear 44 on the rotating shaft of the first pulley 3, the moving plate 52 is fixed on the motor mounting seat 41 through bolts and nuts, the first bevel gear 43 has the same specification as the third bevel gear 53, the second bevel gear 44 has the same specification as the fourth bevel gear 54, the specification of the first bevel gear 43 is smaller than that of the second bevel gear 44, when the first bevel gear 43 meshes with the second bevel gear 44, the rotating speed of the transmission belt 5 is slower, during adjustment, the nuts are loosened through the bolts to push the moving plate 52, when the speed-adjustable belt is used, the first bevel gear 43 is separated from the second bevel gear 44, the third bevel gear 53 is meshed with the fourth bevel gear 54 and is fixed by bolts and nuts, and the rotating speed of the transmission belt 5 is higher, so that the speed-adjustable function is realized.
The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above, and it should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only illustrative of the principles of the present invention, and the present invention can be modified in various ways without departing from the spirit and scope of the present invention, and these modifications and changes fall into the scope of the present invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (8)

1. The utility model provides a belt feeder mechanical transmission which characterized in that: including bottom plate (1) and setting belt feeder on bottom plate (1), the belt feeder is including first band pulley (3), second band pulley (4) and driving belt (5) bottom plate (1) surface front and back both sides are equipped with first mount pad (6) and second mount pad (7) respectively, first band pulley (3) rotate to be installed on first mount pad (6), second band pulley (4) rotate to be installed on second mount pad (7) still be equipped with elevating system (100) and can drive driving belt (5) pivoted actuating mechanism (200) on bottom plate (1), elevating system (100) can move the vertical oscilaltion of second mount pad (7), actuating mechanism (200) are still including speed adjusting mechanism (300) that can adjust driving belt (5) rotational speed.
2. The mechanical transmission device of the belt conveyor according to claim 1, wherein the lifting mechanism (100) comprises a hydraulic cylinder (21) arranged on the base plate (1), a piston rod of the hydraulic cylinder (21) is fixedly connected with the second mounting seat (7), transverse sliding grooves (22) are symmetrically arranged on the second mounting seat (7), moving blocks (23) are rotatably arranged at two ends of a rotating shaft of the second belt pulley (4) through bearings respectively, the moving blocks (23) are movably arranged in the transverse sliding grooves (22), and an elastic member (24) capable of keeping the tension of the transmission belt (5) is connected between one side of the transverse sliding grooves (22) and the moving blocks (23).
3. A belt conveyor mechanical transmission as claimed in claim 2, characterised in that said hydraulic cylinders (21) are two in number.
4. A belt conveyor mechanical transmission device according to claim 1, characterized in that the driving mechanism (200) comprises a motor mounting seat (41) arranged on the base plate (1), a motor (42) is arranged on the motor mounting seat (41), a first bevel gear (43) is arranged on the rotating shaft of the motor (42), and a second bevel gear (44) capable of meshing with the first bevel gear (43) is arranged on the rotating shaft of the first belt pulley (3) and at one end close to the motor (42).
5. A belt conveyor mechanical transmission device according to claim 4, characterized in that the speed adjusting mechanism (300) comprises a track (51) arranged on the motor mounting seat (41), a moving plate (52) movably arranged in the track (51), the motor (42) is arranged on the moving plate (52), a third bevel gear (53) is arranged on the rotating shaft of the motor (42), and a fourth bevel gear (54) capable of meshing with the third bevel gear (53) is arranged on one side of the second bevel gear (44) on the rotating shaft of the first belt pulley (3).
6. A belt conveyor mechanical transmission as claimed in claim 5, characterised in that said moving plate (52) is fixed to the motor mounting (41) by means of bolts and nuts.
7. A mechanical transmission device for a belt conveyor according to claim 1, characterized in that a plurality of movable wheels are provided at intervals on the lower surface of the base plate (1).
8. A belt conveyor mechanical transmission as claimed in claim 2, characterised in that said elastic member (24) is a spring.
