Abstract

The utility model discloses a medicine dispensing device which is convenient for taking medicine, which relates to the field of medical equipment. The utility model comprises a rack, a medicine storage box, a medicine dispensing device, a funnel assembly and a control panel. , the medicine dispensing device is arranged on the mounting plate of the rack and located below the medicine storage box, the funnel assembly is arranged on one side of the rack and located below the medicine dispensing device, and the medicine dispensing device includes a drive assembly, a pusher plate and medicine dispensing assembly, the driving assembly is connected with the medicine dispensing assembly through the push plate, the push plate is hinged with the medicine dispensing assembly, the medicine dispensing assembly is provided with a medicine storage module, the push plate The medicine dispensing assembly is tightly attached to the lower end of the medicine storage box, and the device can automatically take medicine by pressing the control button, which is convenient and time-saving to take medicine. A one-time dispensing of the medicines needed to complete a patient at one time.

Description

A medicine dispensing device that is convenient for taking medicine

technical field

The utility model relates to the field of medical equipment, in particular to a medicine dispensing device which is convenient for taking medicine.

Background technique

In general, the nurse station in the ward will always have common medicines, which are prepared for the patients in the ward. At noon or at night, the nurse will dispense medicine to the patients in the ward. Generally, the nurse will pour the medicine bottle into the medicine storage box. It is inconvenient to control the amount of medicine, or use tweezers to transfer the medicine from the medicine bottle to the medicine storage box, which is more troublesome and time-consuming, and it is unsanitary to take medicine by hand, so the medicine dispensing device is a medical care device. One of the most commonly used equipment in medical care, although the production process of the existing medical care dispensing device is becoming more and more sophisticated, there are still some shortcomings to be improved.

A medicine dispenser in the prior art (patent number CN201820644359.6) includes a main casing, a medicine dispensing bottle is arranged inside the main casing, a hole is arranged on the top of the main casing, and the top of the medicine dispensing bottle is pierced. Passing through the hole and extending to the top of the main casing, a limit ring is arranged above the outer side of the medicine dispensing bottle, a medicine dispensing bottle inlet is arranged above the medicine dispensing bottle, a bottle cap is arranged on the medicine dispensing bottle, and a medicine dispensing bottle is provided below the medicine dispensing bottle. There is a medicine dispensing bottle outlet, and the medicine dispensing bottle outlet is in the shape of an inverted cone. The bottom of the medicine dispensing bottle outlet is provided with a baffle plate, and a medicine dispensing device is arranged under the baffle plate, and the medicine dispensing device includes a rotating shaft. Mounting plate; the utility model loads each individual medicine into a medicine dispensing bottle, multiple medicine dispensing bottles are arranged for multiple medicines, and the medicine dispensing device corresponding to each medicine dispensing bottle can be independently rotated to discharge medicine , and at the same time adjust the amount of each drug to be dispensed by rotating the angle of the dispensing device.

The prior art has the following problems: in order to facilitate the taking of medicines, the existing medicine dispensing devices are mostly provided with a rotating rack at the bottom. Although the speed of searching for medicines is accelerated to a certain extent, the rotating device cannot accurately control the quantity of medicines taken. , the situation of taking more or less often occurs, and most of the medicine dispensing devices are manually operated, which is complicated to operate, and the efficiency of taking medicine is low, which increases the workload of medical staff and is very inconvenient to take at the same time. For capsules, pills, tablets or oval-shaped drugs, patients often need to take a variety of different drugs. The scope of application of the drug device.

Utility model content

In view of the above-mentioned deficiencies of the prior art, the purpose of the present invention is to provide a medicine dispensing device that is convenient for taking medicine.

In order to solve the above-mentioned technical problems, the utility model adopts a medicine dispensing device which is convenient for taking medicine, and achieves the effect that medicine can be taken automatically by pressing the control button. Medicines, one-time dispensing to complete the medicines needed by the patient at one time. At the beginning of the content of the utility model, an overview of the content of the utility model needs to be made.

The utility model is realized through the following technical solutions.

A medicine dispensing device convenient for taking medicine, comprising a rack, a medicine storage box, a medicine dispensing device, a funnel assembly, and a control panel, characterized in that the medicine storage box is located on the upper part of the rack, and the medicine dispensing device is arranged on the upper part of the rack. The mounting plate of the rack is located below the medicine storage box, the funnel assembly is arranged on one side of the rack and is located under the medicine dispensing device, the medicine dispensing device includes a drive assembly, a push plate, A medicine dispensing assembly, the driving assembly is connected with the medicine dispensing assembly through the push plate, the push plate is hinged with the medicine dispensing assembly, the medicine dispensing assembly is provided with a medicine storage module, and the push plate is connected with the medicine dispensing assembly. The medicine dispensing assembly is attached to the lower end of the medicine storage box.

Preferably, the medicine distribution assembly includes a medicine distribution board, a medicine storage module, and a filling module, the medicine distribution board includes a medicine distribution upper board and a medicine distribution lower board, and the medicine distribution upper board is set as an inverted U shape, and the medicine distribution upper board is in an inverted U shape. The medicine-distributing lower plate is set to be U-shaped, the medicine-distributing upper plate and the two sides of the medicine-distributing lower plate are connected by buckles, the side of the concave part of the medicine-distributing plate is provided with a clip groove, the medicine storage module and the filling The module is arranged in the groove of the concave part of the medicine distribution plate.

Preferably, the medicine storage module includes a medicine storage plate, a spring, and a striker, the two sides of the medicine storage plate are provided with steps that are matched with the grooves in the concave portion of the medicine distribution plate, and the top of the medicine storage plate is provided with a medicine storage plate The bottom of the cavity is provided with a through hole suitable for the firing pin, the bottom end of the medicine storage plate is fixedly connected with one end of the spring, the firing pin is sleeved in the spring, and one end of the firing pin is The other end of the striker is fixedly connected with the other end of the spring, and the other end of the striker is arranged in the through hole of the medicine storage plate cavity.

Preferably, the medicine storage box includes a medicine storage box body, a box cover, a partition, a handle, a first hinge, and a spring clip. The lower part of the medicine storage box body is set in a funnel shape, and the medicine storage box The bottom is provided with a medicine outlet compatible with the medicine storage module, a number of partitions are arranged on both sides of the inside of the medicine storage box, the partitions are movably installed in the partitions, and the box cover passes through A first hinge and a spring clip are connected with the medicine storage box body, the first hinge and the spring clip are respectively arranged on the opposite sides of the box cover and the medicine storage box body, and the handle is arranged on the The box cover is mounted on the side of the spring clip.

Preferably, the drive assembly includes a drive motor, a motor mounting plate, a gear, and a rack, the drive motor is connected to one side of the push plate through a motor mounting plate, the main shaft of the drive motor is vertically downward, and the drive motor The main shaft of the motor is connected with the gear, the rack is arranged on the mounting plate, and the gear is connected with the rack.

Preferably, the medicine dispensing device further includes a sliding assembly, the sliding assembly includes a guide rail, a roller, and a connecting piece, the guide rail is arranged on the mounting plate and is located on both longitudinal sides of the driving assembly, and the roller The connecting pieces are respectively arranged on the bottom surfaces of the push plate and the medicine distribution plate, and the rollers are matched with the guide rails.

Preferably, the funnel assembly includes a rectangular funnel, a baffle, a second hinge, an embedded handle, a magnetic buckle, and a stopper, the baffle is hinged to one side of the rectangular funnel through the second hinge, and the baffle is provided with There is a built-in handle, the baffle is adsorbed on the rectangular funnel through a magnetic buckle arranged on the rectangular funnel, and the stopper is arranged on the inner side of the rectangular funnel away from the baffle installation side, the rectangular funnel is installed. It is arranged on one side of the mounting plate along the length direction and is parallel to the length direction of the medicine dispensing assembly, and the upper end opening of the rectangular funnel is adapted to the medicine dispensing assembly.

Preferably, a vibrator is provided on the side of the medicine storage box.

Preferably, the medicine storage cavity is configured as a waist-shaped cavity.

Preferably, the medicine storage cavity is configured as a cylindrical cavity.

Compared with the prior art, the beneficial effect of the utility model is that: there are medicines in a single medicine storage module on the medicine distribution plate, the push plate is driven by the driving component, the push plate is hinged with the medicine distribution plate, and the medicine distribution plate moves horizontally at the same time. Under the action of gravity, the medicine distribution plate rotates downward with the hinge as the axis, the medicine distribution plate touches the funnel assembly, the funnel assembly touches the striker of the medicine storage module, the striker pushes out the medicine in the medicine storage module, and the medicine passes through. The funnel component falls into the medicine distribution box below, and the whole process is automatically controlled by simply pressing the control button, which is convenient and trouble-free to improve the medicine distribution efficiency.

There are several compartments in the medicine storage box, and partitions can be installed in the compartments. The medicine storage box can be divided into multiple medicine storage spaces, and different medicines can be put into different medicine storage spaces. How many types of medicines are needed? Just how much storage space is separated, it is convenient for the dispensing process to be completed at one time. The medicine storage box is provided with a box cover, which is convenient for putting medicines into the medicine storage box, and at the same time, the medicines can be sealed in the medicine storage box to prevent the dust and bacteria in the air from contaminating the medicines, which is more hygienic. At the same time, the hand will not touch the medicine during the whole dispensing process, which can also better prevent the contamination of the medicine.

The medicine storage box is provided with a vibrator, and the vibration frequency can be adjusted at the same time. The medicine storage box is vibrated by the vibrator to make the medicine fall into the medicine distribution board more quickly, so as to prevent more medicines from being stuck in the medicine storage box. A situation where the medicine cannot be dropped.

Several medicine storage modules are arranged on the medicine distribution board, and the medicine storage modules are of various types, including a capsule medicine storage module, a tablet medicine storage module, a pill medicine storage module, and an oval medicine storage module. The above-mentioned medicine storage modules can be freely matched according to requirements, and are suitable for various types of medicines, and are very convenient to use in a wide range.

The device also has a timing function, a time display function, and a voice prompt function, and through the above functions, the patient can be accurately reminded to take medicine on time, the intelligent level is high, and the operation is simple and convenient.

Description of drawings

In order to more clearly illustrate the specific embodiments of the present invention or the technical solutions in the prior art, the following will briefly introduce the accompanying drawings used in the description of the specific embodiments or the prior art. Obviously, the following descriptions The accompanying drawings are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative work.

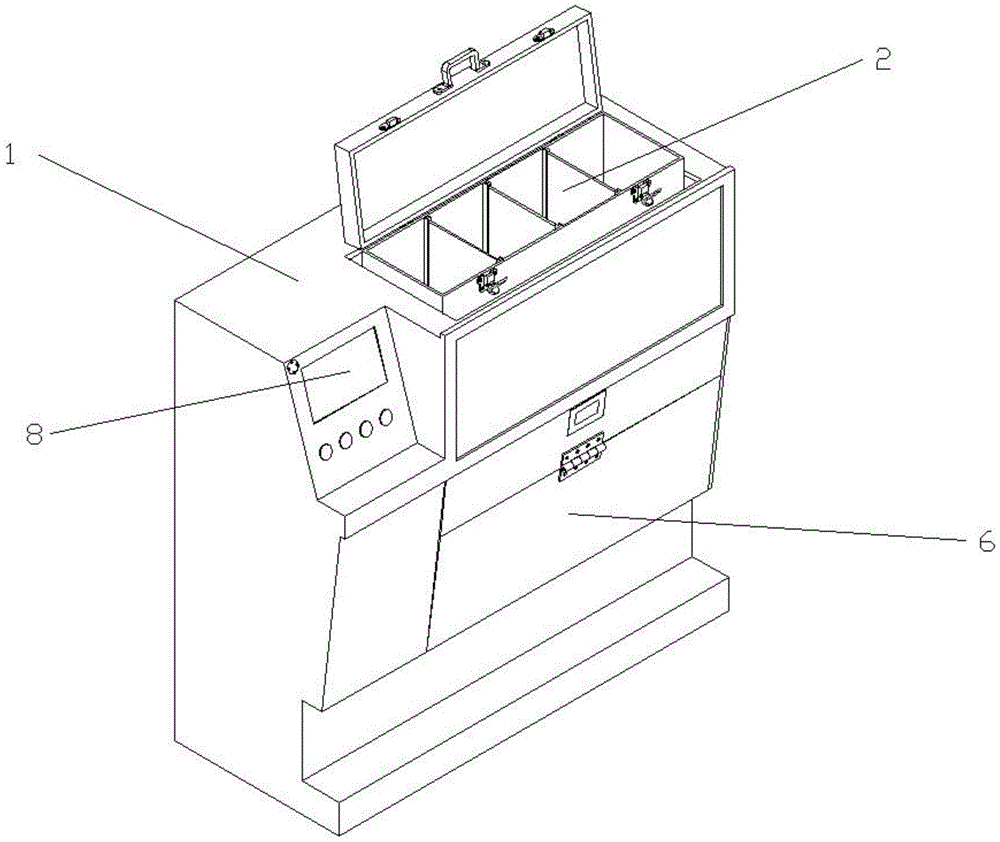

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the front view of the utility model;

Fig. 3 is the left side view of the utility model;

Fig. 4 is the sectional view of the utility model along Fig. 3C-C;

Fig. 5 is the sectional view of the utility model along Fig. 2A-A;

Fig. 6 is the partial enlarged view D of Fig. 5 of the utility model;

7 is a cross-sectional view of the medicine storage module of the present invention;

8 is a schematic structural diagram of the medicine dispensing assembly of the present invention;

FIG. 9 is a schematic structural diagram of the medicine storage module of the present invention being a cylindrical cavity;

FIG. 10 is a schematic structural diagram of the medicine storage module of the present invention as a waist-shaped cavity;

11 is a schematic structural diagram of a filling module of the present invention;

Figure 12 is a partial schematic diagram of the position of the medicine-dispensing component during medicine-dispensing of the present invention;

In the figure: 1-rack; 11-installation plate; 13-observation window; 2-medicine storage box; 21-medicine storage box body; 2101-partition slot; 22-box cover; 23-partition plate; ; 25-first hinge; 26-spring clip; 3-drug dispensing device; 31-push plate; 302-drug dispensing assembly; 32-drug dispensing plate; 3201-drug dispensing upper plate; 3202-drug dispensing lower plate; 33 -Medical storage module; 3301-Medical storage plate; 3302-Spring; 3304-Firing pin; 34-Filling module; 4-Drive assembly; 41-Drive motor;42-Motor mounting plate;43-Gear; -Sliding component; 51-Guide rail; 52-Roller; 53-Connecting piece; 6-Funnel component; 61-Rectangular funnel; 62-Bezel; 63-Second hinge; 64-Embedded handle; 65-Magnetic buckle; 66-stop; 7-vibrator; 8-control panel; 81-display; 82-control button; 83-voice prompt mechanism;

Detailed ways

The technical solutions of the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The present utility model will be further described in detail below through specific embodiments and in conjunction with the accompanying drawings.

Example 1

A medicine dispensing device convenient for taking medicine, comprising a rack 1, a medicine storage box 2, a medicine dispensing device 3, a funnel assembly 6, and a control panel 8, the medicine storage box 2 is located on the upper part of the rack 1, and the medicine dispensing device 3 is provided. The device 3 is arranged on the mounting plate 11 of the rack 1 and is located below the medicine storage box 2 , and the funnel assembly 6 is arranged on one side of the rack 1 and is located under the medicine dispensing device 3 .

A mounting plate 11 is arranged in the middle of the rack 1 , an observation window 13 is arranged in the upper part of the front of the rack 1 , and the medicine storage box 2 is made of transparent material, so that the situation in the medicine storage box 2 can be easily observed.

The medicine dispensing device 3 includes a driving component 4, a push plate 31, a medicine dispensing component 302, and a sliding component 5. The driving component 4 is connected with the medicine dispensing component 302 through the push plate 31, and the push plate 31 is connected to the medicine dispensing component 302. The medicine dispensing assembly 302 is hinged, the sliding assembly 5 is arranged between the push plate 31 and the mounting plate 11, the medicine dispensing assembly 302 is provided with a medicine storage module 33, and the push plate 31 and the The medicine dispensing assembly 302 is attached to the lower end of the medicine storage box 2 .

The medicine dispensing assembly 302 includes a medicine dispensing plate 32, a medicine storage module 33, and a filling module 34. The medicine dispensing plate 32 includes a medicine dispensing upper plate 3201 and a medicine dispensing lower plate 3202, and the medicine dispensing upper plate 3201 is arranged to be inverted. U-shaped, the lower plate 3202 for dispensing is U-shaped, the upper plate 3201 for dispensing is connected to both sides of the lower plate 3202 for dispensing through buckles, and the side of the concave portion of the dispensing plate 32 is provided with a card slot, The medicine storage module 33 and the filling module 34 are arranged in the recessed slot of the medicine dispensing plate 32. The medicine storage module 33 and the filling module 34 can be freely matched and combined according to specific needs. The number of the medicine storage modules 33 is set when the medicine is used, and the rest are set as the filling module 34. The filling module 34 is a flat plate without medicine storage function, and its function is to fill the medicine storage module 33 after the setting is completed. The remaining space of the concave part of the medicine distribution plate 32, and the length and width of the filling module 34 and the medicine storage module 33 are the same, and the length of the concave part of the medicine distribution plate 32 is a multiple of the width of the medicine storage module 33, It is convenient to install the medicine storage module 33 and the filling module 34 .

The medicine storage module 33 includes a medicine storage plate 3301, a spring 3302, and a striker 3304. The two sides of the medicine storage plate 3301 are provided with steps that are matched with the grooves in the concave portion of the medicine distribution plate 32. The top of the medicine storage plate 3301 A medicine storage cavity is provided, and the bottom of the cavity is provided with a through hole suitable for the striker 3304, the bottom end of the medicine storage plate 3301 is fixedly connected with one end of the spring 3302, and the striker 3304 is sleeved on the inside the spring 3302, and one end of the striker 3304 is fixedly connected with the other end of the spring 3302, and the other end of the striker 3304 is arranged in the through hole of the cavity of the medicine storage plate 3301. During operation, the bottom of the medicine storage module 33 collides with the stopper 66. At this time, the connecting end of the striker 3304 and the spring 3302 collides with the stopper 66. The striker 3304 moves in the through hole of the medicine storage plate 3301, and the medicine is about to be stored. The medicine in the cavity of the plate 3301 is ejected, and after the medicine is dispensed, the striker 3304 returns to its original position under the action of the spring 3302 .

The drive assembly 4 includes a drive motor 41, a motor mounting plate 42, a gear 43, and a rack 44. The drive motor 41 is connected to one side of the push plate 31 through a motor mounting plate 42, and the main shaft of the drive motor 41 is vertical. Downward, the main shaft of the drive motor 41 is connected to the gear 43 , the rack 44 is arranged on the mounting plate 11 , the gear 43 is connected to the rack 44 in a toothed manner, and the drive motor 41 is The driven lower gear 43 meshes with the rack 44 to drive the push plate 31 and the medicine dispensing assembly 302 to reciprocate in the horizontal direction.

The sliding assembly 5 includes a guide rail 51 , a roller 52 , and a connecting piece 53 . The guide rail 51 is disposed on the mounting plate 11 and is located on both longitudinal sides of the driving assembly 4 , and the roller 52 is respectively connected by the connecting piece 53 . Set on the bottom surface of the push plate 31 and the medicine distribution plate 32, the roller 52 is matched with the guide rail 51, the roller 52 is mounted on the connecting piece 53 and can be rotated, and the sliding assembly 5 can be The friction force between the mounting plate 11 and the push plate 31 and the medicine dispensing assembly 302 is effectively reduced, so that the driving assembly 4 can push the medicine dispensing assembly 302 to move and complete the medicine dispensing operation quickly.

The medicine storage box 2 includes a medicine storage box body 21, a box cover 22, a partition 23, a handle 24, a first hinge 25, and a spring clip 26. The lower part of the medicine storage box body 21 is arranged in a funnel shape. The medicine storage box body 21 is provided with a medicine outlet corresponding to the medicine storage module 33 at the bottom, and a plurality of compartments 2101 are arranged on both sides of the inner side of the medicine storage box body 21. The partitions 23 are movably installed in the In the compartment 2101, the box cover 22 is connected to the medicine storage box body 21 through a first hinge 25 and a spring clip 26, and the first hinge 25 and the spring clip 26 are respectively arranged on the box cover 22 is on the opposite side of the medicine storage box body 21 , the handle 24 is arranged on the side of the box cover 22 where the spring clip 26 is installed, and the side of the medicine storage box 2 is provided with a vibrator 7 . The medicine storage box 2 is fixedly connected to the upper part of the rack 1, and the medicine storage box body 21 is provided with a number of partitions 23, and the box body is divided into several cavities, so that various different It is very convenient to divide the medicine into as many cavities as many kinds of medicines are needed, and the box body is provided with a box cover 22, which can effectively isolate the dust in the air and prevent the medicines from being polluted. The medicine storage box body 21 is provided with a vibrator 7, and the medicine storage box body 21 is vibrated by the vibrator 7 to make the medicines fall into the medicine distribution board more quickly, so as to prevent more medicines from being stuck in the medicine storage box 2. A situation where the medicine cannot be dropped.

The funnel assembly 6 includes a rectangular funnel 61 , a baffle 62 , a second hinge 63 , an embedded handle 64 , a magnetic buckle 65 , and a stopper 66 . The baffle 62 is connected to one side of the rectangular funnel 61 through the second hinge 63 . Hinged, the baffle 62 is provided with an embedded handle, the baffle 62 is adsorbed on the rectangular funnel 61 through the magnetic buckle 65 arranged on the rectangular funnel 61 , and the stopper 66 is arranged on the rectangular funnel 61 On the inner side away from the mounting side of the baffle 62, the rectangular funnel 61 is arranged on one side of the mounting plate 11 along the length direction and is parallel to the longitudinal direction of the medicine dispensing assembly 302, and the upper end of the rectangular funnel 61 is open to the The medicine dispensing assembly 302 is adapted, and the upper end of the rectangular funnel 61 is flush with the top surface of the mounting plate 11 .

The medicine storage cavity can be set as a waist-shaped cavity, a cylindrical cavity or a cavity of other shapes, and can be set according to the shape of conventional medicines, and the cavity can only accommodate a single medicine, which is convenient to control the quantity of medicines to be dispensed.

The control panel 8 is arranged on the left side of the rack 1. The control panel 8 includes a display screen 81, a control button 82, and a voice prompt mechanism 83. The rack 1 is provided with a control system, and the control system is connected by cables. The drive motor 41, the vibrator 7 and the control panel 8, the display screen 81 can display the time, and the time can be set by the control button 82, the timing time is reminded by the voice prompting mechanism 83, and the control button 82 is also provided with the positive value of the drive motor 41. Inversion is used for batch dispensing.

In specific use, firstly, the drive motor 41 is driven in reverse, the drive motor 41 drives the push plate 31, and the push plate 31 drives the medicine distribution plate 32 to move. When the medicine distribution plate 32 moves to the top of the funnel assembly 6, due to its own gravity, the The medicine plate 32 is rotated around the hinge of the medicine distribution plate 32 and the push plate 31 as the axis until the medicine distribution plate 32 is completely vertical downward, then open the baffle 62 on the funnel assembly 6, take out the medicine distribution lower plate 3202, and then Place the medicine storage module 33 and the filling module 34 in the slot of the lower medicine dispensing plate 3302 as required, and then clamp the installed lower medicine dispensing plate 3202 on the upper medicine dispensing plate 3201 through the buckle, and then start the drive The motor 41 rotates forward, and drives the medicine distribution plate 32 to move to the medicine outlet below the medicine storage box 2, so that the medicine storage cavity of the medicine storage module 33 faces the medicine outlet, close the baffle 62, and open the medicine storage box 2 After setting the partition 23 in the box, put the required medicines into the medicine storage box 2, and cover the box cover 22 to complete the preparation stage of the device.

When the medicine needs to be dispensed, press the corresponding control button 82, start the vibrator 7, shake the medicine storage box 2, make the medicine drop into the medicine storage module 33, and start the driving motor 41 to move the medicine dispensing plate 32 forward , because the medicine distribution plate 32 and the push plate 31 are attached to the medicine outlet of the medicine storage box 2 to prevent the medicine from falling off, the medicine distribution plate 32 rotates downward under the action of its own weight, and the striker 3304 of the medicine storage module 33 hits the stopper. Block 66, the striker 3304 pushes out the medicine, the medicine falls into the rectangular funnel 61, and then falls into the medicine distribution box below through the rectangular funnel 61, that is, one medicine distribution is completed, and the driving motor 41 is started again to drive the medicine distribution plate 32 to move, and then the medicine distribution plate 32 is moved. Under the action of the guide rail 51 and the roller 52, it moves to just below the medicine storage box 2 to complete the whole process. When the medicine needs to be dispensed again, the above operation can be performed again.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: The technical solutions described in the foregoing embodiments can still be modified, or some or all of the technical features thereof can be equivalently replaced; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the technical solutions of the embodiments of the present invention.

Claims (10)

1. A medicine distribution device convenient for taking medicine comprises a rack (1), a medicine storage box (2), a medicine distribution device (3), a funnel assembly (6) and a control panel (8), and is characterized in that the medicine storage box (2) is positioned on the upper portion of the rack (1), the medicine distribution device (3) is arranged on a mounting plate (11) of the rack (1) and is positioned below the medicine storage box (2), the funnel assembly (6) is arranged on one side of the rack (1) and is positioned below the medicine distribution device (3), the medicine distribution device (3) comprises a driving assembly (4), a push plate (31) and a medicine distribution assembly (302), the driving assembly (4) is connected with the medicine distribution assembly (302) through the push plate (31), the push plate (31) is hinged with the medicine distribution assembly (302), the medicine distribution assembly (302) is provided with a medicine storage module (33), the push plate (31) and the medicine distribution assembly (302) are attached to the lower end of the medicine storage box (2).

2. The medicine distribution device facilitating medicine taking according to claim 1, wherein the medicine distribution assembly (302) comprises a medicine distribution plate (32), a medicine storage module (33) and a filling module (34), the medicine distribution plate (32) comprises a medicine distribution upper plate (3201) and a medicine distribution lower plate (3202), the medicine distribution upper plate (3201) is arranged in an inverted U shape, the medicine distribution lower plate (3202) is arranged in a U shape, the medicine distribution upper plate (3201) is connected with two sides of the medicine distribution lower plate (3202) through buckles, clamping grooves are arranged on the side faces of a concave portion of the medicine distribution plate (32), and the medicine storage module (33) and the filling module (34) are arranged in the clamping grooves of the concave portion of the medicine distribution plate (32).

3. The medicine dispensing device convenient for taking medicine according to claim 2, wherein the medicine storage module (33) comprises a medicine storage plate (3301), a spring (3302) and a firing pin (3304), steps matched with the concave clamping grooves of the medicine distribution plate (32) are arranged on two sides of the medicine storage plate (3301), a medicine storage cavity is arranged at the top end of the medicine storage plate (3301), a through hole matched with the firing pin (3304) is arranged at the bottom of the cavity, the bottom end of the medicine storage plate (3301) is fixedly connected with one end of the spring (3302), the firing pin (3304) is sleeved in the spring (3302), one end of the firing pin (3304) is fixedly connected with the other end of the spring (3302), and the other end of the firing pin (3304) is arranged in the through hole of the cavity of the medicine storage plate (3301).

4. The medicine dispensing device convenient for taking medicine according to claim 1, wherein the medicine storage box (2) comprises a medicine storage box body (21), a box cover (22), a partition plate (23), a handle (24), a first hinge (25) and a spring clip (26), the lower part of the medicine storage box body (21) is arranged in a funnel shape, the bottom of the medicine storage box body (21) is provided with a medicine outlet matched with the medicine storage module (33), two sides of the interior of the medicine storage box body (21) are provided with a plurality of separating grooves (2101), the partition plate (23) is movably arranged in the separating grooves (2101), the box cover (22) is connected with the medicine storage box body (21) through the first hinge (25) and the spring clip (26), the first hinge (25) and the spring clip (26) are respectively arranged on the opposite side surfaces of the box cover (22) and the medicine storage box body (21), the handle (24) is arranged on the side surface of the box cover (22) where the spring clip (26) is arranged.

5. The medicine dispensing device for taking medicine conveniently according to claim 1, wherein the driving assembly (4) comprises a driving motor (41), a motor mounting plate (42), a gear (43) and a rack (44), the driving motor (41) is connected with one side of the push plate (31) through the motor mounting plate (42), the main shaft of the driving motor (41) is vertically downward, the main shaft of the driving motor (41) is connected with the gear (43), the rack (44) is arranged on the mounting plate (11), and the gear (43) is in meshed connection with the rack (44).

6. The medicine dispensing device for taking medicine conveniently according to claim 1, characterized in that the medicine dispensing device (3) further comprises a sliding assembly (5), the sliding assembly (5) comprises a guide rail (51), a roller (52) and a connecting member (53), the guide rail (51) is arranged on the mounting plate (11) and is located on both longitudinal sides of the driving assembly (4), the roller (52) is respectively arranged on the bottom surfaces of the push plate (31) and the medicine dispensing plate (32) through the connecting member (53), and the roller (52) is matched with the guide rail (51).

7. An easy-to-take medicine dispensing apparatus according to claim 1, the funnel component (6) comprises a rectangular funnel (61), a baffle plate (62), a second hinge (63), a magnetic buckle (65) and a stop block (66), the baffle plate (62) is hinged with one side of the rectangular funnel (61) through a second hinge (63), the baffle (62) is adsorbed on the rectangular funnel (61) through a magnetic button (65) arranged on the rectangular funnel (61), the stop block (66) is arranged on the inner side surface of the rectangular funnel (61) far away from the installation side of the baffle plate (62), the rectangular funnel (61) is arranged on one side of the mounting plate (11) along the length direction and is parallel to the length direction of the medicine dispensing component (302), the upper end opening of the rectangular funnel (61) is adapted to the medicine dispensing component (302).

8. A medication dispensing apparatus for facilitating the taking of a medication according to claim 1, wherein said medication box (2) is provided with a vibrator (7) at a side thereof.

9. The easy-to-take medicine dispensing device of claim 3, wherein the medicine storage cavity is a kidney-shaped cavity.

10. A medication dispensing apparatus for facilitating medication according to claim 3, wherein the medication storage chamber is configured as a cylindrical chamber.
