The utility model discloses an assembled groove for construction site, which comprises a groove main body (1), a protection plate (4) and a bolt (5); the pair of groove bodies (1) are oppositely arranged, and a groove is formed between the pair of groove bodies (1) and is embedded in a reserved position of a road surface in a matching manner; the top and the bottom of slot main part (1) are equipped with pterygoid lamina (11) and form C shape structure, and all interval is equipped with a plurality of pinhole (6) on pterygoid lamina (11) and guard plate (4) at slot main part (1) top, make guard plate (4) can pass through bolt (5) through pinhole (6) locking on a pair of slot main part (1), and guard plate (4) can cover the slot completely. The utility model discloses can play effectual protection to crossing the interim water and electricity circuit on road, ensure simultaneously that the road surface of slot both sides is intact, easy dismounting, but reuse.
Description
Technical Field
The utility model relates to a construction field especially relates to an assembly type slot is used to job site.
Background
In the construction process of the road surface, on-site water, electricity, access and land leveling need to be ensured, namely three-way connection is flat, but in the actual construction process, temporary drainage, temporary water and electricity and the like often cross temporary roads. In order to meet the requirement of temporary drainage, temporary hydropower and the like crossing temporary roads, a groove is formed by embedding a steel pipe or pouring concrete, and the like, so that the construction process is complicated and the maintenance is inconvenient. In addition, when a vehicle runs or heavy equipment is arranged on the road surface, the temporary groove is easily pressed and damaged, so that water pipes, cables and the like embedded in the temporary groove are possibly extruded and damaged, and when the damaged water pipes, cables and the like need to be maintained and replaced, the original concrete road surfaces on two sides of the groove are firstly broken, a large amount of mechanical operation and manpower are consumed, the progress of the engineering is influenced, and the construction cost is increased.
Disclosure of Invention
An object of the utility model is to provide a job site is with assembled slot can play effectual protection to crossing the interim water and electricity circuit on road, ensures simultaneously that the road surface of slot both sides is intact, easy dismounting, but reuse.
The utility model discloses a realize like this:
an assembled groove for a construction site comprises a groove main body, a protection plate and a bolt; the pair of groove bodies are oppositely arranged, and a groove is formed between the pair of groove bodies and is embedded in a reserved position of a road surface in a matching manner; the top and the bottom of slot main part are equipped with the pterygoid lamina and form C shape structure, and all interval is equipped with a plurality of pinhole on the pterygoid lamina at slot main part top and the guard plate, make the guard plate can pass through the bolt through pinhole locking on a pair of slot main part, and the guard plate can cover the slot completely.
A plurality of supporting pieces are connected between the pair of groove main bodies at intervals and are positioned in the grooves below the protection plates.
The cross section of the supporting piece is of a T-shaped structure, and the top of the supporting piece abuts against the lower surface of the protection plate.
At least three supporting pieces are arranged between the pair of groove main bodies.
The one end of the pterygoid lamina at slot main part top be equipped with the connecting piece, the one end of connecting piece is equipped with the pinhole and extends to the outside of slot main part, makes two slot main parts can splice through the pinhole on the bolt through the connecting piece and the pinhole on the pterygoid lamina.
The protection plate is provided with a preformed hole.
The width of the protection plate is larger than that of the grooves, so that the protection plate cover can extend to cover the road surface when being installed on the two groove main bodies.
The bottom of a pair of groove main bodies is provided with a groove body cushion layer, and the outer sides of the pair of groove main bodies are filled with broken stones.
Compared with the prior art, the utility model, following beneficial effect has:
1. the utility model discloses have higher intensity and match and inlay the dress in the ditch inslot, can combine the water and electricity circuit such as interim ditch, cable, light, the plumbing pipe that will cross the road and be in the same place and provide effectual protection, can provide certain protection to the road surface of slot both sides simultaneously, solved the problem that water and electricity circuit and slot are gone or the heavy equipment extrusion of placeeing by the road surface damages, maintain the difficulty.
2. The utility model discloses a support piece connects a pair of slot main part, and rethread connecting piece concatenation slot main part makes its slot that can adapt to different width and length, but the modularization production, and the transportation and the assembly of being convenient for have simplified the construction flow, have improved the efficiency of construction.
3. The utility model discloses a concatenation of slot main part and the installation of guard plate all distribute the hole concatenation through the bolt, easy dismounting, swift especially are fit for the job site and use, can effectively improve the efficiency of construction.
4. The utility model has the advantages of simple structure, easily operation, circulated use, with low costs, be convenient for maintain, manage and tear open and change, use the flexibility high.
Drawings

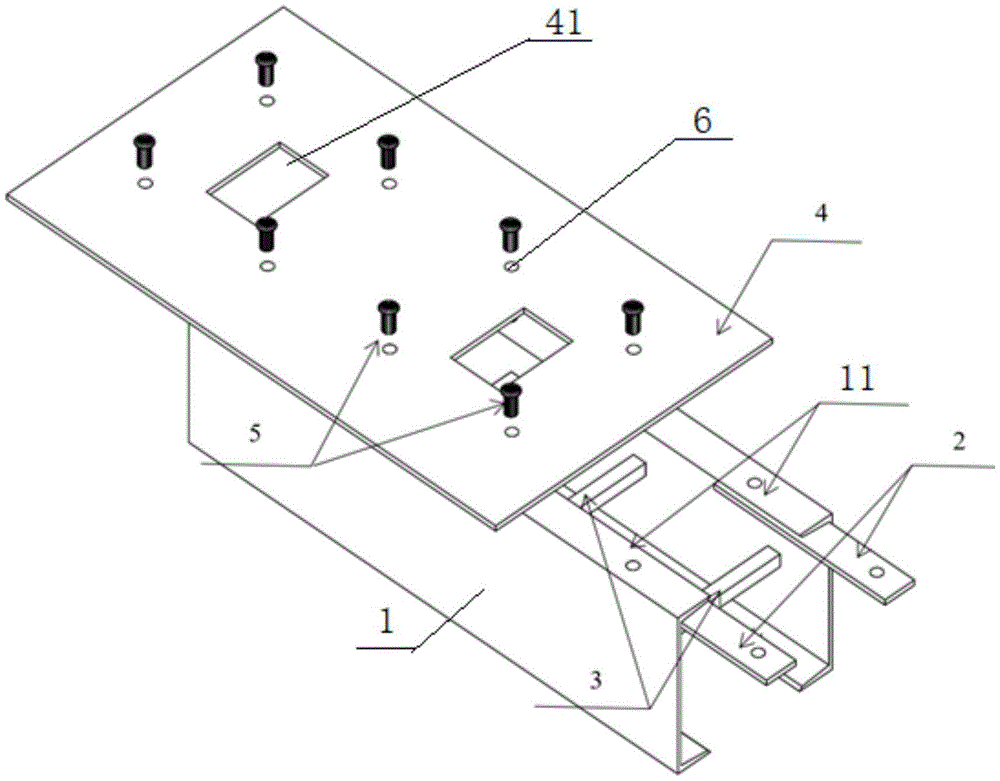

FIG. 1 is a perspective view of the fabricated trench for construction site of the present invention;
fig. 2 is the utility model discloses assembled slot's for job site cross-sectional view.
In the figure, 1 groove main part, 11 pterygoid lamina, 2 connecting pieces, 3 support piece, 4 guard plates, 41 preformed holes, 5 bolts, 6 pinhole, 7 cell body bed course, 8 rubbles.
Detailed Description
The invention will be further explained with reference to the drawings and the specific embodiments.
Referring to fig. 1 and 2, the fabricated trench for a construction site includes a trench body 1, a protection plate 4 and a plug pin 5; the pair of groove bodies 1 are oppositely arranged, and a groove is formed between the pair of groove bodies 1 and is embedded in a reserved position of a road surface in a matching manner; the top and the bottom of slot main part 1 are equipped with pterygoid lamina 11 and form C shape structure, and all interval is equipped with a plurality of pinhole 6 on pterygoid lamina 11 and the guard plate 4 at slot main part 1 top, make guard plate 4 can pass through 5 lockings on a pair of slot main part 1 through pinhole 6, and guard plate 4 can cover the slot completely.
A plurality of support piece 3 of interval connection between a pair of slot main part 1, a plurality of support piece 3 are located the ditch inslot of guard plate 4 below, preferred, support piece 3 and slot main part 1 adopt welded fastening, play the effect of supporting a pair of slot main part 1, also can regard as the ditch inslot support use of interim water pipe, cable, still can regard as the hoist and mount's of assembled slot hoist and mount hoist rope fixed point simultaneously, the assembly of being convenient for.
At least three supporting pieces 3 are arranged between the pair of groove main bodies 1, so that the strength of the assembled groove is ensured.
One end of a wing plate 11 at the top of the groove main body 1 is provided with a connecting piece 2, one end of the connecting piece 2 is provided with a pin hole 6 and extends to the outside of the groove main body 1, so that the two groove main bodies 1 can be spliced through the pin hole 6 on the connecting piece 2 and the pin hole 6 on the wing plate 11 through a bolt 5 to meet the assembly requirements of grooves with different lengths. Preferably, the connector 2 is welded directly to the wing 11 at the top of the channel body 1 to facilitate assembly.
The protection plate 4 on be equipped with preformed hole 41, be convenient for to the installation of the interim water pipe of slot inside, cable, also be convenient for the dismouting of bolt 5.
The width of the protection plate 4 is larger than that of the grooves, so that the protection plate 4 can extend to cover the road surface when being arranged on the two groove main bodies 1, and the road surfaces on the two sides of the grooves can be protected in an enhanced mode.
The bottom of a pair of groove main part 1 be equipped with cell body bed course 7, the outside of a pair of groove main part 1 all is filled with rubble 8, can play certain guard action to the slot.
The utility model discloses construction method of assembled slot is: before the pavement is poured, a groove body cushion layer 7 is made at the position where a hydroelectric line needs to be laid in a crossing way, and the width required by a groove is reserved. According to the length of slot with suitable quantity slot main part 1, support piece 3, guard plate 4, bolt 5 transport to the operation point, slot main part 1 can adopt isometric channel-section steel processing to form, equidistant punching press pinhole 6 on the pterygoid lamina 11 at channel-section steel top. The pair of groove main bodies 1 are symmetrically arranged through the support piece 3, lifted and assembled to the edges of two sides of the groove through the support piece 3, the support piece 3 can be processed and manufactured by adopting a square tube, and two ends of the support piece 3 are respectively welded with the pair of groove main bodies 1 to form an integral structure so as to improve the integral strength; the groove main body 1 is spliced to the groove through the connecting piece 2 along the groove direction and is communicated with the groove in length, and the connecting piece 2 can be made by punching a steel plate and is welded with the groove main body 1 into an integral structure. A certain amount of broken stones 8 are filled outside the groove main body 1, water pipes, cables and the like can be installed in the groove, the protection plate 4 is installed on the pavements on the pair of groove main body 1 and the two sides of the groove through the pin holes 6 through the bolts 5 after installation, the protection plate 4 can be formed by punching steel plates, the pavement, particularly the pavements on the two sides of the groove, are guaranteed to be intact when being pressed, and meanwhile, pipelines in the groove are effectively protected.
After finishing using, only need take out the water and electricity pipeline, demolish guard plate 4 and bolt 5, then retrieve the segmentation of slot main part 1 through support piece 3, transport back the warehouse and clear up the maintenance to use next time.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and should not be taken as limiting the scope of the present invention, therefore, any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention should be included in the scope of the present invention.
Claims (8)
1. The utility model provides a job site is with assembled slot, characterized by: comprises a groove main body (1), a protection plate (4) and a bolt (5); the pair of groove bodies (1) are oppositely arranged, and a groove is formed between the pair of groove bodies (1) and is embedded in a reserved position of a road surface in a matching manner; the top and the bottom of slot main part (1) are equipped with pterygoid lamina (11) and form C shape structure, and all interval is equipped with a plurality of pinhole (6) on pterygoid lamina (11) and guard plate (4) at slot main part (1) top, make guard plate (4) can pass through bolt (5) through pinhole (6) locking on a pair of slot main part (1), and guard plate (4) can cover the slot completely.
2. The fabricated trench for a construction site as set forth in claim 1, wherein: a plurality of supporting pieces (3) are connected between the pair of groove main bodies (1) at intervals, and the supporting pieces (3) are located in the grooves below the protection plates (4).
3. The fabricated trench for a construction site as set forth in claim 2, wherein: the cross section of the support piece (3) is of a T-shaped structure, and the top of the support piece (3) abuts against the lower surface of the protection plate (4).
4. The fabricated trench for a construction site as set forth in claim 1 or 2, wherein: at least three supporting pieces (3) are arranged between the pair of groove main bodies (1).
5. The fabricated trench for a construction site as set forth in claim 1 or 2, wherein: one end of a wing plate (11) at the top of the groove main body (1) is provided with a connecting piece (2), one end of the connecting piece (2) is provided with a pin hole (6) and extends to the outside of the groove main body (1), so that the two groove main bodies (1) can be spliced through the pin hole (6) on the connecting piece (2) and the pin hole (6) on the wing plate (11) through a bolt (5).
6. The fabricated trench for a construction site as set forth in claim 1 or 2, wherein: the protection plate (4) is provided with a preformed hole (41).
7. The fabricated trench for a construction site as set forth in claim 1 or 2, wherein: the width of the protection plate (4) is larger than that of the groove, so that the protection plate (4) can extend to cover the road surface when being installed on the two groove main bodies (1).
8. The fabricated trench for a construction site as set forth in claim 1 or 2, wherein: the bottom of a pair of groove main bodies (1) is provided with a groove body cushion layer (7), and the outer sides of the pair of groove main bodies (1) are filled with gravels (8).
