Abstract
The utility model discloses an automatic safe cutting device for fiber felt, which comprises a frame, a sheet feeding roller and a guide roller, the machine frame is longitudinally and sequentially provided with a sheet feeding roller, a guide roller, a first conveying belt, a cutting mechanism and a second conveying belt, the cutting mechanism comprises a base, a controller, a guide rail, an L-shaped connecting rod and a cutting knife, wherein the two ends of the cutting base are connected with a switch controller for controlling the switch of the first conveyor belt, the middle of the switch controller is fixedly connected with the guide rail, the guide rail is connected with the controller in a sliding way, the controller is fixedly connected with a cutting knife through an L-shaped connecting rod, the cutting knife comprises a cutting knife sheath and a cutting blade, the automatic cutting is realized, the cutting precision is high, and the cutting blade is provided with the sheath, so that the cutting blade is not easy to accidentally injure, and the problems that the automation degree of the existing cutting equipment is not high and the safety hazard exists in the cutting blade are solved.
Description
Technical Field
The utility model relates to a fibrofelt field of tailorring especially relates to the automatic safe device of tailorring of fibrofelt.
Background
The fibrofelt is generally the lapping state when producing, need tailor the cutting when in-service use and can become the size that needs, and the accuracy of present cutter when tailorring is difficult to guarantee, and needs artifical feeding manual positioning position that needs tailor, and the manual work that needs is great, and degree of automation is high inadequately, and generally tailor the device and tailor the sword and all expose, and the easy in-process accidental injury operating personnel who tailors has the potential safety hazard.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is not enough to prior art, the utility model provides a device is tailor to fibrofelt's automation safety possesses can automize and tailors, tailors the precision height, and tailors the blade and be equipped with the sheath, and the advantage of difficult accidental injury has solved current equipment degree of automation of tailorring not high, and the blade has the problem of potential safety hazard.
In order to solve the technical problem, the utility model discloses a technical scheme does:
the automatic safe cutting device for the fiber felt comprises a rack, a sheet feeding roller and a guide roller, and is characterized in that the rack is longitudinally and sequentially provided with the sheet feeding roller, the guide roller, a first conveying belt, a cutting mechanism and a second conveying belt, the cutting mechanism comprises a base, a controller, a guide rail, an L-shaped connecting rod and a cutting knife, two ends of the cutting base are connected with a switch controller for controlling the switch of the first conveying belt, the middle of the switch controller is fixedly connected with the guide rail, the controller is connected with the guide rail in a sliding mode and fixedly connected with the cutting knife through the L-shaped connecting rod, the cutting knife comprises a cutting knife sheath and a cutting knife blade, the cutting knife sheath is of a square structure, the bottom of the cutting knife sheath is not sealed, a telescopic rod is arranged above the cutting knife sheath, one end of the telescopic rod is connected with the cutting knife, and; the base is provided with a groove arranged along the running direction of the cutting blade; the controller is also connected with a laser emitter and a laser receiver, and the cutting mechanism is also provided with an operating table.
Preferably, the cutting blade is a circular blade.
Preferably, rollers are arranged on the two sides of the cutting sheath along the guide rail direction, and the bottom of each roller is lower than the cutting sheath and higher than the cutting blade by at least one third.
Preferably, the width of the groove is larger than that of the cutting blade, and the height of the groove is larger than the distance from the bottom of the roller on the cutting sheath to the bottom of the cutting blade.
Preferably, the bottoms of the laser transmitter and the laser receiver are provided with slide rails, a reflector is further arranged in front of the laser transmitter, and the length of the reflector is the same as that of the slide rails.
Preferably, the first conveying belt, the second conveying belt, the cutting blade, the controller and the telescopic rod are all connected with motors for driving the first conveying belt, the second conveying belt, the cutting blade, the controller and the telescopic rod to operate, and the motors are connected with the operating platform through signals.
Has the advantages that:
1. the cutting blade is protected by the cutting sheath, so that the use is safe, and accidental injury caused by daily operation or maintenance can be avoided.
2. Through the accurate positioning of laser emitter, laser receiver and reflector panel for the error is little when tailorring, tailors more accurately.
3. The utility model discloses need artifical the participation less, degree of automation is higher, convenient to use.
Drawings
Fig. 1 is the automatic safe cutting device top view of the fiber felt of the utility model.

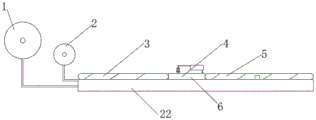

Fig. 2 is the front view of the automatic safe cutting device for fiber felt of the utility model.
Fig. 3 is a front view of the cutting mechanism 4.
Wherein: the cutting machine comprises a feed roller 1, a guide roller 2, a first conveyor belt 3, a cutting mechanism 4, a second conveyor belt 5, a base 6, a controller 7, a guide rail 8, a 9L-shaped connecting rod, a cutting knife 10, a cutting sheath 11, a cutting blade 12, a groove 13, a laser transmitter 14, a laser receiver 15, a reflector 16, a telescopic rod 17, an operating platform 18, a slide rail 19, a switch controller 20, a roller 21 and a rack 22.
Detailed Description
The present invention will be described in further detail with reference to the following embodiments.
Example 1
As shown in fig. 1-3, the automatic safe cutting device for fiber felt comprises a frame 22, a feeding roller 1 and a guide roller 2, wherein the frame 22 is longitudinally provided with the feeding roller 1, the guide roller 2, a first conveyor belt 3, a cutting mechanism 4 and a second conveyor belt 5 in sequence, the cutting mechanism 4 comprises a base 6, a controller 7, a guide rail 8, an L-shaped connecting rod 9 and a cutting knife 10, two ends of the cutting base 6 are connected with a switch controller 20 for controlling the switch of the first conveyor belt 3, the middle of the switch controller 20 is fixedly connected with the guide rail 8, the guide rail 8 is slidably connected with the controller 7, the controller 7 is fixedly connected with the cutting knife 10 through the L-shaped connecting rod 9, the cutting knife 10 comprises a cutting knife sheath 11 and a cutting blade 12, the cutting blade 12 is a round blade, the cutting knife is driven by a motor (not shown in the figure) to rotate at a high speed, the cutting knife sheath 11 is, a telescopic rod 17 is arranged above the cutting sheath 11, one end of the telescopic rod 17 is connected with the cutting knife 10, and the other end of the telescopic rod 17 is connected with the L-shaped connecting rod 9; the base 6 is provided with a groove 13 arranged along the running direction of the cutting blade 12; the controller 7 is also connected with a laser emitter 14 and a laser receiver 15, and the cutting mechanism 4 is also provided with an operating platform 18.
The roller 21 is arranged outside the two sides of the cutting sheath 11 along the guide rail 8, the bottom of the roller 21 is lower than the cutting sheath 11 and is higher than at least one third of the cutting blade 12, so that when the cutting blade is cut, the cutting sheath 11 abuts against the base 6, the cutting blade can stretch into the groove 13 to be conveniently cut, the width of the groove 13 is larger than that of the cutting blade 12, and the height of the groove 13 is larger than the distance from the bottom of the roller 21 to the bottom of the cutting blade 12 on the cutting sheath 11.
The bottoms of the laser transmitter 14 and the laser receiver 15 are provided with slide rails 19, a reflector 16 is further arranged in front of the laser transmitter 14, and the length of the reflector 16 is the same as that of the slide rails 19.
The first conveyor belt 3, the second conveyor belt, the cutting blade 12, the controller 7 and the telescopic rod 17 are all connected with a motor (not shown in the figure) for driving the first conveyor belt, the second conveyor belt, the cutting blade 12, the controller 7 and the telescopic rod 17 to operate, and the motors are connected with the operating platform 18 through signals.
The working principle is as follows: fixing a fiber felt to be cut on a sheet feeding roller, inputting required product parameters on an operation table, and after relevant parameters are input into a controller, adjusting the positions of a laser transmitter and a laser receiver, wherein the distance between the laser transmitter and a cutting blade is the width required by a product, laser emitted by the laser transmitter is reflected by a reflector and received by the laser receiver, a first conveyor belt and a second conveyor belt are both opened, and the on-off controller is in an on state; when the fiber felt is cut, the fiber felt to be cut is guided to the first conveying belt through the guide roller, the fiber felt to be cut moves towards the cutting mechanism and the second conveying belt under the driving of the power and the friction force of the conveying belts, when the fiber felt just reaches the position sent by the laser of the laser transmitter, the laser is reflected to the laser receiver through the fiber felt to be cut, and a signal is transmitted to the controller to start cutting; when the controller starts to move and leave the switch controller, the switch is closed, the first conveyor belt controlled by the switch controller stops running, cutting is started at the moment, the telescopic rod drives the cutting knife to press down during cutting, the blade rotates at a high speed, when the cutting knife sheath touches the base, the motor on the cutting blade drives the cutting knife to drive the other end of the fiber felt for cutting, when the controller touches the switch controller at the other end, the cutting is finished at one time, and the cut fiber felt is conveyed away under the driving of the second conveyor belt; switch controller opens this moment, and a conveyer belt is opened, begins the second round and tailors, cuts out the sword to the opposite direction motion, the utility model discloses the in-process of tailorring is full-automatic, need not manual cooperation, convenient operation when tailorring.
The utility model discloses in present equipment such as the motor of mentioning all unrestrained, can reach in the present equipment the utility model discloses what required all can use.
Although the embodiments of the present invention have been described in the specification, these embodiments are only for the purpose of presentation and should not be construed as limiting the scope of the present invention. Various omissions, substitutions, and changes may be made without departing from the spirit and scope of the invention.
Claims (6)
1. An automatic safe cutting device for a fiber felt comprises a rack, a sheet feeding roller and a guide roller, and is characterized in that the rack is longitudinally and sequentially provided with the sheet feeding roller, the guide roller, a first conveyor belt, a cutting mechanism and a second conveyor belt, the cutting mechanism comprises a base, a controller, a guide rail, an L-shaped connecting rod and a cutting knife, two ends of the base are connected with a switch controller for controlling the switch of the first conveyor belt, the middle of the switch controller is fixedly connected with the guide rail, the controller is connected with the guide rail in a sliding mode, the controller is fixedly connected with the cutting knife through the L-shaped connecting rod, the cutting knife comprises a cutting knife sheath and a cutting knife blade, the cutting knife sheath is of a square structure, the bottom of the cutting knife sheath is not sealed, a telescopic rod is arranged above the cutting knife sheath, one end of the telescopic rod is connected with the cutting; the base is provided with a groove arranged along the running direction of the cutting blade; the controller is also connected with a laser emitter and a laser receiver, and the cutting mechanism is also provided with an operating table.
2. The automated safety trimming apparatus for fiber mats according to claim 1, wherein the trimming blade is a circular blade.
3. The automatic safe cutting device for the fiber mats according to claim 1, wherein rollers are arranged outside the cutting scabbard along two sides of the guide rail, and the bottoms of the rollers are lower than the cutting scabbard and at least one third higher than the cutting blade.
4. The automated safety trimming apparatus for fiber mats according to claim 1, wherein the groove has a width greater than the width of the trimming blade and a height greater than the distance from the bottom of the roller on the trimming sheath to the bottom of the trimming blade.
5. The automatic safe cutting device for the fiber mats according to the claim 1, wherein slide rails are arranged at the bottoms of the laser emitter and the laser receiver, a reflector is arranged in front of the laser emitter, and the length of the reflector is the same as that of the slide rails.
6. The automatic safe cutting device for the fiber mats according to claim 1, wherein motors for driving the first conveyor belt, the second conveyor belt, the cutting blade, the controller and the telescopic rod to run are connected to the first conveyor belt, the second conveyor belt, the cutting blade, the controller and the telescopic rod, and the motors are connected with the operating console through signals.
