The utility model discloses a solar street lamp is with self-cleaning device, including lighting mechanism, lamp pole, base, clean mechanism, screw rod, slider, brush and motor. The utility model has the advantages that: the motor is installed in the base, the screw rod rotates to be connected in the base, the slider is threaded connection between the screw rod, the slider is fixed with the brush, brush sliding connection is in the lamp pole, when the outer wall of lamp pole is dirty, the motor drives the screw rod and rotates, thereby make the screw rod drive the slider and remove, the slider is beaten the brush and is slided on the lateral wall of lamp pole, scrub the outer wall of lamp pole and clear up, thereby guarantee the clean of the outer wall of lamp pole, and the device can use in rainy day, the cooperation rainwater can make the further clearance that carries on of outer wall of brush to the lamp pole, be favorable to the cleanness of the outer wall of lamp pole, and is simple.
Description
Technical Field
The utility model relates to a belt cleaning device specifically is an automatic cleaning device for solar street lamp belongs to solar street lamp technical field.
Background
The solar street lamp is powered by a crystalline silicon solar cell, a maintenance-free valve-controlled sealed storage battery (a colloid battery) stores electric energy, and the ultra-high-brightness LED lamp is used as a light source and is controlled by an intelligent charging and discharging controller and used for replacing the traditional public power lighting street lamp. The working principle of the solar street lamp is as follows: solar street lamp is under intelligent control's control daytime, and solar cell panel absorbs solar light and converts the electric energy into through the shining of sunlight, and solar module charges to storage battery daytime, and storage battery provides electric power for the power supply of LED lamp light source evening, realizes the illumination function. The direct current controller can ensure that the storage battery pack is not damaged due to overcharge or overdischarge, and has the functions of light control, time control, temperature compensation, lightning protection, reverse polarity protection and the like.
However, when the solar street lamp is used, dirt can be stained on the lamp pole because the lamp pole of the solar street lamp is in a long-term rain forest, and the lamp pole is long and large in quantity, so that the cleaning is inconvenient, and some street lamps are positioned in the middle of a road, so that in places with many vehicles, the artificial lamp pole is very dangerous to clean.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a solar street lamp is with self-cleaning device just lies in order to solve above-mentioned problem, makes things convenient for the cleanness of lamp pole, easy operation, convenient and fast.
The utility model discloses a following technical scheme realizes above-mentioned mesh, a solar street lamp is with self-cleaning device, including the lamp pole, the lamp pole is fixed with lighting mechanism, the bottom mounting in base of lamp pole, lamp pole sliding connection has clean mechanism, clean mechanism includes screw rod, slider, brush and motor, the motor install in the base, the screw rod rotate connect in the base, the slider in threaded connection between the screw rod, the slider is fixed with the brush, brush sliding connection in the lamp pole.
Preferably, in order to clean stubborn stains, the cleaning mechanism further comprises a scraper, the scrapers are fixed to two ends of the hairbrush and are connected to the lamp pole in a sliding mode.
Preferably, in order to make the screw rod rotate more smoothly, the cleaning mechanism further comprises a fixed block, the fixed block is rotatably connected to the screw rod, and the fixed block is fixed to the lamp post.
Preferably, in order to prevent the screw rod from deforming, the cleaning mechanism further comprises a limiting block, the limiting block is fixed at the top end of the screw rod, and the bottom end of the limiting block abuts against the top end of the fixing block.
Preferably, in order to realize illumination, the illumination mechanism comprises a solar electric panel, a lamp and a battery, the solar electric panel is fixed at the top end of the lamp post, the lamp is fixed on the side wall of the lamp post, the battery is installed in the base, the solar electric panel is electrically connected with the battery, and the lamp is electrically connected with the battery.
The utility model has the advantages that: the motor is installed in the base, the screw rod rotates to be connected in the base, the slider is threaded connection between the screw rod, the slider is fixed with the brush, brush sliding connection is in the lamp pole, when the outer wall of lamp pole is dirty, the motor drives the screw rod and rotates, thereby make the screw rod drive the slider and remove, the slider is beaten the brush and is slided on the lateral wall of lamp pole, scrub the outer wall of lamp pole and clear up, thereby guarantee the clean of the outer wall of lamp pole, and the device can use in rainy day, the cooperation rainwater can make the further clearance that carries on of outer wall of brush to the lamp pole, be favorable to the cleanness of the outer wall of lamp pole, and is simple.
Drawings

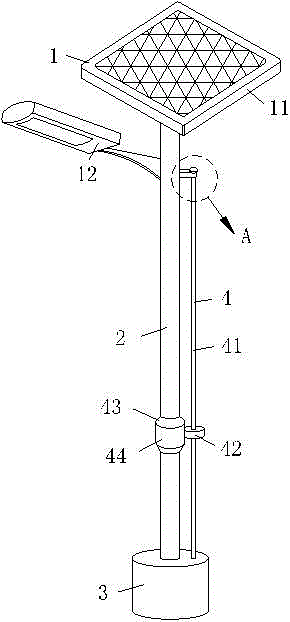

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is an enlarged view of portion A of FIG. 1;
fig. 3 is a schematic view of the connection structure between the lamp post and the cleaning mechanism shown in fig. 1.
In the figure: 1. the solar lamp comprises a lighting mechanism, 11, a solar panel, 12, a lamp, 13, a battery, 2, a lamp post, 3, a base, 4, a cleaning mechanism, 41, a screw rod, 42, a sliding block, 43, a scraping plate, 44, a brush, 45, a fixed block, 46, a limiting block, 47 and a motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, an automatic cleaning device for a solar street lamp includes a lamp post 2, a lighting mechanism 1 is fixed on the lamp post 2, the bottom end of the lamp post 2 is fixed on a base 3, the lamp post 2 is connected with a cleaning mechanism 4 in a sliding manner, the cleaning mechanism 4 includes a screw rod 41, a slider 42, a brush 44 and a motor 47, the motor 47 is installed on the base 3, the screw rod 41 is rotatably connected to the base 3, the slider 42 is connected between the screw rod 41 in a threaded manner, the brush 44 is fixed on the slider 42, and the brush 44 is connected to the lamp post 2 in a sliding manner.
As a technical optimization scheme of the utility model, clean mechanism 4 still includes scraper blade 43, the both ends of brush 44 all are fixed with scraper blade 43, scraper blade 43 sliding connection in lamp pole 2.
As a technical optimization scheme of the utility model, clean mechanism 4 still includes fixed block 45, fixed block 45 rotate connect in screw rod 41, fixed block 45 is fixed in lamp pole 2.
As a technical optimization scheme of the utility model, clean mechanism 4 still includes stopper 46, stopper 46 is fixed in the top of screw rod 41, stopper 46's bottom contradict in the top of fixed block 45.
As a technical optimization scheme of the utility model, lighting mechanism 1 includes solar energy electroplax 11, lamps and lanterns 12 and battery 13, solar energy electroplax 11 is fixed in the top of lamp pole 2, the lateral wall of lamp pole 2 is fixed with lamps and lanterns 12, battery 13 install in base 3, 11 electric connection of solar energy electroplax battery 13, lamps and lanterns 12 electric connection battery 13.
The utility model discloses when using, when the outer wall of lamp pole 2 is dirty, motor 47 drives screw rod 41 and rotates, thereby make screw rod 41 drive slider 42 and move, slider 42 drives brush 44 and slides on the lateral wall of lamp pole 2, scrub the outer wall of lamp pole 2 and clear up, thereby guarantee the cleanness of the outer wall of lamp pole 2, and the device can be used in rainy day, cooperation rainwater can make brush 44 further clear up the outer wall of lamp pole 2, scraper blade 43 through the both ends of brush 44 are fixed can be scraped the stubborn spot on lamp pole 2, thereby be favorable to the cleaning of lamp pole 2, convenient and fast, easy operation; when the street lamp is used for lighting, solar energy is converted into electric energy through the solar panel 11 in the daytime, the electric energy converted from the solar energy is stored in the battery 13, and then the lamp 12 is used for lighting at night by using the electric energy stored in the battery 13 as power, so that the street lamp is environment-friendly and energy-saving and is convenient for life.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (5)
1. The utility model provides a solar street lamp is with self-cleaning device, includes lamp pole (2), its characterized in that: lamp pole (2) are fixed with lighting mechanism (1), the bottom mounting of lamp pole (2) is in base (3), lamp pole (2) sliding connection has clean mechanism (4), clean mechanism (4) include screw rod (41), slider (42), brush (44) and motor (47), motor (47) install in base (3), screw rod (41) rotate connect in base (3), slider (42) in threaded connection between screw rod (41), slider (42) are fixed with brush (44), brush (44) sliding connection in lamp pole (2).
2. The automatic cleaning device for the solar street lamp according to claim 1, characterized in that: the cleaning mechanism (4) further comprises a scraper (43), the two ends of the hairbrush (44) are fixed with the scraper (43), and the scraper (43) is connected to the lamp pole (2) in a sliding mode.
3. The automatic cleaning device for the solar street lamp according to claim 1, characterized in that: the cleaning mechanism (4) further comprises a fixing block (45), the fixing block (45) is rotatably connected to the screw rod (41), and the fixing block (45) is fixed to the lamp post (2).
4. The automatic cleaning device for the solar street lamp according to claim 3, characterized in that: the cleaning mechanism (4) further comprises a limiting block (46), the limiting block (46) is fixed at the top end of the screw rod (41), and the bottom end of the limiting block (46) abuts against the top end of the fixing block (45).
5. The automatic cleaning device for the solar street lamp according to claim 1, characterized in that: lighting mechanism (1) includes solar energy electroplax (11), lamps and lanterns (12) and battery (13), solar energy electroplax (11) are fixed in the top of lamp pole (2), the lateral wall of lamp pole (2) is fixed with lamps and lanterns (12), battery (13) install in base (3), solar energy electroplax (11) electric connection battery (13), lamps and lanterns (12) electric connection battery (13).
