Abstract
The utility model discloses a building engineering construction dust collector, comprising a base plate, the dust removal case, the water tank, collecting box and motor, water tank fixed connection is in the upper end of dust removal case, motor fixed mounting is on the one end lateral wall of dust removal case, dust removal case fixed connection is in the upper end of bottom plate, collecting box fixed connection is in the lower extreme of bottom plate, the intercommunication is equipped with two drain pipes between dust removal case and the collecting box, the intercommunication is equipped with the air inlet fill on the one end lateral wall of dust removal case, the upper end intercommunication of dust removal case is equipped with out the wind fill, be equipped with the cavity in the lateral wall of dust removal case, dust removal incasement fixed connection has the polylith filter, the polylith filter touches the pole of scraping near the homogeneous phase butt on the one end lateral wall of air inlet fill. The utility model discloses can not only remove dust to the building engineering construction high-efficiently, can also clear up the equipment that filters the dust effectively.
Description
Technical Field
The utility model relates to a building engineering construction technical field especially relates to building engineering construction dust collector.
Background
During the building engineering construction, easily produce a large amount of dust impurity, it not only produces the destruction to the environment, still serious influence people's healthy, therefore need a dust collector to carry out the dust fall to it during the building engineering construction to reduce the influence to crowd and environment on every side during its construction.
Most of the constructional engineering construction dust removing equipment used in the current market can not remove dust efficiently in constructional engineering construction and can not clean equipment for filtering dust.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving among the prior art that building engineering construction dust collecting equipment can not remove dust to the building engineering construction most high-efficiently, and can not clear up the phenomenon to the equipment that filters the dust, and the building engineering construction dust collector who provides, it can not only remove dust to the building engineering construction high-efficiently, can also clear up the equipment that filters the dust effectively.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the dust removing device for the building engineering construction comprises a bottom plate, a dust removing box, a water tank, a collecting box and a motor, wherein the water tank is fixedly connected to the upper end of the dust removing box, the motor is fixedly installed on one end side wall of the dust removing box, the dust removing box is fixedly connected to the upper end of the bottom plate, the collecting box is fixedly connected to the lower end of the bottom plate, two drain pipes are communicated and arranged between the dust removing box and the collecting box, an air inlet hopper is communicated and arranged on one end side wall of the dust removing box, an air outlet hopper is communicated and arranged at the upper end of the dust removing box, a cavity is arranged in the side wall of the dust removing box, a plurality of filter plates are fixedly and hermetically connected in the dust removing box, a scraping rod is abutted and contacted with the filter plates at homogeneous phases on one end side wall of the filter plates close to the air inlet hopper, two spraying mechanisms are rotationally connected in the dust, the end, far away from the motor, of the worm rotates to penetrate through the plurality of filter plates and extends into the air inlet hopper, the worm in the air inlet hopper is coaxially and fixedly connected with fan blades, and the worm fixedly penetrates through the scraping rods and is meshed with the two spraying mechanisms in a homogeneous mode.
Preferably, the lower extreme fixedly connected with of bottom plate has a plurality of universal locking wheels, and the removal of this device of being convenient for is taken turns in the setting of universal locking.
Preferably, a water pump is arranged in the water tank, a water outlet pipe is communicated with the water outlet end of the water pump, the water outlet end of the water outlet pipe is communicated with the inner wall of one end of the cavity, and the water pump is arranged to convey water in the cavity conveniently.
Preferably, the mechanism that sprays includes that both ends rotate respectively and connect the spray pipe on dust removal bottom of the case board and top, the end of intaking of spray pipe sets up with the one end inner wall intercommunication of cavity, the intercommunication is equipped with a plurality of water jets on the lateral wall of spray pipe, coaxial fixedly connected with worm wheel on the spray pipe, the worm wheel meshes with the worm mutually, and the setting of the mechanism that sprays has not only sprayed the dust of introducing the dust removal incasement, has still washd the filter.
Preferably, the outside cover of worm wheel is equipped with the protective housing, worm and spray pipe all rotate and run through the protective housing setting, and the setting of protective housing plays the guard action to the worm wheel, avoids the worm wheel to be corroded by water.
Preferably, all seal on the one end lateral wall of dust removal case and collecting box and be equipped with the chamber door, the setting of chamber door is convenient for the staff to clear up the equipment in dust removal case and the collecting box.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a set up bottom plate, dust removal case, water tank, collecting box, motor, drain pipe, air inlet fill, play wind fill, cavity, filter, scrape the pole, spray mechanism and worm etc. realized the clearance effect to the equipment of filtering the dust, and then improved the efficiency that the dust was handled to the device, wherein the setting of chamber door, the staff of being convenient for clears up the equipment in dust removal case and the collecting box.
2. The utility model discloses a set up bottom plate, dust removal case, water tank, collecting box, motor, drain pipe, air inlet fill, play wind fill, cavity, filter, scrape the pole, spray mechanism and worm etc. to the building engineering construction effectively and removed dust and handle, reduced the harm of the dust that the building engineering construction produced to human body and environment, wherein spray the setting of mechanism, not only sprayed the dust of introducing the dust removal incasement, still washed the filter.
Drawings

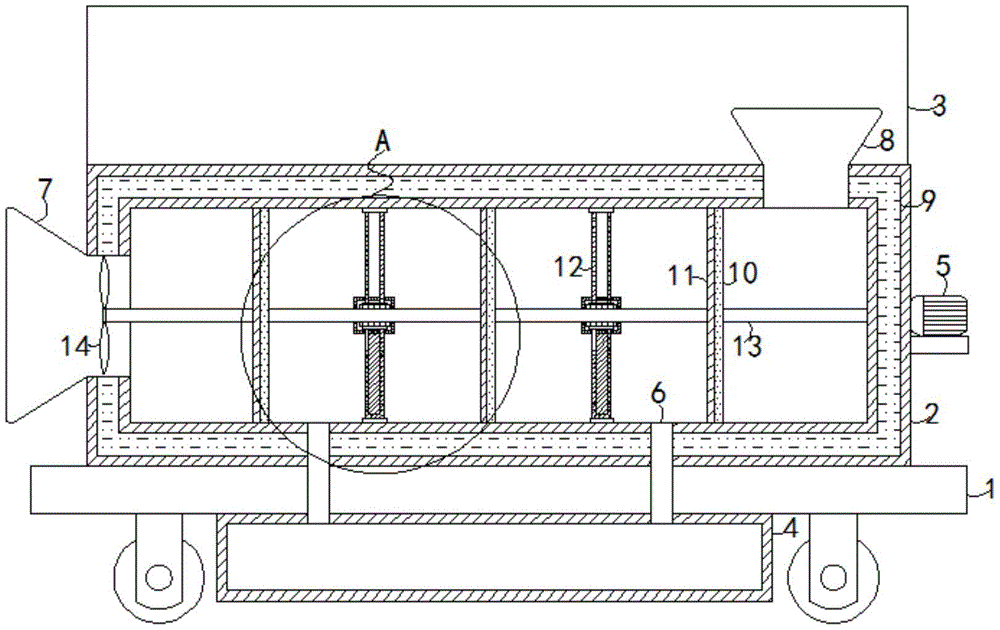

Fig. 1 is a front perspective view of the dust removing device for construction engineering provided by the utility model;
FIG. 2 is a schematic view of the front external structure of the dust removing device for construction engineering of the present invention;
FIG. 3 is an enlarged view of a portion of FIG. 1 at A;
fig. 4 is the utility model provides a building engineering construction dust collector's side partial perspective view.
In the figure: 1 bottom plate, 2 dust removal case, 3 water tank, 4 collecting box, 5 motors, 6 drain pipes, 7 air inlet hoppers, 8 air outlet hoppers, 9 chambers, 10 filter plates, 11 scraping rods, 12 spraying mechanisms, 13 worms, 14 fan blades, 15 spray pipes, 16 water spray nozzles, 17 worm wheels, 18 protection cases and 19 box doors.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, the dust removing device for building engineering construction comprises a bottom plate 1, a dust removing box 2, a water tank 3, a collecting box 4 and a motor 5, wherein a driving handle (not shown) is fixedly connected to one side wall of the bottom plate 1, the driving handle is arranged to facilitate movement of the device by workers, the water tank 3 is fixedly connected to the upper end of the dust removing box 2, the motor 5 is fixedly mounted on one side wall of the dust removing box 2, the dust removing box 2 is fixedly connected to the upper end of the bottom plate 1, the collecting box 4 is fixedly connected to the lower end of the bottom plate 1, two water discharging pipes 6 are communicated between the dust removing box 2 and the collecting box 4, an air inlet hopper 7 is communicated to one side wall of the dust removing box 2, an air outlet hopper 8 is communicated to the upper end of the dust removing box 2, a cavity 9 is arranged in the side wall of the dust removing box 2, a plurality of filter plates 10 are fixedly and hermetically connected to the, the internal rotation of dust removal case 2 is connected with two and sprays mechanism 12, two the end of intaking that sprays mechanism 12 all communicate the setting with cavity 9, the terminal one end lateral wall that runs through dust removal case 2 that rotates of the output shaft of motor 5 sets up and fixedly connected with worm 13, worm 13 is kept away from the one end rotation of motor 5 and is run through polylith filter 10 setting and extend to in the air inlet fill 7, lie in coaxial fixedly connected with flabellum 14 on the worm 13 of air inlet fill 7, worm 13 is fixed to run through a plurality of pole 11 settings of scraping and with two homogeneous phase meshing that spray mechanism 12, it needs to explain, two spray mechanism 12 and equally divide and do not set up between two adjacent filters 10, and the scope of spraying mechanism 12 can not exceed air inlet fill 7.
The lower end of the bottom plate 1 is fixedly connected with a plurality of universal locking wheels, the universal locking wheels are arranged to facilitate the movement of the device, a water pump is arranged in the water tank 3, a water outlet pipe is communicated with the water outlet end of the water pump, the water outlet end of the water outlet pipe is communicated with the inner wall of one end of the cavity 9, the water pump is arranged to facilitate the water delivery in the cavity 9, it is noted that the water pump is the prior art and is not repeated herein, the water pump controls the water in the cavity 9 to be always in a water full state, the water in the cavity 9 is in the water full state, the noise in the dust removal box 2 is effectively reduced, the spraying mechanism 12 comprises a water spraying pipe 15, the two ends of which are respectively rotatably connected with the bottom plate and the top of the dust removal box 2, the water inlet end of the water spraying pipe 15 is communicated with the inner wall of one end of the cavity 9, the side wall of the, worm wheel 17 meshes with worm 13 mutually, sprays the setting of mechanism 12, has not only sprayed the dust of introducing in dust removal case 2, has still washd filter 10, needs to explain that, installs control valve (not shown in the figure) in the end of intaking of spray pipe 15, and the control valve is prior art, no longer gives unnecessary details here, and the setting of control valve is convenient for control spray pipe 15's the situation of intaking.
The outside cover of worm wheel 17 is equipped with protective housing 18, worm 13 and spray pipe 15 all rotate and run through protective housing 18 and set up, protective housing 18's setting, play the guard action to worm wheel 17, avoid worm wheel 17 to be corroded by water, all seal on the one end lateral wall of dust removal case 2 and collecting box 4 and be equipped with chamber door 19, the setting of chamber door 19, the staff of being convenient for clears up the equipment in dust removal case 2 and collecting box 4, it needs to explain, the bottom intercommunication of collecting box 4 is equipped with the outlet, the sealed sealing plug that is equipped with in the outlet (outlet and sealing plug are not shown in the figure), the sealing plug is convenient for seal the outlet, the outlet is convenient for the discharge of the water in the collecting box 4.
In the utility model, when dust removal is needed to be carried out on the construction of the building engineering, a worker can move the device to a dust gathering position through the driving handle, the motor 5, the water pump and the control valve are started to work, the motor 5 rotates to drive the worm 13 to rotate, the worm 13 rotates to drive the scraping rod 11 and the fan blade 14 to rotate, the fan blade 14 rotates to lead the air current with dust into the dust removing box 2 through the air inlet hopper 7, the air current with dust entering the dust removing box 2 is filtered by the plurality of filter plates 10, the worm 13 rotates to drive the worm wheel 17 to rotate, the worm wheel 17 rotates to drive the water spray pipe 15 to rotate, the water pump leads the water in the water box 3 into the cavity 9, the water in the cavity 9 is discharged through the water spray pipe 15, the water in the water spray pipe 15 is sprayed out through the water spray opening 16, the water sprayed out from the water spray opening 16 forms a water curtain, and the formed water curtain, still wash the filter 10 of filtering the dust, wherein scrape pole 11 and filter 10 offset contact and rotate, make filter 10 clear up more thoroughly, and then improved filter 10's filtration efficiency, the clean air current after polylith filter 10 filters is discharged through air-out fill 8, the rivers that have the dust in the dust removal case 2 pass through drain pipe 6 and discharge in collecting box 4, after equipment work finishes, the staff can remove this device to can discharge sewage department, take out the sealing plug, discharge the sewage in collecting box 4, after the sewage of discharging, can open two chamber doors 19 and clear up the impurity in dust removal case 2 and collecting box 4, wherein the adding water of water tank 3 is prior art, no longer describe herein.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. Building engineering construction dust collector, including bottom plate (1), dust removal case (2), water tank (3), collecting box (4) and motor (5), water tank (3) fixed connection is in the upper end of dust removal case (2), motor (5) fixed mounting is on the one end lateral wall of dust removal case (2), dust removal case (2) fixed connection is in the upper end of bottom plate (1), collecting box (4) fixed connection is in the lower extreme of bottom plate (1), it is equipped with two drain pipes (6) to communicate between dust removal case (2) and collecting box (4), its characterized in that, it is equipped with air inlet hopper (7) to communicate on the one end lateral wall of dust removal case (2), the upper end intercommunication of dust removal case (2) is equipped with air outlet hopper (8), be equipped with cavity (9) in the lateral wall of dust removal case (2), fixed sealing is connected with polylith filter (10) in dust removal case (2), the polylith filter (10) are close to on the one end lateral wall of air inlet fill (7) homogeneous phase butt and are touched and scrape pole (11), dust removal case (2) internal rotation is connected with two and sprays mechanism (12), two the end of intaking that sprays mechanism (12) all sets up with cavity (9) intercommunication, the output shaft end of motor (5) rotates the one end lateral wall that runs through dust removal case (2) and sets up and fixedly connected with worm (13), the one end rotation that motor (5) were kept away from in worm (13) runs through polylith filter (10) and sets up and extend to air inlet fill (7), is located coaxial fixedly connected with flabellum (14) is gone up in worm (13) in the air inlet fill (7), worm (13) are fixed to run through a plurality of pole (11) settings of scraping and spray mechanism (12) homogeneous phase meshing with two.
2. The dust removing device for the building engineering construction according to claim 1, wherein a plurality of universal locking wheels are fixedly connected to the lower end of the bottom plate (1).
3. The dust removing device for the building engineering construction according to claim 1, wherein a water pump is arranged in the water tank (3), a water outlet pipe is communicated with the water outlet end of the water pump, and the water outlet end of the water outlet pipe is communicated with the inner wall of one end of the cavity (9).
4. The dust removal device for building engineering construction according to claim 1, wherein the spraying mechanism (12) comprises a spray pipe (15) with two ends respectively connected to the bottom plate and the top of the dust removal box (2) in a rotating manner, the water inlet end of the spray pipe (15) is communicated with the inner wall of one end of the cavity (9), a plurality of water spray nozzles (16) are communicated with the side wall of the spray pipe (15), a worm wheel (17) is coaxially and fixedly connected to the spray pipe (15), and the worm wheel (17) is meshed with the worm (13).
5. The dust removing device for the building engineering construction according to claim 4, wherein a protective box (18) is sleeved on the outer side of the worm wheel (17), and the worm (13) and the water spraying pipe (15) are rotatably arranged through the protective box (18).
6. The dust removing device for the building engineering construction according to claim 1, wherein a box door (19) is hermetically arranged on the outer side wall of one end of each of the dust removing box (2) and the collecting box (4).
