Abstract
The application discloses building engineering construction dust collector relates to the technical field of building engineering construction, has improved dust collector's dust absorption hole and has taken place to block up easily and influence the problem of dust absorption efficiency, and it includes the device body, the air inlet department of device body is provided with the dust absorption fill, the dust absorption hole has been seted up on the dust absorption fill, the dust absorption fill is provided with and is used for preventing the dirt subassembly of scraping that the dust absorption hole blockked up. The dust scraping assembly can scrape dust at the dust suction hole, so that the dust suction hole can be prevented from being blocked, and the dust removal efficiency of the dust removal device is reduced.
Description
Technical Field
The application relates to the technical field of constructional engineering construction, especially, relate to a constructional engineering construction dust collector.
Background
On the scene of building engineering construction, the phenomenon of raise dust often can appear, and the staff can inhale a large amount of dirt particles or harmful substance when working in dust for a long time, in the long run, can cause the situation of great harm to staff's health.
Chinese utility model patent that the publication number is CN211963567U among the correlation technique discloses a construction dust collector, including bearing box, bearing box's left side is equipped with the breathing pipe, the dust absorption hole has been seted up on the surface of breathing pipe left end, the right side intercommunication of breathing pipe has the connecting pipe, the right side of connecting pipe runs through and extends to bearing box's inner chamber, bearing box's inner chamber is equipped with the rose box, the both sides of rose box inner chamber all are equipped with the filter screen, the left side and the connecting pipe intercommunication of rose box, bearing box inner chamber top's right side is equipped with the aspirator, the input and the rose box intercommunication of aspirator, bearing box inner chamber bottom's right side is equipped with the water tank, the output of aspirator runs through and extends to the inner chamber of water tank.
In view of the above-mentioned related technologies, the inventor believes that when the suction machine sucks dust, the block-shaped garbage raised in the construction site is easy to cause the blockage of the dust suction hole or the filter screen, thereby affecting the dust suction efficiency.
SUMMERY OF THE UTILITY MODEL
The application provides a dust collector for building engineering construction in order to improve the problem that dust collection efficiency is influenced by blockage of dust collection holes of the dust collector.
The application provides a building engineering construction dust collector adopts following technical scheme:
the dust removal device for the construction of the constructional engineering comprises a device body, wherein a dust suction hopper is arranged at an air inlet of the device body, a dust suction hole is formed in one end, far away from the device body, of the dust suction hopper, and a dust scraping assembly used for preventing the dust suction hole from being blocked is arranged on the dust suction hopper.
Through adopting above-mentioned technical scheme, the device body is at the during operation, and dust can get into the inside of device body through the dust absorption hole, scrapes the dust subassembly and can clear away the great cubic rubbish in dust absorption fill surface to prevent that the dust absorption hole from blockking up and reducing the efficiency of removing dust.
Optionally, the dust scraping assembly comprises a scraper which is in running fit with the dust collection hopper, and a driving assembly for driving the scraper and the dust collection hole to rotate relatively is arranged on the device body.
Through adopting above-mentioned technical scheme, the scraper blade rotates with the device body and links to each other, and drive assembly can drive the scraper blade and the dust absorption is fought and is taken place to rotate relatively to make scraper blade and dust absorption hole produce the relative slip, and then prevent that the dust absorption hole from being blocky rubbish jam and reducing dust collection efficiency.
Optionally, the driving assembly includes a motor, a driving gear is arranged on an output shaft of the motor, and a driven rack engaged with the driving gear is arranged on the dust hopper.
Through adopting above-mentioned technical scheme, the motor can drive the driving gear and rotate, drives the dust absorption through meshing with driven rack and fights and rotate to it takes place relative rotation to drive dust absorption fill and scraper blade.
Optionally, the scraper is detachably arranged.
Through adopting above-mentioned technical scheme, the scraper blade can be dismantled with the device body and be connected to the change of scraper blade can be convenient for.
Optionally, the device body is provided with a connecting frame, the connecting frame penetrates through the dust absorption hopper, an installation block is arranged at one end of the scraper blade, an installation groove for the installation block to connect is formed in the end portion of the connecting frame, and a positioning assembly for positioning the installation block in the installation groove is arranged at the end portion of the connecting frame.
Through adopting above-mentioned technical scheme, the scraper blade links to each other with the one end that the device body was kept away from to the link, and the one end of scraper blade is provided with the installation piece, and the installation piece is kept away from the one end of device body and has been seted up the mounting groove, and the cooperation of installation piece and mounting groove joint can be with installing the piece location in the mounting groove through locating component to make the scraper blade in connecting rod internal fixation.
Optionally, the positioning assembly comprises a positioning cap, the positioning cap is in threaded connection with the end of the connecting frame, and one end of the positioning cap, which is close to the device body, abuts against the scraper.
Through adopting above-mentioned technical scheme, location cap and link threaded connection offset through location cap and connecting rod to can make the scraper blade fix a position on the link.
Optionally, one side of the scraper is provided with bristles, and the end parts of the bristles are abutted against the dust collection hole.
Through adopting above-mentioned technical scheme, the brush hair can clean the surface and the dust absorption hole of dust hopper to can strengthen the effect of removing dust, make dust hopper and dust absorption hole keep the clean state always.
Optionally, a protective cover is covered outside the driving gear.
Through adopting above-mentioned technical scheme, the inside of protection casing is located to the initiative gear cover, can prevent driving gear and foreign object contact to can prevent that the driving gear from receiving the damage in transmission process, can prevent simultaneously that personnel from touching the rotating gear by mistake and damaging.
In summary, the present application includes at least one of the following benefits:
1. through the arrangement of the dust collection bucket, the dust collection hole is formed in the end, far away from the device body, of the dust collection bucket, dust can enter the device body through the dust collection hole, and the dust scraping assembly can remove the dust at the end, far away from the device body, of the dust collection bucket, so that the dust collection hole can be prevented from being blocked to influence the working efficiency of the dust collection device;
2. through be provided with the brush hair at the scraper blade one side that is close to the dust absorption fill, the brush hair can clean dust and the cubic rubbish that adsorb in the dust absorption hole to promote the dust removal effect of scraper blade.
Drawings

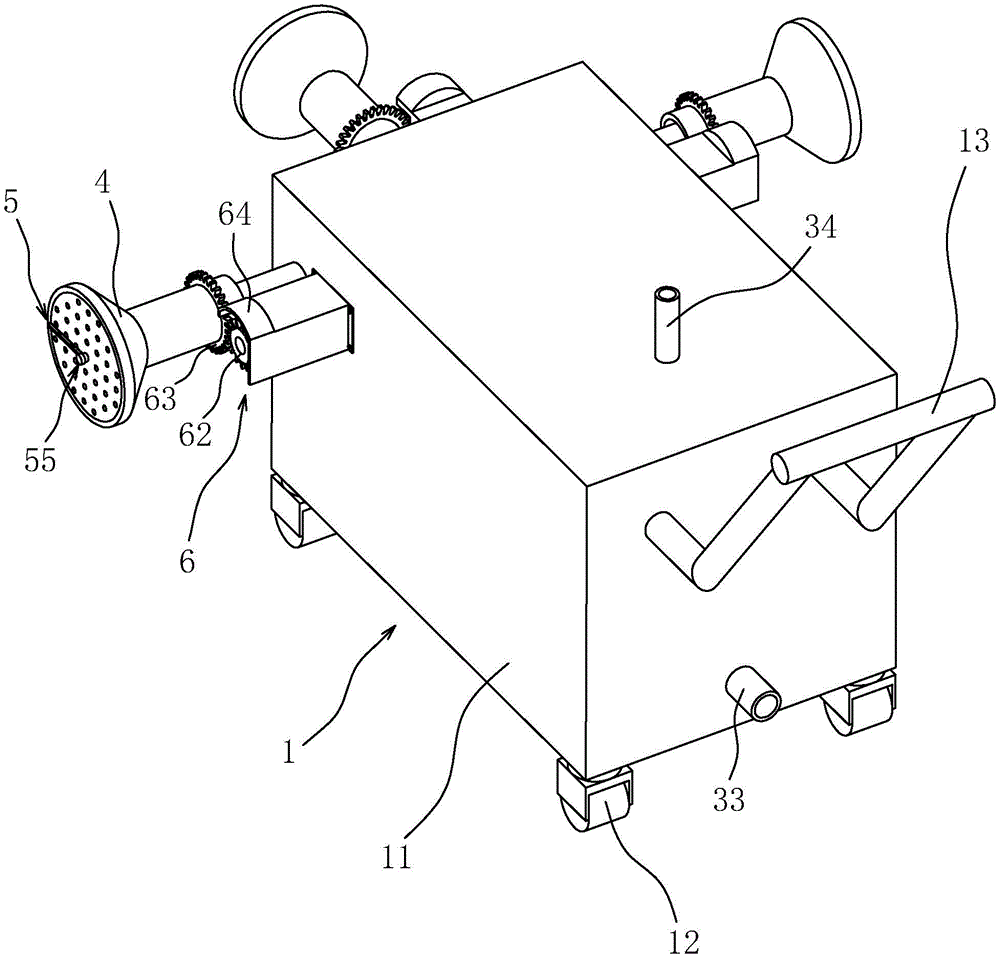

FIG. 1 is a schematic view of the overall structure of the present embodiment;
FIG. 2 is a schematic cross-sectional view of the filter screen embodied in the present embodiment;
FIG. 3 is an enlarged schematic view at A in FIG. 2;
FIG. 4 is an enlarged schematic view at B in FIG. 2;
fig. 5 is a schematic cross-sectional view of the present embodiment showing the mounting block.
Description of reference numerals: 1. a device body; 11. a carrying case; 12. a pulley; 13. a grip; 14. a connecting plate; 2. a filtering chamber; 21. a filter screen; 22. an air inlet pipe; 221. a bearing; 3. an exhaust chamber; 31. a water tank; 32. an air pump; 321. a first connecting pipe; 322. a second connecting pipe; 33. a water inlet pipe and a water outlet pipe; 34. an air outlet pipe; 4. a dust suction hopper; 41. a dust collection hole; 5. a dust scraping assembly; 51. a squeegee; 511. brushing; 52. a connecting frame; 53. mounting blocks; 54. mounting grooves; 55. a positioning assembly; 551. a positioning cap; 6. a drive assembly; 61. a motor; 62. a driving gear; 63. a driven rack; 64. a shield.
Detailed Description
The present application is described in further detail below with reference to figures 1-5.
The embodiment of the application discloses building engineering construction dust collector. Referring to fig. 1 and 2, the dust removing device includes a device body 1. The device body 1 comprises a bearing box 11, and the bearing box 11 is a rectangular box structure with a hollow interior; the bottom of the carrying box 11 is fixedly provided with pulleys 12 at positions close to four corners, and meanwhile, one end of the carrying box 11 is fixedly provided with a handle 13, so that the carrying of the device body 1 can be facilitated.
Referring to fig. 2, a connection plate 14 is provided in the carrying case 11, and the connection plate 14 partitions the inside of the carrying case 11 to form a filter chamber 2 and an exhaust chamber 3. A water tank 31 and an air pump 32 are arranged in the exhaust chamber 3, and the water tank 31 of the embodiment is a rectangular box body structure with a hollow interior; a water inlet and outlet pipe 33 is communicated with the position, close to the bottom, of the water tank 31, one end, far away from the water tank 31, of the water inlet and outlet pipe 33 extends towards the outside of the bearing box 11, and water in the water tank 31 can be replaced through the water inlet and outlet pipe 33; an air inlet and an air outlet of the air pump 32 are respectively connected with a first connecting pipe 321 and a second connecting pipe 322, the first connecting pipe 321 is communicated with the filtering chamber 2, the second connecting pipe 322 is communicated with the water tank 31, and meanwhile, the end part of the second connecting pipe 322 is close to the bottom of the water tank 31; the top of the water tank 31 is communicated with an air outlet pipe 34, and one end of the air outlet pipe 34 far away from the water tank 31 extends to the outside of the bearing box 11.
Referring to fig. 2 and 3, at least two filter screens 21 for filtering air are disposed in the filter chamber 2, and the filter screens 21 can filter dust particles and harmful substances in the air; the bearing box 11 is provided with a plurality of air inlet pipes 22 communicated with the filter chamber 2, one end of each air inlet pipe 22 far away from the filter chamber 2 is rotatably connected with a dust suction hopper 4, and one end of each dust suction hopper 4 far away from the corresponding air inlet pipe 22 is uniformly provided with dust suction holes 41 for dust to pass through; one end of the dust collection hopper 4 far away from the air inlet pipe 22 is provided with a dust scraping assembly 5 for preventing the dust collection hole 41 from being blocked; under the effect of air pump 32, dust can get into in the filter chamber 2 through dust absorption hole 41, carries out prefilter through filter screen 21, then carries to further filtering in the water tank 31, and the air after the filtration is discharged from outlet duct 34.
Referring to fig. 3 and 4, a bearing 221 is disposed between the air inlet pipe 22 and the dust collection bucket 4, and an outer ring and an inner ring of the bearing 221 are in interference fit with the dust collection bucket 4 and the air inlet pipe 22, respectively; the dust scraping component 5 comprises a scraper 51, the scraper 51 in the embodiment is a rectangular strip structure, and the scraper 51 is perpendicular to the air inlet pipe 22; a side wall of the scraper 51 close to the dust collection bucket 4 is fixedly provided with bristles 511, and the bristles 511 can clean the surface of the dust collection bucket 4 and the dust collection hole 41; the connecting frame 52 penetrates through the inside of the dust suction hole 41, the connecting frame 52 is fixedly connected with the inner wall of the air inlet pipe 22, one end, away from the air inlet pipe 22, of the connecting frame 52 extends towards the outside of the dust suction hopper 4, and meanwhile, one end, away from the air inlet pipe 22, of the connecting frame 52 is provided with a positioning assembly 55 used for positioning the scraper 51 on the connecting frame 52.
Referring to the positioning assembly 55 in this embodiment as a positioning cap 551, the scraper 51 and the connecting frame 52 in other embodiments may be connected by a positioning pin or a bolt. One end of the connecting frame 52 far away from the air outlet pipe 34 is of a rectangular columnar structure, the positioning cap 551 is sleeved at one end of the connecting frame 52 far away from the air outlet pipe 34, and meanwhile, the positioning cap 551 is in threaded connection with the connecting frame 52; one end of the scraper 51 is fixedly provided with an installation block 53, and one end of the connecting frame 52 far away from the air outlet pipe 34 is provided with an installation groove 54 matched with the installation block 53; the installation block 53 is positioned in the installation groove 54 by abutting the positioning cap 551 against the scraper 51, and the positioning cap 551 is screwed with the connecting frame 52, so that the replacement of the scraper 51 can be facilitated.
Referring to fig. 1 and 3, the carrying box 11 is provided with a driving assembly 6 for driving the dust suction hole 41 to rotate. The driving assembly 6 comprises a motor 61, and the motor 61 is fixed on the outer wall of the bearing box 11 through bolts; a driving gear 62 is connected to an output shaft of the motor 61, and a driven rack 63 meshed with the driving gear 62 is fixedly arranged at one end of the dust collection bucket 4 close to the bearing box 11; a shield 64 is fixedly connected to the housing of the motor 61 by bolts, and the shield 64 is covered outside the driving gear 62.
The implementation principle of the dust removal device for the building engineering construction in the embodiment of the application is as follows:
in the use process of the dust removing device, air mixed with dust enters the filter chamber 2 from the dust suction hopper 4 through the air pump 32; meanwhile, the motor 61 drives the driving gear 62 to rotate, and the driving gear 62 is meshed with the driven rack 63 to drive the dust collection hopper 4 to rotate, so that the scraper 51 and the dust collection hopper 4 rotate relatively; the dust and the lump garbage attached to the dust suction hole 41 are cleaned by the brush 511, so that the dust suction hole 41 is prevented from being blocked, and the air mixed with the dust can pass through the dust suction hole 41 to the maximum extent; the air is primarily filtered through the filter screen 21 and then further filtered through the water tank 31; the filtered air is discharged from the air outlet pipe 34, thereby achieving the effect of dust removal.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
Claims (7)
1. The utility model provides a building engineering construction dust collector which characterized in that: including device body (1), the air inlet department of device body (1) is provided with dust absorption fill (4), dust absorption fill (4) are kept away from dust absorption hole (41) have been seted up to the one end of device body (1), dust absorption fill (4) are provided with and are used for preventing dust absorption hole (41) jam scrape dirt subassembly (5), it includes scraper blade (51) to scrape dirt subassembly (5), scraper blade (51) with dust absorption fill (4) normal running fit, be provided with on device body (1) and be used for the drive scraper blade (51) with dust absorption hole (41) take place relative pivoted drive assembly (6).
2. The dust removing device for the construction engineering according to claim 1, wherein: the driving assembly (6) comprises a motor (61), a driving gear (62) is arranged on an output shaft of the motor (61), and a driven rack (63) meshed with the driving gear (62) is arranged on the dust suction hopper (4).
3. The dust removing device for the construction engineering according to claim 1, wherein: the scraper (51) is detachably arranged.
4. The dust removing device for the construction engineering according to claim 3, wherein: the device body (1) is provided with a connecting frame (52), the connecting frame (52) is arranged in the dust absorption hopper (4) in a penetrating mode, an installation block (53) is arranged at one end of the scraper (51), an installation groove (54) for the installation block (53) to connect is formed in the end portion of the connecting frame (52), and a positioning assembly (55) used for positioning the installation block (53) in the installation groove (54) is arranged at the end portion of the connecting frame (52).
5. The dust removing device for the construction engineering according to claim 4, wherein: the positioning assembly (55) comprises a positioning cap (551), the positioning cap (551) is in threaded connection with the end of the connecting frame (52), and one end, close to the device body (1), of the positioning cap (551) is abutted to the scraper (51).
6. The dust removing device for the construction engineering according to claim 1, wherein: one side of the scraper blade (51) is provided with brush hair (511), and the end part of the brush hair (511) is abutted against the dust absorption hole (41).
7. The dust removing device for the construction engineering according to claim 2, wherein: the driving gear (62) is covered with a protective cover (64).
