CN211512119U - Special accurate little apparatus in oral cavity holds thing tweezers - Google Patents

Abstract

The utility model discloses a special accurate small instrument of oral cavity holds thing tweezers, including holding thing tweezers body, it is provided with the tweezers afterbody to hold thing tweezers body right-hand member, it is connected with first tweezers handle and second tweezers handle to hold thing tweezers body left end, it is integrated into one piece to hold thing tweezers body, tweezers afterbody, first tweezers handle and second tweezers handle, be provided with the gag lever post between first tweezers handle and the second tweezers handle, first tweezers handle and second tweezers handle front end are provided with holds thing tweezers forearm, it is provided with the tweezers head to hold thing tweezers forearm end, be provided with accurate apparatus centre gripping groove on the tweezers head, be provided with anti-skidding silica gel inside lining on the accurate apparatus centre gripping inslot wall, two tweezers handles cooperation operation accomplish the process of getting and put to avoid accurate small instrument to take the patient in the oral cavity treatment in-process and take the mistake esophagus, or choke to the trachea, improve the convenience of clinical operation, reduce the possibility of accident and dispute, so as to improve the efficiency in the treatment process clinically, shorten the treatment time, comfort the patient and be worth popularizing.

Description

Special accurate little apparatus in oral cavity holds thing tweezers

Technical Field

The utility model relates to the technical field of medical equipment, in particular to a special precise small instrument holding forceps for oral cavity.

Background

The oral cavity, one of the medical discipline categories, is commonly incorporated into the stomatology department at clinical complex hospitals. The department of the oral specialized hospital is thinner, and the department of the oral cavity is more subject to the composition, including department of the department of stomatology, department of mouth rehabilitation, department of oromaxillofacial surgery, department of orthodontics and department of oral implanting, etc., mainly treat the disease related to soft, hard tissue in the oral cavity. Dental implant is an emerging, independent, and branched discipline of oral science that involves many disciplines in oral science, including oromaxillofacial surgery, prosthetics, periodontics, oral imaging documentaries, and oral materials science.

In recent years, oral cavity plantation is developed rapidly, and a new planting system is developed endlessly, so that the number of types of plants at home and abroad is not great. The dental implant refers to a tooth missing restoration method for fixing an upper dental restoration on the basis of a lower structure implanted into bone tissue. It consists of three parts, namely an implant, a base station and a restoration body. The dental implant can obtain the repairing effect which is very similar to the function, the structure and the beautiful appearance of the natural tooth, and becomes the first repairing mode of the modern edentulous patient.

The application number is CN201721108593.9, the name is a utility model patent of multi-functional dental forceps, to present dental forceps function singleness, awkward current situation, provides a convenient to use's multi-functional tweezers. The forceps comprises a forceps tail, a forceps flap and a forceps head, wherein the front end of the forceps flap is connected with the forceps head through a buckle; the dental auxiliary appliance is arranged at the top of the forceps tail in a buckling connection mode, and the forceps tail is connected with the forceps valve in a riveting mode; the two forceps flaps are connected through a hinge; the middle part of the outer side of the forceps flap and the inner side of the forceps head are provided with anti-slip lines, the forceps head and the dental auxiliary appliance can be disassembled and assembled, and the multifunctional dental forceps are convenient and quick to operate and accurate in connection; the hinge can effectively prevent the two tweezers flaps from twisting; the anti-slip lines on the outer side of the forceps valve and the inner side of the forceps head can effectively improve the use stability and the clamping accuracy.

Therefore, in the oral implant operation, a sealing screw is often needed to cover the implant to prevent soft and hard tissues from growing to the screw hole, thereby playing a role of partition. After 3-6 months after the operation, the sealing screw of the implant needs to be taken out and replaced by a healing abutment. The closed screw is small, the operation area is limited in the operation, the visual field is fuzzy, and under the condition of no special instrument, the operation is often inconvenient, the small instrument is easy to swallow by mistake, the result that the estimation cannot be carried out is caused, and the possibility of medical disputes is caused.

Disclosure of Invention

In order to overcome the defects of the prior art, the utility model provides a special precise small instrument holding forceps for oral cavity, which can effectively solve the problem provided by the background technology.

The utility model provides a technical scheme that its technical problem adopted is:

the utility model provides a special accurate little apparatus in oral cavity holds thing tweezers, is including holding thing tweezers body, it is provided with the tweezers afterbody to hold thing tweezers body right-hand member, it is connected with first tweezers handle and second tweezers handle to hold thing tweezers body left end, it is provided with the gag lever post to hold thing tweezers body, tweezers afterbody, first tweezers handle and second tweezers handle integrated into one piece to hold thing tweezers body, be provided with the gag lever post between first tweezers handle and the second tweezers handle, first tweezers handle is provided with second tweezers handle front end and holds thing tweezers forearm, it is provided with the tweezers head to hold thing tweezers forearm end, be provided with accurate apparatus centre gripping groove on the tweezers head, be provided with anti-skidding silica gel inside lining on the accurate apparatus centre gripping inslot wall.

Further, the tail of the tweezers is provided with a rectangular opening, and a plane mirror is arranged inside the rectangular opening.

Furthermore, the object holding forceps body is provided with an anti-slip area, and a plurality of anti-slip strips are arranged inside the anti-slip area.

Furthermore, the precision instrument clamping grooves are of semicircular structures, and the two precision instrument clamping grooves are spliced together to form a circular structure.

Further, anti-skidding silica gel inside lining is arc gasket structure, and is provided with anti-skidding reticulation on the anti-skidding silica gel inside lining surface.

Compared with the prior art, the beneficial effects of the utility model are that:

(1) the utility model discloses an optimized and improved design for conventional toothless sharp-pointed forceps, through tweezers head position optimization design, accomplish taking out of the accurate screw of oral cavity, the tweezers tail is the axle, and two tweezers handles cooperation operation accomplish the process of getting and putting, and the both sides of tweezers head are upper and lower, through designing circular-arc structure, can press from both sides the oral cavity screw clamp of different sizes in upper and lower both sides radian;

(2) the utility model has the advantages that the anti-skid silica gel is arranged in the precise instrument clamping groove, the main functions are anti-skid and increase of the laminating degree and the friction force of clamping, the silica gel is high temperature resistant, disinfection resistant and convenient to clean, and the sharp stabbing is prevented by the round head design of the forceps head;

(3) the utility model discloses in order to avoid accurate little apparatus to take the in-process patient to take the mistake swallow the esophagus at oral treatment, or chock to the trachea, improve the convenience of clinical operation, reduce the possibility of meeting accident and dispute to supply clinical improvement in the efficiency of treatment in-process, shorten treatment time, comfortable patient is worth promoting.

Drawings

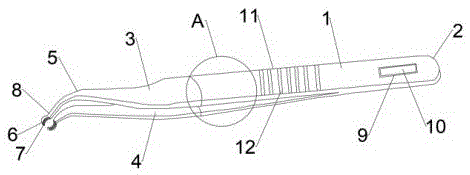

Fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a schematic top view of the structure at a of the present invention;

fig. 3 is a schematic structural view of the anti-slip silica gel lining of the present invention.

Reference numbers in the figures:

1-object holding forceps body, 2-forceps tail, 3-first forceps handle, 4-second forceps handle, 5-object holding forceps small arm, 6-precision instrument clamping groove, 7-anti-slip silica gel lining, 8-forceps head, 9-rectangular opening, 10-plane mirror, 11-anti-slip region, 12-anti-slip strip, 13-anti-slip reticulate pattern and 14-limiting rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1 to 3, the utility model provides a special precise small appliance holding forceps for oral cavity, which comprises a holding forceps body 1, wherein a forceps tail 2 is arranged at the right end of the holding forceps body 1, the left end of the holding forceps body 1 is connected with a first forceps handle 3 and a second forceps handle 4, the holding forceps body 1, the forceps tail 2, the first forceps handle 3 and the second forceps handle 4 are integrally formed, a limit rod 14 is arranged between the first forceps handle 3 and the second forceps handle 4, the limit rod 14 is fixed on the first forceps handle 3, the limit rod 14 is matched with a through hole on the second forceps handle 4 to penetrate through, so that the forceps can be aligned to prevent the forceps handle from deflecting to cause the dropping of the held appliance when being clamped, a holding forceps small arm 5 is arranged at the front end of the first forceps handle 3 and the second forceps handle 4, a forceps head 8 is arranged at the tail end of the holding forceps small arm 5, a precise holding appliance holding groove 6 is arranged on the forceps head 8, an anti-skid silica gel lining 7 is arranged on the inner wall of the precision instrument clamping groove 6;

the utility model discloses a theory of operation does: the whole object holding forceps are integrally formed by the object holding forceps body 1, the forceps tail 2, the first forceps handle 3 and the second forceps handle 4, the object holding forceps body 1 is used as a main body structure and is connected with the forceps tail 2, the first forceps handle 3 and the second forceps handle 4 which are integrally formed, wherein the forceps tail 2 is a handheld part, and when special precise small instruments are needed in dental use, the special precise small instruments are clamped by manually grasping the forceps tail 2;

the first forceps handle 3 and the second forceps handle 4 which are separated from each other at the front end are identical in shape and symmetrically arranged about the object holding forceps body 1, the object holding forceps small arm 5 is provided with a precision instrument clamping groove 6, when a special precision small instrument is mounted and dismounted, the special precision small instrument is clamped between the precision instrument clamping grooves 6, a gap is formed between the two precision instrument clamping grooves 6, the gap is wrapped by two arcs, the clamping requirements of the special precision small instrument in a certain size range can be met, and oral screws with different sizes can be clamped in the arcs of the upper side and the lower side;

wherein, the inside anti-skidding silica gel inside lining 7 that has set up of precision instruments centre gripping groove 6 adopts medical silicon rubber materials to make, and convenient cleanness has certain high temperature resistance ability, and the disinfection is also very convenient, has satisfied the demand that the dentistry used.

As a preferred embodiment, the forceps tail 2 is provided with a rectangular opening 9, and a plane mirror 10 is arranged inside the rectangular opening 9, so that a doctor can conveniently observe the tooth condition, and a dead angle can be conveniently observed through the plane mirror.

As a preferable embodiment, the object holding forceps body 1 is provided with an anti-slip area 11, and a plurality of anti-slip strips 12 are arranged inside the anti-slip area 11, so that the anti-slip capability is improved.

As a preferable embodiment, the precision instrument clamping groove 6 is of a semicircular structure, and the two precision instrument clamping grooves 6 are spliced together to form a circular structure, so that a precision instrument can be conveniently clamped.

As a preferred embodiment, the anti-skid silica gel lining 7 is of an arc-shaped gasket structure, and anti-skid reticulate patterns 13 are arranged on the surface of the anti-skid silica gel lining 7, so that the anti-skid capacity is improved.

To sum up, the utility model discloses a key feature lies in:

(1) the utility model discloses an optimized and improved design for conventional toothless sharp-pointed forceps, through tweezers head position optimization design, accomplish taking out of the accurate screw of oral cavity, the tweezers tail is the axle, and two tweezers handles cooperation operation accomplish the process of getting and putting, and the both sides of tweezers head are upper and lower, through designing circular-arc structure, can press from both sides the oral cavity screw clamp of different sizes in upper and lower both sides radian;

(2) the utility model has the advantages that the anti-skid silica gel is arranged in the precise instrument clamping groove, the main functions are anti-skid and increase of the laminating degree and the friction force of clamping, the silica gel is high temperature resistant, disinfection resistant and convenient to clean, and the sharp stabbing is prevented by the round head design of the forceps head;

(3) the utility model discloses in order to avoid accurate little apparatus to take the in-process patient to take the mistake swallow the esophagus at oral treatment, or chock to the trachea, improve the convenience of clinical operation, reduce the possibility of meeting accident and dispute to supply clinical improvement in the efficiency of treatment in-process, shorten treatment time, comfortable patient is worth promoting.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (5)

1. The utility model provides a special accurate little apparatus in oral cavity holds thing tweezers, includes holding thing tweezers body (1), its characterized in that: hold thing tweezers body (1) right-hand member and be provided with tweezers afterbody (2), it is connected with first tweezers handle (3) and second tweezers handle (4) to hold thing tweezers body (1) left end, it is provided with gag lever post (14) to hold between thing tweezers body (1), tweezers afterbody (2), first tweezers handle (3) and second tweezers handle (4), be provided with between first tweezers handle (3) and second tweezers handle (4) and hold thing tweezers forearm (5), it is provided with tweezers head (8) to hold thing tweezers forearm (5) end, be provided with accurate apparatus centre gripping groove (6) on tweezers head (8), be provided with on accurate apparatus centre gripping groove (6) inner wall and prevent skidding silica gel (7).

2. The special precise small instrument holding forceps for the oral cavity according to claim 1, characterized in that: the forceps tail (2) is provided with a rectangular opening (9), and a plane mirror (10) is arranged inside the rectangular opening (9).

3. The special precise small instrument holding forceps for the oral cavity according to claim 1, characterized in that: the object holding forceps body (1) is provided with an anti-slip area (11), and a plurality of anti-slip strips (12) are arranged inside the anti-slip area (11).

4. The special precise small instrument holding forceps for the oral cavity according to claim 1, characterized in that: the precision instrument clamping grooves (6) are of semicircular structures, and the two precision instrument clamping grooves (6) are spliced together to form a circular structure.

5. The special precise small instrument holding forceps for the oral cavity according to claim 1, characterized in that: anti-skidding silica gel inside lining (7) are arc gasket structure, and anti-skidding silica gel inside lining (7) are provided with anti-skidding reticulation (13) on the surface.
