The utility model relates to a stockbreeding facility technical field just discloses a wool belt cleaning device for animal husbandry, which comprises a base, the right side of bottom and the bottom fixed connection who washs the case in the base, it is provided with the baffle to wash incasement middle part, the left side of baffle is provided with the cleaning roller, the top of cleaning roller and power unit's output fixed connection, power unit's left side and the right-hand member joint of connecting rod. This wool belt cleaning device for animal husbandry, it drives the cleaning roller rebound to lie in left first pneumatic cylinder through two sets of first pneumatic cylinders, make the wool that washs the incasement easily take out after wasing the completion, and the cleaning roller easily dismantles cleanly, drive the push pedal through two sets of second pneumatic cylinders and remove right, make the wool after wasing be convenient for take out from wasing the incasement, the intensity of labour that wool was collected has been reduced, drive the lifting movement of baffle through servo motor, make and wash case easy to use.

Description

Wool belt cleaning device for animal husbandry
Technical Field
The utility model relates to a stockbreeding facility technical field specifically is a wool belt cleaning device for stockbreeding.
Background
Wool is one of the earliest natural fibers used by human beings in spinning, is soft and elastic, can be used for manufacturing textile products for daily use and industry such as woolen cloth, woolen yarn, woollen blankets, felted woolen cloth and the like, is subjected to wool selection and wool opening in the production process of wool, is washed to form stable emulsion by wool fat, dirty impurities float in the washing liquid, and wet wool with water content of about 40% can be obtained after treatment. General wool belt cleaning device for animal husbandry drives wool through wasing the axle and throws and the friction washing in wasing the incasement, needs manually to take out the wool after the washing is accomplished. The wool after animal husbandry for the animal husbandry belt cleaning device in the existing market is great in labor intensity when taking out than heavy, and the moisture content of wool is higher to be not convenient for later drying process.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a wool belt cleaning device for animal husbandry has solved the wool that the animal husbandry on the existing market was washed with wool belt cleaning device after and has taken out intensity of labour when heavier great, and the higher problem of carrying out drying process after being not convenient for of the water content of wool.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a wool cleaning device for animal husbandry comprises a base, wherein the right side of the bottom in the base is fixedly connected with the bottom of a cleaning box, a partition plate is arranged in the middle of the interior of the cleaning box, a cleaning roller is arranged on the left side of the partition plate, the top of the cleaning roller is fixedly connected with the output end of a power mechanism, the left side of the power mechanism is connected with the right end of a connecting rod in a clamping manner, a pressing plate is arranged on the right side of the partition plate, the middle of the upper surface of the pressing plate and the left end of the connecting rod are connected with one end of a first pushing rod in a clamping manner, the other end of the first pushing rod is connected with the output end of a first hydraulic cylinder in a clamping manner, two groups of first hydraulic cylinders are respectively connected with the left side of the bottom in the base and the right side of the top in the base in a threaded manner, the front end and the rear end in the base are respectively connected with the left side of a second hydraulic, the front end and the rear end at the top of the right side of the partition plate are fixedly connected with the left side of the screw rod seat, the middle of the screw rod seat is in threaded connection with the outer surface of the screw rod, the top end of the screw rod is in sleeved connection with the middle of the first bevel gear, the first bevel gear is in meshed connection with the second bevel gear, the middle of the second bevel gear is in sleeved connection with the outer surface of the rotating shaft, the front end and the rear end of the rotating shaft are in clamped connection with the output end of the servo motor and the middle of the bearing seat respectively, the servo motor and the bearing seat are in threaded connection with the front end and the rear end on the right side in the base respectively, the top of the base.
Preferably, the length of first push rod slightly is greater than the height of wasing the case, the length of second push rod slightly is greater than the length of wasing the case, two sets of pole holes with second push rod looks adaptation are seted up to the left side of base.
Preferably, a screw rod groove is formed in the middle of the screw rod seat, an internal thread is arranged in the screw rod groove, an external thread matched with the screw rod seat is arranged on the outer surface of the screw rod, and the length of the screw rod is slightly larger than the height of the cleaning box.
Preferably, the lower surface of the pressing plate is provided with an elastic rubber pad, the pressing plate is positioned at the bottom of the screw rod seat, the length of the pressing plate is matched with the distance between the partition plate and the right side in the cleaning box, and the width of the pressing plate is matched with the width in the cleaning box.
Preferably, the left side of bottom and the bottom fixed connection of support frame in the base, the support frame is located the bottom of second pneumatic cylinder, the cellular motor louvre has been seted up on the right side of base.
Preferably, the right side of wasing the case is provided with the door plant, and the door plant rotates with the washing case to be connected, the right side of wasing the bottom half evenly is provided with the multiunit apopore.
(III) advantageous effects
Compared with the prior art, the utility model provides a wool belt cleaning device for animal husbandry possesses following beneficial effect:
1. this wool belt cleaning device for animal husbandry, it drives the cleaning roller rebound to lie in left first pneumatic cylinder through two sets of first pneumatic cylinders, make the wool that washs the incasement easily take out after wasing the completion, and the cleaning roller easily dismantles cleanly, drive the push pedal through two sets of second pneumatic cylinders and remove right, make the wool after wasing be convenient for take out from wasing the incasement, the intensity of labour that wool was collected has been reduced, drive the lifting movement of baffle through servo motor, make and wash case easy to use.
2. This wool belt cleaning device for animal husbandry drives the clamp plate through the first pneumatic cylinder that is located the right side in two sets of first pneumatic cylinders and removes downwards for animal husbandry is convenient for reduce the water content to the wool after the washing, and makes collecting and transferring of wool comparatively convenient, is provided with elastic rubber pad through the bottom of clamp plate, has reduced the damage to the wool.
Drawings

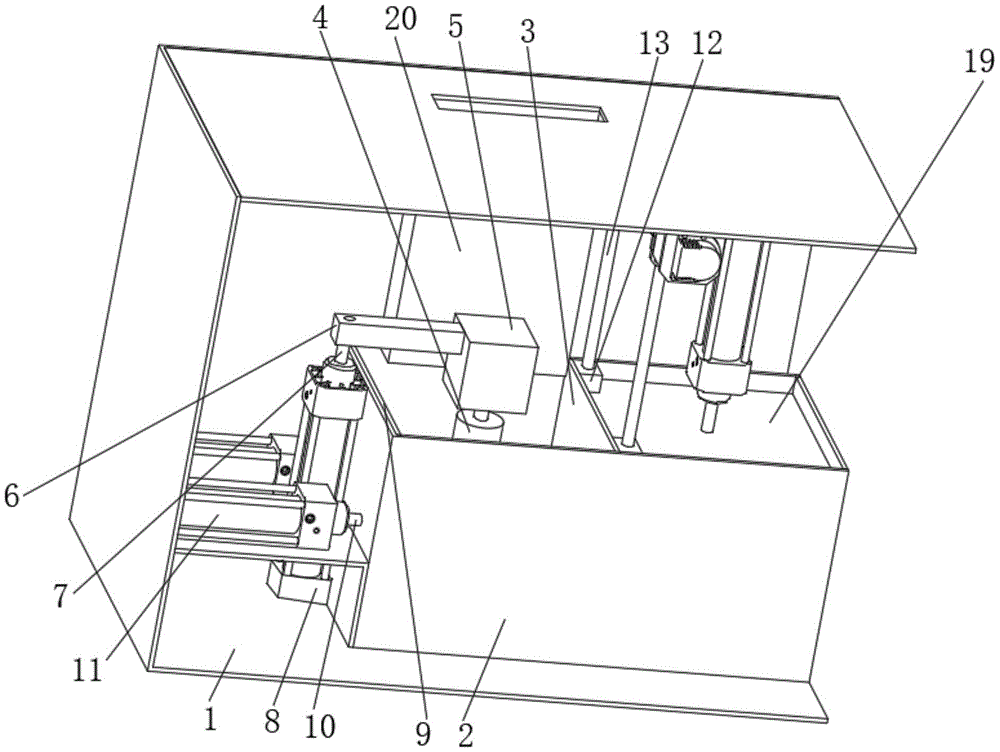

Fig. 1 and 2 are schematic views of the internal structure of the present invention;
fig. 3 is a right side view of the structure of the present invention.
In the figure: 1. a base; 2. a cleaning tank; 3. a partition plate; 4. cleaning the roller; 5. a power mechanism; 6. a connecting rod; 7. a first push rod; 8. a first hydraulic cylinder; 9. pushing the plate; 10. a second push rod; 11. a second hydraulic cylinder; 12. a screw base; 13. a screw rod; 14. a first bevel gear; 15. a second bevel gear; 16. a rotating shaft; 17. a bearing seat; 18. a servo motor; 19. pressing a plate; 20. a delivery pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a wool cleaning device for animal husbandry comprises a base 1, the left side of the bottom in the base 1 is fixedly connected with the bottom of a support frame, the support frame is positioned at the bottom of a second hydraulic cylinder 11, cellular motor heat dissipation holes are formed in the right side of the base 1, the right side of the bottom in the base 1 is fixedly connected with the bottom of a cleaning box 2, a door plate is arranged on the right side of the cleaning box 2 and is rotatably connected with the cleaning box, a plurality of groups of water outlet holes are uniformly formed in the right side of the bottom of the cleaning box 2, a partition plate 3 is arranged in the middle of the inside of the cleaning box 2, a cleaning roller 4 is arranged on the left side of the partition plate 3, the top of the cleaning roller 4 is fixedly connected with the output end of a power mechanism 5, the left side of the power mechanism 5 is clamped with the right end of a connecting rod 6, a pressing plate 19 is arranged on, the pressing plate 19 is positioned at the bottom of the screw rod seat 12, the elastic rubber pad is arranged at the bottom of the pressing plate 19, the damage to wool is reduced, the length of the pressing plate 19 is matched with the distance between the partition plate 3 and the inner right side of the cleaning box 2, the width of the pressing plate 19 is matched with the width of the cleaning box 2, the other end of the first push rod 7 is clamped with the output end of the first hydraulic cylinder 8, the two groups of first hydraulic cylinders 8 are respectively in threaded connection with the left side of the bottom in the base 1 and the right side of the inner top of the base 1, the cleaning roller 4 is driven to move upwards by the first hydraulic cylinder 8 positioned on the left side in the two groups of first hydraulic cylinders 8, so that the wool in the cleaning box 2 is easy to take out after cleaning is completed, the cleaning roller 4 is easy to disassemble and clean, the pressing plate 19 is driven to move downwards by the first hydraulic cylinder 8 positioned on the right side in the, and make the collection and transfer of wool more convenient, the front end and the rear end of the left side in the base 1 are both screwed with the left side of the second hydraulic cylinder 11, the output end of the second hydraulic cylinder 11 is clamped with the left end of the second push rod 10, the right ends of the two groups of second push rods 10 both penetrate the left side of the cleaning box 2 and are fixedly connected with the left side of the push plate 9, the push plate 9 is driven by the two groups of second hydraulic cylinders 11 to move rightwards, so that the cleaned wool is convenient to take out from the cleaning box 2, the labor intensity of wool collection is reduced, the length of the first push rod 7 is slightly greater than the height of the cleaning box 2, the length of the second push rod 10 is slightly greater than the length of the cleaning box 2, the left side of the base 1 is provided with two groups of rod holes matched with the second push rod 10, the front end and the rear end of the top of the right side of the partition board 3 are both fixedly connected with the left side of the screw rod seat 12, the lead screw inslot is provided with the internal thread, the surface of lead screw 13 is provided with the external screw thread with lead screw seat 12 looks adaptation, the length of lead screw 13 slightly is greater than the height of wasing case 2, the top of lead screw 13 cup joints with the middle part of first bevel gear 14, first bevel gear 14 and second bevel gear 15 intermeshing, two sets of second bevel gear 15 middle parts all cup joint with the surface of pivot 16, the front end and the rear end of pivot 16 respectively with the output of servo motor 18 and the middle part joint of bearing frame 17, servo motor 18 and bearing frame 17 respectively with the front end and the rear end spiro union on right side in the base 1, drive the lift removal of baffle 3 through servo motor 18, make washing case 2 easily use, the top intercommunication of base 1 is provided with conveyer pipe 20, conveyer pipe 20 is located the left side of baffle 3.
The working principle is as follows: after the wool is cleaned, the first hydraulic cylinder 8 positioned at the left side of the two groups of first hydraulic cylinders 8 drives the power mechanism 5 and the cleaning roller 4 to move upwards, then the servo motor 18 drives the rotating shaft 16 to rotate, the rotating shaft 16 drives the first bevel gear 14 to rotate, through the matching of the first bevel gear 14 and the second bevel gear 15, the second bevel gear 15 drives the screw rod 13 to rotate, the rotation of the screw rod 13 drives the screw rod seat 12 and the partition plate 3 to move upwards, then the output ends of the two groups of second hydraulic cylinders 11 drive the two groups of second push rods 10 to move rightwards, the second push rods 10 drive the push plate 9 to move rightwards, the push plate 9 drives wool to enter the right side of the cleaning box 2, the first hydraulic cylinder 8 on the right side of the two groups of first hydraulic cylinders 8 drives the pressing plate 19 to move downwards, the pressing plate 19 extrudes the water in the wool and the water flows out through the water outlet hole at the bottom of the cleaning box 2, the first hydraulic cylinder 8 on the left of the two sets of first hydraulic cylinders 8 then pushes the squeezed wool out of the washing tank 2.
In summary, the wool washing device for animal husbandry drives the washing roller 4 to move upwards through the first hydraulic cylinder 8 on the left side in the two groups of first hydraulic cylinders 8, so that the wool in the cleaning box 2 is easy to take out after the cleaning is finished, and the cleaning roller 4 is easy to disassemble and clean, the push plate 9 is driven by the two groups of second hydraulic cylinders 11 to move rightwards, so that the cleaned wool is convenient to take out from the cleaning box 2, the labor intensity for collecting wool is reduced, the servo motor 18 drives the partition board 3 to move up and down, so that the cleaning box 2 is easy to use, the first hydraulic cylinder 8 on the right side in the two groups of first hydraulic cylinders 8 drives the pressing plate 19 to move downwards, so that the wool cleaning device for animal husbandry is convenient to reduce the water content of the cleaned wool, and make collection and the transfer of wool comparatively convenient, be provided with elastic rubber pad through the bottom of clamp plate 19, reduced the damage to wool.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
