The utility model discloses a agitated vessel for concrete convenient to batching relates to concrete mixing technical field, and it includes backup pad, box and agitator, the lower surface of backup pad is connected with the last fixed surface of box, lean on right position fixed mounting to have motor cabinet one in the middle of the upper surface of backup pad, the left surface fixed mounting of motor cabinet one has motor one, fixed mounting has band pulley one on the output shaft face of cylinder of motor one, the output shaft terminal surface of motor one and the one end fixed connection of puddler. This agitated vessel for concrete convenient to batching can realize the power transmission of motor one to pivot one through the connection between band pulley one, band pulley two and the belt that sets up, through the intermeshing transmission of the gear and the ring gear that set up, can make the motor drive the reversal of realizing the agitator when puddler corotation to make stirring vane one and stirring vane two turn to opposite, and then make the more even of concrete mixing in the agitator.

Description

Concrete stirring equipment convenient for batching
Technical Field
The utility model relates to a concrete mixing technical field specifically is a agitated vessel for concrete convenient to batching.
Background
The concrete is generally mixed by pouring prepared concrete raw materials into mixing equipment and using the mixing equipment, but the existing mixing equipment usually simply mixes the concrete raw materials, and most of the equipment usually rotates and mixes in one direction in the mixing process, so that the concrete is not mixed uniformly, and the mixing efficiency is low.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a agitated vessel for concrete convenient to batching has solved the concrete agitated vessel stirring inefficiency of current batching of being convenient for, stirs inhomogeneous problem.
(II) technical scheme
In order to achieve the above purpose, the utility model adopts the technical proposal that: a concrete stirring device convenient for batching comprises a supporting plate, a box body and a stirring barrel, wherein the lower surface of the supporting plate is fixedly connected with the upper surface of the box body, a motor base I is fixedly arranged in the middle of the upper surface of the supporting plate close to the right position, a motor I is fixedly arranged on the left surface of the motor base I, a belt wheel I is fixedly arranged on the cylindrical surface of an output shaft of the motor I, the end surface of the output shaft of the motor I is fixedly connected with one end of a stirring rod, the other end of the stirring rod penetrates through a bearing I to extend into the stirring barrel, the bearing I is fixedly arranged at the central position of the upper surface of the supporting plate, a stirring blade I is fixedly arranged on the cylindrical surface of the stirring rod, bearings II are fixedly arranged on the left side and the right side of the upper surface of the supporting plate, rotating shafts I are fixedly arranged on inner rings of, a belt wheel II is fixedly mounted at the top end of the left rotating shaft I, the belt wheel II is movably connected with the belt wheel I through a belt, a feeding hopper is fixedly mounted at the right side of the upper surface of the supporting plate, stirring blades II are uniformly and fixedly mounted at the left side and the right side of the inner wall of the stirring barrel, a gear ring is fixedly mounted on the outer wall of the stirring barrel close to the upper position, a supporting ring is fixedly mounted on the outer wall of the stirring barrel close to the lower position, an L-shaped supporting ring is fixedly mounted on the inner wall of the box body, a ball is movably mounted between the supporting ring and the L-shaped supporting ring, the left side of the interior of the box body is fixedly connected with the left side of the lower conveying pipe, the right side of the conveying pipe penetrates through a through hole at the right side of the box body and extends to the exterior of the box body, a rotating shaft II is movably, the motor II is fixedly installed on the motor base II, the motor base II is fixedly installed on the lower portion of the left side of the outer portion of the box body, and the control box is fixedly installed on the right side of the outer portion of the box body.
Preferably, the bottom end of the feed hopper penetrates the support plate and extends to the inside of the agitating barrel.
Preferably, the first stirring blade and the second stirring blade are staggered, and the gear is meshed with the gear ring.
Preferably, the bottom end of the stirring barrel is of a conical structure, and a discharge hole in the bottom end of the stirring barrel is connected with a feed inlet in the upper side of the conveying pipe.
Preferably, a cover which is convenient to open is arranged on the front face of the box body.
Preferably, the control box is internally and electrically connected with two buttons, and the two buttons are respectively and electrically connected with the first motor and the second motor.
(III) advantageous effects
The beneficial effects of the utility model reside in that:
1. this agitated vessel for concrete convenient to batching can realize the power transmission of motor one to pivot one through the connection between band pulley one, band pulley two and the belt that sets up, through the intermeshing transmission of the gear and the ring gear that set up, can make the motor drive the reversal of realizing the agitator when puddler corotation to make stirring vane one and stirring vane two turn to opposite, and then make the more even of concrete mixing in the agitator.
2. This agitated vessel for concrete convenient to batching is used for realizing carrying out axial fixity to the agitator through the support ring that sets up and L shape support ring, realizes the support to the agitator, and the ball that sets up is used for reducing the friction when relative rotation between support ring and the L shape support ring, makes the agitator rotate more sensitively, prolongs the life of agitator.
3. This agitated vessel for concrete convenient to batching is used for discharging the concrete that stirs in the agitator through conveyer pipe, pivot two and the helical blade that sets up, reaches the effect of the ejection of compact of being convenient for, is used for realizing the control to motor one and motor two through the control box that sets up, realizes the stirring and the output to the concrete, makes whole equipment degree of automation higher.
Drawings

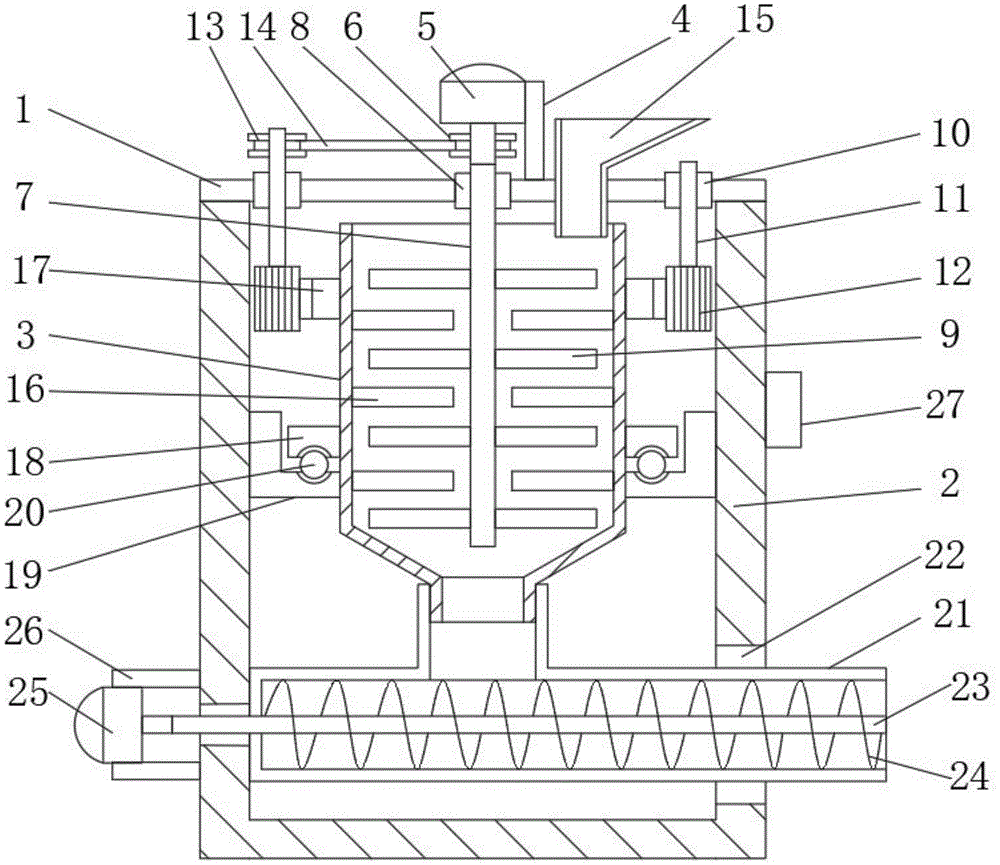

Fig. 1 is a schematic view of the front view cross-section structure of the present invention.
In the figure: the device comprises a support plate 1, a box body 2, a stirring barrel 3, a motor seat I4, a motor I5, a belt wheel I6, a stirring rod 7, a bearing I8, a stirring blade I9, a bearing II 10, a rotating shaft I11, a gear 12, a belt wheel II 13, a belt 14, a feeding hopper 15, a stirring blade II 16, a gear ring 17, a supporting ring 18, an L-shaped supporting ring 19, balls 20, a conveying pipe 21, a through hole 22, a rotating shaft II 23, a spiral blade 24, a motor II 25, a motor seat II 26 and a control box 27.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1, the utility model provides a technical solution: a concrete mixing device convenient for batching comprises a supporting plate 1, a box body 2 and a mixing tank 3, wherein the supporting plate 1 is arranged for fixedly mounting power components such as a motor I5 and a gear 12 and the like so as to provide power for mixing concrete, the box body 2 is arranged so as to protect the device, meanwhile, the structure of the whole device can be more compact, the mixing tank 3 is arranged so as to mix concrete, the lower surface of the supporting plate 1 is fixedly connected with the upper surface of the box body 2, a box cover convenient to open is arranged in front of the box body 2, a motor base I4 is fixedly mounted in the middle of the upper surface of the supporting plate 1 close to the right position, a motor base I4 is arranged so as to fixedly mount the motor I5, so that power is provided for the relative rotation of a mixing rod 7 and the mixing tank 3, the mixing of the concrete is realized, the motor I5 is fixedly mounted on the left surface of the motor base I4, the stirring device comprises a motor I5, a belt wheel I6, a first motor 5, a first bearing 8, a first stirring blade 9, a second bearing 10 and a second stirring blade 9, wherein the first motor 5 is used for providing power for the relative rotation of a stirring rod 7 and a stirring barrel 3 and stirring concrete, the first belt wheel I6 is fixedly installed on the cylindrical surface of an output shaft of the motor I5, the end surface of the output shaft of the motor I5 is fixedly connected with one end of the stirring rod 7, the other end of the stirring rod 7 penetrates through the first bearing 8 and extends into the stirring barrel 3, the first bearing 8 is used for reducing friction between the stirring rod 7 and a support plate 1, the stirring rod 7 rotates more flexibly, the first bearing 8 is fixedly installed at the central position of the upper surface of the support plate 1, the first stirring blade 9 is fixedly installed on the cylindrical surface of the stirring rod 7, the concrete in the stirring barrel 3 is stirred through the first stirring blade 9, the second bearing 10, thereby realizing the fixation of the belt wheel II 13 and the gear 12 and further realizing the transmission of power, the inner rings of the bearing II 10 are all fixedly provided with the rotating shaft I11, the bottom end of the rotating shaft I11 is all fixedly provided with the gear 12, the left gear 12 is arranged for being meshed with the gear ring 17 for transmission, so that when the rotating shaft I11 rotates forwards, the gear ring 12 drives the stirring barrel 3 to rotate reversely, further the concrete in the stirring barrel 3 is stirred more uniformly, the right gear 12 is arranged for realizing the support of the stirring barrel 3, the shaking is reduced when the stirring barrel 3 rotates, the top end of the left rotating shaft I11 is fixedly provided with the belt wheel II 13, the belt wheel II 13 is movably connected with the belt wheel I6 through the belt 14, the power of the motor I5 can be transmitted to the rotating shaft I11 through the connection between the belt 14 and the belt wheel I6 and the belt wheel II 13, thereby the rotating shaft I11 drives the gear 12 to rotate, further realize the rotation of the mixing drum 3, the right side of the upper surface of the supporting plate 1 is fixedly provided with a feed hopper 15, the concrete raw material is put into the mixing drum 3 through the arranged feed hopper 15, the bottom end of the feed hopper 15 passes through the supporting plate 1 and extends into the mixing drum 3, the left side and the right side of the inner wall of the mixing drum 3 are uniformly and fixedly provided with a mixing blade II 16, the mixing of the concrete in the mixing drum 3 is realized through the arranged mixing blade II 16, the directions of the mixing blade I9 and the mixing blade II 16 are opposite, the concrete is more uniformly mixed, the mixing blade I9 and the mixing blade II 16 are staggered, the outer wall of the mixing drum 3 is fixedly provided with a gear ring 17 close to the upper position, the gear 12 is mutually meshed and connected with the gear ring 17, the outer wall of the mixing drum 3 is fixedly provided with a supporting ring 18 close to the lower position, a ball 20 is movably arranged between the support ring 18 and the L-shaped support ring 19, the support ring 18 and the L-shaped support ring 19 are arranged to axially fix the stirring barrel 3, the ball 20 is arranged to reduce friction between the support ring 18 and the L-shaped support ring 19 during relative rotation, the left surface of the interior of the box body 2 is fixedly connected with the left surface of the lower conveying pipe 21, the bottom end of the stirring barrel 3 is of a conical structure, a discharge port at the bottom end of the stirring barrel 3 is connected with a feed port at the upper side of the conveying pipe 21, the right surface of the conveying pipe 21 passes through a through hole 22 at the right side of the box body 2 and extends to the exterior of the box body 2, a second rotating shaft 23 is movably arranged in the interior of the conveying pipe 21, a helical blade 24 is fixedly arranged on the cylindrical surface of the second rotating shaft 23, the conveying pipe 21, the second rotating shaft 23 and the helical blade 24 are arranged to discharge stirred concrete, the left end of the second rotating, the second motor 25 through setting up is used for realizing driving the second rotating shaft 23 and rotates, thereby make helical blade 24 rotatory, realize the discharge of concrete, motor two 25 fixed mounting is on motor cabinet two 26, motor cabinet two 26 fixed mounting leans on lower position at the outside left surface of box 2, the outside right side fixed mounting of box 2 has control box 27, control box 27 through setting up is used for realizing the control to motor one 5 and motor two 25, the realization is to the stirring and the output of concrete, the electricity is connected with two buttons in the control box 27, and two buttons are connected with motor one 5 and motor two 25 electricity respectively.
The utility model discloses an operating procedure does:
s1, placing the prepared concrete raw materials into the stirring barrel 3 from the feed hopper 15, adding a certain amount of water into the stirring barrel from the feed hopper 15, controlling the first motor 5 to rotate forward through the control box 27, when the first motor 5 rotates forward, on one hand, the stirring rod 7 drives the first stirring blade 9 to rotate, and the concrete raw materials in the stirring barrel 3 are stirred, on the other hand, the gear 12 drives the gear ring 17 to rotate through the connection between the belt 14 and the first belt wheel 6 and the second belt wheel 13, so that the gear ring 17 drives the stirring barrel 3 and the second stirring blade 16 to rotate in the reverse direction, and the concrete raw materials in the stirring barrel 3 are stirred more uniformly through the relative rotation of the second stirring blade 16 and the first stirring blade 9;
and S2, after the concrete raw materials are well mixed, the control box 27 controls the second motor 25 to rotate, so that the second rotating shaft 23 drives the helical blade 24 to rotate, and the mixed concrete in the mixing barrel 3 is discharged.
The above-mentioned embodiments further describe the objects, technical solutions and advantages of the present invention in detail, it should be understood that the above description is only the embodiments of the present invention, and is not intended to limit the present invention, and any modifications, equivalent substitutions, improvements and the like made within the spirit and principle of the present invention should be included in the scope of the present invention.

Claims (6)

1. The utility model provides a agitated vessel for concrete convenient to batching, includes backup pad (1), box (2) and agitator (3), its characterized in that: the lower surface of the supporting plate (1) is fixedly connected with the upper surface of the box body (2), a motor base I (4) is fixedly installed in the middle of the upper surface of the supporting plate (1) close to the right position, a motor I (5) is fixedly installed on the left surface of the motor base I (4), a belt wheel I (6) is fixedly installed on the cylindrical surface of an output shaft of the motor I (5), the end surface of the output shaft of the motor I (5) is fixedly connected with one end of a stirring rod (7), the other end of the stirring rod (7) penetrates through a bearing I (8) to extend into the stirring barrel (3), the bearing I (8) is fixedly installed at the central position of the upper surface of the supporting plate (1), stirring blades I (9) are fixedly installed on the cylindrical surface of the stirring rod (7), bearings II (10) are fixedly installed on the left side and the right side of the upper surface of the supporting plate (1), and rotating shafts I (11) are fixedly installed on inner, the equal fixed mounting in bottom of pivot one (11) has gear (12) to the top fixed mounting of left pivot one (11) has band pulley two (13), band pulley two (13) pass through belt (14) and band pulley (6) swing joint, the upper surface right side fixed mounting of backup pad (1) has feeder hopper (15), the even fixed mounting in inner wall left and right sides of agitator (3) has stirring vane two (16), the outer wall of agitator (3) leans on last position fixed mounting to have ring gear (17), the outer wall of agitator (3) leans on lower position fixed mounting to have support ring (18), the inner wall fixed mounting of box (2) has L shape support ring (19), movable mounting has ball (20) between support ring (18) and L shape support ring (19), the inside left surface of box (2) leans on the left surface fixed connection of lower position conveyer pipe (21), the right side of conveyer pipe (21) passes through-hole (22) on box (2) right side and extends to the outside of box (2), the inside movable mounting of conveyer pipe (21) has pivot two (23), fixed mounting has helical blade (24) on the face of cylinder of pivot two (23), the left end of pivot two (23) passes the left side of box (2) and the output shaft fixed connection of motor two (25), motor two (25) fixed mounting is on motor cabinet two (26), motor cabinet two (26) fixed mounting is by lower position at the outside left surface of box (2), the outside right side fixed mounting of box (2) has control box (27).
2. A mixing apparatus for concrete to facilitate batching according to claim 1, wherein: the bottom end of the feed hopper (15) penetrates through the support plate (1) and extends to the inside of the stirring barrel (3).
3. A mixing apparatus for concrete to facilitate batching according to claim 1, wherein: the stirring blade I (9) and the stirring blade II (16) are staggered with each other, and the gear (12) is meshed with the gear ring (17) and connected with each other.
4. A mixing apparatus for concrete to facilitate batching according to claim 1, wherein: the bottom end of the stirring barrel (3) is of a conical structure, and a discharge hole in the bottom end of the stirring barrel (3) is connected with a feed inlet in the upper side of the conveying pipe (21).
5. A mixing apparatus for concrete to facilitate batching according to claim 1, wherein: the front of the box body (2) is provided with a box cover which is convenient to open.
6. A mixing apparatus for concrete to facilitate batching according to claim 1, wherein: two buttons are electrically connected in the control box (27), and the two buttons are respectively electrically connected with the first motor (5) and the second motor (25).
