A horizontal double helix belt feed mixer

technical field

The utility model relates to the technical field of feed mixing, in particular to a horizontal double-spiral belt feed mixer.

Background technique

Double-layer spiral blades are arranged on the transmission main shaft of the horizontal double-spiral belt mixer, and the inner spiral conveys the material to the outside; the spiral gathers the material to the inside. Under the convective movement of the double-layer spiral belt, the material forms a low-power and high-efficiency mixed environment. The inner and outer diameter screws installed on the stirring shaft drive the material in the barrel, so that the agitator can turn the material in the barrel to the greatest extent. When the stirring device is working, the inner screw drives the material close to the axis to rotate the axis, and the axial direction is pushed from the inside to both sides. It can be uniformly mixed in a relatively short period of time; the existing horizontal double-spiral belt mixing device usually uses two or more drive motors, and does not have the performance of automatic feeding and mixing, usually all feed is thrown into the mixing device , unified mixing, but the mixing effect is not good, the work cycle is long, and the work efficiency is reduced. For this reason, we propose a horizontal double-spiral belt feed mixer.

Utility model content

The horizontal double-spiral belt feed mixer proposed by the utility model solves the problem of the use of multiple motors in the existing mixing device, increases the production cost, and is inconvenient for maintenance and inspection, and cannot be uniform and unloaded, and the mixing quality is poor. Problems such as low work efficiency.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A horizontal double-spiral belt feed mixer, comprising a box body, a double-shaft motor is fixedly installed inside the box body, a fixed rod is fixedly connected to the lower output shaft of the double-shaft motor, and the lower part of the fixed rod is fixed A first pulley is connected, one side of the first pulley is provided with a second pulley, the inner ring of the second pulley is fixedly connected with a rotating rod, and the outer ring of the rotating rod is fixedly connected with a first bevel gear, so A second bevel gear is arranged above the first bevel gear, the first bevel gear meshes with the second bevel gear for transmission, the inner wall of the second bevel gear is fixedly sleeved with a connecting rod, and the outer ring of the connecting rod is A plurality of stirring rods are welded in an array, a rotating shaft is fixedly connected to the upper output shaft of the dual-shaft motor, and a worm is fixedly connected to the other end of the rotating shaft. The front surface of the toothed plate is fixedly connected with a special-shaped plate, and the outer ring of the special-shaped plate is provided with a fixed frame.

Preferably, a first limit rod is fixedly connected to one side of the fixing frame, a second limit rod is fixedly connected to the other side of the fixed frame, and a lower limit rod is fixedly connected to the other end of the second limit rod. A material plate, and a third limit rod is welded on the other side of the blanking plate.

Preferably, a vertical partition plate is fixedly connected to the inner wall of the box body, a T-shaped plate is welded on one side of the partition plate, and the T-shaped plate is fixedly connected to the dual-axis motor, and the other side of the dual-axis motor is fixedly connected. One side is fixedly connected to the inner wall of the box through a T-shaped plate.

Preferably, the first pulley and the second pulley are connected by a belt, the outer ring of the rotating rod is fixedly connected with the rotating blade, and the outer ring of the connecting rod is fixedly connected with the rotating blade.

Preferably, a chute is provided on the top of the box body, a sliding block is welded above the fixing frame, the sliding block is slidably connected with the inner wall of the chute, and the left side wall of the box body is provided with a rod through The first limit rod passes through the rod through hole, the top inner wall of the box is fixedly connected to a limit block, the limit block is provided with a through hole, and the third limit rod passes through the through hole.

Preferably, the top of the box body is provided with a feeding port, and a feeding hopper is welded on the feeding port, a discharging port is welded on the bottom of the box body, and a discharging pipe is welded on the discharging port. Fixed piles are welded on the bottom box wall of the body, and a base is fixedly connected under the fixed piles.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the utility model has the following advantages: through the installation of the box body, the biaxial motor, the fixed rod, the first pulley, the second pulley, the rotating rod, the helical blade, the first bevel gear, The second bevel gear, the connecting rod, the stirring rod, the rotating shaft, the worm, the toothed plate, the special-shaped plate, the fixed frame, the first limit rod and the second limit rod, etc., wherein the worm and the toothed plate mesh and rotate to rotate the special-shaped plate, When the special-shaped plate rotates, the fixed frame moves left and right, and the fixed frame moves the second limit rod and the blanking plate to the left and right, so that the discharge opening is more uniform, and the second pulley rotates to rotate the rotating rod and the first bevel gear. The second bevel gear is meshed and rotated, the second bevel gear rotates the connecting rod and the stirring rod, and the feed in the box is conveyed and stirred by the first rotating blade. The structure of the device is simple and novel, the feed is conveyed and stirred, and the stirring effect is improved. It prevents the mixed feed from accumulating, improves the mixing quality, reduces the work of multiple motors, reduces production costs, improves work efficiency, and is suitable for market promotion.

Description of drawings

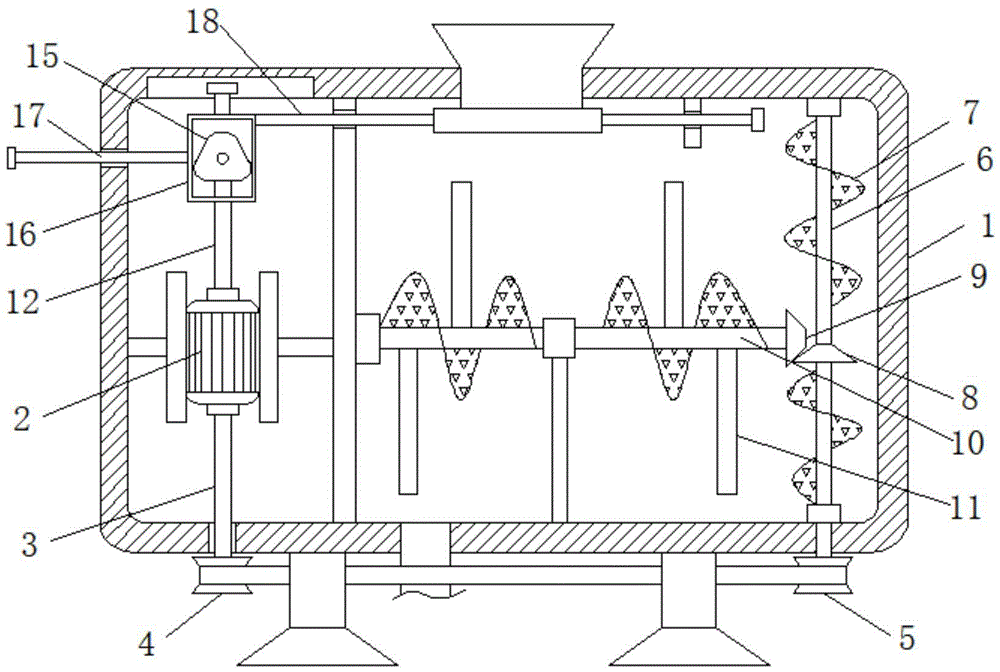

Fig. 1 is the front view structure schematic diagram of a kind of horizontal double-spiral belt feed mixer proposed by the utility model;

Fig. 2 is a schematic side view of the structure of a fixed frame of a horizontal double-spiral belt feed mixer proposed by the utility model.

In the figure: 1 box body, 2 biaxial motors, 3 fixed rods, 4 first pulleys, 5 second pulleys, 6 rotating rods, 7 spiral blades, 8 first bevel gears, 9 second bevel gears, 10 connecting rods, 11 stirring rod, 12 rotating shaft, 13 worm, 14 toothed plate, 15 special-shaped plate, 16 fixed frame, 17 first limit rod, 18 second limit rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Referring to Figure 1-2, a horizontal double-spiral belt feed mixer includes a box body 1, a double-shaft motor 2 is fixedly installed inside the box body 1, and a fixed rod 3 is fixedly connected to the lower output shaft of the double-shaft motor 2, A first pulley 4 is fixedly connected below the fixed rod 3, a second pulley 5 is fixed on one side of the first pulley 4, the inner ring of the second pulley 5 is fixedly connected with a rotating rod 6, and the outer ring of the rotating rod 6 is fixedly connected with a rotating rod 6. The first bevel gear 8, a second bevel gear 9 is arranged above the first bevel gear 8, the first bevel gear 8 meshes with the second bevel gear 9 for transmission, and the inner wall of the second bevel gear 9 is fixedly sleeved with a connecting rod 10, The outer ring of the connecting rod 10 is arrayed with a plurality of stirring rods 11, the upper output shaft of the biaxial motor 2 is fixedly connected with a rotating shaft 12, the other end of the rotating shaft 12 is fixedly connected with a worm 13, and the front of the worm 13 is provided with a toothed plate 14, The toothed plate 14 meshes with the worm 13 for transmission. The front surface of the toothed plate 14 is fixedly connected with a special-shaped plate 15 , and the outer ring of the special-shaped plate 15 is provided with a fixed frame 16 .

One side of the fixing frame 16 is fixedly connected with a first limiting rod 17 , the other side of the fixing frame 16 is fixedly connected with a second limiting rod 18 , and the other end of the second limiting rod 18 is fixedly connected with a blanking plate, The other side of the material plate is welded with a third limit rod, the inner wall of the box body 1 is fixedly connected with a vertically arranged partition, one side of the partition is welded with a T-shaped plate, and the T-shaped plate is fixed to the biaxial motor 2 Connection, the other side of the biaxial motor 2 is fixedly connected to the inner wall of the box body 1 through the T-shaped plate, the first pulley 4 and the second pulley 5 are connected by a belt, and the outer ring of the rotating rod 6 is fixedly connected with a rotating blade 7, The outer ring of the connecting rod 10 is fixedly connected with the rotating blade 7, the top of the box body 1 is provided with a chute, the upper part of the fixed frame 16 is welded with a slider, the slider is slidably connected with the inner wall of the chute, and the left side box of the box body 1 The wall is provided with a rod through hole, the first limit rod 17 penetrates through the rod through hole, the top inner wall of the box body 1 is fixedly connected to a limit block, the limit block is provided with a through hole, and the third limit rod penetrates through the through hole, the box The top of the body 1 is provided with a feeding port, and a feeding hopper is welded on the feeding port. A fixed pile is fixedly connected with a base under the fixed pile.

In this embodiment, the biaxial motor 2 is first started, the upper output shaft of the biaxial motor 2 rotates the rotating shaft 12, and the worm 13 rotates while the rotating shaft rotates 12, the worm 13 meshes with the toothed plate 14 for transmission, and the toothed plate 14 rotates The special-shaped plate 15 is rotated synchronously, the special-shaped plate 15 rotates and the outer ring fixed frame 16 rotates at the same time, but the fixed frame 16 will move left and right under the limiting action of the slider and the chute, and the fixed frame 16 will move left and right to move the second limit rod. 18, the blanking plate and the third limit rod are pushed left and right, and the blanking plate is pushed left and right to make the material fall evenly. At the same time, the lower output shaft of the dual-axis motor 2 rotates the fixed rod 3 and the first pulley 4, and the first pulley The two pulleys 5 rotate at the same time through the belt, the second pulley 5 rotates to rotate the rotating rod 6, the rotating blade 7 and the first bevel gear, the first bevel gear 8 meshes with the second bevel gear 9, and the second bevel gear 9 will be connected The rod 101 rotates, and the connecting rod 10 rotates to rotate the stirring rod 11 and the rotating blade 7 to mix the feed in the box 1 again.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A horizontal double spiral belt feed mixer comprises a box body (1) and is characterized in that a double-shaft motor (2) is fixedly mounted inside the box body (1), a fixing rod (3) is fixedly connected to an output shaft below the double-shaft motor (2), a first belt pulley (4) is fixedly connected to the lower portion of the fixing rod (3), a second belt pulley (5) is arranged on one side of the first belt pulley (4), a rotating rod (6) is fixedly connected to an inner ring of the second belt pulley (5), a first bevel gear (8) is fixedly connected to an outer ring of the rotating rod (6), a second bevel gear (9) is arranged above the first bevel gear (8), the first bevel gear (8) and the second bevel gear (9) are in meshed transmission, a connecting rod (10) is fixedly sleeved on the inner wall of the second bevel gear (9), and a plurality of stirring rods (11) are welded to the outer ring of the connecting rod (10) in an array, top output shaft fixedly connected with pivot (12) of biax motor (2), other end fixedly connected with worm (13) of pivot (12), the front of worm (13) is equipped with fluted disc (14), fluted disc (14) and worm (13) meshing transmission, the front fixedly connected with dysmorphism board (15) of fluted disc (14), the outer lane of dysmorphism board (15) is equipped with fixed frame (16).

2. The horizontal double-spiral belt feed mixer of claim 1, wherein a first limiting rod (17) is fixedly connected to one side of the fixing frame (16), a second limiting rod (18) is fixedly connected to the other side of the fixing frame (16), a blanking plate is fixedly connected to the other end of the second limiting rod (18), and a third limiting rod is welded to the other side of the blanking plate.

3. The horizontal double-spiral belt feed mixer as claimed in claim 1, wherein a vertically arranged partition plate is fixedly connected to the inner wall of the box body (1), a T-shaped plate is welded to one side of the partition plate and is fixedly connected with the double-shaft motor (2), and the other side of the double-shaft motor (2) is fixedly connected with the inner wall of the box body (1) through the T-shaped plate.

4. The horizontal double spiral belt feed mixer of claim 1, wherein the first belt pulley (4) is connected with the second belt pulley (5) through a belt, the outer ring of the rotating rod (6) is fixedly connected with a rotating blade (7), and the outer ring of the connecting rod (10) is fixedly connected with the rotating blade (7).

5. The horizontal double-spiral belt feed mixer of claim 2, wherein a sliding groove is formed in the top of the box body (1), a sliding block is welded above the fixing frame (16) and is connected with the inner wall of the sliding groove in a sliding manner, a rod through hole is formed in the left box wall of the box body (1), the first limiting rod (17) penetrates through the rod through hole, a limiting block is fixedly connected to the inner wall of the top of the box body (1), a through hole is formed in the limiting block, and a third limiting rod penetrates through the through hole.

6. The horizontal double-spiral belt feed mixer of claim 1, wherein a feed inlet is formed in the top of the box body (1), a feed hopper is welded on the feed inlet, a discharge outlet is welded at the bottom of the box body (1), a discharge pipe is welded on the discharge outlet, a fixing pile is welded on the bottom wall of the box body (1), and a base is fixedly connected below the fixing pile.
