Abstract
The utility model belongs to the collection dirt field, especially, industrial production dust collecting equipment, collect the dirt to current every turn and need divide many times to collect, dust collection efficiency is low, the frequent problem of manual operation, the scheme as follows now is proposed, including first backup pad, top one side of first backup pad is fixed with the second backup pad, the top lateral wall of second backup pad is fixed with the third backup pad, the top lateral wall of third backup pad is fixed with rotating electrical machines, rotating electrical machines's output shaft passes the third backup pad and is fixed with the collection platform, a plurality of first through-holes have been seted up along the circumferencial direction to the top lateral wall of collection platform, and the inside of first through-hole is provided with collects the mechanism, and one side of collecting the mechanism is provided with dust absorption mechanism. The utility model discloses can collect the dust that produces in the industrial production process and can continuously collect the processing to the dust, need not the manual work and handle the dust, collection efficiency is high, simultaneously, has avoided the manual processing operation, has improved degree of automation and convenience.
Description
Technical Field
The utility model relates to a collection dirt technical field especially relates to an industrial production dust collecting equipment.
Background
In the existing industrial production process, pollutants such as much dust and dust are often generated, the dust is often absorbed through a large fan in the conventional industrial dust collection process, the absorbed dust needs to be collected and processed uniformly, but because the dust is not processed and often floats in the air, the amount of the dust which can be collected at each time is very small, the dust collection at each time needs to be collected for many times, the dust collection efficiency is low, the manual operation is frequent, and therefore, an industrial production dust collection device is provided
SUMMERY OF THE UTILITY MODEL
The utility model provides a pair of industrial production dust collecting equipment has solved and has leaded to carrying out album dirt at every turn and need divide many times to collect, and dust collecting efficiency is low, the frequent problem of manual operation.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides an industrial production dust collecting equipment, includes first backup pad, top one side of first backup pad is fixed with the second backup pad, and the top lateral wall of second backup pad is fixed with the third backup pad, and the top lateral wall of third backup pad is fixed with rotating electrical machines, and rotating electrical machines's output shaft passes the third backup pad and is fixed with the collection platform, and a plurality of first through-holes have been seted up along the circumferencial direction to the top lateral wall of collecting the platform, and the inside of first through-hole is provided with collects the mechanism, and the one side of collecting the mechanism is provided with dust absorption mechanism, dust absorption mechanism's below is provided with tilting mechanism, the below of third backup pad is provided with dust removal.
The collecting mechanism comprises a collecting plate which is rotatably connected to the side wall of the first through hole, a collecting groove is formed in the side wall of the top end of the collecting plate in the vertical direction, a rotating shaft is fixed to the side wall of one side of the collecting plate, and a gear is fixed to the outer portion of the first through hole and extends to one end, far away from the collecting plate, of the rotating shaft.
Further, tilting mechanism is including fixing the first connecting plate in first backup pad one end, and the top of first connecting plate is fixed with the second connecting plate, and the second connecting plate is located the gear top, one side lateral wall that the second connecting plate is close to the gear has seted up first rack, one side lateral wall that the second backup pad is close to the second connecting plate is fixed with the third connecting plate of perpendicular setting, and the third connecting plate is located the top of gear, one side lateral wall that the third connecting plate is close to the gear has seted up the second rack.
Furthermore, dust absorption mechanism is including fixing the air-blower at second connecting plate top lateral wall, the air intake connection of air-blower has the air-supply line, the air outlet of air-blower is fixed with out the tuber pipe, and goes out the one end that the tuber pipe kept away from the air-blower and be located one of them directly over the collecting vat.
Furthermore, dust removal mechanism is including fixing the water storage box at third backup pad bottom lateral wall, and the bottom mounting of water storage box has the outlet pipe, is fixed with the solenoid valve on the outlet pipe, the inching switch of fixing with the water storage box bottom is installed to one side of solenoid valve, and the flexible head of inching switch is the arc structure.
Furthermore, a plurality of first fixing plates are fixed on the side wall of the top end of the collecting table along the circumferential direction, a second fixing plate is fixed at one end, away from each other, of each first fixing plate, the second fixing plate is located below the inching switch, and the number of the second fixing plates is 1:1 that of the first through holes
Furthermore, a recovery platform is fixed on the side wall of the top end of the first supporting plate, a recovery groove is formed in the side wall of the top end of the recovery platform, and the recovery groove is located right below the water outlet pipe
Furthermore, a drain pipe is fixed on the side wall of one side of the recovery tank and is communicated with the interior of the recovery tank.
Compared with the prior art, the beneficial effects of the utility model are that: due to the adoption of the technical scheme, the utility model discloses following advantage has: the second supporting plate is fixed on one side of the top end of the first supporting plate, the third supporting plate is fixed on the side wall of the top end of the second supporting plate, the rotating motor is fixed on the side wall of the top end of the third supporting plate, the output shaft of the rotating motor penetrates through the third supporting plate and is fixed with the collecting table, a plurality of first through holes are formed in the side wall of the top end of the collecting table in the circumferential direction, the collecting mechanism is arranged inside the first through holes, the dust collecting mechanism is arranged on one side of the collecting mechanism, the turnover mechanism is arranged below the dust collecting mechanism, the dust removing mechanism is arranged below the third supporting plate, dust generated in the industrial production process can be collected, the dust can be continuously collected, manual dust treatment is not needed, the collecting efficiency is high, meanwhile, manual treatment operation is avoided, and the automation degree and convenience are improved;
additional advantages, objects, and features of the invention will be set forth in part in the description which follows and in part will become apparent to those having ordinary skill in the art upon examination of the following or may be learned from practice of the invention. The objectives and other advantages of the present invention will be realized and attained by the structure particularly pointed out in the written description and claims hereof.
Drawings

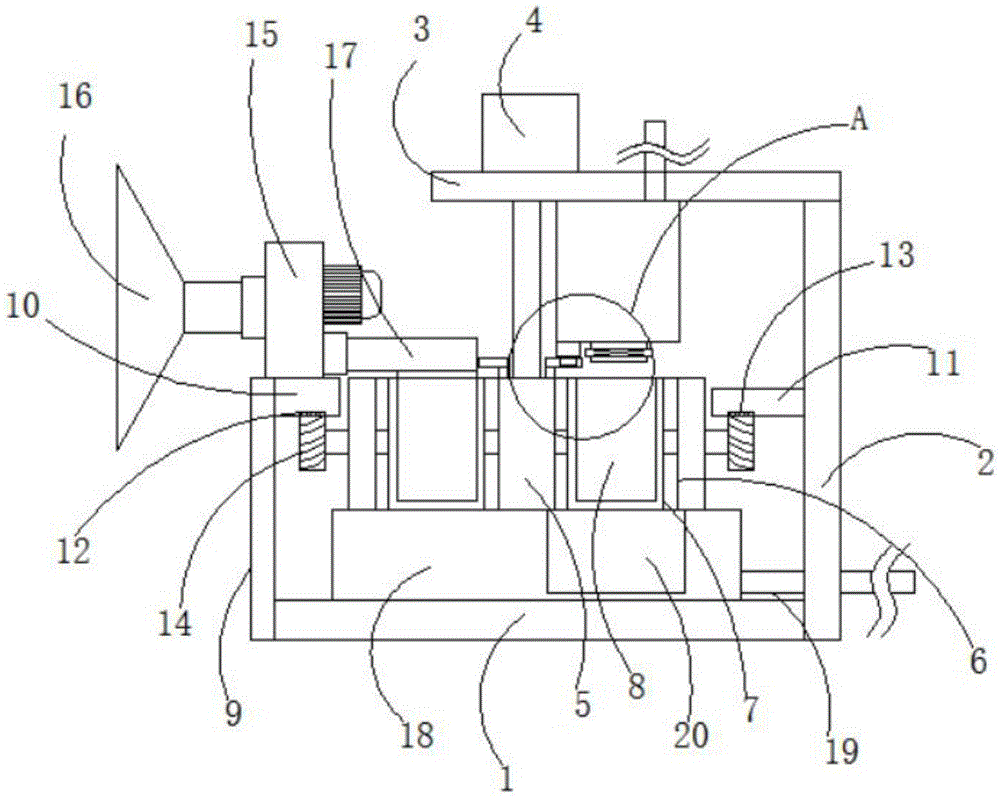

Fig. 1 is a schematic structural diagram of an industrial production dust collecting device provided by the utility model.
Fig. 2 is a schematic view of the gear and second rack engaging structure of the industrial dust collecting device of the present invention.
Fig. 3 is a schematic view of the second fixing plate and the inching switch of the dust collecting device for industrial production in a press fit structure.
Fig. 4 is an enlarged schematic structural diagram of a part a of an industrial production dust collecting device according to the present invention.
Fig. 5 is a top view of a collecting table structure of an industrial dust collecting device according to the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-5, an industrial production dust collecting device comprises a first supporting plate 1, a second supporting plate 2 is fixed on one side of the top end of the first supporting plate 1, a third supporting plate 3 is fixed on the side wall of the top end of the second supporting plate 2, a rotating motor 4 is fixed on the side wall of the top end of the third supporting plate 3, a collecting table 5 is fixed on an output shaft of the rotating motor 4 through the third supporting plate 3, a plurality of first through holes 6 are formed in the side wall of the top end of the collecting table 5 along the circumferential direction, a collecting mechanism is arranged inside the first through holes 6, a dust collecting mechanism is arranged on one side of the collecting mechanism, a turnover mechanism is arranged below the dust collecting mechanism, and a dust removing mechanism is arranged below the third supporting plate 3.
The collecting mechanism comprises a collecting plate 7 which is rotatably connected to the side wall of the first through hole 6, a collecting groove 8 is formed in the side wall of the top end of the collecting plate 7 in the vertical direction, a rotating shaft is fixed to the side wall of one side of the collecting plate 7, and a gear 14 is fixed to the outer portion of the first through hole 6 and extends to one end, far away from the collecting plate 7, of the rotating shaft.
It is worth to say that the turnover mechanism includes the first connecting plate 9 fixed at one end of the first supporting plate 1, the top end of the first connecting plate 9 is fixed with the second connecting plate 10, the second connecting plate 10 is located above the gear 14, the side wall of one side of the second connecting plate 10 close to the gear 14 is provided with the first rack 12, the side wall of one side of the second supporting plate 2 close to the second connecting plate 10 is fixed with the third connecting plate 11 that is vertically arranged, the third connecting plate 11 is located above the gear 14, and the side wall of one side of the third connecting plate 11 close to the gear 14 is provided with the second rack 13.
It is worth to say that the dust collection mechanism includes the air-blower 15 fixed at the top end lateral wall of the second connecting plate 10, the air intake of the air-blower 15 is connected with the air inlet pipe 16, the air outlet of the air-blower is fixed with the air outlet pipe 17, and one end of the air outlet pipe 17 far away from the air-blower 15 is located directly above one of the collecting grooves 8, and the bottom air outlet of the air outlet pipe is located directly above the collecting groove, and the distance between the bottom air outlet of the air outlet pipe and the notch of the collecting groove is.
It is worth to say that the dust removal mechanism includes the water storage tank 21 fixed at the bottom end lateral wall of the third supporting plate 3, the bottom end of the water storage tank 21 is fixed with the outlet pipe 22, the outlet pipe 22 is fixed with the electromagnetic valve 23, one side of the electromagnetic valve 23 is installed with the inching switch 24 switch fixed with the bottom of the water storage tank 21, and the telescopic head of the inching switch 24 is of an arc structure.
It should be noted that a plurality of first fixing plates 25 are fixed on the top side wall of the collecting table 5 along the circumferential direction, a second fixing plate 26 is fixed on one end of each first fixing plate 25 away from each other, the second fixing plate 26 is located below the jog switch 24, and the number of the second fixing plates 26 is 1:1 matched with that of the first through holes 6.
It should be noted that a recycling table 18 is fixed on the top side wall of the first supporting plate 1, a recycling groove 20 is formed on the top side wall of the recycling table 18, and the recycling groove 20 is located right below the water outlet pipe 22.
It should be noted that a drain pipe 19 is fixed on one side wall of the recovery tank 20, the drain pipe 19 is communicated with the interior of the recovery tank 20, the other end of the drain pipe is communicated with the existing water source filtering and purifying device, and the purified water source enters the water storage tank again for recycling.
The working principle is as follows: by starting the air blower 15, under the action of the air blower 15, external dust enters from the horn-shaped air inlet pipe 16 and then enters the collecting tank 8 from the air outlet pipe 17, the rotating motor 4 is started, the rotating motor 4 drives the collecting table 5 to rotate, the collecting table 5 drives the collecting plates 7 to rotate, so that the collecting plates 7 drive the collected dust to move, when the collecting plates 7 move to the position below the water outlet pipe 22, the second fixing plate 26 extrudes the arc-shaped surface of the inching switch 24, the inching switch 24 opens the electromagnetic valve 23, so that the water source flows into the collecting tank 8 below the water outlet pipe 22, the dust in the collecting tank 8 is removed, when the collecting plates 7 move out of the position under the water outlet pipe 22, the gear 14 is meshed with the second rack 13, so that the collecting plates 7 are overturned, the dust flows into the collecting tank 20 along with the water source, and finally the water source with the dust is discharged into a next processing point for filtering and, make the water source after filtering recovery processing get into water storage box 21 once more inside, carry out cyclic utilization, when this gear 14 meshes with first rack 12, make collecting plate 7 overturn once more, make collecting vat 8's notch up, this design is simple swift, can collect the dust that produces in the industrial production process and can continuously collect the processing to the dust, need not the manual work and handle the dust, collection efficiency is high, and simultaneously, the manual handling operation has been avoided, degree of automation and convenience have been improved.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. An industrial production dust collecting device comprises a first supporting plate and is characterized in that a second supporting plate is fixed on one side of the top end of the first supporting plate, a third supporting plate is fixed on the side wall of the top end of the second supporting plate, a rotating motor is fixed on the side wall of the top end of the third supporting plate, a collecting table is fixed on an output shaft of the rotating motor and penetrates through the third supporting plate, a plurality of first through holes are formed in the side wall of the top end of the collecting table along the circumferential direction, a collecting mechanism is arranged inside the first through holes, a dust collecting mechanism is arranged on one side of the collecting mechanism, a turnover mechanism is arranged below the dust collecting mechanism, a dust removing mechanism is arranged below the third supporting plate,
the collecting mechanism comprises a collecting plate which is rotatably connected to the side wall of the first through hole, a collecting groove is formed in the side wall of the top end of the collecting plate in the vertical direction, a rotating shaft is fixed to the side wall of one side of the collecting plate, and a gear is fixed to the outer portion of the first through hole and extends to one end, far away from the collecting plate, of the rotating shaft.
2. The industrial production dust collecting equipment of claim 1, wherein the turnover mechanism comprises a first connecting plate fixed at one end of a first supporting plate, a second connecting plate is fixed at the top end of the first connecting plate, the second connecting plate is positioned above the gear, a first rack is arranged on one side wall of the second connecting plate close to the gear, a third connecting plate vertically arranged is fixed on one side wall of the second supporting plate close to the second connecting plate, the third connecting plate is positioned above the gear, and a second rack is arranged on one side wall of the third connecting plate close to the gear.
3. The industrial production dust collecting device of claim 1, wherein the dust suction mechanism comprises an air blower fixed on the side wall of the top end of the second connecting plate, an air inlet of the air blower is connected with an air inlet pipe, an air outlet pipe is fixed on an air outlet of the air blower, and one end of the air outlet pipe, which is far away from the air blower, is located right above one of the collecting tanks.
4. The industrial production dust collecting device of claim 1, wherein the dust removing mechanism comprises a water storage tank fixed on the side wall of the bottom end of the third support plate, a water outlet pipe is fixed at the bottom end of the water storage tank, an electromagnetic valve is fixed on the water outlet pipe, a jog switch fixed with the bottom of the water storage tank is installed on one side of the electromagnetic valve, and a telescopic head of the jog switch is of an arc-shaped structure.
5. The industrial production dust collecting device of claim 1, wherein a plurality of first fixing plates are fixed on the top side wall of the collecting table along the circumferential direction, a second fixing plate is fixed on one end, away from each other, of the first fixing plates, the second fixing plate is located below the inching switch, and the number of the second fixing plates is 1:1 that of the first through holes.
6. The industrial production dust collecting device of claim 1, wherein the top side wall of the first supporting plate is fixed with a recovery platform, the top side wall of the recovery platform is provided with a recovery groove, and the recovery groove is located right below the water outlet pipe.
7. The industrial production dust collecting device of claim 6, wherein a drain pipe is fixed to one side wall of the recycling tank, and the drain pipe is communicated with the inside of the recycling tank.
