Abstract
The utility model discloses a two-sided packing plant of winding displacement, include the host computer cabinet and fix and get material module, two-sided pad pasting module, unloading on host computer cabinet top and pile up the module and receive the material module with the dyestripping, get material module and unloading and pile up the module and locate respectively both ends about two-sided pad pasting module, the dyestripping is received the material module and is located the front side of two-sided pad pasting module is got the material module and is included getting material cylinder, sucking disc, get material frame, slide rail and driving motor, and two-sided pad pasting module includes pay-off gyro wheel, pad pasting platform, lower membrane roller, goes up the membrane roller, the unloading is piled up the module and is included stacking plate and lift cylinder, the dyestripping is received the material module and is included rotating electrical machines, synchronizing wheel, belt, arm-tie, waste material box, fixed station and linear guide, the pilot pin is. The utility model discloses a many materials are arranged and are absorb and tear mould technique utilizes the thin characteristics of material, once only compresses tightly pad pasting encapsulation mode from top to bottom, and the automatic sheet stock of unloading piles up, and whole realization is automatic, and is efficient.
Description
Technical Field
The utility model relates to a winding displacement pad pasting encapsulates technical field, particularly, relates to a two-sided packing plant of winding displacement.
Background
After the flat cables of the small and medium-sized sheet materials in industrial production are uniformly distributed and arranged, the flat cables need to be taken down from the original centrifugal film and then are packaged by sticking the protective films up and down again. The difficulty of rearrangement is very large when the large-area sheet materials are manually taken down, and the packaging quality is difficult to ensure by film pasting.
An effective solution to the problems in the related art has not been proposed yet.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a two-sided packing plant of winding displacement to keep current winding displacement mode of arranging, automatic encapsulation and automatic unloading of piling up are realized to rapid and stable's encapsulation equipment.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a two-sided packing plant of winding displacement, includes the host computer cabinet and fixes getting material module, two-sided pad pasting module, unloading on host computer cabinet top and pile up the module and receive the material module with the dyestripping, get material module and unloading and pile up the module and locate respectively both ends about two-sided pad pasting module, the dyestripping is received the material module and is located the front side of two-sided pad pasting module, get the material module including getting material cylinder, sucking disc, getting the work or material rest, slide rail and driving motor, two-sided pad pasting module includes pay-off gyro wheel, pad pasting platform, lower membrane roller, goes up the membrane roller, the unloading is piled up the module and is included stacking plate and lift cylinder, the dyestripping is received the material module and is included rotating electrical machines, synchronizing wheel, belt, arm-tie, waste material box, fixed station and linear guide, the pilot.
Furthermore, one end of the material taking frame is connected with the slide rail in a sliding manner, the driving motor is connected with the material taking frame in a driving manner, one end of the material taking frame is connected with a material taking plate in a sliding manner, the material taking frame is provided with a material taking cylinder with an output end fixed with the material taking plate, and a sucking disc is arranged at the bottom of the material taking plate.
Further, tensioning roll connection between lower membrane roller and the last membrane roller of two-sided pad pasting module, the one end at two-sided pad pasting module is installed to the pay-off gyro wheel, go up the membrane roller with pay-off gyro wheel roll connection, the internally mounted of mainframe cabinet has the drive pay-off gyro wheel pivoted pad pasting motor and cuts out the membrane motor.
Furthermore, the output end of the lifting cylinder of the blanking stacking module is fixedly connected with the stacking plate, and one end of the stacking plate is in butt joint with one end of the feeding roller.
Furthermore, the output end of a rotating motor of the film tearing and collecting module is fixedly connected with the synchronizing wheels, the synchronizing wheels are connected through belt tensioning, a linear guide rail is installed at the top of the film tearing and collecting module, the top end of the linear guide rail is connected with a pulling plate connected with the belt in a sliding mode, and a needle matched with a waste hole of the flat cable sheet material is arranged at the bottom of one end of the pulling plate.
Compared with the prior art, the utility model discloses following beneficial effect has:
(1) the utility model discloses a many materials are arranged and are absorb and tear mould technique utilizes the thin characteristics of material, once only compresses tightly pad pasting encapsulation mode from top to bottom, and the automatic sheet stock of unloading piles up, and whole realization is automatic, and is efficient.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

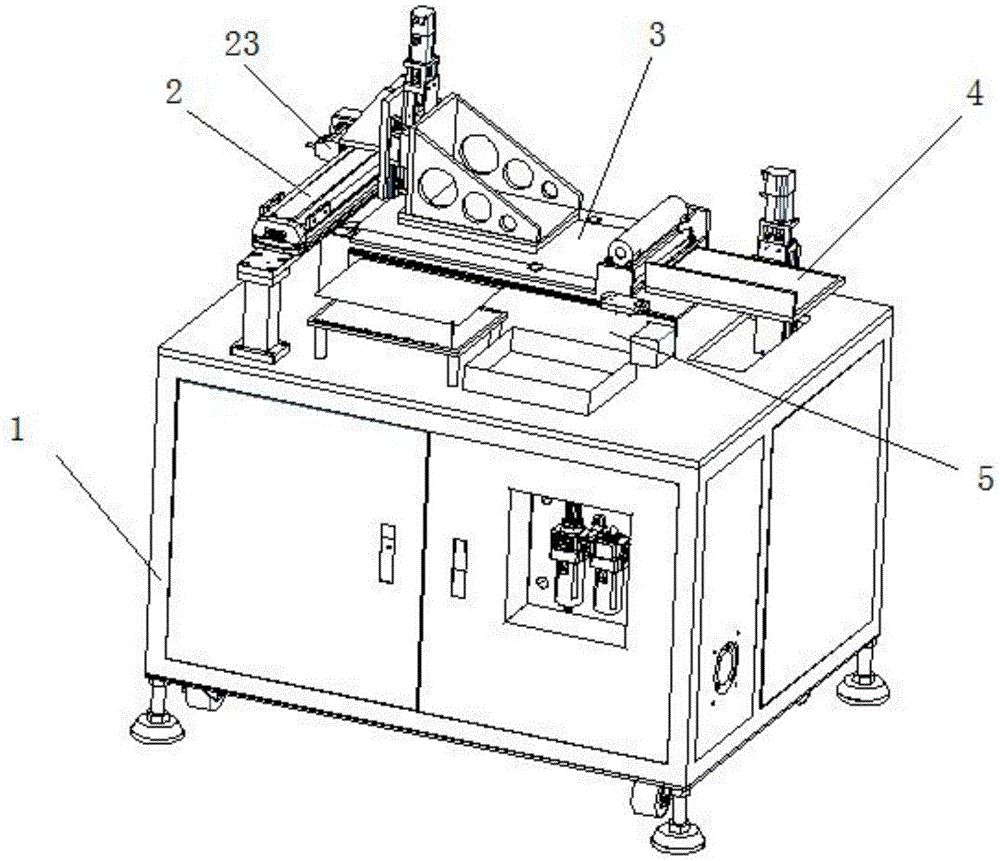

Fig. 1 is a schematic structural diagram of a flat cable double-sided packaging device according to an embodiment of the present invention.
Fig. 2 is a schematic structural view of a material-fetching module of a flat cable double-sided packaging device according to an embodiment of the present invention.
Fig. 3 is a schematic structural view of a double-sided film pasting module of a flat cable double-sided packaging device according to an embodiment of the present invention.
Fig. 4 is a schematic structural view of a blanking stacking module of a flat cable double-sided packaging device according to an embodiment of the present invention.
Fig. 5 is a schematic structural view of a film tearing and collecting module of a flat cable double-sided packaging device according to an embodiment of the present invention.
Reference numerals:
1. a main cabinet; 2. a material taking module; 3. a double-sided film pasting module; 4. a blanking stacking module; 5. a film tearing and receiving module; 6. a rotating electric machine; 7. a synchronizing wheel; 8. a belt; 9. pulling a plate; 10. a waste material box; 11. a fixed table; 12. stacking the plates; 13. a lifting cylinder; 14. a linear guide rail; 15. a feeding roller; 16. a film pasting table; 17. a film feeding roller; 18. a film feeding roller; 19. a material taking cylinder; 20. a suction cup; 21. a material taking frame; 22. a slide rail; 23. a drive motor; 24. a positioning pin; 25. and (6) taking a material plate.
Detailed Description
The following, with reference to the drawings and the detailed description, further description of the present invention is made:
please refer to fig. 1-5, according to the embodiment of the present invention, a flat cable double-sided packaging apparatus comprises a main cabinet 1, a material taking module 2, a double-sided film sticking module 3, a blanking stacking module 4 and a film tearing and collecting module 5 fixed on the top of the main cabinet 1, wherein the material taking module 2 and the blanking stacking module 4 are respectively disposed at the left and right ends of the double-sided film sticking module 3, the film tearing and collecting module 5 is disposed at the front side of the double-sided film sticking module 3, the material taking module 2 comprises a material taking cylinder 19, a suction cup 20, a material taking frame 21, a slide rail 22 and a driving motor 23, the double-sided film sticking module 3 comprises a material feeding roller 15, a film sticking table 16, a lower film roller 17 and an upper film roller 18, the blanking stacking module 4 comprises a stacking plate 12 and a lifting cylinder 13, the film tearing and collecting module 5 comprises a rotating motor 6, a synchronizing wheel 7, a belt 8, The waste material box 10, the fixed platform 11 and the linear guide rail 14, and a positioning pin 24 is installed on the top of the fixed platform 11.
According to the above scheme of this embodiment, one end of the material taking frame 21 is slidably connected to the slide rail 22, the driving motor 23 is drivingly connected to the material taking frame 21, one end of the material taking frame 21 is slidably connected to the material taking plate 25, the material taking cylinder 19 with an output end fixed to the material taking plate 25 is installed on the material taking frame 21, and the suction cup 20 is installed at the bottom of the material taking plate 25.
According to the above-mentioned scheme of this embodiment, tensioning roll connection between lower membrane roller 17 and the last membrane roller 18 of two-sided pad pasting module 3, the one end at two-sided pad pasting module 3 is installed to pay-off gyro wheel 15, go up membrane roller 18 with pay-off gyro wheel 15 roll connection, the internally mounted of host computer cabinet 1 has the drive pay-off gyro wheel 15 pivoted pad pasting motor and cuts out the membrane motor.
According to the above scheme of this embodiment, the output end of the lifting cylinder 13 of the blanking stacking module 4 is fixedly connected to the stacking plate 12, and one end of the stacking plate 12 is butted with one end of the feeding roller 15.
According to the above scheme of this embodiment, the output end of the rotating motor 6 of the film tearing and collecting module 5 is fixedly connected with the synchronizing wheel 7, the synchronizing wheel 7 is connected with the belt 8 in a tensioning manner, the top of the film tearing and collecting module 5 is provided with the linear guide rail 14, the top end of the linear guide rail 14 is slidably connected with the pulling plate 9 connected with the belt 8, and the bottom of one end of the pulling plate 9 is provided with a needle adapted to the waste hole of the flat cable sheet material.
Specifically, the flat cable is fixed through a positioning pin 24, a driving motor 23 drives a material taking frame 21 to move on a slide rail 22 to one end of a fixed table 11, a material taking cylinder 19 drives a material taking plate 25 to move downwards, a sucker 20 below the material taking plate 25 sucks the flat cable under the action of air pressure of the cylinder, when the flat cable is sucked, the pin on the pulling plate 9 is inserted into a waste hole through a pulling plate 9, a rotating motor 6 rotates, a belt 8 rotates, the pulling plate 9 moves along with the belt 8 to tear off a centrifugal film, then the driving motor 23 drives the material taking frame 21 to one end of a double-sided film sticking module 3, the material taking cylinder 19 drives the material taking plate 25 to move downwards, the material taking cylinder 19 controls the sucker to detach the flat cable, a lower film roller 17 and an upper film roller 18 simultaneously carry out upper and lower double-sided film sticking on the flat cable under the drive of a feeding roller 15, the feeding roller 15 is driven by a film sticking motor, and the film, after the film is cut, the flat cable pasted with the film rolls onto the stacking plate 12 from one end of the feeding roller 15, and the lifting cylinder 13 drives the stacking plate 12 to move downwards for a certain distance, so that automatic stacking is realized.
In the description of the present invention, it should be noted that the terms "top", "bottom", "one side", "the other side", "front", "back", "middle part", "inside", "top", "bottom", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, which is only for the convenience of description and simplification of the description, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. A flat cable double-sided packaging device is characterized by comprising a main cabinet (1), and a material taking module (2), a double-sided film pasting module (3), a discharging stacking module (4) and a film tearing and collecting module (5) which are fixed at the top end of the main cabinet (1), wherein the material taking module (2) and the discharging stacking module (4) are respectively arranged at the left end and the right end of the double-sided film pasting module (3), the film tearing and collecting module (5) is arranged at the front side of the double-sided film pasting module (3), the material taking module (2) comprises a material taking cylinder (19), a sucker (20), a material taking frame (21), a slide rail (22) and a driving motor (23), the double-sided film pasting module (3) comprises a feeding roller (15), a film pasting table (16), a lower film roller (17) and an upper film roller (18), the discharging stacking module (4) comprises a stacking plate (12) and a lifting cylinder (13), tear film and receive material module (5) and include rotating electrical machines (6), synchronizing wheel (7), belt (8), arm-tie (9), waste material box (10), fixed station (11) and linear guide (14), pilot pin (24) are installed at the top of fixed station (11).
2. The flat cable double-sided packaging device according to claim 1, wherein one end of the material taking frame (21) is slidably connected with a slide rail (22), the driving motor (23) is connected with the material taking frame (21) in a driving manner, one end of the material taking frame (21) is slidably connected with a material taking plate (25), the material taking frame (21) is provided with a material taking cylinder (19) of which the output end is fixed with the material taking plate (25), and a sucking disc (20) is arranged at the bottom of the material taking plate (25).
3. The flat cable double-sided packaging device according to claim 1, wherein a lower film roller (17) and an upper film roller (18) of the double-sided film sticking module (3) are connected in a tensioning rolling manner, the feeding roller (15) is installed at one end of the double-sided film sticking module (3), the upper film roller (18) is connected with the feeding roller (15) in a rolling manner, and a film sticking motor and a film cutting motor for driving the feeding roller (15) to rotate are installed inside the main cabinet (1).
4. The flat cable double-sided packaging device according to claim 1, wherein the output end of the lifting cylinder (13) of the blanking stacking module (4) is fixedly connected with a stacking plate (12), and one end of the stacking plate (12) is butted with one end of the feeding roller (15).
5. The flat cable double-sided packaging device according to claim 1, wherein the output end of the rotating motor (6) of the film tearing and collecting module (5) is fixedly connected with the synchronizing wheel (7), the synchronizing wheel (7) is connected with the belt (8) in a tensioning manner, the top of the film tearing and collecting module (5) is provided with a linear guide rail (14), the top end of the linear guide rail (14) is slidably connected with a pulling plate (9) connected with the belt (8), and the bottom of one end of the pulling plate (9) is provided with a needle matched with the waste hole of the flat cable.
