The utility model discloses a lotus root is planted with spouting medicine device, including base and compounding case, compounding case fixed mounting be in the one end at base top, the other end at base top is provided with two bearings, the other end at base top is through two bearing movable mounting has movable lead screw and gag lever post, the inside one end fixed mounting of base has second driving motor, the bottom of activity lead screw is passed through the bearing with second driving motor's output fixed connection, cup joint on the gag lever post and install spacing sliding sleeve, cup joint on the activity lead screw and install the interior thread bush, spacing sliding sleeve with be provided with first connecting block between the interior thread bush, spacing sliding sleeve with pass through between the interior thread bush first connecting block fixed connection. The utility model discloses a set up a series of structures and make this device have be convenient for remove and can adjust the characteristics that spray fertilizer according to the lotus pool degree of depth to the outlet pipe.

Description

Lotus root is planted with spouting medicine device

Technical Field

The utility model relates to a lotus root planting technical field specifically is a lotus root is planted with spouting medicine device.

Background

The lotus root is native to India and is transferred into China very early. Nelumbo nucifera belongs to Magnoliaceae, Shanlongye. Preferring warm, not able to endure yin, not suitable for water deficiency and strong wind. The lotus root is slightly sweet and crisp, can be eaten as raw food or used as a vegetable, has high medicinal value, and can be used as a medicine for nourishing if the root, the leaf, the flower whisker and the fruit are not precious. The lotus root is made into powder, can digest and stop diarrhea, whet the appetite and clear heat, nourish and nourish the sex, prevent internal bleeding, and is good liquid food and nourishing good treasure for women, children and children old woman and the weak and sick people. Lotus root, rhizoma Nelumbinis, is the enlarged rhizome of underground lotus, and can be eaten. The lotus field is mainly used for cultivating lotus roots in marshland, which is a kind of water eight immortals and is produced in Hubei China.

Lotus root is at the in-process of actual production, in order to improve the effect of its planting and the efficiency of production, generally need to spray fertilizer and liquid medicine deinsectization etc. to the lotus root, but because the characteristic of its growth of lotus root, the fertilization difficulty, when later stage is executed and is spilt the additional fertilizer, directly spread from the surface of water, the process that reaches the root system is slow, the fertilizer efficiency is slow, the growth rate of direct influence lotus root, and the intensity of labour of fertilization process peasant household is big, consequently, we have proposed a kind of lotus root is planted with spouting medicine device solution problem in order to solve this a series of problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a lotus root is planted with spouting medicine device to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a medicine spraying device for lotus root planting comprises a base and a mixing box, wherein the mixing box is fixedly arranged at one end of the top of the base, the other end of the top of the base is provided with two bearings, the other end of the top of the base is movably provided with a movable lead screw and a limiting rod through the two bearings, one end inside the base is fixedly provided with a second driving motor, the bottom end of the movable lead screw is fixedly connected with the output end of the second driving motor through the bearings, the limiting rod is sleeved with a limiting sliding sleeve, the movable lead screw is sleeved with an internal thread sleeve, a first connecting block is arranged between the limiting sliding sleeve and the internal thread sleeve, the limiting sliding sleeve is fixedly connected with the internal thread sleeve through the first connecting block, and one side of the internal thread sleeve, which is far away from the limiting sliding sleeve, is welded with a second connecting block, the utility model discloses a mixing box, including the internal thread cover, the internal thread cover is connected with the water pump, the second connecting block is kept away from the one end welding of internal thread cover has the mounting bracket, fixed mounting has the sump on the mounting bracket, the bottom of sump is provided with two pipeline fixed covers, the bottom of sump is passed through the fixed cover fixed mounting of pipeline has the outlet pipe, the one end fixed mounting of outlet pipe has the shower nozzle, the inside bottom fixed mounting of compounding case has the water pump, one side fixed mounting of water pump has the pipe that absorbs water, the opposite side fixed mounting of water pump has the drain pipe, the one end of drain pipe is passed through the fixed cover of pipeline is connected with the water hose.

Preferably, the middle position department fixed mounting at compounding case top has a drive motor, a drive motor's output passes through bearing movable mounting has a pivot, the pivot is located the inside of compounding case, just the puddler has all been welded to the both sides of pivot.

Preferably, four equal fixed mounting in ends of base bottom have the removal wheel installed part, the bottom movable mounting who removes the wheel installed part has the removal wheel.

Preferably, the surface of the spray head is provided with a plurality of spray holes.

Preferably, a feeding pipe is fixedly installed at one end of the top of the mixing box.

Preferably, the top ends of the limiting rod and the movable screw rod are provided with limiting blocks.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model has scientific and reasonable structure, safe and convenient use, convenient movement of the device through the moving wheel, fertilizer feeding into the mixing box from the feeding pipe, water feeding, and first driving motor control, so as to mix materials, then the liquid medicine is conveyed to the water bin by controlling the water pump and then is sprayed out by the water outlet pipe and the spray head, and by controlling the second driving motor, the movable screw rod can rotate, the movable screw rod drives the internal thread sleeve to rotate, the internal thread sleeve is fixedly connected with the limiting sliding sleeve through the first connecting block, so that the internal thread sleeve can not rotate along with the rotation of the movable screw rod and can only move up and down on the movable screw rod, and then the mounting frame is driven to move up and down, so that the water outlet pipe can move down, and can be submerged into the lotus pond according to the depth of the lotus pond, so that the spray head is positioned at the bottom of the river, and the process that the fertilizer reaches the root system can be effectively accelerated.

Drawings

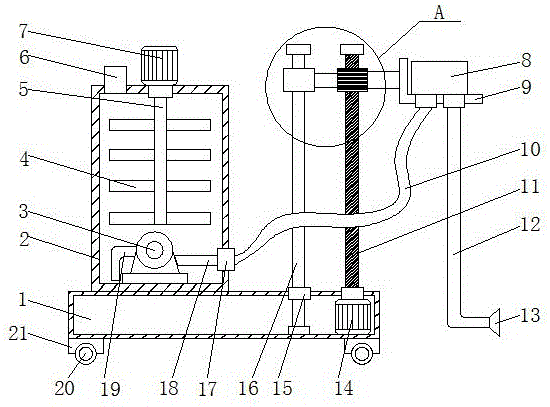

Fig. 1 is a schematic structural view of the whole of the present invention;

FIG. 2 is a schematic structural view of the bottom surface of the nozzle of the present invention;

fig. 3 is an enlarged view of a portion a in fig. 1 according to the present invention.

In the figure: 1. a base; 2. a mixing box; 3. a water pump; 4. a stirring rod; 5. a rotating shaft; 6. a feed tube; 7. a first drive motor; 8. a water sump; 9. a mounting frame; 10. a water delivery hose; 11. a movable screw rod; 12. a water outlet pipe; 13. a spray head; 14. a second drive motor; 15. a bearing; 16. a limiting rod; 17. a pipeline fixing sleeve; 18. a drain pipe; 19. a suction pipe; 20. a moving wheel; 21. a moving wheel mount; 22. spraying a hole; 23. a limiting sliding sleeve; 24. an internal thread sleeve; 25. a first connection block; 26. a second connecting block; 27. and a limiting block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a technical scheme of a drug spraying device for lotus root planting comprises a base 1 and a material mixing box 2, wherein the material mixing box 2 is fixedly arranged at one end of the top of the base 1, the other end of the top of the base 1 is provided with two bearings 15, the other end of the top of the base 1 is movably provided with a movable screw rod 11 and a limiting rod 16 through the two bearings 15, one end of the inside of the base 1 is fixedly provided with a second driving motor 14, the bottom end of the movable screw rod 11 is fixedly connected with the output end of the second driving motor 14 through the bearings 15, the limiting rod 16 is sleeved with a limiting sliding sleeve 23, the movable screw rod 11 is sleeved with an internal thread sleeve 24, a first connecting block 25 is arranged between the limiting sliding sleeve 23 and the internal thread sleeve 24, the limiting sliding sleeve 23 is fixedly connected with the internal thread sleeve 24 through the first connecting block 25, one side of the internal thread sleeve 24, which is far away from the limiting sliding sleeve 23, fixed mounting has sump 8 on mounting bracket 9, the bottom of sump 8 is provided with the fixed cover 17 of two pipelines, there is outlet pipe 12 bottom of sump 8 through the fixed cover 17 fixed mounting of pipeline, the one end fixed mounting of outlet pipe 12 has shower nozzle 13, the inside bottom fixed mounting of blending box 2 has water pump 3, one side fixed mounting of water pump 3 has the pipe 19 that absorbs water, the opposite side fixed mounting of water pump 3 has drain pipe 18, the one end of drain pipe 18 is connected with water hose 10 through the fixed cover 17 of pipeline, water hose 10's the other end passes through the inside intercommunication of the fixed cover 17 of pipeline and sump 8.

Preferably, the middle position department fixed mounting at mixing box 2 top has first driving motor 7, and there is pivot 5 first driving motor 7's output through bearing 15 movable mounting, and pivot 5 is located mixing box 2's inside, and the puddler 4 has all been welded to the both sides of pivot 5, is convenient for mix the stirring to mixing box 2's inside.

Preferably, four ends of base 1 bottom all fixed mounting have and remove wheel installed part 21, and the bottom movable mounting that removes wheel installed part 21 has removal wheel 20 for this device is convenient for remove.

Preferably, the surface of the nozzle 13 is provided with a plurality of nozzles 22, so that the nozzle 13 has good spraying effect.

Preferably, a feeding pipe 6 is fixedly arranged at one end of the top of the mixing box 2, so that fertilizer can be conveniently added into the mixing box 2.

Preferably, the top ends of the limiting rod 16 and the movable screw rod 11 are both provided with a limiting block 27, so that the internal thread sleeve 24 and the limiting sliding sleeve 23 are prevented from being separated from the rod when moving.

The working principle is as follows: firstly checking the safety of each structure of the device, then moving the device to a boat of a lotus root planting lotus pond, adding fertilizer into the interior of a mixing box 2 from a feed pipe 6, adding water, mixing materials by controlling a first driving motor 7, then conveying liquid medicine to a water bin 8 by controlling a water pump 3, spraying out the liquid medicine through a water outlet pipe 12 and a spray head 13, and controlling a second driving motor 14 to rotate a movable screw rod 11 so that the movable screw rod 11 drives an internal thread sleeve 24 to rotate, and the internal thread sleeve 24 is fixedly connected with a limiting sliding sleeve 23 through a first connecting block 25, so that the internal thread sleeve 24 can not rotate along with the rotation of the movable screw rod 11, can only move up and down on the movable screw rod 11, and further drives a mounting frame 9 to move up and down the water outlet pipe 12, and the water outlet pipe 12 can be submerged into the lotus pond according to the depth of the lotus pond, so that the spray head 13 is positioned at the bottom of the river, thereby effectively accelerating the process that the fertilizer reaches the root system.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a lotus root is planted with spouting medicine device, includes base (1) and mixing box (2), its characterized in that: the mixing box (2) is fixedly arranged at one end of the top of the base (1), the other end of the top of the base (1) is provided with two bearings (15), the other end of the top of the base (1) is movably provided with a movable screw rod (11) and a limiting rod (16) through the two bearings (15), one end of the interior of the base (1) is fixedly provided with a second driving motor (14), the bottom end of the movable screw rod (11) is fixedly connected with the output end of the second driving motor (14) through the bearings (15), the limiting rod (16) is sleeved with a limiting sliding sleeve (23), the movable screw rod (11) is sleeved with an internal thread sleeve (24), a first connecting block (25) is arranged between the limiting sliding sleeve (23) and the internal thread sleeve (24), and the limiting sliding sleeve (23) is fixedly connected with the internal thread sleeve (24) through the first connecting block (25), the utility model discloses a water mixing device, including inner thread sleeve (24), spacing sliding sleeve (23), mounting bracket (9), fixed mounting has sump (8) on mounting bracket (9), the bottom of sump (8) is provided with two fixed covers of pipeline (17), the bottom of sump (8) is passed through the fixed cover of pipeline (17) fixed mounting has outlet pipe (12), the one end fixed mounting of outlet pipe (12) has shower nozzle (13), the inside bottom fixed mounting of blending box (2) has water pump (3), one side fixed mounting of water pump (3) has water absorption pipe (19), the opposite side fixed mounting of water pump (3) has drain pipe (18), the one end of drain pipe (18) is passed through the fixed cover of pipeline (17) is connected with water hose (10), the other end of the water delivery hose (10) is communicated with the interior of the water sump (8) through the pipeline fixing sleeve (17).

2. The pesticide spraying device for lotus root planting according to claim 1, wherein: the utility model discloses a mixer, including mixing box (2), bearing (15), pivot (5), the intermediate position department fixed mounting at mixing box (2) top has a driving motor (7), the output of a driving motor (7) passes through bearing (15) movable mounting has pivot (5), pivot (5) are located the inside of mixing box (2), just puddler (4) have all been welded to the both sides of pivot (5).

3. The pesticide spraying device for lotus root planting according to claim 1, wherein: four equal fixed mounting in ends of base (1) bottom have removal wheel installed part (21), the bottom movable mounting that removes wheel installed part (21) has removal wheel (20).

4. The pesticide spraying device for lotus root planting according to claim 1, wherein: the surface of the spray head (13) is provided with a plurality of spray holes (22).

5. The pesticide spraying device for lotus root planting according to claim 1, wherein: one end at the top of the mixing box (2) is fixedly provided with a feeding pipe (6).

6. The pesticide spraying device for lotus root planting according to claim 1, wherein: the top ends of the limiting rod (16) and the movable screw rod (11) are provided with limiting blocks (27).
