CN211139737U

CN211139737U - Feeding device of filling machine

Info

Publication number: CN211139737U
Application number: CN201922190857.5U
Authority: CN
Inventors: 朱国亮
Original assignee: Changzhou Xianfei Packing Equipment Technology Co ltd
Current assignee: Changzhou Xianfei Packing Equipment Technology Co ltd
Priority date: 2019-12-09
Filing date: 2019-12-09
Publication date: 2020-07-31
Anticipated expiration: 2029-12-09

Abstract

The utility model discloses a feed arrangement of liquid filling machine, including the feeding jar, bolt fixedly connected with support frame is passed through at the top of feeding jar, the inside bottom central point department of position of support frame is through bolt fixedly connected with cylinder, the one end of cylinder is connected with the piston rod through the telescopic link, the one end welding of piston rod has the piston, the top embedding of piston has inlet pipe and overflow pipe, the inlet pipe is located one side of overflow pipe, and the top welding of inlet pipe has the feeder hopper. This feed arrangement of liquid filling machine can be with the air escape in the feed arrangement through the lift of piston, it is inhomogeneous to avoid the air to mix to cause follow-up feeding in the canning material, the coarse problem of canning volume, improve feed arrangement's feeding quality and precision, the feeding that feeds through first auger of pivoted and second auger for the canning material provides power, avoids the problem that the canning material blockked up when guaranteeing that feed rate is even, improves feed arrangement's feeding smoothness nature.

Description

Feeding device of filling machine

Technical Field

The utility model relates to a liquid filling machine technical field specifically is a feed arrangement of liquid filling machine.

Background

Filling machines are mainly a small class of products in a packaging machine and can be divided into a liquid filling machine, a paste filling machine, a powder filling machine and a particle filling machine from the aspect of packaging materials; the production automation degree is divided into a semi-automatic filling machine and a full-automatic filling production line.

However, the existing filling machine can cause a part of air to be mixed into the canned materials when the canned materials are fed, so that the quality of the canned materials is easy, the canned materials are not uniformly fed, and the feeding amount is not accurate.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a feeding device of liquid filling machine to it is difficult to the problem of mixed air escape and easy jam in the canned raw materials to provide current liquid filling machine feeding device in solving above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a feeding device of a filling machine comprises a feeding tank, wherein the top of the feeding tank is fixedly connected with a supporting frame through a bolt, the central position of the bottom inside the supporting frame is fixedly connected with a cylinder through a bolt, one end of the cylinder is connected with a piston rod through a telescopic rod, a piston is welded at one end of the piston rod, a feeding pipe and an overflow pipe are embedded into the top of the piston, the feeding pipe is positioned at one side of the overflow pipe, the top end of the feeding pipe is welded with a feeding hopper, the outer wall of one side of the feeding hopper is fixedly connected with a first stop valve through a bolt, a second stop valve is fixedly connected on the outer wall of one side of the overflow pipe through a bolt, the bottom of the feeding tank is fixedly connected with a blanking hopper through a bolt, the bottom welding of lower hopper has the unloading pipe, through bolt fixedly connected with third stop valve on the outer wall of one side of unloading pipe.

Preferably, the bottom of the blanking pipe is fixedly connected with a feeding pipe through a bolt, the outer wall of one side of the feeding pipe is fixedly connected with a first motor through a bolt, and one end of the first motor is rotatably connected with a first auger through a rotating shaft.

Preferably, the outer walls of one side of the first stop valve, the second stop valve and the third stop valve are connected with screws in a screwing mode through threads.

Preferably, a valve plate is welded at one end of the screw rod, and a hand wheel is welded at the other end of the screw rod.

Preferably, there is a support plate on the inner wall of one side of the feed hopper through bolt fixed connection, and there is a second motor at the top center of the support plate through bolt fixed connection.

Preferably, one end of the second motor is rotatably connected with a rotating rod through a rotating shaft, and a second packing auger is welded at the bottom end of the rotating rod.

Compared with the prior art, the beneficial effects of the utility model are that: this feed arrangement of liquid filling machine can be with the air escape in the feed arrangement through the lift of piston, it is inhomogeneous to avoid the air to mix to cause follow-up feeding in the canning material, the coarse problem of canning volume, improve feed arrangement's feeding quality and precision, the feeding that feeds through first auger of pivoted and second auger for the canning material provides power, avoids the problem that the canning material blockked up when guaranteeing that feed rate is even, improves feed arrangement's feeding smoothness nature.

Drawings

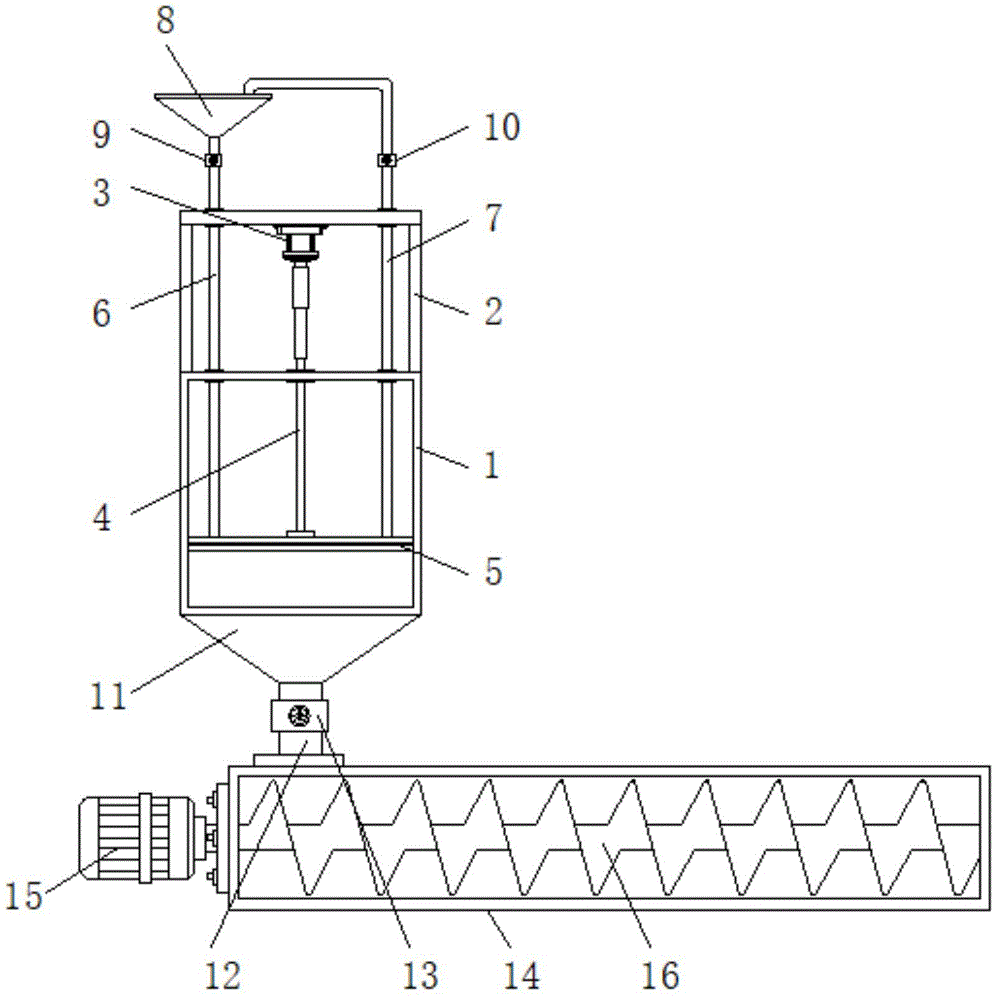

Fig. 1 is a front view of the present invention;

fig. 2 is a side view of the present invention;

FIG. 3 is a schematic view of the internal structure of the third stop valve of the present invention;

figure 4 is the internal structure schematic diagram of the feed hopper of the utility model.

In the figure: 1. a feed tank; 2. a support frame; 3. a cylinder; 4. a piston rod; 5. a piston; 6. a feed pipe; 7. an overflow pipe; 8. a feed hopper; 9. a first shut-off valve; 10. a second stop valve; 11. feeding a hopper; 12. a discharging pipe; 13. a third stop valve; 14. a feed pipe; 15. a first motor; 16. a first auger; 17. a screw; 18. a valve plate; 19. a hand wheel; 20. a support plate; 21. a second motor; 22. a rotating rod; 23. and a second packing auger.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a feeding device of a filling machine comprises a feeding tank 1, a support frame 2, a cylinder 3, a piston rod 4, a piston 5, a feeding pipe 6, an overflow pipe 7, a feeding hopper 8, a first stop valve 9, a second stop valve 10, a discharging hopper 11, a discharging pipe 12, a third stop valve 13, a feeding pipe 14, a first motor 15, a first packing auger 16, a screw rod 17, a valve plate 18, a hand wheel 19, a support plate 20, a second motor 21, a rotating rod 22 and a second packing auger 23, wherein the top of the feeding tank 1 is fixedly connected with the support frame 2 through a bolt, the cylinder 3 is fixedly connected with the central position of the inner bottom of the support frame 2 through a bolt, one end of the cylinder 3 is connected with the piston rod 4 through a telescopic rod, one end of the piston rod 4 is welded with the piston 5, the feeding pipe 6 and the overflow pipe 7 are embedded into the top of the piston 5, the feeding pipe 6, the feeding device comprises a feeding hopper 8, a first stop valve 9, an overflow pipe 7, a second stop valve 10, a blanking hopper 11, a blanking pipe 12 and a third stop valve 13, wherein the outer wall of one side of the feeding hopper 8 is fixedly connected with the first stop valve 9 through bolts, the outer wall of one side of the overflow pipe 7 is fixedly connected with the second stop valve 10 through bolts, the bottom of the feeding tank 1 is fixedly connected with the blanking hopper 11 through bolts, the bottom of the blanking hopper 11 is welded with the blanking pipe 12, and.

Further, the bottom of the blanking pipe 12 is fixedly connected with a feeding pipe 14 through a bolt, the outer wall of one side of the feeding pipe 14 is fixedly connected with a first motor 15 through a bolt, one end of the first motor 15 is rotatably connected with a first packing auger 16 through a rotating shaft, and the canned materials are uniformly conveyed out through the first packing auger 16.

Furthermore, the outer walls of one sides of the first stop valve 9, the second stop valve 10 and the third stop valve 13 are respectively connected with a screw rod 17 through thread screwing, and the valve plate 18 is driven to move through the rotation of the screw rod 17.

Furthermore, a valve plate 18 is welded at one end of the screw rod 17, a hand wheel 19 is welded at the other end of the screw rod 17, and the screw rod 17 can be conveniently rotated through the hand wheel 19.

Further, a supporting plate 20 is fixedly connected to the inner wall of one side of the feeding hopper 8 through a bolt, and a second motor 21 is fixedly connected to the center of the top of the supporting plate 20 through a bolt.

Furthermore, one end of the second motor 21 is rotatably connected with a rotating rod 22 through a rotating shaft, and a second packing auger 23 is welded at the bottom end of the rotating rod 22, so that the canned materials in the feed hopper 8 can be conveniently conveyed into the feed tank 1.

The working principle is as follows: when the device is used, canned materials are poured into the feed hopper 8, the cylinder 3 drives the piston rod 4 to move upwards through the telescopic rod, the piston rod 4 drives the piston 5 to move upwards in the feed tank 1, the second motor 21 drives the rotating rod 22 to rotate through the rotating shaft, the rotating rod 22 drives the second packing auger 23 to rotate, the canned materials in the feed hopper 8 are conveyed into the feed tank 1 through the rotation of the second packing auger 23, the first stop valve 9 is closed, the second stop valve 10 is opened, the third stop valve 13 is closed, the cylinder 3 drives the piston rod 4 to move downwards through the telescopic rod, the piston rod 4 drives the piston 5 to move downwards, the piston 5 discharges air between the canned materials and the piston 5 through the overflow pipe 7 in the moving process, the piston 5 presses the upper layer canned materials into the overflow pipe 7 after contacting with the canned materials along with the continuous descending of the piston 5, then flows into the feed hopper 8, and the second stop valve 10 is closed, and (3) opening the third stop valve 13, driving the first packing auger 16 to rotate by the first motor 15 through a rotating shaft, and uniformly feeding the canned materials by the first packing auger 16 to realize the feeding and the feeding of the filling machine.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A feed arrangement of liquid filling machine, includes feed tank (1), its characterized in that: the feeding device is characterized in that a support frame (2) is fixedly connected to the top of the feeding tank (1) through a bolt, a cylinder (3) is fixedly connected to the central position of the bottom inside the support frame (2) through a bolt, one end of the cylinder (3) is connected with a piston rod (4) through a telescopic rod, a piston (5) is welded to one end of the piston rod (4), a feeding pipe (6) and an overflow pipe (7) are embedded into the top of the piston (5), the feeding pipe (6) is located on one side of the overflow pipe (7), a feeding hopper (8) is welded to the top end of the feeding pipe (6), a first stop valve (9) is fixedly connected to the outer wall of one side of the feeding hopper (8) through a bolt, a second stop valve (10) is fixedly connected to the outer wall of one side of the overflow pipe (7), and a discharging, the bottom of the blanking hopper (11) is welded with a blanking pipe (12), and the outer wall of one side of the blanking pipe (12) is fixedly connected with a third stop valve (13) through a bolt.

2. A filling machine feeder as claimed in claim 1, wherein: the bottom of unloading pipe (12) is through bolt fixedly connected with conveying pipe (14), through bolt fixedly connected with first motor (15) on the outer wall of one side of conveying pipe (14), the one end of first motor (15) is connected with first auger (16) through the pivot rotation.

3. A filling machine feeder as claimed in claim 1, wherein: and the outer walls of one sides of the first stop valve (9), the second stop valve (10) and the third stop valve (13) are connected with screws (17) through threads in a screwing manner.

4. A filling machine feeder as claimed in claim 3, wherein: a valve plate (18) is welded at one end of the screw rod (17), and a hand wheel (19) is welded at the other end of the screw rod (17).

5. A filling machine feeder as claimed in claim 1, wherein: the feed hopper is characterized in that a supporting plate (20) is fixedly connected to the inner wall of one side of the feed hopper (8) through bolts, and a second motor (21) is fixedly connected to the center of the top of the supporting plate (20) through bolts.

6. The feeding device of a filling machine as claimed in claim 5, wherein: one end of the second motor (21) is rotatably connected with a rotating rod (22) through a rotating shaft, and a second packing auger (23) is welded at the bottom end of the rotating rod (22).
