CN210928535U - A fertilizer injection unit for farming - Google Patents
A fertilizer injection unit for farming Download PDFInfo
- Publication number
- CN210928535U CN210928535U CN201922087653.9U CN201922087653U CN210928535U CN 210928535 U CN210928535 U CN 210928535U CN 201922087653 U CN201922087653 U CN 201922087653U CN 210928535 U CN210928535 U CN 210928535U
- Authority
- CN
- China
- Prior art keywords
- liquid storage
- storage barrel
- base
- wheel
- stirring
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a fertilizing device for agricultural planting, which comprises a base, a movable wheel and a liquid storage barrel, wherein the movable wheel is arranged at the four corners of the lower end of the base, the liquid storage barrel is arranged at the upper end of the base, the outer wall of the liquid storage barrel is fixedly connected with a liquid storage barrel support, the liquid storage barrel support is fixedly connected with the base, the middle part of the top end of the liquid storage barrel is provided with a stirring motor, the stirring motor is connected with a stirring shaft, the stirring shaft penetrates through the liquid storage barrel, raw materials are poured into the liquid storage barrel from a feed inlet, the stirring motor is started to drive the stirring shaft and a stirring paddle to rotate, the raw materials are stirred, the raw materials are mixed more uniformly, a solenoid valve is opened, fertilizer is sprayed out from a nozzle through a discharging pipe to fertilize agricultural plants, the driving wheel is driven to rotate by the starting motor, a, so that the fertilizer can be better absorbed.
Description
Technical Field
The utility model relates to a farming equipment technical field specifically is a fertilizer injection unit for farming.
Background
Agriculture is an industry for obtaining products by artificial cultivation by utilizing growth and development rules of animals and plants. Agriculture belongs to the first industry, and the science for researching agriculture is agriculture. The agricultural working object is living animals and plants, and the obtained products are the animals and plants. Agriculture is a fundamental industry supporting the construction and development of national economy, and is an industry for producing food and industrial raw materials by cultivating animals and plants. Agriculture belongs to the first industry, and the science for researching agriculture is agriculture. The agricultural labor object is living animals and plants, and the obtained products are the animals and plants, the departments of obtaining the products by utilizing the growth and development rules of organisms such as animals and plants and artificially cultivating the organisms are called agriculture, and the agriculture is a basic product for supporting national economic construction and development.
When the prior art is used for fertilizing the agricultural plants, the fertilizer is difficult to absorb due to the fact that soil is hard, and during fertilization, the fertilizer is sprayed on the surface of the soil and is easy to volatilize, and the absorption rate of the fertilizer by the agricultural plants is low. Therefore, the technical personnel in the field provide a fertilizing device for agricultural planting to solve the problems in the background art.
Disclosure of Invention
An object of the utility model is to provide a fertilizer injection unit for farming to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a fertilizing device for agricultural planting comprises a base, moving wheels and a liquid storage barrel, wherein the moving wheels are installed at four corners of the lower end of the base, the liquid storage barrel is arranged at the upper end of the base, a liquid storage barrel support is fixedly connected to the outer wall of the liquid storage barrel, the liquid storage barrel support is fixedly connected with the base, a stirring motor is arranged in the middle of the top end of the liquid storage barrel and is connected with a stirring shaft, the stirring shaft penetrates through the liquid storage barrel, a plurality of stirring paddles are arranged at the position, located inside the liquid storage barrel, of the stirring shaft, a feed inlet is formed in the upper end of one side of the liquid storage barrel, an air inlet is formed in the upper end of the other side of the liquid storage barrel, a discharging pipe is communicated with the lower end of the liquid storage barrel and penetrates through the base, the lower end of the discharging pipe is connected with a solenoid, the opposite side of shower nozzle is equipped with the wheel that loosens the soil, the left side of stock solution bucket is equipped with the drive case, is equipped with motor and battery in the drive case, battery electric connection motor and agitator motor, the welding of one side that the base is close to the drive case has the connecting rod, and the welding of the other end of connecting rod has fixed cover.
As the utility model discloses further scheme again, the action wheel is connected to the motor, and the action wheel runs through the base, and the action wheel passes through the belt to be connected from the driving wheel, from the axle center department fixed connection drive shaft of driving wheel, and the drive shaft rotates to connect and loosens the soil wheel support, loosens the soil wheel support perpendicular and fixed connection base lower extreme.
As a further proposal, the soil loosening wheel is fixedly connected with the middle of the driving shaft.
As a further scheme of the utility model, the unloading tube hole has been seted up to corresponding the unloading pipe on the base, and the diameter of unloading tube hole is greater than the external diameter of unloading pipe.
As the utility model discloses scheme further again, it is equipped with the belt hole to correspond the belt on the base, and the width in belt hole is greater than the width of belt.
As the utility model discloses further scheme again, the protective bracket lower extreme is equipped with the metal mesh, and the metal mesh sets to circularly.
Compared with the prior art, the beneficial effects of the utility model are that:
1. during the use, pour the raw materials into the stock solution bucket from the feed inlet, start agitator motor and drive (mixing) shaft and stirring rake and rotate, stir the raw materials, make the raw materials mix more evenly, open the solenoid valve, fertilizer is spout from the shower nozzle through the unloading pipe, fertilize the crop, start motor drives the action wheel and rotates, utilize the belt to drive and rotate from driving wheel and drive shaft, make the wheel that loosens the soil rotate, utilize the wheel that loosens the soil to loosen the soil, improve the crisp degree of soil, make fertilizer can be by better absorption.
2. After the fertilization, utilize the flattening roller to level soil, slow down the volatilization speed of fertilizer to improve the absorption rate of fertilizer, protection support and the metal mesh in the shower nozzle outside prevent that fertilization in-process earth from blockking up the shower nozzle, thereby keep the shower nozzle to last the flowing back.
Drawings

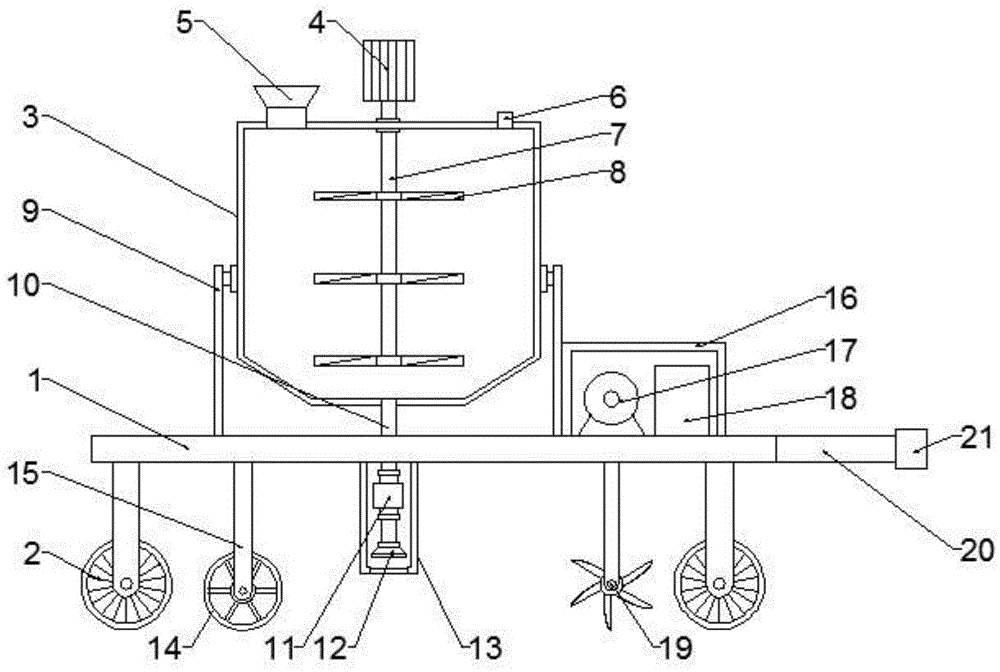

Fig. 1 is a schematic structural diagram of a fertilizing device for agricultural planting.
Fig. 2 is a schematic view of a connection structure of a soil loosening wheel in the fertilizing device for agricultural planting.
Fig. 3 is a schematic structural diagram of a base in the fertilizing device for agricultural planting.
Fig. 4 is a cross-sectional view of a protection bracket in a fertilizing apparatus for agricultural planting.
In the figure: 1-base, 2-moving wheel, 3-liquid storage barrel, 4-stirring motor, 5-feeding hole, 6-air inlet, 7-stirring shaft, 8-stirring paddle, 9-liquid storage barrel support, 10-blanking pipe, 11-electromagnetic valve, 12-spray head, 13-protective support, 14-flattening roller, 15-flattening roller support, 16-driving box, 17-motor, 18-storage battery, 19-scarification wheel, 20-connecting rod, 21-fixing sleeve, 22-driving wheel, 23-belt, 24-driven wheel, 25-driving shaft, 26-scarification wheel support, 27-blanking pipe hole, 28-belt hole and 29-metal mesh.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, in the embodiment of the present invention, a fertilizing apparatus for agricultural planting comprises a base 1, a movable wheel 2 and a liquid storage barrel 3, wherein the movable wheel 2 is installed at four corners of the lower end of the base 1, the liquid storage barrel 3 is installed at the upper end of the base 1, the outer wall of the liquid storage barrel 3 is fixedly connected with a liquid storage barrel support 9, the liquid storage barrel support 9 is fixedly connected with the base 1, a stirring motor 4 is installed at the middle of the top end of the liquid storage barrel 3, the stirring motor 4 is connected with a stirring shaft 7, the stirring shaft 7 penetrates through the liquid storage barrel 3, a plurality of stirring paddles 8 are installed at positions of the stirring shaft 7 inside the liquid storage barrel 3, a feed inlet 5 is installed at the upper end of one side of the liquid storage barrel 3, an air inlet 6 is installed at the upper end of the other side of the liquid storage barrel 3, the lower end of the liquid storage barrel 3 is communicated, protective bracket 13 fixed connection base 1 lower extreme, one side of shower nozzle 12 is equipped with flattening roller 14, and flattening roller 14 connects base 1 lower extreme through flattening roller support 15, the opposite side of shower nozzle 12 is equipped with soil loosening wheel 19, the left side of stock solution bucket 3 is equipped with drive box 16, is equipped with motor 17 and battery 18 in the drive box 16, battery 18 electric connection motor 17 and agitator motor 4, base 1 has connecting rod 20 near one side welding of drive box 16, and the other end welding of connecting rod 20 has fixed cover 21.
Referring to fig. 2, the motor 17 is connected to a driving wheel 22, the driving wheel 22 penetrates through the base 1, the driving wheel 22 is connected to a driven wheel 24 through a belt 23, an axial center of the driven wheel 24 is fixedly connected to a driving shaft 25, the driving shaft 25 is rotatably connected to a ripping wheel bracket 26, the ripping wheel bracket 26 is vertically and fixedly connected to a lower end of the base 1, and the ripping wheel 19 is fixedly connected to a middle portion of the driving shaft 25.
Referring to fig. 3, a blanking tube hole 27 is formed in the base 1 corresponding to the blanking tube 10, a diameter of the blanking tube hole 27 is larger than an outer diameter of the blanking tube 10, a belt hole 28 is formed in the base 1 corresponding to the belt 23, and a width of the belt hole 28 is larger than a width of the belt 23.
Referring to fig. 4, the lower end of the protective bracket 13 is provided with a metal mesh 29, and the metal mesh 29 is arranged in a circular shape.
The utility model discloses a theory of operation is:
during the use, pour the raw materials into stock solution bucket 3 from feed inlet 5 in, start agitator motor 4 and drive (mixing) shaft 7 and stirring rake 8 and rotate, stir the raw materials, make the raw materials mix more evenly, open solenoid valve 11, fertilizer spouts from shower nozzle 12 through unloading pipe 10, fertilize to the crop, starter motor 17 drives action wheel 22 and rotates, utilize belt 23 to drive from driving wheel 24 and drive shaft 25 rotation, make loosening wheel 19 rotate, utilize loosening wheel 19 to loosen the soil, improve the crunchy degree of soil, make fertilizer can be by better absorption, after the fertilization, utilize flattening roller 14 to level soil, slow down the volatilization rate of fertilizer, thereby improve the absorptivity of fertilizer, protective bracket 13 and the metal mesh 29 in the shower nozzle 12 outside, prevent that fertilization in-process earth from blockking up shower nozzle 12, thereby keep shower nozzle 12 to last flowing back.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A fertilizing device for agricultural planting comprises a base (1), a movable wheel (2) and a liquid storage barrel (3), and is characterized in that the movable wheel (2) is installed at the four corners of the lower end of the base (1), the liquid storage barrel (3) is arranged at the upper end of the base (1), the outer wall of the liquid storage barrel (3) is fixedly connected with a liquid storage barrel support (9), the liquid storage barrel support (9) is fixedly connected with the base (1), a stirring motor (4) is arranged in the middle of the top end of the liquid storage barrel (3), the stirring motor (4) is connected with a stirring shaft (7), the stirring shaft (7) penetrates through the liquid storage barrel (3), a plurality of stirring paddles (8) are arranged at the inner part of the liquid storage barrel (3) of the stirring shaft (7), a feed inlet (5) is arranged at the upper end of one side of the liquid storage barrel (3), an air inlet (6) is arranged, the blanking pipe (10) penetrates through the base (1), the lower end of the blanking pipe (10) is connected with the electromagnetic valve (11), the other end of the electromagnetic valve (11) is connected with the spray head (12), the outer side of the spray head (12) is provided with a protective bracket (13), the protective bracket (13) is fixedly connected with the lower end of the base (1), one side of the spray head (12) is provided with a flattening roller (14), the flattening roller (14) is connected with the lower end of the base (1) through a flattening roller bracket (15), a soil loosening wheel (19) is arranged on the other side of the spray head (12), a driving box (16) is arranged on the left side of the liquid storage barrel (3), a motor (17) and a storage battery (18) are arranged in the driving box (16), the storage battery (18) is electrically connected with the motor (17) and the stirring motor (4), one side of the base (1) close to the driving box (16) is welded with a connecting rod (20), and the other end of the connecting rod (20) is welded with a fixed sleeve (21).
2. The fertilizing device for agricultural planting as claimed in claim 1, characterized in that the motor (17) is connected with a driving wheel (22), the driving wheel (22) penetrates through the base (1), the driving wheel (22) is connected with a driven wheel (24) through a belt (23), a driving shaft (25) is fixedly connected with the axle center of the driven wheel (24), the driving shaft (25) is rotatably connected with a ripping wheel support (26), and the ripping wheel support (26) is vertically and fixedly connected with the lower end of the base (1).
3. Fertilizing device for agricultural planting, in accordance with claim 1, characterised in that the loosening wheels (19) are fixedly connected in the middle of the drive shaft (25).
4. The fertilizing apparatus for agricultural planting according to claim 1, characterized in that the base (1) is provided with a blanking pipe hole (27) corresponding to the blanking pipe (10), and the diameter of the blanking pipe hole (27) is larger than the outer diameter of the blanking pipe (10).
5. Fertilizing device for agricultural planting, according to claim 1, characterized in that the base (1) is provided with a belt hole (28) corresponding to the belt (23), and the width of the belt hole (28) is greater than the width of the belt (23).
6. A fertigation device for agricultural planting according to claim 1, wherein the lower end of the protection bracket (13) is provided with a metal net (29), and the metal net (29) is arranged in a circular shape.
