CN210916605U - Non-woven fabric hydrophilic treatment equipment - Google Patents
Non-woven fabric hydrophilic treatment equipment Download PDFInfo
- Publication number
- CN210916605U CN210916605U CN201921899378.4U CN201921899378U CN210916605U CN 210916605 U CN210916605 U CN 210916605U CN 201921899378 U CN201921899378 U CN 201921899378U CN 210916605 U CN210916605 U CN 210916605U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- hydrophilic
- wall
- air
- woven fabric
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Treatment Of Fiber Materials (AREA)
Abstract
The utility model relates to a non-woven fabrics production technical field just discloses a hydrophilic treatment facility of non-woven fabrics, include from a left side to the right side hydrophilic groove, stoving case and the rolling wheel carrier that sets gradually, relative one side inner wall rotates through the pivot around the hydrophilic groove and connects a plurality of fabric guide that are snakelike setting, the upper end fixedly connected with U-shaped backup pad of hydrophilic groove, the upper end fixedly connected with liquid storage pot of U-shaped backup pad, the fixed intercommunication of lower extreme of liquid storage pot has the play liquid section of thick bamboo that runs through U-shaped backup pad horizontal part, the piston rod has been cup jointed in the inner wall activity of a liquid section of thick bamboo, the lower extreme fixedly connected with kickboard of piston rod, a plurality of liquid outlets have evenly been seted up to the downside. The utility model provides high soaking quality and efficiency can realize adding the automation of hydrophilic liquid, and has improved drying efficiency, convenient to use.
Description
Technical Field
The utility model relates to a non-woven fabrics production technical field especially relates to a non-woven fabrics hydrophilic treatment equipment.
Background
The non-woven fabric is also called non-woven fabric or non-woven fabric, is formed by oriented or random fibers, is a new generation of environment-friendly material, and has the characteristics of moisture resistance, air permeability, flexibility, light weight, no combustion supporting, easy decomposition, no toxicity, no irritation, rich colors, low price, recycling and the like. The non-woven fabric produced without any treatment has strong water repellency, low water absorption and low water absorption speed, and can quickly transmit liquid into the absorption core body under the hydrophilic action of the hydrophilic non-woven fabric in the application such as medical supplies and sanitary nursing supplies.
Present hydrophilic non-woven fabrics need carry out hydrophilic processing in process of production, soak with hydrophilic agent in the non-woven fabrics leads to hydrophilic basin through the deflector roll earlier at present, the non-woven fabrics after will soaking is forwarded to the stoving incasement and is dried and can make hydrophilic non-woven fabrics, present non-woven fabrics is short in the soak time of hydrophilic basin, and sheltering from of deflector roll has influenced the two-sided quick soaking of non-woven fabrics, the quality of soaking has been influenced, and the stoving incasement portion is drying and is making moisture can not be taken away by quick, drying efficiency has been influenced, and hydrophilic inslot need continuous supplementary hydrophilic agent, carry out hydrophilic agent's interpolation through manual control at present mostly, very inconvenience, be not convenient for the actual production and use.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving among the prior art deflector roll shelter from the two-sided quick soaking that has influenced the non-woven fabrics, the soaking quality has been influenced, and the incasement portion of drying makes moisture can not be by quick taking away, drying efficiency has been influenced, and hydrophilic inslot need continuous supplementary hydrophilic agent, carry out the interpolation of hydrophilic agent through manual control at present mostly, very inconvenience, the problem that the in-service production used is not convenient for, and the hydrophilic treatment facility of a non-woven fabrics who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a non-woven fabric hydrophilic treatment device comprises a hydrophilic trough, a drying box and a rolling wheel carrier which are sequentially arranged from left to right, wherein the inner wall of one side of the hydrophilic trough, which is opposite to the front side and the back side, is rotatably connected with a plurality of snakelike cloth guide cylinders through a rotating shaft, the upper end of the hydrophilic trough is fixedly connected with a U-shaped supporting plate, the upper end of the U-shaped supporting plate is fixedly connected with a liquid storage tank, the lower end of the liquid storage tank is fixedly communicated with a liquid outlet cylinder which penetrates through the horizontal part of the U-shaped supporting plate, the inner wall of the liquid outlet cylinder is movably sleeved with a piston rod, the lower end of the piston rod is fixedly connected with a floating plate, the lower side cylinder wall of the liquid outlet cylinder is uniformly provided with a plurality of liquid outlets, the inner wall of the drying box is fixedly connected with a partition plate, the upper end, the bottom inner wall fixedly connected with air-blast air heater of stoving case, the air outlet of air-blast air heater passes through the ventilation pipe and the fixed intercommunication of hot-blast main, the same cover that induced drafts of top inner wall through many second connecting rods fixedly connected with of stoving case, the upper end fixedly connected with suction fan of stoving case, the air intake of suction fan passes through the suction pipe and the fixed intercommunication of cover that induced drafts, and is a plurality of it has same non-woven fabrics to wind around having connect between fabric guide and the rolling wheel frame, and the opening that the non-woven fabrics was seted up through stoving case lateral wall gets into the stoving incasement.
Preferably, the cloth guide cylinder is of a hollow structure, and the surface of the cloth guide cylinder is uniformly provided with a plurality of water through openings.
Preferably, the outer wall of the drying box at the lower side of the partition plate is symmetrically provided with two air inlets, and the inner walls of the air inlets are fixedly connected with dustproof mesh plates.
Preferably, the rolling wheel frame is fixedly connected with a driven gear corresponding to the rotating shaft of the rolling wheel, the outer wall of the rolling wheel frame is also fixedly connected with a driving motor, and an output shaft of the driving motor is fixedly connected with a driving gear meshed with the driven gear.
Preferably, the drive gear is an incomplete gear.
Compared with the prior art, the utility model provides a non-woven fabrics hydrophilic treatment equipment possesses following beneficial effect:
1. this hydrophilic treatment facility of non-woven fabrics, a plurality of fabric guide tube through being equipped with, a plurality of fabric guide tube are snakelike setting and can make the soak time of non-woven fabrics in hydrophilic basin longer, the sufficiency of soaking has been guaranteed, and fabric guide tube has seted up a plurality of logical openings for hollow structure section of thick bamboo wall and can make hydrophilic liquid soak the non-woven fabrics in getting into fabric guide tube from interior survey, can effectively soak the two-sided of non-woven fabrics, soaking quality and efficiency have been improved, and when hydrophilic liquid in hydrophilic basin need supply, because the liquid level of hydrophilic liquid descends, the kickboard takes the piston rod to descend thereupon, and then make the liquid outlet expose, make hydrophilic liquid in the liquid storage tank get into hydrophilic basin through going out a liquid section of thick bamboo in, rise when supplying to a certain degree kickboard and making the piston rod plug up the liquid outlet receiving the lift of hydrophilic liquid, can realize the automatic interpolation to hydrophilic liquid, and convenient to use.
2. This hydrophilic treatment facility of non-woven fabrics, through the stoving case that is equipped with, the air-blast air heater carries the hot-blast stream to in the hot-blast pipe and through spouting the wind head blowout, realizes the comprehensive stoving heating to the non-woven fabrics that lies in the stoving incasement, and the hot gas flow drives moisture and rises, and the suction fan forms the induced draft through the suction hood in the stoving incasement and flows, can discharge the hot-air that has moisture fast, and then forms the circulation of air very big improvement drying efficiency, convenient to use.
3. This hydrophilic treatment facility of non-woven fabrics, through driving gear and the driven gear that is equipped with, driving motor drives the driving gear and rotates, utilizes driving gear and driven gear's meshing to drive the rolling wheel rotation on the rolling wheel carrier, and then drives the non-woven fabrics and constantly roll up, because the driving gear is incomplete gear, can realize the intermittent type nature removal of non-woven fabrics, and then make soaking and the stoving of non-woven fabrics all obtain abundant time, convenient to use.
And the part that does not relate to among the device all is the same with prior art or can adopt prior art to realize, the utility model provides high soaking quality and efficiency can realize adding the automation of hydrophilic liquid, and has improved drying efficiency, convenient to use.
Drawings

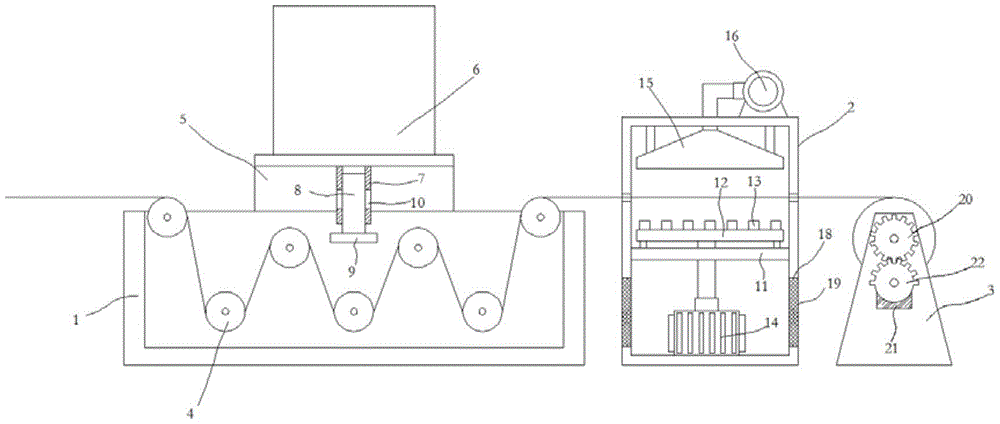

Fig. 1 is a schematic structural view of a non-woven fabric hydrophilic treatment device provided by the present invention;
fig. 2 is the structure diagram of a fabric guide tube of a non-woven fabric hydrophilic treatment device provided by the utility model.
In the figure: the device comprises a hydrophilic tank 1, a drying box 2, a winding wheel frame 3, a cloth guide cylinder 4, a U-shaped supporting plate 5, a liquid storage tank 6, a liquid outlet cylinder 7, a piston rod 8, a floating plate 9, a liquid outlet 10, a partition plate 11, a hot air pipe 12, an air blowing head 13, an air blowing hot air blower 14, an air suction cover 15, an air suction blower 16, a water through opening 17, an air inlet 18, a dust-proof screen plate 19, a driven gear 20, a driving motor 21 and a driving gear 22.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-2, a non-woven fabric hydrophilic treatment device comprises a hydrophilic tank 1, a drying box 2 and a rolling wheel carrier 3 which are sequentially arranged from left to right, wherein the inner wall of one side of the hydrophilic tank 1 which is opposite to the front side and the back side is rotatably connected with a plurality of snakelike cloth guide drums 4 through a rotating shaft, the upper end of the hydrophilic tank 1 is fixedly connected with a U-shaped supporting plate 5, the upper end of the U-shaped supporting plate 5 is fixedly connected with a liquid storage tank 6, the lower end of the liquid storage tank 6 is fixedly communicated with a liquid outlet drum 7 which penetrates through the horizontal part of the U-shaped supporting plate 5, the inner wall of the liquid outlet drum 7 is movably sleeved with a piston rod 8, the lower end of the piston rod 8 is fixedly connected with a floating plate 9, the lower side drum wall of the liquid outlet drum 7 is uniformly provided with a plurality of liquid outlets 10, the inner wall of the drying box 2 is fixedly connected, the bottom inner wall fixedly connected with air blast air heater 14 of stoving case 2, the air outlet of air blast air heater 14 passes through ventilation pipe and the fixed intercommunication of hot-blast main 12, the same cover 15 that induced drafts through many second connecting rod fixedly connected with of the top inner wall of stoving case 2, the upper end fixedly connected with suction fan 16 of stoving case 2, the air intake of suction fan 16 passes through the suction pipe and the fixed intercommunication of cover 15 that induced drafts, it has same non-woven fabrics to connect around between a plurality of fabric guide tube 4 and the rolling wheel carrier 3, and the non-woven fabrics gets into in the stoving case 2 through the opening that the lateral wall of stoving case 2 was.
The cloth guide cylinder 4 is of a hollow structure, and the surface of the cloth guide cylinder is uniformly provided with a plurality of water through openings 17.
Two air inlets 18 are symmetrically arranged on the outer wall of the drying box 2 at the lower side of the partition plate 11, and the inner wall of the air inlet 18 is fixedly connected with a dustproof mesh plate 19.
A driven gear 20 is fixedly connected to the winding wheel frame 3 corresponding to the rotating shaft of the winding wheel, a driving motor 21 is also fixedly connected to the outer wall of the winding wheel frame 3, and a driving gear 22 meshed with the driven gear 20 is fixedly connected to an output shaft of the driving motor 21.
The drive gear 22 is an incomplete gear.
In the utility model, when in use, the plurality of cloth guide cylinders 4 are arranged in a snake shape, so that the soaking time of the non-woven fabric in the hydrophilic groove 1 is longer, the soaking sufficiency is ensured, and the cloth guide cylinders 4 are hollow cylinder walls provided with a plurality of water through openings 17, so that the hydrophilic liquid can enter the cloth guide cylinders 4 to soak the non-woven fabric from the inner side, the double sides of the non-woven fabric can be effectively soaked, the soaking quality and efficiency are improved, and when the hydrophilic liquid in the hydrophilic groove 1 needs to be supplemented, because the liquid level of the hydrophilic liquid descends, the floating plate 9 drives the piston rod 8 to descend along with the piston rod, so that the liquid outlet 10 is exposed, the hydrophilic liquid in the liquid storage tank 6 enters the hydrophilic groove 1 through the liquid outlet cylinder 7, when the hydrophilic liquid is supplemented to a certain degree, the floating plate 9 is lifted by the hydrophilic liquid, so that the piston rod 8 blocks the liquid outlet 10, the automatic addition of the hydrophilic liquid can be realized, through the drying box 2, the air blast air heater 14 conveys hot air flow into the hot air pipe 12 and sprays out through the air blast head 13, so as to realize comprehensive drying and heating of the non-woven fabric in the drying box 2, and the hot air flow drives the moisture to rise, the suction fan 16 forms air suction flow in the drying box 2 through the air suction cover 15, so as to quickly discharge the hot air with moisture, thereby forming air flow, greatly improving the drying efficiency, the use is convenient, through the driving gear 22 and the driven gear 20, the driving motor 21 drives the driving gear 22 to rotate, the rolling wheel on the rolling wheel frame 3 is driven to rotate by utilizing the meshing action of the driving gear 22 and the driven gear 20, thereby driving the non-woven fabric to roll continuously, because the driving gear 22 is an incomplete gear, the intermittent movement of the non-woven fabric can be realized, and further the soaking and drying of the non-woven fabric can obtain sufficient time, is convenient for use.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. A non-woven fabric hydrophilic treatment device comprises a hydrophilic tank (1), a drying box (2) and a rolling wheel carrier (3) which are sequentially arranged from left to right, and is characterized in that the inner wall of one side of the hydrophilic tank (1) which is opposite to the front side and the back side is rotatably connected with a plurality of snakelike cloth guide cylinders (4) through a rotating shaft, the upper end of the hydrophilic tank (1) is fixedly connected with a U-shaped supporting plate (5), the upper end of the U-shaped supporting plate (5) is fixedly connected with a liquid storage tank (6), the lower end of the liquid storage tank (6) is fixedly communicated with a liquid outlet cylinder (7) which penetrates through the horizontal part of the U-shaped supporting plate (5), the inner wall of the liquid outlet cylinder (7) is movably sleeved with a piston rod (8), the lower end of the piston rod (8) is fixedly connected with a floating plate (9), the lower side cylinder wall of the liquid outlet cylinder (7) is uniformly provided with a, the upper end of the partition plate (11) is fixedly connected with the same hot air pipe (12) through a plurality of first connecting rods, the upper end of the hot air pipe (12) is uniformly and fixedly communicated with a plurality of air spray heads (13), the inner wall of the bottom of the drying box (2) is fixedly connected with a blast air hot-air blower (14), the air outlet of the blast air hot air blower (14) is fixedly communicated with the hot air pipe (12) through a vent pipe, the inner wall of the top of the drying box (2) is fixedly connected with the same air suction hood (15) through a plurality of second connecting rods, the upper end of the drying box (2) is fixedly connected with a suction fan (16), an air inlet of the suction fan (16) is fixedly communicated with a suction hood (15) through a suction pipe, the same non-woven fabric is wound and connected between the plurality of fabric guide cylinders (4) and the winding wheel carrier (3), and the non-woven fabric enters the drying box (2) through an opening formed in the side wall of the drying box (2).
2. The non-woven fabric hydrophilic treatment equipment according to claim 1, wherein the fabric guide cylinder (4) is of a hollow structure, and a plurality of water passing openings (17) are uniformly formed in the surface of the fabric guide cylinder.
3. The non-woven fabric hydrophilic treatment equipment according to claim 1, wherein the drying box (2) is provided with two air inlets (18) on the outer wall of the lower side of the partition plate (11) symmetrically, and the inner wall of the air inlet (18) is fixedly connected with a dustproof mesh plate (19).
4. The non-woven fabric hydrophilic treatment equipment according to claim 1, wherein a driven gear (20) is fixedly connected to the position, corresponding to the rotating shaft of the winding wheel, of the winding wheel frame (3), a driving motor (21) is further fixedly connected to the outer wall of the winding wheel frame (3), and an output shaft of the driving motor (21) is fixedly connected with a driving gear (22) meshed with the driven gear (20).
5. The hydrophilic treatment apparatus for nonwoven fabric according to claim 4, wherein the driving gear (22) is a partial gear.
