CN210892403U

CN210892403U - Drying integrated machine

Info

Publication number: CN210892403U
Application number: CN201921971889.2U
Authority: CN
Inventors: 陈晓翼
Original assignee: Guangdong Hanjian Industry Co ltd
Current assignee: Guangdong Hanjian Industry Co ltd
Priority date: 2019-11-15
Filing date: 2019-11-15
Publication date: 2020-06-30
Anticipated expiration: 2029-11-15

Abstract

The utility model discloses a drying integrated machine, which comprises a fixed plate and a dryer, wherein the four corners of the fixed plate are provided with fixed holes, side plates are welded in the middle of two ends of the front end surface of the fixed plate, a connecting rod is movably arranged in the middle of one end of each side plate, which is far away from the fixed plate, through a connecting shaft, and the connecting rod is positioned at the outer side of the side plate, one end of the connecting rod departing from the connecting shaft is connected through a cross rod, hooks are welded on both sides of the upper end of the front end face of the fixed plate, mounting grooves are formed on both sides of the upper end of the rear side of the dryer, the dryer is movably mounted on the hooks through the mounting grooves, the hook corresponds to the mounting groove, the middle of the upper end surface of the dryer is provided with an air inlet, the upper end of the air inlet is movably provided with a filter screen, the lower end of the front end face of the dryer is arc-shaped, and an air outlet is formed in the arc-shaped position of the dryer. The utility model discloses be favorable to can heating and the advantage of drying to the bathroom.

Description

Drying integrated machine

Technical Field

The utility model relates to a drying-machine technical field specifically is a drying machine.

Background

The dryer has several modes, such as belt drying, roller drying, box drying, tower drying and the like; the heat source is coal, electricity, gas and the like; the materials are in a hot air flow type, a radiation type and the like in the drying process, the hot air roller drying is that hot air flows forwards from the tail part and is fully contacted with the materials, and the heat transfer quantity is fully utilized through heat conduction, convection and radiation; heat energy is directly transferred to the materials, so that moisture of the materials is continuously evaporated in the cylinder, and a large amount of moisture and wet air flow is extracted by an air inducing device at the feeding port, so that secondary pollution caused by dust discharge is prevented; the materials are pushed to move through internal spiral stirring, sweeping and shoveling plates, and the whole drying process is completed; and the countercurrent conduction dehumidification is adopted, so that repeated drying procedures are avoided.

In the real life, the household is used as the middle, all install the bathroom heater, can carry out the effect of heating and ventilating in the bathroom, and when bathing at home winter, the effect of heating through the bathroom heater is relatively poor, the human body feels cold easily, the heating function in the bathroom heater can only heat when bathing in winter, and the bathroom is in moist environment for a long time, breed the bacterium easily, especially in articles for use such as towels in the bathroom, breed the bacterium more easily, therefore need one kind now and be convenient for warm with integrative device of stoving in the bathroom.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a drying integrated machine possesses the advantage that can warm up and dry to the bathroom, and it is relatively poor to have solved the warm effect of bathroom heater, and the bathroom is in moist environment for a long time, breeds the problem of bacterium easily.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a drying integrated machine, includes fixed plate and drying-machine, the fixed orifices has all been seted up to the four corners department of fixed plate, the curb plate has all been welded to department in the middle of the preceding terminal surface both ends of fixed plate, the curb plate deviates from the one end of fixed plate in the middle of the department have the connecting rod through connecting axle movable mounting, and the connecting rod is located the outside of curb plate, the one end that the connecting rod deviates from the connecting axle is connected through the horizontal pole, the couple has all been welded to the preceding terminal surface.

Preferably, the mounting groove has all been seted up to the rear side upper end both sides of drying-machine, the drying-machine passes through mounting groove movable mounting on the couple, and the couple is corresponding with the mounting groove, the play tuber pipe has been seted up to the preceding terminal surface lower extreme intercommunication of drying-machine, the middle department movable mounting that goes out the tuber pipe has the movable valve, anion generator and ozone generator are installed respectively to the inside front side both ends of drying-machine.

Preferably, an air inlet is formed in the middle of the upper end face of the dryer, a filter screen is movably mounted at the upper end of the air inlet, the lower end of the front end face of the dryer is arc-shaped, an air outlet is formed in the position, located in the arc-shaped position, of the dryer, and shutters are movably mounted on the air outlet.

Preferably, the length of the dryer is less than that of the fixing plate, and the dryer is located at the inner side of the two side plates.

Preferably, the width of the side plate is smaller than that of the fixing plate, the connecting rod on the side plate is vertical downwards, and the cross rod is located on the lower end face of the side plate.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a set up fixed plate and couple, be favorable to carrying out the effect of fixing to the drying-machine, fix the expansion screw through fixed orifices to the fixed plate before using, pass through mounting groove movable mounting with the drying-machine simultaneously on the couple, realize the fixed to the drying-machine, the drying-machine is at the during operation simultaneously, and the air inlet through the up end can ventilate the heat dissipation to the drying-machine, and the filter screen on the air inlet can play dirt-proof effect.

2. The utility model discloses a set up connecting rod and horizontal pole, be favorable to hanging the effect of towel and clothing by airing, can warm up and the effect of drying in the bathroom through starting the drying-machine, hang towel and clothing on the horizontal pole in overcast and rainy day simultaneously, can play the effect of drying to towel and clothing through the drying-machine, and when need not drying to towel and clothing, horizontal pole accessible connecting rod rotates the upside of drying-machine, do not influence the use to the drying-machine, when needing to weather the hair simultaneously, weather the device with dedicated hair through the intercommunication pipe switch-on going out the tuber pipe, open the movable valve simultaneously, make the inside wind of drying-machine through the discharge of going out the tuber pipe, the realization is to the effect that the hair weathered.

Drawings

Fig. 1 is a schematic view of the structure of the present invention;

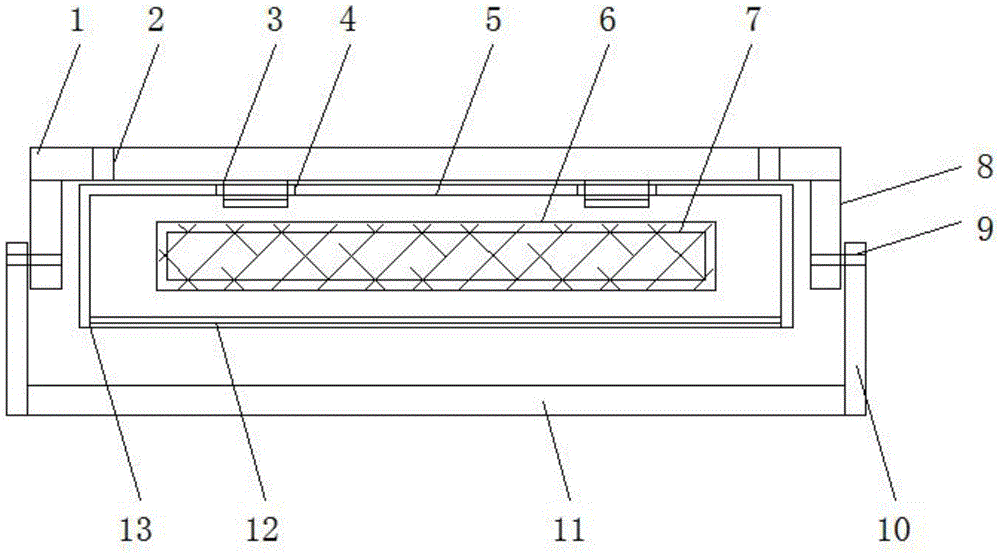

fig. 2 is a schematic top view of the present invention;

fig. 3 is a schematic side view of the present invention.

In the figure: 1. a fixing plate; 2. a fixing hole; 3. hooking; 4. mounting grooves; 5. a dryer; 6. a filter screen; 7. an air inlet; 8. a side plate; 9. a connecting shaft; 10. a connecting rod; 11. a cross bar; 12. louver blades; 13. an air outlet; 14. a negative ion generator; 15. an ozone generator; 16. an air outlet pipe; 17. a movable valve.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to which the reference is made must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1 to fig. 3, the present invention provides an embodiment: a drying integrated machine comprises a fixed plate 1 and a dryer 5, fixed holes 2 are formed in four corners of the fixed plate 1, side plates 8 are welded in the middles of two ends of the front end face of the fixed plate 1, a connecting rod 10 is movably installed in the middle of one end, far away from the fixed plate 1, of each side plate 8 through a connecting shaft 9, the connecting rod 10 is located on the outer side of each side plate 8, one end, far away from the connecting shaft 9, of each connecting rod 10 is connected through a cross rod 11, the dryer 5 can be started to heat and dry the inside of a bathroom, meanwhile, towels and clothes are hung on the cross rods 11 in rainy days, the dryer 5 can achieve the drying effect on the towels and the clothes, when the towels and the clothes do not need to be dried, the cross rods 11 can rotate to the upper side of the dryer 5 through the connecting rods 10, the use of the dryer 5 is not affected, and when the hair needs to be dried, a special hair drying device is connected, open movable valve 17 simultaneously, make the inside wind of drying-machine 5 through the discharge of tuber pipe 16, the realization is to the effect that the hair weathered, couple 3 has all been welded to the preceding terminal surface upper end both sides of fixed plate 1, it fixes fixed plate 1 to pass through fixed orifices 2 with the inflation screw before the use, simultaneously with drying-machine 5 through mounting groove 4 movable mounting on couple 3, the realization is to drying-machine 5's fixed, simultaneously drying-machine 5 at the during operation, air inlet 7 through the up end can carry out ventilation and heat dissipation to drying-machine 5, and filter screen 6 on the air inlet 7 can play dirt-proof effect.

Mounting groove 4 has all been seted up to the rear side upper end both sides of drying-machine 5, drying-machine 5 passes through mounting groove 4 movable mounting on couple 3, and couple 3 corresponding with mounting groove 4, air-out pipe 16 has been seted up to drying-machine 5's preceding terminal surface lower extreme intercommunication, it has movable valve 16 to go out the middle department movable mounting of air-out pipe 16, anion generator 14 and ozone generator 15 are installed respectively to drying-machine 5's inside front side both ends, can realize the disinfection of disinfecting to the air in the bathroom through anion generator 14 and ozone generator 15, the cleanness of the air in the bathroom has been guaranteed.

An air inlet 7 is formed in the middle of the upper end face of the dryer 5, a filter screen 6 is movably mounted at the upper end of the air inlet 7, the lower end of the front end face of the dryer 5 is arc-shaped, an air outlet 13 is formed in the position, located in the arc-shaped position, of the dryer 5, and a louver 12 is movably mounted on the air outlet 13.

The length of the dryer 5 is smaller than that of the fixing plate 1, and the dryer 5 is located inside the two side plates 8.

The width of lateral plate 8 is less than the width of fixed plate 1, and connecting rod 10 on lateral plate 8 is vertical downwards, and horizontal pole 11 is located the lower terminal surface of lateral plate 8.

The working principle is as follows: the utility model discloses in operation, it fixes fixed plate 1 to pass through fixed orifices 2 with the inflation screw, simultaneously with drying-machine 5 through 4 movable mounting of mounting groove on couple 3, realize the fixed to drying-machine 5, can warm up and the effect of drying in the bathroom through start-up drying-machine 5, hang towel and clothing on horizontal pole 11 on overcast and rainy day simultaneously, can play the effect of drying to towel and clothing through drying-machine 5, and when need not drying to towel and clothing, the upside of drying-machine 5 is rotated to 11 accessible connecting rods 10 of horizontal pole, when needing to weather the hair simultaneously, weather the device with dedicated hair through communicating pipe switch-on a tuber pipe 16, open movable valve 17 simultaneously, make the inside wind of drying-machine 5 through the discharge of a tuber pipe 16, the realization is weathered the effect to the hair. The working principle of the present invention is the above.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a drying integrated machine, includes fixed plate (1) and drying-machine (5), its characterized in that: fixed orifices (2) have all been seted up to the four corners department of fixed plate (1), department all welds curb plate (8) in the middle of the preceding terminal surface both ends of fixed plate (1), department has connecting rod (10) through connecting axle (9) movable mounting in the middle of the one end that curb plate (8) deviate from fixed plate (1), and connecting rod (10) are located the outside of curb plate (8), the one end that connecting rod (10) deviate from connecting axle (9) is connected through horizontal pole (11), couple (3) have all been welded to the preceding terminal surface upper end both sides of fixed plate (1).

2. The all-in-one dryer according to claim 1, wherein: mounting groove (4) have all been seted up to the rear side upper end both sides of drying-machine (5), drying-machine (5) are through mounting groove (4) movable mounting on couple (3), and couple (3) and mounting groove (4) are corresponding, air-out pipe (16) have been seted up to the preceding terminal surface lower extreme intercommunication of drying-machine (5), the middle movable mounting that locates of air-out pipe (16) has movable valve (17), anion generator (14) and ozone generator (15) are installed respectively to the inside front side both ends of drying-machine (5).

3. The all-in-one dryer according to claim 1, wherein: air inlet (7) have been seted up to the up end middle part of drying-machine (5), the upper end movable mounting of air inlet (7) has filter screen (6), the preceding terminal surface lower extreme of drying-machine (5) is arc, and drying-machine (5) are located arc department and have seted up air outlet (13), movable mounting has tripe (12) on air outlet (13).

4. The all-in-one dryer according to claim 1, wherein: the length of the dryer (5) is smaller than that of the fixing plate (1), and the dryer (5) is positioned on the inner sides of the two side plates (8).

5. The all-in-one dryer according to claim 1, wherein: the width of the side plate (8) is smaller than that of the fixing plate (1), the connecting rod (10) on the side plate (8) is vertical downwards, and the cross rod (11) is located on the lower end face of the side plate (8).
