CN210808791U - A clear excrement collection egg device of pouity dwelling place for poultry is bred - Google Patents

A clear excrement collection egg device of pouity dwelling place for poultry is bred Download PDF

Info

Publication number
CN210808791U
CN210808791U CN201921725221.XU CN201921725221U CN210808791U CN 210808791 U CN210808791 U CN 210808791U CN 201921725221 U CN201921725221 U CN 201921725221U CN 210808791 U CN210808791 U CN 210808791U
Authority
CN
China
Prior art keywords
egg
pushing
poultry
dung
rod shaft
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN201921725221.XU
Other languages
Chinese (zh)
Inventor
张宝安
周鑫城
马少腾
刘宇
张学军
靳伟
史增录
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Xinjiang Agricultural University
Original Assignee
Xinjiang Agricultural University
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Xinjiang Agricultural University filed Critical Xinjiang Agricultural University
Priority to CN201921725221.XU priority Critical patent/CN210808791U/en
Application granted granted Critical
Publication of CN210808791U publication Critical patent/CN210808791U/en
Expired - Fee Related legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Landscapes

  • Housing For Livestock And Birds (AREA)

Abstract

The utility model relates to the technical field of poultry breeding machinery, in particular to a poultry house manure cleaning and egg collecting device for poultry breeding, which comprises a frame, a bottom screen, an egg pushing and manure sweeping mechanism and a manure cleaning mechanism; an egg collecting groove is fixedly arranged on one side of the frame; the bottom screen is arranged on the frame; push away egg and sweep excrement mechanism and include: an egg pushing and dung sweeping assembly and a driving mechanism; push away the egg and sweep excrement subassembly and include: the egg pushing and dung sweeping rod shaft is rotatably arranged on the driving mechanism; the egg pushing and dung sweeping brush is fixedly arranged on the egg pushing and dung sweeping rod shaft; the first motor is arranged on the driving mechanism and is in transmission connection with the egg pushing and dung sweeping rod shaft; the egg pushing and dung sweeping assembly is arranged on the driving mechanism and is driven by the driving mechanism to reciprocate; the spraying member is fixedly connected with the egg pushing and dung sweeping rod shaft and is used for spraying liquid to the bottom screen; the excrement cleaning mechanism is used for receiving excrement falling from the bottom screen and conveying the excrement. Adopt the utility model discloses can reduce the intensity of labour that the poultry was bred, and simple structure, the cost is lower.

Description

A clear excrement collection egg device of pouity dwelling place for poultry is bred
Technical Field
The utility model relates to a poultry breeding machine technical field especially relates to a clear excrement collection egg device of pouity dwelling place for poultry is bred.
Background
Since twenty-first century, poultry farming in China has come to a new development stage, aiming at improving the health welfare and the product quality of poultry, and the poultry welfare farming is to ensure that the poultry lives in a healthy state and keep the life healthy and comfortable. The concern about the welfare of poultry, which also guarantees the health of human beings using poultry products, protects the benefits of human beings themselves, and therefore concerns about the welfare of poultry not only for benefiting animals but also for benefiting human beings themselves. From the perspective of welfare-oriented breeding, it is a development trend to research, develop and popularize new barn feeding and free-ranging technical systems and supporting facilities and equipment for poultry. However, as the large-scale cultivation equipment is expensive and the investment capacity of workers is weak, the mainstream of poultry cultivation is small-scale cultivation at present. In the small-scale culture process, the poultry eggs are mainly collected and the excrement is cleaned manually, so that the labor intensity is high, and the health of operators is influenced; the operation is not standard, and the breeding benefit and the health condition of the poultry are directly influenced.
SUMMERY OF THE UTILITY MODEL
In view of this, the utility model provides a clear excrement egg collecting device of pouity dwelling place for poultry is bred, main aim at reduces the intensity of labour that the poultry was bred, and simple structure, and the cost is lower.
In order to achieve the above object, the utility model mainly provides the following technical scheme:
the embodiment of the utility model provides a poultry house manure cleaning and egg collecting device for poultry breeding, which comprises a frame, a bottom screen, an egg pushing and manure sweeping mechanism and a manure cleaning mechanism;
an egg collecting groove is fixedly arranged on one side of the rack;
the bottom screen is arranged on the frame;
push away the egg and sweep excrement mechanism and include: an egg pushing and dung sweeping assembly and a driving mechanism;
push away the egg and sweep excrement subassembly and include: the egg pushing and dung sweeping rod shaft, the egg pushing and dung sweeping brush, the motor I and the spraying member are arranged on the frame;
the egg pushing and dung sweeping rod shaft is rotatably arranged on the driving mechanism;
the egg pushing and dung sweeping brush is fixedly arranged on the egg pushing and dung sweeping rod shaft;
the first motor is arranged on the driving mechanism, is in transmission connection with the egg pushing and sweeping rod shaft, and is used for driving the egg pushing and sweeping rod shaft to rotate so as to drive the egg pushing and sweeping brush to swing;
the driving mechanism is arranged on the rack;
the egg pushing and dung sweeping assembly is arranged on the driving mechanism and is driven by the driving mechanism to reciprocate; the egg pushing and dung sweeping brush is further driven to reciprocate towards the egg collecting groove along the upper side of the bottom screen and is used for pushing eggs or sweeping dung towards the egg collecting groove;
the spraying member is fixedly connected with the egg pushing and dung sweeping rod shaft; the spraying member is used for spraying liquid to the bottom screen;
clear excrement mechanism includes: the roller shaft I, the roller shaft II, the conveying belt and the motor II are arranged in the conveying belt;
the first roll shaft is rotatably arranged on the rack;
the second roll shaft is rotatably arranged on the rack;
the conveying belt is arranged on the first roll shaft and the second roll shaft, is positioned below the bottom screen and is used for receiving excrement falling from the bottom screen;
the second motor is arranged on the rack, is in transmission connection with the first roller shaft or the second roller shaft and is used for driving the conveying belt to convey excrement.
Further, the bottom sieve is obliquely arranged towards the egg collecting groove.
Further, the inclination angle of the bottom screen and the horizontal plane is 5-10 degrees.
Further, an auger mechanism is arranged in the egg collecting groove; the auger blade of the auger mechanism is made of flexible materials.
Further, the drive mechanism includes: a screw rod, a nut and a motor III;
the lead screw can be rotatably arranged on the rack;
the nut is arranged on the lead screw, and the lead screw rotates to push the nut to reciprocate;
one end of the egg pushing and dung sweeping rod shaft can be rotatably arranged on the nut, and the other end of the egg pushing and dung sweeping rod shaft can be rotatably arranged on the sliding block; the sliding block slides on the sliding rail; the sliding rail is fixedly arranged on the rack; the slide rail is arranged in parallel with the lead screw;
and the motor III is in transmission connection with the lead screw and is used for driving the lead screw to rotate.
Furthermore, one end of the rack is fixedly provided with a first guide rail; a first guide block is arranged on the first guide rail;
the other end of the rack is fixedly provided with a second guide rail; a second guide block is arranged on the second guide rail; the first guide rail and the second guide rail are arranged in parallel;
one end of the egg pushing and dung sweeping rod shaft is rotatably arranged on the first guide block, and the other end of the egg pushing and dung sweeping rod shaft is rotatably arranged on the second guide block;
the drive mechanism includes: the belt wheel I, the belt wheel II, a driving belt and a motor IV;
the first belt wheel is rotatably arranged on the frame;
the second belt wheel is rotatably arranged on the frame;
the driving belt is arranged on the first belt wheel and the second belt wheel;
the motor IV is arranged on the rack, is in transmission connection with the belt wheel I or the belt wheel II and is used for driving the driving belt to rotate;
the driving belt is fixedly provided with a connecting block;
one end of the egg pushing and dung sweeping rod shaft is rotatably arranged on the connecting block, is driven by the driving belt and reciprocates along the guide rail I.
Further, the spraying component is connected with the water pump through a pipeline; the water pump is arranged in the water tank; the water tank is used for containing clean water or sterilized water.
Further, a support plate frame is fixedly arranged on the machine frame; the bottom screen is supported on the supporting plate frame through supporting legs; the supporting plate frame is horizontally arranged.
Further, the screw blade is made of a brush or rubber.
Further, the conveyer belt is the canvas material.
Borrow by above-mentioned technical scheme, the utility model discloses a clear excrement egg collecting device of pouity dwelling place for poultry is bred has following advantage at least:
can reduce the labor intensity of poultry cultivation, and has simple structure and lower cost.
The above description is only an overview of the technical solution of the present invention, and in order to make the technical means of the present invention clearer and can be implemented according to the content of the description, the following detailed description is made with reference to the preferred embodiments of the present invention and accompanying drawings.
Drawings

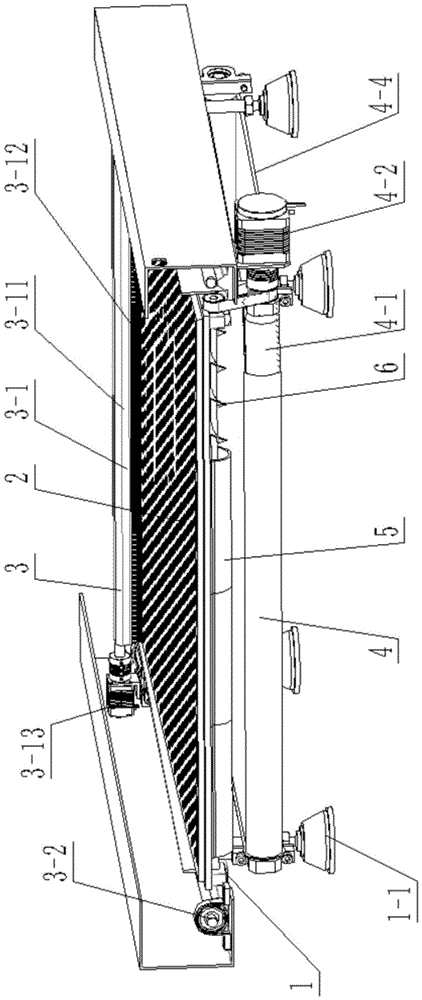

Fig. 1 is a schematic view of one side of a poultry house manure cleaning and egg collecting device for poultry farming according to an embodiment of the present invention;
fig. 2 is a schematic view of the other side of the poultry house manure clearing and egg collecting device for poultry farming according to the embodiment of the present invention;
fig. 3 is a schematic view of an egg pushing and sweeping rod shaft, an egg pushing and sweeping brush and a spraying member in the poultry house manure cleaning and collecting device for poultry farming according to an embodiment of the present invention;
fig. 4 is another schematic diagram of an egg pushing and sweeping rod shaft, an egg pushing and sweeping brush and a spraying member in the poultry house manure cleaning and collecting device for poultry farming according to the embodiment of the present invention;
fig. 5 is a schematic view of an egg collecting groove and an auger mechanism in a poultry house manure cleaning and egg collecting device for poultry farming provided by the embodiment of the utility model.
Shown in the figure:
1 is a frame, 1-1 is a supporting leg, 2 is a bottom screen, 3 is an egg pushing and dung sweeping mechanism, 3-1 is an egg pushing and dung sweeping component, 3-11 is an egg pushing and dung sweeping rod shaft, 3-12 is an egg pushing and dung sweeping brush, 3-13 is a motor I, 3-14 is a spraying component, 3-2 is a driving mechanism, 3-21 is a lead screw, 3-22 is a nut, 3-23 is a motor III, 4 is a dung sweeping mechanism, 4-1 is a roller I, 4-2 is a motor II, 4-3 is a roller II, 4-4 is a conveying belt, 5 is an egg collecting groove, 6 is a screw conveyor mechanism, and 7 is a supporting plate frame.
Detailed Description
To further illustrate the technical means and effects of the present invention adopted to achieve the intended purpose of the present invention, the following detailed description is given with reference to the accompanying drawings and preferred embodiments, in order to explain the detailed embodiments, structures, features and effects of the present invention. In the following description, different "one embodiment" or "an embodiment" refers to not necessarily the same embodiment. Furthermore, the particular features, structures, or characteristics may be combined in any suitable manner in one or more embodiments.
As shown in fig. 1 to 5, an embodiment of the present invention provides a poultry house manure cleaning and egg collecting device for poultry cultivation, which comprises a frame 1, a bottom screen 2, an egg pushing and manure sweeping mechanism 3 and a manure cleaning mechanism 4; the frame 1 is a frame structure, and the frame 1 is used for supporting other components on the frame 1. The frame 1 can be formed by welding or fastening formed steel. The bottom of the frame 1 is fixed with a leg 1-1 to support the frame 1. Of course, a walking wheel can be arranged on the supporting leg 1-1 to facilitate the movement.
An egg collecting groove 5 is fixedly arranged on one side of the frame 1 and is used for collecting eggs falling on the bottom screen 2; the egg collecting groove 5 is positioned at one side of the bottom screen 2. A bottom screen 2 is arranged on the frame 1 for carrying poultry. The bottom screen 2 is of a screen mesh structure; the sieve pores of the sieve mesh are round holes; the diameter of the sieve pore is 1 cm-2 cm. Of course, other shapes of apertures are possible, and the mesh is used for dropping of feces and preventing dropping of eggs. In the preferred embodiment, the bottom screen 2 is obliquely arranged towards the egg collecting groove 5, so that the eggs on the bottom screen 2 can roll towards the egg collecting groove 5; further preferably, the inclination angle of the bottom screen 2 and the horizontal plane is 5-10 degrees, preferably 7 degrees, so that the poultry can conveniently roll into the egg collecting groove 5 on one side along the inclined plane of the bottom screen 2 after laying eggs, and the poultry can have a comfortable environment while the poultry can roll.
Push away egg and sweep excrement mechanism 3 and include: an egg pushing and dung sweeping component 3-1 and a driving mechanism 3-2; push away egg and sweep excrement subassembly 3-1 includes: the egg pushing and dung sweeping rod shaft is 3-11, the egg pushing and dung sweeping brush is 3-12, the motor I is 3-13 and the spraying component is 3-14; the egg pushing and dung sweeping rod shaft 3-11 is rotatably arranged on the driving mechanism 3-2; in the embodiment, preferably, the egg pushing and dung sweeping rod shaft 3-11 is connected with the driving mechanism 3-2 through a bearing; the egg pushing and dung sweeping brushes 3-12 are fixedly arranged on the egg pushing and dung sweeping rod shafts 3-11; is used for pushing eggs on the bottom screen 2 and cleaning excrement. The first motor 3-13 is arranged on the driving mechanism 3-2, is in transmission connection with the egg pushing and dung sweeping rod shaft 3-11, and is used for driving the egg pushing and dung sweeping rod shaft 3-11 to rotate so as to drive the egg pushing and dung sweeping brush 3-12 to swing, so that the angle between the egg pushing and dung sweeping brush 3-12 and the bottom screen 2 is adjusted, and better egg pushing and dung cleaning effects are achieved. In the initial state, the egg pushing and dung sweeping rod shaft 3-11 is arranged on one side of the rack 1, and the egg pushing and dung sweeping brush 3-12 is vertically downward; when the egg pushing and dung sweeping rod works, the first motor 3-13 rotates to enable the egg pushing and dung sweeping rod shafts 3-11 to rotate at the same angle. The egg pushing and dung sweeping rod shaft 3-11 drives the egg pushing and dung sweeping brush 3-12 to move towards the egg collecting groove 5, the egg pushing and dung sweeping brush 3-12 is inclined backwards, and eggs on the bottom screen are pushed to the egg collecting groove.
When the egg pushing and dung sweeping rod shaft 3-11 reaches the egg collecting groove 5, the egg pushing and dung sweeping rod shaft 3-11 stops advancing. During the return process, the egg pushing and dung sweeping rod shaft is reversed by 3-11 degrees, and the initial vertical state is kept. In the operation process, the spraying members 3-14 on the egg pushing and dung sweeping rod shafts 3-11 spray water to clean the bottom screen 2, and the egg pushing and dung sweeping brushes 3-12 on the rear side clean the dung on the bottom screen 2, so that a better cleaning effect is achieved. The spraying members 3-14 may also be used for spray disinfection.
The driving mechanism 3-2 is arranged on the frame 1, the egg pushing and dung sweeping component 3-1 is arranged on the driving mechanism 3-2 and is driven by the driving mechanism 3-2 to reciprocate; further driving the egg pushing and dung sweeping brushes 3-12 to reciprocate towards the egg collecting groove 5 along the upper side of the bottom screen 2 and used for pushing eggs or sweeping dung towards the egg collecting groove 5;
in the present embodiment, the driving mechanism 3-2 preferably includes: 3-21 parts of a screw rod, 3-22 parts of a nut and 3-23 parts of a motor; the screw rods 3-21 can be rotatably arranged on the frame 1; the screw rods 3-21 are horizontally arranged, and the screw rods 3-21 face the egg collecting groove 5. The nuts 3-22 are arranged on the screw rods 3-21, and the screw rods 3-21 rotate to push the nuts 3-22 to reciprocate; one end of the egg pushing and dung sweeping rod shaft 3-11 can be rotatably arranged on the nut 3-22, and the other end can be rotatably arranged on the sliding block; the sliding block slides on the sliding rail; the slide rail is fixedly arranged on the frame 1; the slide rail is arranged in parallel with the screw rod 3-21; the motor III 3-23 is in transmission connection with the screw rod 3-21 and is used for driving the screw rod 3-21 to rotate so as to drive the egg pushing and dung sweeping rod shaft 3-11 on the nut 3-22 to reciprocate.
Alternatively, one end of the frame 1 is fixedly provided with a first guide rail; a first guide block is arranged on the first guide rail; the first guide block can slide on the first guide rail in a reciprocating manner; the other end of the rack 1 is fixedly provided with a second guide rail; a second guide block is arranged on the second guide rail; the second guide block can slide on the second guide rail in a reciprocating manner; the first guide rail is arranged in parallel with the guide rail; one end of the egg pushing and dung sweeping rod shaft 3-11 is rotatably arranged on the first guide block, and the other end of the egg pushing and dung sweeping rod shaft is rotatably arranged on the second guide block; the egg pushing and dung sweeping rod shaft 3-11 is supported by the first guide block and the second guide block and slides on the first guide rail and the second guide rail; the drive mechanism 3-2 includes: the belt wheel I, the belt wheel II, a driving belt and a motor IV; the first belt wheel is rotatably arranged on the frame 1; the second belt wheel is rotatably arranged on the frame 1; the driving belt is arranged on the first belt wheel and the second belt wheel and is driven to rotate by the first belt wheel and the second belt wheel; the motor IV is arranged on the frame 1, is in transmission connection with the belt wheel I or the belt wheel II and is used for driving the driving belt to rotate; the driving belt is fixedly provided with a connecting block; one end of the egg pushing and dung sweeping rod shaft 3-11 is rotatably arranged on the connecting block, is driven by the driving belt and reciprocates along the guide rail I. The lead screw nut drive may be replaced by a belt drive. The drive belt is preferably a timing belt.
The spraying members 3-14 are fixedly connected with the egg pushing and dung sweeping rod shaft 3-11; the spraying members 3-14 are used for spraying liquid to the bottom screen 2, and can spray clean water or disinfectant and the like; the spraying members 3-14 can be spray heads or spray pipes, so that cleaning water can be sprayed when the egg pushing and dung sweeping brushes 3-12 clean the bottom screen 2, and disinfectant can be sprayed when disinfection is needed. The spraying components 3-14 are connected with a water pump through pipelines; the water pump is arranged in the water tank; the water tank is used for containing liquid such as cleaning water or disinfectant water. When the egg pushing and dung sweeping rod shaft 3-11 advances, the egg pushing and dung sweeping rod shaft rotates to a preset angle, and the egg is pushed along the bottom screen 2; during return stroke, the egg pushing and dung sweeping rod shaft 3-11 rotates to a preset angle, the bottom screen 2 is cleaned by sprinkling water, the egg pushing and dung sweeping brush 3-12 brushes dung, the bottom screen 2 is cleaned by double cleaning, and disinfectant can be sprayed to disinfect poultry.
Clear excrement mechanism 4 includes: the first roll shaft 4-1, the second roll shaft 4-3, the conveyer belt 4-4 and the second motor 4-2; the first roll shaft 4-1 is rotatably arranged on the frame 1; the first roll shaft 4-1 is connected with the rack 1 through bearings at two ends; the second roll shaft 4-3 can be rotatably arranged on the frame 1; the roll shaft II 4-3 is connected with the rack 1 through bearings at two ends; the conveying belt 4-4 is arranged on the first roller shaft 4-1 and the second roller shaft 4-3 and is driven to rotate by the first roller shaft 4-1 and the second roller shaft 4-3; the conveyer belt 4-4 is positioned below the bottom screen 2 and is used for receiving excrement falling from the bottom screen 2;
the motor II 4-2 is arranged on the rack 1 and is in transmission connection with the roller shaft I4-1 or the roller shaft II 4-3 and used for driving the conveyer belt 4-4 to convey excrement. Preferably, the conveying belt 4-4 is made of canvas, corrosion resistant and convenient to clean.
The utility model discloses a clear excrement egg collecting device of pouity dwelling place for poultry is bred that an embodiment provided can reduce the intensity of labour that the poultry was bred, and simple structure, and the cost is lower. Can be applied to outdoor environment such as forest orchard, convenient removal and installation.
As a preference of the above embodiment, an auger mechanism 6 is provided in the egg collecting tank 5; the auger mechanism 6 conveys the eggs to one side to collect the eggs in a centralized way; the auger blade of the auger mechanism 6 is made of flexible material so as to facilitate the collection of eggs; the auger blade is made of a brush or rubber material so as to avoid damage to the poultry eggs.
As a preference of the above embodiment, the frame 1 is fixedly provided with a support plate frame 7; the bottom screen 2 is supported on a supporting plate frame 7 through supporting legs 1-1; the support plate frame 7 is horizontally disposed. The supporting legs 1-1 are respectively supported on four corners of the bottom screen 2; preferably the length of the legs 1-1 is adjustable to facilitate adjustment of the angle of the bottom screen 2. The legs 1-1 are preferably tube structures nested within each other for length adjustment.
Further still, although the terms first, second, etc. may be used herein to describe various elements, these elements should not be limited by these terms. These terms are only used to distinguish one element from another. For example, a first element could be termed a second element, and, similarly, a second element could be termed a first element, with such terms being used only to distinguish one element from another. Without departing from the scope of the exemplary embodiments. Similarly, the terms first, second, etc. do not denote any order or order, but rather the terms first, second, etc. are used to distinguish one element from another. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in any way, and any simple modification, equivalent change and modification made by the technical spirit of the present invention to the above embodiments are all within the scope of the technical solution of the present invention.

Claims (10)

1. A poultry house manure cleaning and egg collecting device for poultry breeding is characterized by comprising a frame, a bottom screen, an egg pushing and manure sweeping mechanism and a manure cleaning mechanism;
an egg collecting groove is fixedly arranged on one side of the rack;
the bottom screen is arranged on the frame;
push away the egg and sweep excrement mechanism and include: an egg pushing and dung sweeping assembly and a driving mechanism;
push away the egg and sweep excrement subassembly and include: the egg pushing and dung sweeping rod shaft, the egg pushing and dung sweeping brush, the motor I and the spraying member are arranged on the frame;
the egg pushing and dung sweeping rod shaft is rotatably arranged on the driving mechanism;
the egg pushing and dung sweeping brush is fixedly arranged on the egg pushing and dung sweeping rod shaft;
the first motor is arranged on the driving mechanism, is in transmission connection with the egg pushing and sweeping rod shaft, and is used for driving the egg pushing and sweeping rod shaft to rotate so as to drive the egg pushing and sweeping brush to swing;
the driving mechanism is arranged on the rack;
the egg pushing and dung sweeping assembly is arranged on the driving mechanism and is driven by the driving mechanism to reciprocate; the egg pushing and dung sweeping brush is further driven to reciprocate towards the egg collecting groove along the upper side of the bottom screen and is used for pushing eggs or sweeping dung towards the egg collecting groove;
the spraying member is fixedly connected with the egg pushing and dung sweeping rod shaft; the spraying member is used for spraying liquid to the bottom screen;
clear excrement mechanism includes: the roller shaft I, the roller shaft II, the conveying belt and the motor II are arranged in the conveying belt;
the first roll shaft is rotatably arranged on the rack;
the second roll shaft is rotatably arranged on the rack;
the conveying belt is arranged on the first roll shaft and the second roll shaft, is positioned below the bottom screen and is used for receiving excrement falling from the bottom screen;
the second motor is arranged on the rack, is in transmission connection with the first roller shaft or the second roller shaft and is used for driving the conveying belt to convey excrement.
2. Poultry house manure clearing and egg collecting device for poultry farming according to claim 1,
the bottom sieve is obliquely arranged towards the egg collecting groove.
3. Poultry house manure clearing and egg collecting device for poultry farming according to claim 2,
the inclination angle of the bottom screen and the horizontal plane is 5-10 degrees.
4. Poultry house manure clearing and egg collecting device for poultry farming according to claim 1,
an auger mechanism is arranged in the egg collecting groove; the auger blade of the auger mechanism is made of flexible materials.
5. Poultry house manure clearing and egg collecting device for poultry farming according to claim 1,
the drive mechanism includes: a screw rod, a nut and a motor III;
the lead screw can be rotatably arranged on the rack;
the nut is arranged on the lead screw, and the lead screw rotates to push the nut to reciprocate;
one end of the egg pushing and dung sweeping rod shaft can be rotatably arranged on the nut, and the other end of the egg pushing and dung sweeping rod shaft can be rotatably arranged on the sliding block; the sliding block slides on the sliding rail; the sliding rail is fixedly arranged on the rack; the slide rail is arranged in parallel with the lead screw;
and the motor III is in transmission connection with the lead screw and is used for driving the lead screw to rotate.
6. Poultry house manure clearing and egg collecting device for poultry farming according to claim 1,
one end of the rack is fixedly provided with a first guide rail; a first guide block is arranged on the first guide rail;
the other end of the rack is fixedly provided with a second guide rail; a second guide block is arranged on the second guide rail; the first guide rail and the second guide rail are arranged in parallel;
one end of the egg pushing and dung sweeping rod shaft is rotatably arranged on the first guide block, and the other end of the egg pushing and dung sweeping rod shaft is rotatably arranged on the second guide block;
the drive mechanism includes: the belt wheel I, the belt wheel II, a driving belt and a motor IV;
the first belt wheel is rotatably arranged on the frame;
the second belt wheel is rotatably arranged on the frame;
the driving belt is arranged on the first belt wheel and the second belt wheel;
the motor IV is arranged on the rack, is in transmission connection with the belt wheel I or the belt wheel II and is used for driving the driving belt to rotate;
the driving belt is fixedly provided with a connecting block;
one end of the egg pushing and dung sweeping rod shaft is rotatably arranged on the connecting block, is driven by the driving belt and reciprocates along the guide rail I.
7. Poultry house manure clearing and egg collecting device for poultry farming according to claim 1,
the spraying component is connected with the water pump through a pipeline; the water pump is arranged in the water tank; the water tank is used for containing clean water or sterilized water.
8. Poultry house manure clearing and egg collecting device for poultry farming according to claim 1,
a support plate frame is fixedly arranged on the frame; the bottom screen is supported on the supporting plate frame through supporting legs; the supporting plate frame is horizontally arranged.
9. Poultry house manure clearing and egg collecting device for poultry farming according to claim 4,
the screw feeder blade is made of a brush or rubber.
10. Poultry house manure clearing and egg collecting device for poultry farming according to claim 1,
the conveyer belt is the canvas material.
CN201921725221.XU 2019-10-15 2019-10-15 A clear excrement collection egg device of pouity dwelling place for poultry is bred Expired - Fee Related CN210808791U (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN201921725221.XU CN210808791U (en) 2019-10-15 2019-10-15 A clear excrement collection egg device of pouity dwelling place for poultry is bred

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN201921725221.XU CN210808791U (en) 2019-10-15 2019-10-15 A clear excrement collection egg device of pouity dwelling place for poultry is bred

Publications (1)

Publication Number Publication Date
CN210808791U true CN210808791U (en) 2020-06-23

Family

ID=71269351

Family Applications (1)

Application Number Title Priority Date Filing Date
CN201921725221.XU Expired - Fee Related CN210808791U (en) 2019-10-15 2019-10-15 A clear excrement collection egg device of pouity dwelling place for poultry is bred

Country Status (1)

Country Link
CN (1) CN210808791U (en)

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN110547225A (en) * 2019-10-15 2019-12-10 新疆农业大学 a clear excrement collection egg device of pouity dwelling place for poultry is bred

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN110547225A (en) * 2019-10-15 2019-12-10 新疆农业大学 a clear excrement collection egg device of pouity dwelling place for poultry is bred
CN110547225B (en) * 2019-10-15 2024-05-31 新疆农业大学 A clear excrement collection egg device of birds house for poultry is bred

Similar Documents

Publication Publication Date Title
CN110268999B (en) Poultry breeding cage convenient for removing manure and operation method thereof
CN210869355U (en) A intelligent pouity dwelling place for forest and fruit garden poultry is bred
CN108935199B (en) Mechanized chicken raising equipment
CN110547225B (en) A clear excrement collection egg device of birds house for poultry is bred
CN210808791U (en) A clear excrement collection egg device of pouity dwelling place for poultry is bred
CN211430496U (en) Animal husbandry is bred with receiving dung-cart
CN215460437U (en) A self-sterilizer for sheep plant
CN112273274A (en) Breeding is with excrement and urine's case of raising chickens of conveniently handling
CN213663013U (en) Livestock-raising excrement and urine cleaning device
CN112273277A (en) Clear excrement degassing unit of chicken coop breed
CN208211159U (en) A kind of livestock rearing house easy to clean
CN204259606U (en) The three-dimensional colony house of animal
CN105210891A (en) Excrement device scraped by a kind of double excrement groove pig house
CN112655570B (en) Hu sheep breeds shed flushing equipment
CN212397544U (en) Livestock-raising uses ox groove cleaning equipment
CN209964905U (en) Dirty cleaning device of excrement for poultry
CN211482519U (en) Automatic cleaning device of temporary rearing pond
CN208446318U (en) A kind of pig farm automatic pig manure cleaning device
CN207626316U (en) A kind of livestock-raising removes excrement device
CN110547223A (en) A intelligent pouity dwelling place for forest and fruit garden poultry is bred
CN215329594U (en) A clearance degassing unit for duck house
CN207491819U (en) A kind of poultry frame convenient for cleaning chicken manure
CN203633314U (en) Automatic floor cleaning device for high-bed cultivation equipment area
CN205393053U (en) Wash automation equipment of growth tray among water culture system
CN216821192U (en) Novel cage-rearing animal breeding device

Legal Events

Date Code Title Description
GR01 Patent grant
GR01 Patent grant
CF01 Termination of patent right due to non-payment of annual fee
CF01 Termination of patent right due to non-payment of annual fee

Granted publication date: 20200623

Termination date: 20201015
