CN210808652U

CN210808652U - Multi-functional afforestation water conservation drip irrigation equipment

Info

Publication number: CN210808652U
Application number: CN201921799646.5U
Authority: CN
Inventors: 蔡勇俊; 汤箬梅
Original assignee: Nanjing Forestry University
Current assignee: Nanjing Forestry University
Priority date: 2019-10-24
Filing date: 2019-10-24
Publication date: 2020-06-23
Anticipated expiration: 2029-10-24

Abstract

The utility model discloses a multi-functional afforestation water conservation drip irrigation equipment, the on-line screen storage device comprises a base, the upside of base is fixed with the storage water tank, the right side of storage water tank is fixed with the motor, the output of motor stretches into the storage water tank in-connection and has rotated the (mixing) shaft of installing in the storage water tank, be fixed with a plurality of stirring leaves on the (mixing) shaft, the upside of storage water tank is provided with the funnel that falls into water, be provided with the filter screen in the funnel that falls into water, the left side of storage water tank is fixed with the inlet tube, the below of inlet tube is provided with the play pencil with the storage water. The utility model discloses in, can collect the rainwater through storage water tank, the funnel that falls into water and filter screen when raining, utilize, the filter screen filters the rainwater, proposes dust wherein, can add the medicine stirring through motor, second water pump, sprinkler head and (mixing) shaft, carries out the medicine and sprays, guarantees vegetation, dispels the plant diseases and insect pests.

Description

Multi-functional afforestation water conservation drip irrigation equipment

Technical Field

The utility model relates to an afforestation field especially relates to a multi-functional afforestation water conservation drip irrigation equipment.

Background

The garden greening is an aesthetic natural environment and a rest area created by applying engineering technology and artistic means in a certain region and modifying the terrain (or further building mountains, stacking stones and managing water) to plant trees, flowers and plants, building buildings, arranging garden roads and the like, and is called as a garden. Gardens are not only used for rest but also have the function of protecting and improving the environment. The essential equipment of driping irrigation of afforestation, it is the most effective water conservation irrigation mode of present arid water-deficient area to utilize plastic conduit to send water to the crop root through drill way or dripper on the diameter about ten millimeters hollow billet to drip irrigation, but current equipment can not make the effect that irrigates and reach the ideal, the measurement gardens that can not be accurate are watered the water yield also can not be accurate spray, still need a large amount of manual works simultaneously, the phenomenon of wasting water is more serious, the waste of resource has been caused, afforestation in the gardens not only need irrigate, also need regularly carry out liquid medicine and spray, maintain afforestation.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a multifunctional landscaping water-saving drip irrigation device.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a multifunctional landscaping water-saving drip irrigation device comprises a base, wherein a water storage tank is fixed on the upper side of the base, a motor is fixed on the right side of the water storage tank, the output end of the motor extends into the water storage tank and is connected with a stirring shaft which is rotatably arranged in the water storage tank, a plurality of stirring blades are fixed on the stirring shaft, a water falling funnel is arranged on the upper side of the water storage tank, a filter screen is arranged in the water falling funnel, a water inlet pipe is fixed on the left side of the water storage tank, a medicine outlet pipe communicated with the water storage tank is arranged below the water inlet pipe, a water outlet pipe is arranged on the right side of the water storage tank and is positioned below the motor, the water outlet pipe is connected with the water inlet end of a first water pump, the water outlet end of the first water pump is connected with a water outlet branch pipe through a hose, the water, the water outlet end of the second water pump is connected with a sprinkler head through a hose, the base is fixed with a support frame positioned on the left side of the second water pump, the base is fixed with a shell positioned on the front side of the first water pump, a controller is arranged in the shell, and a humidity sensor is arranged below the base.

Preferably, the water inlet pipe and the water outlet pipe are both communicated with the water storage tank, and the shell is provided with a door capable of opening and closing.

Preferably, the support frame is Y-shaped, and a hose connected with the sprinkler head is hung on the support frame.

Preferably, the controller is CMS8206, and the humidity sensor is FDS-100.

Preferably, the controller is connected with a first water pump, a second water pump, a motor and a humidity sensor through wires.

Preferably, the downside of base is fixed with the universal wheel, the filter screen can be dismantled, the play water end of play water branch pipe is provided with 4 altogether, and is provided with 4 with the hose and the water dropper head that the play water end of play water branch pipe matches.

The utility model has the advantages that: the utility model discloses in, through the storage water tank, funnel and filter screen can collect the rainwater when raining, utilize, the filter screen filters the rainwater, propose dust wherein, through the motor, the second water pump, sprinkler head and (mixing) shaft can add the medicine stirring, carry out the medicine and spray, guarantee vegetation, dispel the plant diseases and insect pests, provide good living environment, through the first water pump of water dripping tube head, can irrigate the root of plant, can not make the waste of water with the direct contact of soil, the water yield of control irrigation that can be better through controller and humidity inductor, the effect of improvement water conservation.

Drawings

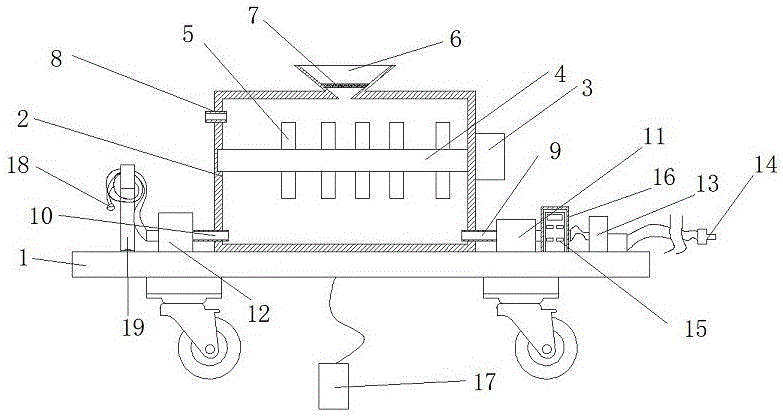

Fig. 1 is the utility model relates to a structural schematic diagram of multi-functional afforestation water conservation drip irrigation equipment.

Fig. 2 is the utility model relates to a multi-functional afforestation water conservation drip irrigation equipment overlook the structure sketch map.

Reference numbers in the figures: 1 base, 2 water storage tanks, 3 motors, 4 stirring shafts, 5 stirring blades, 6 water falling funnels, 7 filter screens, 8 water inlet pipes, 9 water outlet pipes, 10 medicine outlet pipes, 11 first water pumps, 12 second water pumps, 13 water outlet branch pipes, 14 water dropping pipe heads, 15 controllers, 16 shells, 17 humidity sensors, 18 spray heads and 19 support frames.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-2, a multifunctional landscaping water-saving drip irrigation device comprises a base 1, a water storage tank 2 is fixed on the upper side of the base 1, a motor 3 is fixed on the right side of the water storage tank 2, the output end of the motor 3 extends into the water storage tank 2 and is connected with a stirring shaft 4 rotatably installed in the water storage tank 2, a plurality of stirring blades 5 are fixed on the stirring shaft 4, a water falling funnel 6 is arranged on the upper side of the water storage tank 2, a filter screen 7 is arranged in the water falling funnel 6, a water inlet pipe 8 is fixed on the left side of the water storage tank 2, a medicine outlet pipe 10 communicated with the water storage tank 2 is arranged below the water inlet pipe 8, a water outlet pipe 9 is arranged on the right side of the water storage tank 2, the water outlet pipe 9 is positioned below the motor 3, the water outlet pipe 9 is connected with the water inlet end of a first, the medicine outlet pipe 10 is connected with the water inlet end of a second water pump 12, the water outlet end of the second water pump 12 is connected with a spray head 18 through a hose, a support frame 19 positioned on the left side of the second water pump 12 is fixed on a base 1, a shell 16 positioned on the front side of a first water pump 11 is fixed on the base 1, a controller 15 is arranged in the shell 16, a humidity sensor 17 is arranged below the base 1, a water inlet pipe 8 and a water outlet pipe 9 are both communicated with a water storage tank 2, an openable door is arranged on the shell 16, the support frame 19 is Y-shaped, the hose connected with the spray head 18 is hung on the support frame 19, the model of the controller 15 is CMS8206, the model of the humidity sensor 17 is FDS-100, the controller 15 is connected with the first water pump 11, the second water pump 12, a motor 3 and the humidity sensor 17 through leads, a universal wheel is fixed on the lower side of the base 1, a filter screen 7 can be detached, and the water outlet, and 4 hoses and water dropper heads 14 matched with the water outlet ends of the water outlet branch pipes 13 are arranged.

The working principle is as follows: under normal conditions, water is led into the water storage tank 2 through the water inlet pipe 8, when the rain falls into the water storage tank 2 through the water falling funnel 6, the universal wheel mobile equipment moves to a place needing irrigation, the humidity sensor 17 transmits a signal to the controller 15 to determine that the irrigation is not needed and the amount of irrigation water is needed, the controller 15 controls the starting of the first water pump 11, the first water pump 11 leads the water into the water outlet branch pipe 13 from the hose, the water dripping pipe head 14 is buried into soil near the plants, the water comes out of the water dripping pipe head 14 to irrigate the plants, and when the humidity sensor 17 senses that the humidity of the soil reaches a standard, the controller 15 controls the first water pump to stop working; when the plant needs to be sprayed with the agent, the filter screen 7 is taken out, the agent is put into the water storage tank 2 from the water falling funnel 6, the controller 15 controls the motor 3 to be started to drive the stirring blades 5 on the stirring shaft 4 to mix the agent with water, the controller 15 controls the first water pump 11 to be closed, the second water pump 12 to be opened, the liquid medicine is led out from the water storage tank 2, flows out from the medicine outlet pipe 10 and flows out from the sprinkler head 18 through the hose, and the staff takes up the sprinkler head 18 to spray the plant.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a multi-functional afforestation water conservation drip irrigation equipment, includes base (1), its characterized in that, the upside of base (1) is fixed with storage water tank (2), the right side of storage water tank (2) is fixed with motor (3), the output of motor (3) stretches into storage water tank (2) in-connection has and rotates the (mixing) shaft (4) of installing in storage water tank (2), be fixed with a plurality of stirring leaves (5) on (mixing) shaft (4), the upside of storage water tank (2) is provided with the funnel of falling into water (6), be provided with filter screen (7) in the funnel of falling into water (6), the left side of storage water tank (2) is fixed with inlet tube (8), the below of inlet tube (8) is provided with medicine outlet pipe (10) that communicate with storage water tank (2), the right side of storage water tank (2) is provided with outlet pipe (9), outlet pipe (9) are located, outlet pipe (9) are connected with the end of intaking of first water pump (11), the play water end of first water pump (11) has a water branch pipe (13) through the hose connection, the play water end of a water branch pipe (13) has water dripping tube head (14) through the hose connection, it is connected with the end of intaking of second water pump (12) to go out pencil (10), the play water end of second water pump (12) has sprinkler head (18) through the hose connection, base (1) is fixed with and is located left support frame (19) of second water pump (12), be fixed with casing (16) that are located first water pump (11) front side on base (1), be provided with controller (15) in casing (16), the below of base (1) is provided with humidity inductor (17).

2. The multifunctional landscaping water-saving drip irrigation device as claimed in claim 1, wherein the water inlet pipe (8) and the water outlet pipe (9) are both communicated with the water storage tank (2), and the housing (16) is provided with a door capable of opening and closing.

3. The multifunctional landscaping water-saving drip irrigation device according to claim 1, wherein the support frame (19) is Y-shaped, and a hose connected with the sprinkler head (18) is hung on the support frame (19).

4. The multifunctional landscaping water-saving drip irrigation device according to claim 1, wherein the controller (15) is of type CMS8206 and the humidity sensor (17) is of type FDS-100.

5. The multifunctional landscaping water-saving drip irrigation device according to claim 1, wherein the controller (15) is connected with a first water pump (11), a second water pump (12), a motor (3) and a humidity sensor (17) through wires.

6. The multifunctional landscaping water-saving drip irrigation device according to claim 1, wherein universal wheels are fixed on the lower side of the base (1), the filter screen (7) is detachable, the water outlet ends of the water outlet branch pipes (13) are provided with 4, and the hoses and the water dropper heads (14) matched with the water outlet ends of the water outlet branch pipes (13) are provided with 4.
