Abstract
The utility model discloses an over-and-under type beater bar equipment, including power roll table conveyer and hydraulic pressure scissors forked lift, power roll table conveyer installs at hydraulic pressure scissors forked lift top, and hydraulic pressure scissors forked lift installs in the pit. The utility model discloses an electronic power roll table need not artifically go the push-and-pull and reduce manipulation strength, adopts hydraulic pressure scissors fork lift to realize that power roll table conveyer rises or descends, guarantees that power roll table conveyer's height remains unanimous with the beater table all the time, makes things convenient for personnel's beater work.
Description
Technical Field
The utility model relates to an over-and-under type clapper board platform equipment belongs to clapper board platform equipment technical field.
Background
The tradition platform of clapping boards is fixed for the height on ground, and operating personnel need frequently bow when the low level is put goods, and when the high level, personnel can't enough again, can not be accurate place the goods, and intensity of labour is big, work efficiency is low, has the damage hidden danger that the goods falls simultaneously to the platform of clapping boards is unpowered cylinder, and the goods very heavily needs many people to promote together, and intensity of labour is big.
Disclosure of Invention
The to-be-solved technical problem of the utility model is: the utility model provides a lifting type pallet beating equipment, which solves the problems in the prior art.
The utility model discloses the technical scheme who takes does: a lifting type boarding platform device comprises a power roller way conveyor and a hydraulic scissor fork type lifter, wherein the power roller way conveyor is arranged at the top of the hydraulic scissor fork type lifter, and the hydraulic scissor fork type lifter is arranged in a pit.
Preferably, the end parts of the inlet end and the outlet end of the power roller conveyor are provided with safety baffles, the safety baffles are of prismatic structures, the plate surfaces of the safety baffles are perpendicular to the motion direction of the power roller conveyor, the safety baffles are hinged on a frame of the power roller conveyor near the middle part of the left side, a vertical pulling plate is arranged at the lower left corner, the pulling plate is connected with a horizontal stretching spring, the other end of the stretching spring is fixedly connected on a spring seat, the spring seat is fixedly connected on the frame of the power roller conveyor, the right side surface of the lower end of the pulling plate is provided with a horizontal through hole in the same direction as the stretching spring, the horizontal through hole is a vertical strip-shaped hole, a pull rod is movably penetrated through, a nut is fixedly connected on the pull rod and abuts against the right end surface of the pulling plate, the left end of the pull, the machine base is fixedly connected to the machine frame of the power roller conveyor, the pull handle, the connecting rod and the fixing piece form a slider-crank mechanism, a groove is formed in the machine base, the fixing piece is movably arranged in the groove, and the pull rod movably penetrates through a through hole of the machine base and a through hole in the lower end of the spring seat.
Preferably, two safety baffle power roller conveyors are arranged at each end of the safety baffle power roller conveyor.
Preferably, the connecting rod is of an arc-shaped structure and is bent downwards, one end of the pull handle hinged to the connecting rod is provided with a containing groove, and the containing groove can enable the connecting rod to rotate to be horizontal and then contain the part inside.
Preferably, the power roller conveyor comprises a rack and a plurality of rollers rotatably connected to the rack, the two adjacent rollers are in transmission connection with one end of the rack through a chain wheel and chain mechanism, one end of one of the rollers is connected to an output shaft of a transmission through the chain wheel and chain mechanism, the transmission is fixedly connected to the rack through the transmission rack, an input shaft of the transmission is fixedly connected to an output shaft of a driving motor, and a shell of the driving motor is fixedly connected to the transmission.
Preferably, the bottom of the power roller conveyor is provided with a weighing device, and the upper end and the lower end of the weighing device are respectively connected with the power roller conveyor and the hydraulic scissor fork lift.
Preferably, the end part of the power roller conveyor is provided with a limit switch, and a probe of the limit switch is over against the pit.
The utility model has the advantages that: compared with the prior art, the utility model discloses an electronic power roll table, it reduces manipulation strength to go the push-and-pull without the manual work, adopt hydraulic pressure scissors fork lift to realize that power roll table conveyer rises or descends, guarantee that power roll table conveyer's height remains unanimous with the beater bar platform all the time, make things convenient for personnel's beater bar work, the direction of operation both ends on the roll table are equipped with safety shield, when preventing to load and unload operation and lift action, container board horizontal direction removes, ensure the people, the safety of goods and equipment, after the hydraulic pressure lifter carries out the signal confirmation by the limit switch who corresponds respectively when reacing the flat bed high position, the roll table side can change over to automatic or manual operation control mode, be equipped with the weighing device, can weigh the goods weight on the tally platform, realize best beater bar weight.
Drawings

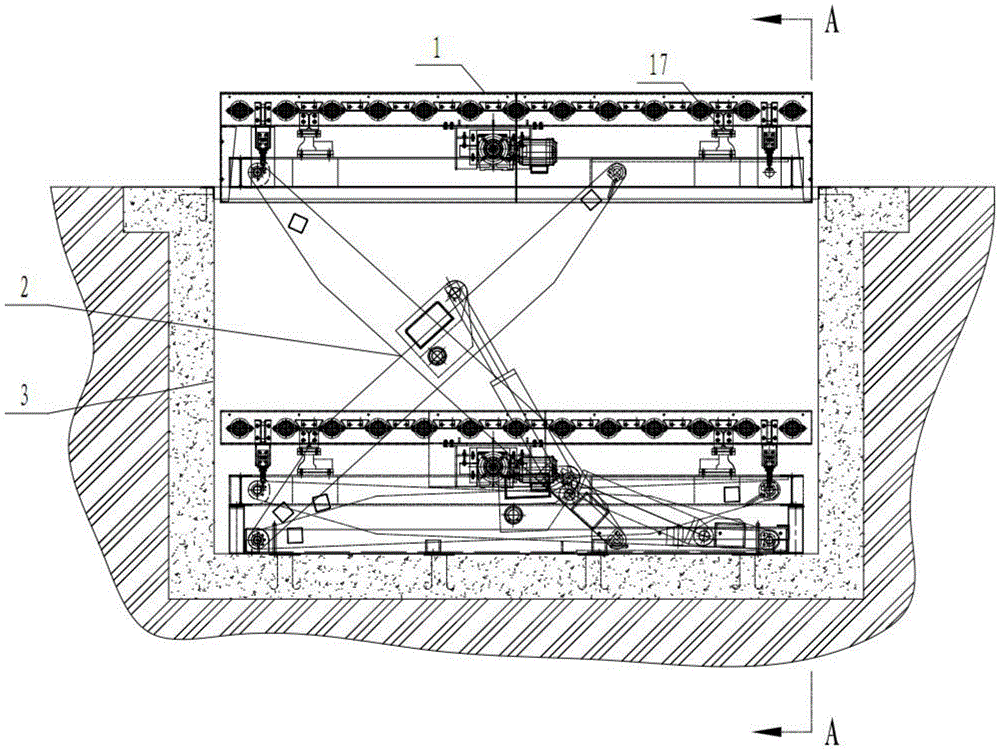

Fig. 1 is a schematic structural diagram of the present invention;
FIG. 2 is a schematic sectional view A-A of FIG. 1;
FIG. 3 is a schematic view of the structure of the safety shield junction;
FIG. 4 is a schematic top view of the safety shield connection;
FIG. 5 is an enlarged view of part A-A;
FIG. 6 is a schematic view of a powered roller conveyor configuration;
FIG. 7 is a schematic view of a hydraulic scissor forklift configuration;
fig. 8 is a schematic view of the safety barrier structure.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and specific embodiments.
Example 1: as shown in fig. 1-8, a lifting type boarding platform device comprises a power roller conveyor 1 and a hydraulic scissor forklift 2, wherein the power roller conveyor 1 is installed at the top of the hydraulic scissor forklift 2, and the hydraulic scissor forklift 2 is installed in a pit 3.
Preferably, the end parts of the inlet and outlet ends of the power roller conveyor 1 are provided with safety baffles 4, each safety baffle 4 is of a prismatic structure, the plate surface of each safety baffle is perpendicular to the motion direction of the power roller conveyor 1, the safety baffle 4 is hinged to the frame of the power roller conveyor 1 near the middle part of the left side, a vertical pulling plate 5 is arranged at the lower left corner of the frame, the pulling plate 5 is connected with a horizontal extension spring 6, the other end of the extension spring 6 is fixedly connected to a spring seat 7, the spring seat 7 is fixedly connected to the frame of the power roller conveyor 1, the right side surface of the lower end of the pulling plate 5 is provided with a horizontal through hole 8 in the same direction as the extension spring 6, the horizontal through hole 8 is a vertical strip-shaped hole, a pull rod 9 movably penetrates through the pull rod 9, a nut 10 is fixedly connected to the pull rod 9, the nut 10 abuts, the other end of the connecting rod 12 is hinged on a pull handle 13, one end of the pull handle 13 is hinged on a machine base 14, the machine base 14 is fixedly connected on a machine frame of the power roller conveyor 1, the pull handle 13, the connecting rod 12 and the fixing piece 11 form a slider-crank mechanism, a groove is arranged in the machine base 14, the fixing piece 11 is movably arranged in the groove, the pull rod 9 movably penetrates through a through hole of the machine base 14 and a through hole at the lower end of the spring seat 7, when the pull handle is pulled outwards, the safety baffle can be retracted into the roller, when the pull handle is pushed inwards, the safety baffle is rotated and extended out of the roller under the action of a tension spring, safety limiting is realized, the safety baffle is arranged at two ends of the running direction on the roller conveyor, when loading and unloading operation and lifting actions are prevented, the horizontal direction of the container plate moves, the safety.
Preferably, the safety baffle 4 is arranged at each end of the power roller conveyor 1, so that the use is safer.
Preferably, above-mentioned connecting rod 12 is the arc structure, and the downwarping draws the articulated connecting rod one end of handle 13 to set up the holding tank, and the holding tank can be with connecting rod 12 rotatory to the level after the holding part wherein, can make slider-crank mechanism be located the dead point, play the card and play the dead effect, avoid influencing safety shield.
Preferably, the power roller conveyor 1 comprises a frame 101 and a plurality of rollers 102 rotatably connected to the frame 101, the same end portions of two adjacent rollers 102 are in transmission connection through a chain wheel and chain mechanism, one end of one roller 102 is connected to an output shaft of a transmission 103 through the chain wheel and chain mechanism, the transmission 103 is fixedly connected to the frame 101 through a transmission frame 105, an input shaft of the transmission 103 is fixedly connected to an output shaft of a driving motor 104, and a housing of the driving motor 104 is fixedly connected to the transmission 103.
Preferably, the bottom of the power roller conveyor 1 is provided with a weighing device 17 (pressure sensor), the upper end and the lower end of the weighing device 17 are respectively connected with the supporting plate of the power roller conveyor 1 and a platform frame at the top of the hydraulic scissor fork type lifter 2, the weight of goods on the tallying platform can be weighed, and the best weight of the goods can be obtained.
Preferably, the end of the power roller conveyor 1 is provided with a limit switch 16, a probe of the limit switch 16 is over against the pit, the limit switch adopts a distance sensor, the detected distance is fed back to the power roller conveyor 1 as a signal after being changed, and the power roller conveyor 1 can work.
The above description is only for the specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art can easily think of the changes or substitutions within the technical scope of the present invention, and all should be covered within the protection scope of the present invention, therefore, the protection scope of the present invention should be subject to the protection scope of the claims.
Claims (7)
1. The utility model provides a over-and-under type clapper board platform equipment which characterized in that: the hydraulic shear forklift comprises a power roller conveyor (1) and a hydraulic shear forklift (2), wherein the power roller conveyor (1) is installed at the top of the hydraulic shear forklift (2), and the hydraulic shear forklift (2) is installed in a pit (3).
2. The elevating clapper stand apparatus of claim 1, wherein: the safety baffle (4) is installed at the end part of the inlet and outlet ends of the power roller conveyor (1), the safety baffle (4) is of a prismatic structure, the plate surface of the safety baffle is vertical to the motion direction of the power roller conveyor (1), the safety baffle (4) is hinged on a rack of the power roller conveyor (1) near the middle part of the left side, a vertical pulling plate (5) is arranged at the lower left corner, the pulling plate (5) is connected with a horizontal stretching spring (6), the other end of the stretching spring (6) is fixedly connected on a spring seat (7), the spring seat (7) is fixedly connected on the rack of the power roller conveyor (1), a horizontal through hole (8) in the same direction as the stretching spring (6) is arranged on the right side surface of the lower end of the pulling plate (5), the horizontal through hole (8) is a vertical strip-shaped hole, a pull rod (9) movably penetrates through, a nut (10) is fixedly connected on the pull, pull rod (9) left end fixedly connected with mounting (11), mounting (11) articulate there is connecting rod (12), the connecting rod (12) other end articulates on pull handle (13), pull handle (13) one end articulates on frame (14), frame (14) fixed connection is in the frame of power roller conveyor (1), pull handle (13), connecting rod (12) and mounting (11) constitute slider-crank mechanism, set up the recess in frame (14), mounting (11) activity is arranged in the recess, pull rod (9) activity is passed the through-hole of frame (14) and the through-hole on spring holder (7) lower extreme.
3. The elevating clapper stand apparatus of claim 2, wherein: two safety baffles (4) are arranged at each end of the power roller conveyor (1).
4. The elevating clapper stand apparatus of claim 2, wherein: connecting rod (12) are arc structure, and the downwarping draws handle (13) articulated connecting rod one end to set up the holding tank, and the holding tank can rotate connecting rod (12) to the level back and holds some wherein.
5. The elevating clapper stand apparatus of claim 1, wherein: the power roller conveyor (1) comprises a rack (101) and a plurality of rollers (102) rotatably connected to the rack (101), the two adjacent rollers (102) are in transmission connection with one end portion through a chain wheel and chain mechanism, one end of one roller (102) is connected to an output shaft of a transmission (103) through the chain wheel and chain mechanism, the transmission (103) is fixedly connected to the rack (101) through a transmission rack (105), an input shaft of the transmission (103) is fixedly connected with an output shaft of a driving motor (104), and a shell of the driving motor (104) is fixedly connected to the transmission (103).
6. The elevating clapper stand apparatus of claim 1, wherein: the bottom of the power roller conveyor (1) is provided with a weighing device (17), and the upper end and the lower end of the weighing device (17) are respectively connected with the power roller conveyor (1) and the hydraulic scissor fork lift (2).
7. The elevating clapper stand apparatus of claim 1, wherein: the end part of the power roller conveyor (1) is provided with a limit switch (16), and a probe of the limit switch (16) is over against the pit.
