The utility model provides an online cleaning mechanism for a guide roller of roll paper without stopping, which comprises a first driving part, a sliding device, a transmission device and a cloth smearing frame; the utility model discloses a mop cleaning machine, including drive arrangement, slider, cloth wiping frame, drive arrangement, first drive part, slider, drive arrangement, slider, the drive arrangement with first drive part connects, slider with transmission connects, first drive part drive arrangement carries out the transmission and drives slider slides along guider, slider with the cloth wiping frame is connected, be provided with the rag on the cloth wiping frame, the rag is used for the cleanness the deflector roll. The technical problems that cleaning cloth is required to be held by a worker for cleaning, the cleaning efficiency is not high, and the worker is easily injured are solved.
Description
Technical Field
The utility model relates to a technical field of roll web processing, in particular to online clean mechanism of guide roll does not shut down for roll web.
Background
The compound machine is a wet type compound device without stopping the roll paper, the width of the compound machine is not equal to 850 mm-1300 mm, the working speed is 100-120 m/min, the surface of each guide roller is required to be clean in the paper rolling process, foreign matters such as dust and paper hair do not adhere to the guide roller, especially, a press roller at the back coating part can also be called as a rubber roller, the dust, the paper hair and the like are easily accumulated on the surface of the press roller, the quality of the paper surface is greatly influenced, therefore, in order to reduce the influence of the dust on the paper surface, the cleaning is required to be carried out in the working process of each guide roller, the cleaning mode in the prior art is that a cleaning rag is held by an operator to stretch into the middle part of the press roller in a hand during cleaning, the cleaning is respectively carried out from the left side and the right side of the machine, as shown in figure 1, the press roller and the paper form a v-shaped triangular, the part to be cleaned can not be cleaned accurately; meanwhile, the edges of paper running at high speed are as common as blades, so that great danger exists for the arms of workers, therefore, the guide roller cleaning mechanism for the roll paper without stopping is provided, and the online cleaning of the press roller without stopping in the starting state can be realized.
SUMMERY OF THE UTILITY MODEL
The utility model provides a web does not shut down guide roll online cleaning mechanism, its purpose is in order to realize online clean compression roller under the power on state, solves to have now to need the handheld rag of workman to clean, and cleaning efficiency is not high and causes the technical problem of injury to the workman's body easily.
In order to achieve the above object, an embodiment of the present invention provides an online cleaning mechanism for a guide roller without stopping a roll paper, which includes a first driving component, a sliding device, a transmission device and a cloth wiping frame; the utility model discloses a mop cleaning machine, including drive arrangement, slider, cloth wiping frame, drive arrangement, first drive part, slider, drive arrangement, slider, the drive arrangement with first drive part connects, slider with transmission connects, first drive part drive arrangement carries out the transmission and drives slider slides along guider, slider with the cloth wiping frame is connected, be provided with the rag on the cloth wiping frame, the rag is used for the cleanness the deflector roll.
Wherein, the cloth coating frame comprises a first side plate and a second side plate, the tops of the first side plate and the second side plate are connected through a transverse connecting rod, the first position of the bottom of the first side plate and the second side plate is connected through a first nylon guide roller, the second position of the bottom of the first side plate and the second side plate is connected through a second nylon guide roller, the first nylon guide roller and the second nylon guide roller are positioned at the same horizontal position, the bottom of the first side plate and the bottom of the second side plate between the first nylon guide roller and the second nylon guide roller are arranged into an arc shape, the middle position of the height direction of the first side plate and the second side plate is also connected with a tension roller, the cross sections of the tension roller, the first nylon roller and the second nylon roller form a triangle, the tension roller is processed with a through groove along the length direction, the cloth coating frame passes through the through groove, one side of the first side plate or the second side plate is also provided with a tension disc, the tensioning dish with the one end fixed connection of tensioning roller, the tensioning dish has a plurality of breachs along the circumferencial direction equipartition, on first curb plate or the second curb plate with the position that the breach on the tensioning dish is relative is provided with the locking bolt, the locking bolt with rotate between first curb plate or the second curb plate and be connected, be provided with the handle on the locking bolt.
The tensioning roller is arranged to be a step shaft, the diameters of two ends of the step shaft are smaller than those of the middle part, and the two ends of the tensioning roller are in clearance fit with the mounting holes between the first side plate and the second side plate.
Wherein, the transverse connecting rod is provided with an open slot.
Wherein, be connected with first screw rod between the first position of the bottom of first curb plate and second curb plate, first screw rod overcoat is equipped with first nylon deflector roll, be connected with the second screw rod between the second position of first curb plate and second curb plate, the second screw rod overcoat is equipped with second nylon deflector roll, first nylon deflector roll and second nylon deflector roll with be clearance fit between first screw rod and the second screw rod.
The transmission device comprises a first support plate and a second support plate, wherein a driving wheel is arranged on the first support plate, a driven wheel is arranged on the second support plate, a conveying belt is connected between the driving wheel and the driven wheel, the sliding device is fixedly connected with the conveying belt, a first guide rod and a second guide rod are connected between the first support plate and the second support plate, the first guide rod and the second guide rod are respectively positioned above and below the conveying belt, a first support plate is further arranged on the first support plate, a second support plate is further arranged on the second support plate, an optical axis is connected between the first support plate and the second support plate, and a retracted air pipe and an extended air pipe are wound on the optical axis; the sliding device comprises a sliding seat, a first through hole and a second through hole are arranged on the sliding seat along the height direction, a first linear bearing is arranged in the first through hole, a second linear bearing is arranged in the second through hole, the first linear bearing is sleeved outside the first guide rod, the second bearing is sleeved outside the second guide rod, a step is further arranged at the position, between the first through hole and the second through hole, of the rear side of the sliding seat, a belt fixing bottom plate is arranged at the bottom of the step, a belt pressing plate is arranged above the belt fixing bottom plate, a strong magnetic stripe is further arranged at the front side of the sliding seat, an air cylinder mounting plate is arranged at the position opposite to the strong magnetic stripe, the top of the air cylinder mounting plate is rotatably connected with the top of the sliding seat, a double-guide-rod air cylinder is arranged on the air cylinder mounting plate, and the double-guide-rod air cylinder is connected with a retracted air pipe and, compressed air is introduced into the retracted air pipe, the guide rod of the double-guide-rod air cylinder is retracted, compressed air is introduced into the extended air pipe, and the guide rod of the double-guide-rod air cylinder is extended out.
The first driving part comprises an operating handle, the operating handle is connected with one end of the driving wheel through a transmission rod, the other end of the transmission rod is connected with the driving wheel, and a bearing with a seat is further arranged on the transmission rod.
Wherein, still the cover is equipped with the seat bearing on the transfer line.
Wherein, still include the machine wallboard, the machine wallboard includes first side and second side, first mounting panel is installed the first side of machine wallboard, the second mounting panel is installed the second side of machine wallboard, still be connected with reticulation roller, compression roller, first paper guide roll and second paper guide roll between first side and the second side, the compression roller sets up the top of reticulation roller, the clearance between compression roller and the reticulation roller supplies the paper to pass, first paper guide roll and second paper guide roll are located with the top of compression roller and are located respectively the both sides of compression roller.
The above technical scheme of the utility model has following beneficial effect: the utility model provides a web non-stop guide roller online cleaning mechanism, which comprises a first driving part, a sliding device, a transmission device, a guide device and a cloth smearing frame; transmission with first drive disk assembly connects, slider with transmission connects, first drive disk assembly drives transmission carries out the transmission and drives slider slides along guider, slider with the mop frame is connected, be provided with the rag on the mop frame, the rag is used for the cleanness the deflector roll, the mode can realize that the line does not shut down clean compression roller surface in narrow and small space, in time clears away compression roller surface dust, foreign matter such as paper wool, has improved the quality on paper surface and the efficiency of stock form, has avoided adopting artifical cleanness to cause the risk of injury to the workman's body simultaneously.
Drawings

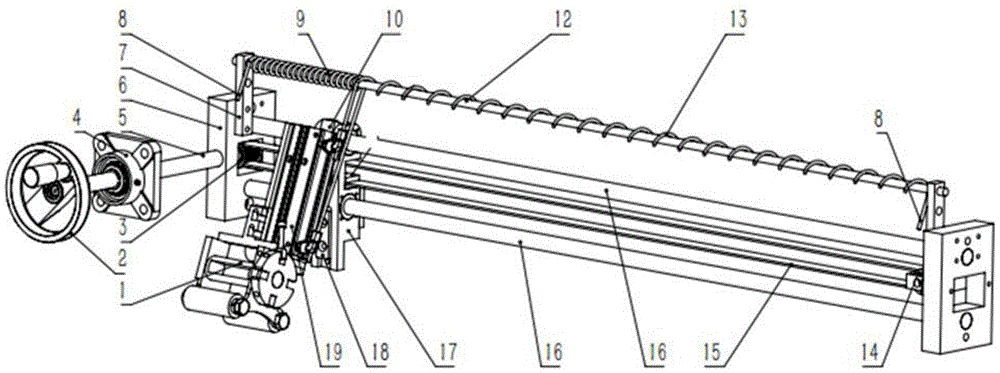

FIG. 1 is a schematic view of the construction of a web non-stop guide roller assembly;
FIG. 2 is a schematic structural view of the roll paper non-stop guide roller on-line cleaning mechanism provided by the present invention;
fig. 3 is a schematic structural view of the sliding device of the present invention;
fig. 4 is a schematic structural view of the cloth wiping frame provided by the present invention;
FIG. 5 is a schematic view of the structure of the cloth holder of the present invention wound with cleaning cloth;
fig. 6 is a side view of a roll paper non-stop machine including the guide roller online cleaning mechanism provided by the present invention;
fig. 7 is a schematic view of a web non-stop structure including the guide roller online cleaning mechanism provided by the present invention.
[ description of reference ]
1-a cloth wiping frame, 2-an operating handle, 3-a driving wheel, 4-a bearing with a seat, 5-a transmission rod, 6-a support plate, 7-a first support plate, 8-an air pipe interface, 9-a retracted air pipe, 10-an air cylinder mounting bottom plate, 12-an extended air pipe, 13-a guide rod, 14-a driven wheel, 15-a transmission belt, 16-a guide rod, 17-a sliding device, 18-a powerful magnet and 19-a double-guide rod air cylinder; 100-guide roll cleaning mechanism, 101-anilox roll, 102-press roll, 103-inlet direction sheet, 104-first lead roll, 105-second guide roll, 106-outlet direction sheet, 107-machine wall panel; 201-powerful magnet, 202-sliding seat, 203-first linear bearing, 204-belt fixing bottom plate, 205-belt pressing plate, 206-second linear bearing and 207-cylinder mounting bottom plate; 300-dishcloth, 301-first nylon guide roller, 302-first side plate, 303-tensioning roller, 304-through groove, 305-second nylon guide roller, 306-transverse connecting rod, 307-handle, 308-locking bolt, 309-tensioning disc, 310-second screw, 311-second side plate, 312-first screw.
Detailed Description
In order to make the technical problems, technical solutions and advantages to be solved by the present invention clearer, the following detailed description will be given with reference to the accompanying drawings and specific embodiments.
The utility model provides an online cleaning mechanism for a guide roller without stopping the roll paper, aiming at the existing problems, and comprising a first driving part, a sliding device, a transmission device and a cloth wiping frame 1; transmission with first drive disk assembly connects, slider with transmission connects, first drive disk assembly drive transmission carries out the transmission and drives slider slides along guider, slider with the mop frame is connected, be provided with rag 300 on the mop frame 1, rag 300 is used for the cleanness the deflector roll.
The first driving part is connected with the transmission device, the conveying device is connected with the sliding device, the cloth wiping frame 1 is fixedly connected to the sliding device, when the first driving part drives the transmission device to transmit, the transmission device drives the sliding device to slide along the guide device, and the sliding device slides to drive the cloth wiping frame 1 to slide along the surface of the press roller 102 and clean the surface of the press roller 102. The mode realizes the automatic cleaning of the surface of the compression roller 102, does not need a worker to hold the cleaning cloth 300 to stretch into a narrow area for cleaning, has strong pertinence, improves the cleaning efficiency and the cleaning quality, effectively avoids the possibility of cutting the arm of the worker by the edge of paper, and reduces personal injury.
Wherein, the cloth wiping frame 1 comprises a first side plate 302 and a second side plate 311, the tops of the first side plate 302 and the second side plate 311 are connected through a transverse connecting rod 306, the first positions of the bottoms of the first side plate 302 and the second side plate 311 are connected through a first nylon guide roller 301, the second positions of the bottoms of the first side plate 302 and the second side plate 311 are connected through a second nylon guide roller 305, the first nylon guide roller 301 and the second nylon guide roller 302 are located at the same horizontal position, the bottoms of the first side plate 302 and the second side plate 311 between the first nylon guide roller 311 and the second nylon guide roller 305 are set to be arc-shaped, the middle position of the first side plate 302 and the second side plate 311 in the height direction is further connected with a tension roller 303, the cross sections of the tension roller 303, the first nylon guide roller 301 and the second nylon guide roller 305 form a triangle, a through groove 304 is processed on the tension roller 303 in the length direction, the cloth wiping frame 1 penetrates through the through groove 304, one side of the first side plate 302 or the second side plate 311 is further provided with a tensioning disc 309, the tensioning disc 309 is fixedly connected with one end of the tensioning roller 303, the tensioning disc 309 is evenly provided with a plurality of gaps along the circumferential direction, a locking bolt 308 is arranged on the position, opposite to the gap on the tensioning disc 309, of the first side plate 302 or the second side plate 311, the locking bolt 308 is rotatably connected with the first side plate 302 or the second side plate 311, and a handle 307 is arranged on the locking bolt 308.
Further, the tensioning roller 303 is provided as a step shaft, the diameters of two ends of the step shaft are smaller than the diameter of the middle part, and the two ends of the tensioning roller 303 are in clearance fit with the mounting holes between the first side plate 302 and the second side plate 311.
Further, the transverse connecting rod 306 is provided with an open slot.
Further, be connected with first screw 312 between the first position of the bottom of first curb plate 302 and second curb plate 311, first screw 132 overcoat is equipped with first nylon deflector roll 301, be connected with second screw 310 between the second position of first curb plate 302 and second curb plate 311, second screw 310 overcoat is equipped with second nylon deflector roll 305, first nylon deflector roll 301 and second nylon deflector roll 305 with be clearance fit between first screw 312 and the second screw 310.
The utility model discloses in the hole of first nylon deflector roll 301 and second nylon deflector roll 305 with first screw rod 312 and second screw rod are clearance fit, consequently first nylon deflector roll 301 and second nylon deflector roll 305 can the free rotation. Will tensioning roller 303 is provided with the step axle, the diameter at the both ends of step axle is less than the diameter of mid portion, tensioning roller 303 both ends with the mounting hole between first curb plate 302 and the second curb plate 311 is clearance fit, consequently tensioning roller 303 can the free rotation. The tensioning disc 309 is fixedly connected with one end of the tensioning roller 303, and the tensioning disc 309 rotates to drive the tensioning roller 303 to rotate synchronously.
The utility model discloses in will rag 300 is tailor into the rectangular shape of standard, and the intermediate position of rag 300 entangles second nylon deflector roll 305 will again rag 300 both ends are aligned and together follow together first nylon deflector roll 301's below is passed, is walked around after first nylon deflector roll, pass logical groove in the tensioning roller, reverse the tight of pasting again the upper surface of tensioning roller will rotate again after the rag winding is accomplished tensioning dish 309, tensioning dish 309 rotates and drives tensioning roller 303 rotates, the cloth head of rag 1 is wrapped up by the rag and is twined tightly on the tensioning roller 303. Tensioning dish 309 has a plurality of breachs along the circumferencial direction equipartition, first curb plate 302 or second curb plate 311 go up with the position that the breach on the tensioning dish 309 is relative is provided with locking bolt 308, locking bolt 308 with rotate between first curb plate 302 or the second curb plate 311 and be connected, be provided with handle 307 on the locking bolt 308, when rotating rolling disc 309, until rag 1 is twined tightly behind the tensioning roller 303, one of them breach on the rolling disc 309 with locking bolt 308 aligns, the rethread operation handle 307, will locking bolt 308 rotates extremely lock in the breach.
The utility model discloses a parcel winding mode carries out the tensioning to rag 300, compares in other tensioning modes can not need right rag 300 and tensioning roller 303 structure itself changes, and rag 300 also can conveniently be dismantled and clean after having used up simultaneously, after the tensioning rag 300 with need to realize perfect laminating between the clear compression roller 102, make clean become reliable, effective, adopt simultaneously the utility model provides a rag winding mode, the winding reliability is high, and the security is strong, can not be drawn into the machine.
Preferably, the transverse connecting rod 306 is provided with an open slot, and the open slot is used for connecting the sliding device and the cloth wiping frame 1.
The transmission device comprises a first support plate and a second support plate, wherein a driving wheel 3 is arranged on the first support plate, a driven wheel 14 is arranged on the second support plate, a conveying belt is connected between the driving wheel 3 and the driven wheel 14, the sliding device is fixedly connected with the conveying belt, a first guide rod and a second guide rod are further connected between the first support plate and the second support plate, the first guide rod and the second guide rod are respectively positioned above and below the conveying belt, a first support plate is further arranged on the first support plate, a second support plate is further arranged on the second support plate, an optical axis 12 is connected between the first support plate and the second support plate, and a retracted air pipe 9 and an extended air pipe 13 are wound on the optical axis 12; the sliding device comprises a sliding seat 202, a first through hole and a second through hole are arranged on the sliding seat 202 along the height direction, a first linear bearing 203 is arranged in the first through hole, a second linear bearing 206 is arranged in the second through hole, the first linear bearing 203 is sleeved outside the first guide rod, a second bearing sleeve 206 is arranged outside the second guide rod, a step is further arranged at the position, between the first through hole and the second through hole, of the rear side of the sliding seat 202, a belt fixing bottom plate 204 is arranged at the bottom of the step, a belt pressing plate 205 is arranged above the belt fixing bottom plate 204, a strong magnetic stripe 201 is further arranged at the front side of the sliding seat 202, an air cylinder mounting plate 207 is arranged at the position opposite to the strong magnetic stripe 201, the top of the air cylinder mounting plate 207 is rotatably connected with the top of the sliding seat 202, a double-guide-rod air cylinder 19 is arranged on the air cylinder mounting plate 207, the double-guide-rod cylinder 19 is connected with the retracted air pipe 9 and the extended air pipe 11, compressed air is introduced into the retracted air pipe 9, the guide rod of the double-guide-rod cylinder 19 is retracted, compressed air is introduced into the extended air pipe 12, and the guide rod of the double-guide-rod cylinder 19 extends out.
In the utility model, the position of the rear side of the sliding seat 202 between the first through hole and the second through hole is provided with a step, the bottom of the step is provided with a belt fixing bottom plate 204, a belt pressing plate 205 is arranged above the belt fixing bottom plate 204, the sliding device passes through the belt fixing bottom plate 204 and the belt pressing plate 205 and is clamped on the conveyor belt, the conveyor belt is a belt 15, thereby realizing the fixed connection of the sliding device and the transmission device, the sliding device is sleeved outside the first guide rod through the first through hole, and is sleeved outside the second guide rod through the second through hole, the belt 15 drives the sliding device to slide along the first guide rod and the second guide rod, the front side of the sliding seat 101 is also provided with a strong magnetic stripe 201, and the position opposite to the strong magnetic stripe 201 is provided with a cylinder mounting plate 207, the top of the cylinder mounting plate 207 is rotatably connected with the top of the sliding seat 202, a double-guide-rod cylinder 20 is mounted on the cylinder mounting plate 207, the double-guide-rod cylinder 20 is connected with the retracted air pipe 9 and the extended air pipe 12, when compressed air is introduced into the retracted air pipe 9, the guide rods of the double-guide-rod cylinder 10 are retracted, compressed air is introduced into the extended air pipe 12, the guide rods of the double-guide-rod cylinder 10 are extended, when the press roller 102 needs to be cleaned, the cylinder mounting plate 207 is firmly sucked by the powerful magnetic stripe 201, the cloth spreading frame 1 is aligned with the press roller 102, compressed air is introduced into the extended air pipe 12, the guide rods of the double-guide-rod cylinder 19 are extended, the cloth spreading frame 1 tightly presses the surface of the press roller 102, and the cloth spreading frame moves back and forth along the press roller through the belt conveying device to clean the surface of the press roller, when the cleaning cloth frame does not need to work, compressed air is introduced into the retraction air pipe to retract the guide rods of the double-guide-rod air cylinder 19, so that the cleaning cloth frame 1 is separated from the surface of the pressing roller 102, meanwhile, a worker overcomes the adsorption force of the powerful magnet 201 in a manual mode to pull up the air cylinder mounting plate 207, the air cylinder mounting plate 207 is in an inclined state, and when the air cylinder mounting plate is in the inclined state, the worker can detach and replace the cleaning cloth frame. Preferably, in the present invention, the powerful magnet 201 may further adopt a powered magnet, when powered on, the powerful magnet 201 attracts the cylinder mounting plate 207 to make the cloth wiping frame 1 align with the surface of the pressing roller 102, when powered off, the powerful magnet 201 releases the cylinder mounting plate 207 to make the cylinder mounting plate 207 separate from the powerful magnet 201 and keep an inclined state, so as to facilitate the worker to detach and replace the cloth wiping frame, which improves the automation degree. Wherein the first guide bar and the second guide bar constitute the guide means.
The first driving part comprises an operating handle 2, the operating handle 2 is connected with the driving wheel 3 through one end of a transmission rod 5, the other end of the transmission rod 5 is connected with the driving wheel 3, and a bearing 4 with a seat is further arranged on the transmission rod 5. The operating handle 2 is rotated to drive the driving wheel 3 to rotate, the driving wheel 3 rotates to drive the belt 15 to convey, the belt 15 conveys and drives the sliding seat 202 to slide along the first guide rod and the second guide rod, the sliding seat 202 slides and drives the cloth wiping frame 1 to slide along the surface of the pressing roller 102 and clean the surface of the pressing roller 102, and the bearing 4 with the seat is mainly used for supporting the transmission rod 5.
The utility model provides a preceding clean mechanism of roll paper non-stop guide roll still includes machine wallboard 107, machine wallboard 107 includes first side and second side, first support plate is installed the first side of machine wallboard, the second mounting panel is installed the second side of machine wallboard, still be connected with anilox roller 101, compression roller 102, first paper guide roll 104 and second paper guide roll 105 between first side and the second side, compression roller 102 sets up anilox roller 101's top, the clearance paper supply between compression roller 102 and the anilox roller 101 passes, first paper guide roll 104 and second paper guide roll 105 are located with compression roller 102's top and be located respectively compression roller 102's both sides. The mounted bearing 4 is secured within either the first side or the second side of the machine wall panel 107.
The paper is wound in from one side of the first paper guide roller 104, passes through a gap between the press roller 102 and the anilox roller 101, is wound out from one side of the second paper guide roller 105 after passing out, forms a v shape, and is positioned above the press roller 102 and used for cleaning the surface of the press roller 102.
The utility model provides a web does not shut down online clean mechanism of guide roll can realize pressing roller 102's online cleanness, need not shut down the operation, has improved paper production processingquality, has utilized narrow and small work space ingeniously, need not stretch into in the narrow and small work area through the handheld rag of workman and cleans, can accurately find needs clear position, realize high-efficient cleanness, avoided the paper to the incised wound of workman's arm, adopt the mode of belt conveying, compact structure, it is swift to remove.
The foregoing is a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of improvements and decorations can be made without departing from the principle of the present invention, and these improvements and decorations should also be regarded as the protection scope of the present invention.
Claims (9)
1. A guide roller online cleaning mechanism without stopping roll paper is characterized by comprising a first driving part, a sliding device, a transmission device and a cloth smearing frame; the utility model discloses a mop cleaning machine, including drive arrangement, slider, cloth wiping frame, drive arrangement, first drive part, slider, drive arrangement, slider, the drive arrangement with first drive part connects, slider with transmission connects, first drive part drive arrangement carries out the transmission and drives slider slides along guider, slider with the cloth wiping frame is connected, be provided with the rag on the cloth wiping frame, the rag is used for the cleanness the deflector roll.
2. The web non-stop guide roller online cleaning mechanism according to claim 1, wherein the cloth-wiping frame comprises a first side plate and a second side plate, the tops of the first side plate and the second side plate are connected through a transverse connecting rod, the first position of the bottom of the first side plate and the second side plate is connected through a first nylon guide roller, the second position of the bottom of the first side plate and the second side plate is connected through a second nylon guide roller, the first nylon guide roller and the second nylon guide roller are located at the same horizontal position, the bottom of the first side plate and the bottom of the second side plate between the first nylon guide roller and the second nylon guide roller are arranged in an arc shape, the middle position of the first side plate and the second side plate in the height direction is further connected with a tension roller, the cross sections of the tension roller, the first nylon roller and the second nylon roller form a triangle, and the tension roller is provided with a through groove in the length direction, the cloth smearing frame penetrates through the through groove, one side of the first side plate or the second side plate is further provided with a tensioning disc, the tensioning disc is fixedly connected with one end of the tensioning roller, a plurality of notches are uniformly distributed in the circumferential direction of the tensioning disc, a locking bolt is arranged at a position, opposite to the notch, of the first side plate or the second side plate, the locking bolt is connected with the first side plate or the second side plate in a rotating mode, and a handle is arranged on the locking bolt.
3. The web non-stop guide roller on-line cleaning mechanism as recited in claim 2 wherein the tension roller is configured as a step shaft having ends with a diameter smaller than a diameter of the middle portion, the ends of the tension roller being in clearance fit with the mounting holes between the first and second side plates.
4. The web non-stop guide roller on-line cleaning mechanism as claimed in claim 2, wherein the transverse link is provided with an open slot.
5. The web non-stop guide roller online cleaning mechanism according to claim 2, wherein a first screw is connected between first positions of bottoms of the first side plate and the second side plate, the first screw is sleeved with the first nylon guide roller, a second screw is connected between second positions of the first side plate and the second side plate, the second screw is sleeved with the second nylon guide roller, and the first nylon guide roller and the second nylon guide roller are in clearance fit with the first screw and the second screw.
6. The roll paper non-stop guide roller online cleaning mechanism according to claim 1, wherein the transmission device comprises a first support plate and a second support plate, a driving wheel is arranged on the first support plate, a driven wheel is arranged on the second support plate, a conveyor belt is connected between the driving wheel and the driven wheel, the sliding device is fixedly connected with the conveyor belt, a first guide rod and a second guide rod are further connected between the first support plate and the second support plate, the first guide rod and the second guide rod are respectively positioned above and below the conveyor belt, a first support plate is further arranged on the first support plate, a second support plate is further arranged on the second support plate, an optical axis is connected between the first support plate and the second support plate, and a retraction air pipe and an extension air pipe are wound on the optical axis; the sliding device comprises a sliding seat, a first through hole and a second through hole are formed in the sliding seat along the height direction, a first linear bearing is arranged in the first through hole, a second linear bearing is arranged in the second through hole, the first linear bearing is sleeved outside the first guide rod, the second linear bearing is sleeved outside the second guide rod, a step is further arranged at the position, between the first through hole and the second through hole, of the rear side of the sliding seat, a belt fixing bottom plate is arranged at the bottom of the step, a belt pressing plate is arranged above the belt fixing bottom plate, a strong magnetic stripe is further arranged at the front side of the sliding seat, an air cylinder mounting plate is arranged at the position opposite to the strong magnetic stripe, the top of the air cylinder mounting plate is rotatably connected with the top of the sliding seat, and a double-guide-rod air cylinder is mounted on the air cylinder mounting plate, the double-guide-rod cylinder is connected with the retracted air pipe and the extended air pipe, compressed air is introduced into the retracted air pipe, the guide rod of the double-guide-rod cylinder is retracted, compressed air is introduced into the extended air pipe, and the guide rod of the double-guide-rod cylinder extends out.
7. The on-line guide roller cleaning mechanism without stopping the paper roll as claimed in claim 6, wherein the first driving part comprises an operating handle, the operating handle is connected with the driving wheel through one end of a driving rod, the other end of the driving rod is connected with the driving wheel, and a bearing with a seat is further arranged on the driving rod.
8. The roll paper non-stop guide roller on-line cleaning mechanism as claimed in claim 7, wherein the drive rod is further sleeved with a bearing with a seat.
9. The web non-stop guide roller online cleaning mechanism according to claim 8, further comprising a machine wall board, wherein the machine wall board comprises a first side and a second side, the first support plate is mounted on the first side of the machine wall board, the second support plate is mounted on the second side of the machine wall board, an anilox roller, a compression roller, a first paper guide roller and a second paper guide roller are further connected between the first side and the second side, the compression roller is arranged above the anilox roller, a gap between the compression roller and the anilox roller is used for paper to pass through, and the first paper guide roller and the second paper guide roller are located above the compression roller and located on two sides of the compression roller respectively.
