Household plant protection device used in winter

Technical Field

The utility model relates to a domestic plant protection equipment technical field especially relates to a domestic plant protector in winter.

Background

The rapid development of the economy also drives the development speed of the agriculture, China is a big agricultural country, and the agriculture plays a very important role in the economic development of China.

However, the traditional winter household plant protection device influences plant growth due to insufficient indoor illumination in the using process, and cannot timely drain and supply water, and the plant growth is also influenced.

Therefore, there is a need to provide a new winter household plant protection device to solve the above technical problems.

SUMMERY OF THE UTILITY MODEL

The technical problem solved by the utility model is to provide a convenient operation, use nimble, can accept illumination comprehensively and can automatic drainage and moisturizing domestic plant protector in winter.

In order to solve the technical problem, the utility model provides a domestic plant protector in winter includes: the planting groove is of a cuboid structure with one open end and a hollow interior; a collection structure connected to the planting trough; the light supplementing structure is connected to the collecting structure; the planting structure is connected to the planting groove and comprises a culture groove, cotton threads, a rotating rod and a bearing, the bearing is fixed at the bottom end of the interior of the planting groove, the rotating rod is rotatably connected with the planting groove through the bearing, the culture groove of a cylindrical structure with an opening at one end and a hollow interior is sleeved on the rotating rod, and the cotton threads penetrate through the bottom end of the culture groove; a filter structure connected to the planting tank.

Preferably, the cotton threads are arranged in a plurality, and the cotton threads are distributed at the bottom end of the culture tank in an annular array.

Preferably, the filtration includes step hole, filtration pore, fixed orifices, baffle and stopper, the rectangle the stopper is equipped with two, two the stopper is that the symmetric relation is fixed in plant on the inside both ends lateral wall in groove, the rectangle the baffle is located the top of stopper, the step hole is located the central point of baffle puts, the filtration pore is located the baffle, the fixed orifices is equipped with two, two the fixed orifices is the symmetric relation and locates the baffle.

Preferably, the partition plate is in sliding connection with the planting groove, the minimum diameter of the stepped hole is larger than the outer diameter of the culture groove, the culture groove is in rotating connection with the partition plate, and the filter holes are multiple and distributed in a net shape.

Preferably, the collecting structure comprises a water tank and an upright post, the upright post is fixed at the top end of the planting tank in a vertical relationship, the rectangular water tank is fixed outside the upright post, and the water tank and the planting tank are in a parallel relationship.

Preferably, the light filling structure includes group battery, electric wire and bulb, the group battery is located the inside in planting the groove, the bulb is fixed in the stand deviates from the one end in planting the groove, the electric wire is located the inside of stand, just the bulb with the group battery passes through the connection of electric lines.

Preferably, one end of the planting groove is provided with a drainage structure, the drainage structure comprises a water outlet hole and a sealing plug, the water outlet hole is arranged at one end of the planting groove, and the sealing plug is sleeved with the water outlet hole.

Compared with the prior art, the utility model provides a domestic plant protector in winter has following beneficial effect:

the utility model provides a winter household plant protection device, the inside bottom of the planting groove is fixed with the bearing, the upright post is connected with the planting groove through the bearing in a rotating way, one end of the upright post deviating from the bearing is sleeved with the culture groove which is provided with an opening at one end and has a hollow cylinder structure inside, the household plant can be rotated through the rotating connection of the culture groove and the planting groove, thereby ensuring that different angles of the household plant can receive the illumination of the light filling structure, the situation that the plant growth is influenced due to insufficient indoor illumination can be avoided through the arrangement of the light filling structure, a plurality of cotton threads run through the inside bottom of the culture groove, when the plant is watered, redundant water can flow into the inside bottom of the planting groove through the cotton threads and the filtering structure, the rotting of the roots of the plant which is watered too much can be avoided, when going out, plant moisture is not enough, the cotton thread can supply the plant with the water absorption of planting the inside bottom in groove again.

Drawings

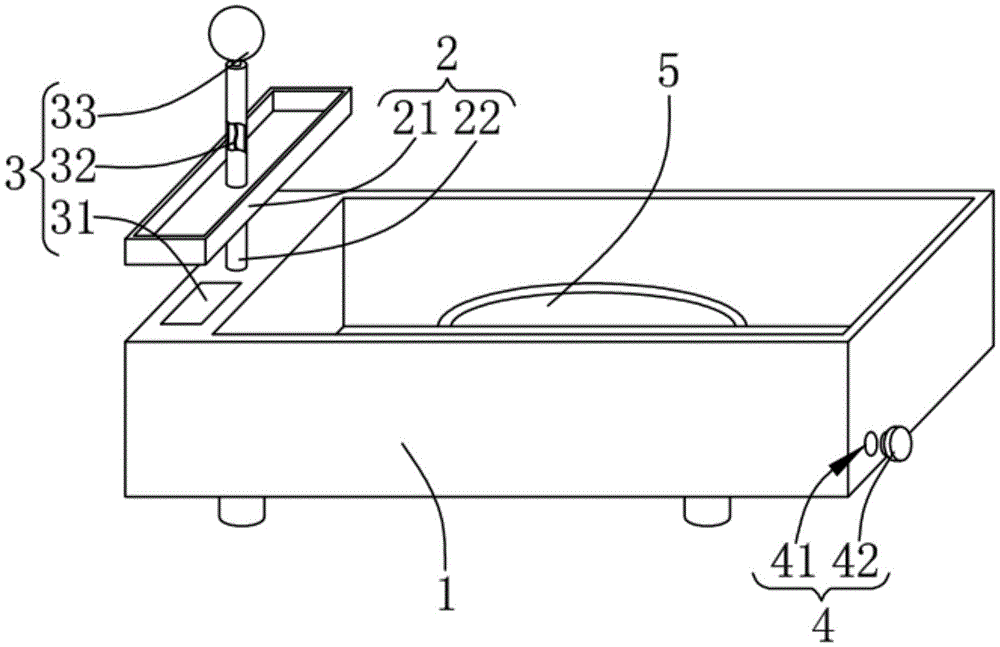

Fig. 1 is a schematic structural view of a preferred embodiment of a winter household plant protection device provided by the present invention;

FIG. 2 is a schematic view of the connection of the planting structure and the filtering structure of FIG. 1;

fig. 3 is an enlarged view of the portion a shown in fig. 2.

Reference numbers in the figures: 1. planting groove, 2, collection structure, 21, basin, 22, stand, 3, light filling structure, 31, group battery, 32, electric wire, 33, bulb, 4, drainage structures, 41, apopore, 42, sealing plug, 5, planting structure, 51, culture tank, 52, cotton thread, 53, bull stick, 54, bearing, 6, filtration, 61, step hole, 62, filtration, 63, fixed orifices, 64, baffle, 65, stopper.

Detailed Description

The present invention will be further described with reference to the accompanying drawings and embodiments.

Please refer to fig. 1, fig. 2 and fig. 3 in combination, wherein fig. 1 is a schematic structural diagram of a preferred embodiment of a winter household plant protection device according to the present invention; FIG. 2 is a schematic view of the connection of the planting structure and the filtering structure of FIG. 1; fig. 3 is an enlarged schematic view of a portion a shown in fig. 1. Household winter plant protection device includes: the planting device comprises a planting groove 1, wherein the planting groove 1 is of a cuboid structure with one open end and a hollow interior; the collecting structure 2 is connected to the planting groove 1; the light supplementing structure 3 is connected to the collecting structure 2; the planting structure 5 is connected to the planting groove 1, the planting structure 5 comprises a culture groove 51, a cotton thread 52, a rotating rod 53 and a bearing 54, the bearing 54 is fixed at the bottom end inside the planting groove 1, the rotating rod 53 is rotatably connected with the planting groove 1 through the bearing 54, the culture groove 51 with an opening at one end and a hollow cylinder structure inside is sleeved on the rotating rod 53, and the cotton thread 52 penetrates through the bottom end of the culture groove 51; a filter structure 6, wherein the filter structure 6 is connected to the planting tank 1.

The cotton thread 52 is provided with a plurality of cotton threads 52, the cotton threads 52 are distributed at the bottom end of the culture tank 51 in an annular array, and water can be drained and supplied to the roots of the plants through the arrangement of the cotton threads 52.

Filtration 6 includes step hole 61, filtration 62, fixed orifices 63, baffle 64 and stopper 65, the rectangle the stopper 65 is equipped with two, two the stopper 65 is the symmetric relation and is fixed in plant on the inside both ends lateral wall of groove 1, the rectangle the baffle 64 is located the top of stopper 65, step hole 61 is located the central point of baffle 64 puts, filtration 62 is located the baffle 64, the fixed orifices 63 is equipped with two, two the fixed orifices 63 is the symmetric relation and locates the baffle 64, through be equipped with two on the baffle 64 the fixed orifices 63 can conveniently will the baffle 64 is mentioned.

The baffle 64 with plant 1 sliding connection in groove, the minimum diameter of step hole 61 is greater than the outside diameter of culture tank 51, just culture tank 51 with baffle 64 rotates to be connected, filtration pore 62 is equipped with a plurality ofly, and is a plurality of filtration pore 62 is netted distribution, through state culture tank 51 with baffle 64 rotates to be connected, guarantees that the plant can rotate and receive illumination.

Collection structure 2 includes basin 21 and stand 22, stand 22 is the vertical relation and is fixed in plant the top of groove 1, the rectangle basin 21 is fixed in the outside of stand 22, just basin 21 with plant groove 1 and be parallel relation, utilize the phototaxis of mosquito, can attract the mosquito, the mosquito that is attracted can fall into the inside of basin 21 is collected the mosquito.

Light filling structure 3 includes group battery 31, electric wire 32 and bulb 33, group battery 31 is located plant the inside of groove 1, bulb 33 is fixed in stand 22 deviates from plant the one end of groove 1, electric wire 32 is located the inside of stand 22, just bulb 33 with group battery 31 passes through electric wire 32 connects, through bulb 33's phototaxis can attract the mosquito.

One end of the planting groove 1 is provided with a drainage structure 4, the drainage structure 4 comprises a water outlet hole 41 and a sealing plug 42, the water outlet hole 41 is arranged at one end of the planting groove 1, and the sealing plug 42 is sleeved with the water outlet hole 41, so that drainage is facilitated.

The utility model provides a domestic plant protector in winter's theory of operation as follows:

when the cultivation device is used, firstly, the cultivation tank 1 is placed on a balcony or a desktop, then the cultivation tank 51 in which the household plants are planted is sleeved on the rotating rod 53, the bearing 54 is fixed at the bottom end inside the cultivation tank 1, the upright post 22 is rotatably connected with the cultivation tank 1 through the bearing 54, one end of the upright post 22, which is far away from the bearing 54, is sleeved with the cultivation tank 51 of a cylindrical structure with an opening at one end and a hollow interior, through the rotary connection of the cultivation tank 51 and the cultivation tank 1, the household plants can be rotated, so that the household plants can be guaranteed to be irradiated by the bulb 33 at different angles, through the arrangement of the bulb 33, the situation that the plant growth is influenced due to insufficient indoor illumination can be avoided, the rectangular water tank 21 is fixed outside the upright post 22, and by utilizing the phototaxis of mosquitoes, can attract the mosquito, the mosquito that is attracted can fall into the inside of basin 21 is collected the mosquito, can prevent the destruction of mosquito to the plant, electric wire 32 is located the inside of stand 22 does not expose, makes the outward appearance more pleasing to the eye, bulb 33 passes through electric wire 32 with group battery 31 is connected, through group battery 31 is right bulb 33 provides electric power cultivate the inside bottom of groove 51 and run through a plurality ofly cotton thread 52, when watering for the plant, unnecessary moisture can be followed cotton thread 52 with filtration 6 flows in plant groove 1's inside bottom can avoid the plant to water too much plant root and rot, when being out, plant moisture is not enough, cotton thread 52 can again with the water absorption of planting the inside bottom in groove 1 supplies with the plant.

the utility model provides a winter household plant protection device, the inside bottom of planting groove 1 is fixed with bearing 54, stand 22 passes through bearing 54 and planting groove 1 rotates to be connected, stand 22 deviates from one end of bearing 54 cup joints the culture tank 51 of the cylinder structure that one end is open-ended and inside is hollow, through culture tank 51 with planting groove 1 rotates to be connected, can rotate household plant, thereby can guarantee that household plant's different angles can all receive the illumination of light filling structure 3, through the setting of light filling structure 3, can avoid influencing the condition of plant growth because of indoor illumination is not enough, run through a plurality of cotton threads 52 in the inside bottom of culture tank 51, when watering plants, unnecessary moisture can flow into the inside bottom of planting groove 1 from cotton threads 52 with filtration structure 6, can avoid the plant to water too much the root rot, when going out, plant moisture is not enough, cotton thread 52 can again with the water absorption of planting the inside bottom in groove 1 supplies with to the plant.

The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.

Claims

1. A winter household plant protection device, comprising:

the planting groove is of a cuboid structure with one open end and a hollow interior;

a collection structure connected to the planting trough;

the light supplementing structure is connected to the collecting structure;

the planting structure is connected to the planting groove and comprises a culture groove, cotton threads, a rotating rod and a bearing, the bearing is fixed at the bottom end of the interior of the planting groove, the rotating rod is rotatably connected with the planting groove through the bearing, the culture groove of a cylindrical structure with an opening at one end and a hollow interior is sleeved on the rotating rod, and the cotton threads penetrate through the bottom end of the culture groove;

a filter structure connected to the planting tank.

2. A winter domestic plant protection device according to claim 1, wherein said cotton thread is provided in a plurality, distributed in an annular array at the bottom end of said cultivation tank.

3. A winter domestic plant protection device according to claim 1, wherein said filtering structure comprises two rectangular limiting blocks fixed on the side walls of the two ends of the interior of said planting groove in a symmetrical relationship, two filtering holes, two fixing holes, a partition plate and two limiting blocks, said rectangular partition plate is arranged on the top end of said limiting blocks, said step hole is arranged at the center of said partition plate, said filtering holes are arranged on said partition plate, said two fixing holes are arranged, and said two fixing holes are arranged on said partition plate in a symmetrical relationship.

4. A winter domestic plant protection device according to claim 3, wherein said partition is slidably connected to said planting trough, said stepped hole has a minimum diameter greater than an outer diameter of said cultivation trough, and said cultivation trough is rotatably connected to said partition, said filtering holes are provided in plurality, and a plurality of said filtering holes are distributed in a net shape.

5. A winter domestic plant protection device according to claim 1, wherein said collecting structure comprises a gutter and a post, said post being fixed in a perpendicular relationship to the top end of said planting trough, said rectangular gutter being fixed to the outside of said post and said gutter being in a parallel relationship to said planting trough.

6. A winter household plant protection device as claimed in claim 5, wherein the light supplementing structure includes a battery pack, an electric wire and a bulb, the battery pack is disposed inside the planting groove, the bulb is fixed to an end of the upright post facing away from the planting groove, the electric wire is disposed inside the upright post, and the bulb and the battery pack are connected through the electric wire.

7. A winter domestic plant protection device according to claim 1, wherein one end of the planting trough is provided with a drainage structure, the drainage structure comprises a water outlet hole and a sealing plug, the water outlet hole is provided at one end of the planting trough, and the sealing plug is sleeved with the water outlet hole.
