CN210497402U

CN210497402U - Environment-friendly machine part scrubbing equipment

Info

Publication number: CN210497402U
Application number: CN201921344105.3U
Authority: CN
Inventors: 林伟明
Original assignee: Jiujiang University
Current assignee: Jiujiang University
Priority date: 2019-08-19
Filing date: 2019-08-19
Publication date: 2020-05-12
Anticipated expiration: 2029-08-19

Abstract

The utility model discloses an environment-friendly mechanical part decontamination device, which comprises a device main body, wherein a feed inlet is arranged above one side of the device main body, and a feed opening is arranged below the other side of the device main body, one end of the feed opening, which is far away from the device main body, penetrates through the interior of the storage barrel, the environment-friendly type part decontamination equipment for mechanical engineering is provided with a conveying belt, a decontamination chamber, a brushing chamber and a flushing chamber, wherein parts are conveyed by the conveying belt in sequence and respectively pass through the decontamination chamber, the brushing chamber and the flushing chamber, the washing liquid that will wash incasement portion is taken out from the hydrojet head that connects through the fluid-discharge tube by first water pump operation and is facing to the part through the scrubbing room and carry out the spraying, along with the part through the room of scrubbing, first motor operation makes first pivot rotatory to make a plurality of brushes scrub the part, the part gets into the washing room afterwards.

Description

Environment-friendly machine part scrubbing equipment

Technical Field

The utility model relates to a scrubbing equipment technical field specifically is an environment-friendly machine part scrubbing equipment.

Background

At present, the current part scrubbing mode is usually to the part centralized stirring washing, and in the cleaning process, the part collides mutually and causes the damage easily, and is accomplishing the back at the scrubbing, does not thoroughly dehumidify the part, probably makes the part rust, produces unnecessary damage.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an environment-friendly machine part scrubbing equipment to propose among the above-mentioned background art to concentrate to wash and appear the collision and cause damage and scrubbing back dehumidification thoroughly not cause the rusty problem of part.

In order to achieve the above object, the utility model provides a following technical scheme: the environment-friendly mechanical part decontamination equipment comprises a device main body, wherein a feeding hole is formed in the upper portion of one side of the device main body, a blanking hole is formed in the lower portion of the other side of the device main body, one end, far away from the device main body, of the blanking hole penetrates through the interior of a storage barrel, and a decontamination chamber, a scrubbing chamber, a washing chamber, a wiping layer and a drying chamber are sequentially arranged in the upper portion of the interior of the device main body from the feeding hole along the direction of the blanking hole;

a plurality of baffles are fixed on one side inside the device main body, a washing box is fixed above the inside of the decontamination chamber, a first water pump is fixed at the bottom of the washing box, the output end of the first water pump is connected with a liquid discharge pipe, one end of the liquid discharge pipe, far away from the first water pump, is connected with a liquid spray head, a first motor is fixed above the inside of the scrubbing chamber, the output end of the first motor is connected with a first rotating shaft, one end of the first rotating shaft, far away from the first motor, is fixed with a transverse plate, a plurality of fixed blocks are fixed at the bottom of the outer surface of the transverse plate, hairbrushes are fixed on two sides of the fixed blocks, a water tank is fixed above the inside of the scrubbing chamber, a second water pump is fixed at the bottom of the water tank, the output end of the second water pump is connected with a main water discharge pipe, and one end of the main water discharge pipe, the bottoms of the branch drain pipes are provided with water spraying heads, and a hot air blower is fixed above the inside of the drying chamber;

the device is characterized in that a conveying belt is arranged in the middle of the inside of the device main body, a plurality of rollers are arranged in the conveying belt, a roller shaft is arranged in the roller, a sewage tank is fixed at the bottom of the conveying belt and located on one side of the storage barrel, an inclined plate is arranged on one side of the sewage tank, a filter layer is connected to one side of the inclined plate, a second motor box is fixed on one side of the sewage tank, a second motor is arranged in the second motor box, the output end of the second motor is connected with a second rotating shaft, a connecting belt is sleeved on the outer surface of the second rotating shaft, a connecting belt is sleeved on one side, away from the second rotating shaft, of the connecting belt and sleeved on the outer surface of the roller shaft, and an isolation pad is fixed at the bottom of.

Preferably, the conveyer belt is positioned at the bottom of the decontamination chamber, the brushing chamber, the washing chamber, the wiping layer and the drying chamber, and the conveyer belt is distributed with holes which are arranged in order.

Preferably, the filter layer is positioned on one side of the inclined plate and is made of an activated carbon material.

Preferably, the wiping layer is made of non-woven fabric materials, and the thickness of the wiping layer is 10-20 cm.

Preferably, the number of the brushes is ten, the two brushes are in one group and divided into five groups, and each group is fixed with a fixed block.

Preferably, the baffles are distributed in an inclined downward arrangement mode and made of rubber.

Compared with the prior art, the beneficial effects of the utility model are that: the environment-friendly type mechanical engineering part decontamination equipment is provided with a conveying belt, a decontamination chamber, a scrubbing chamber and a washing chamber, wherein parts are sequentially conveyed by the conveying belt to respectively pass through the decontamination chamber, the scrubbing chamber and the washing chamber, when the parts pass through the decontamination chamber, a first water pump is operated to pump washing liquid in a washing box away from a liquid spraying head connected through a liquid discharge pipe to spray the parts passing through the decontamination chamber, a first motor is operated to rotate a first rotating shaft along with the parts passing through the scrubbing chamber, so that a plurality of brushes scrub the parts, then the parts enter the washing chamber, a second water pump is operated to pump clear water in a water tank away from the washing tank, the clear water is respectively sprayed out from a water spraying head through a plurality of branch water discharge pipes through a main water discharge pipe to flush the parts, and a process of decontaminating the parts is started without causing collision damage to the parts, and the environment-friendly type mechanical engineering part decontamination equipment is provided with a scrubbing layer and a drying chamber, the layer of cleaning can make the water stain in the part when the part is cleaned the layer and carry out preliminary cleaning, and in the part got into the stoving room afterwards for remaining water stain on the part was dried, has solved the scrubbing after the scrubbing and has not thoroughly caused the rusty problem of part.

Drawings

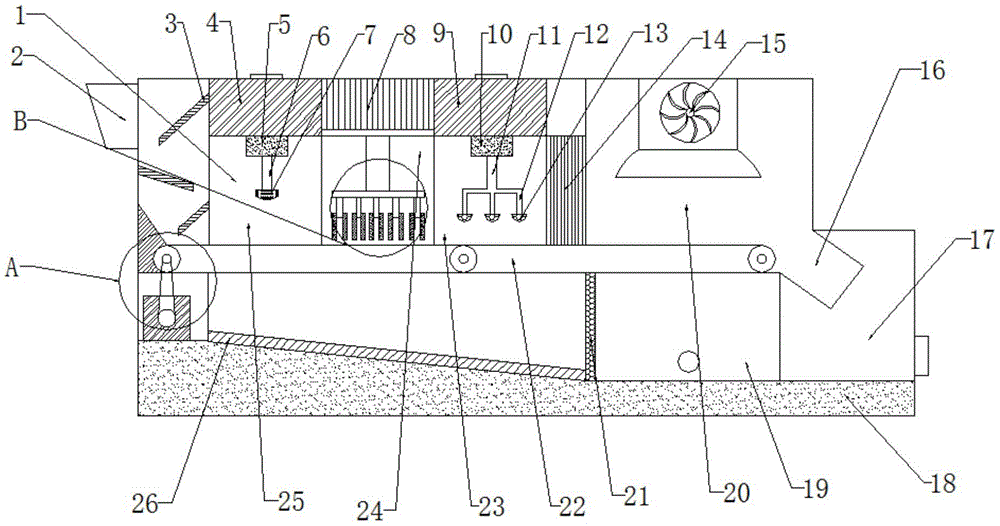

FIG. 1 is a schematic view of a front cross-sectional structure of the device body of the present invention;

FIG. 2 is an enlarged view of the partial structure of the present invention A;

fig. 3 is an enlarged schematic view of a local structure of the present invention B.

In the figure: 1. a device main body; 2. a feed inlet; 3. a baffle plate; 4. a washing tank; 5. a first water pump; 6. a liquid discharge pipe; 7. a liquid jet head; 8. a first motor; 9. a water tank; 10. a second water pump; 11. a main drain pipe; 12. branch drain pipes; 13. a sprinkler head; 14. a wiping layer; 15. a hot air blower; 16. a feeding port; 17. a material storage box; 18. an insulating pad; 19. a sewage tank; 20. a drying chamber; 21. a filter layer; 22. a conveyor belt; 23. a rinsing chamber; 24. a brushing chamber; 25. a decontamination chamber; 26. a sloping plate; 27. a second motor case; 28. a roller; 29. a roller shaft; 30. a connecting belt; 31. a second motor; 32. a second rotating shaft; 33. a first rotating shaft; 34. a transverse plate; 35. a fixed block; 36. and a brush.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: an environment-friendly machine part decontamination device comprises a device main body 1, a feed inlet 2, a baffle 3, a washing tank 4, a first water pump 5, a liquid discharge pipe 6, a liquid spray head 7, a first motor 8, a water tank 9, a second water pump 10, a main water discharge pipe 11, a branch water discharge pipe 12, a water spray head 13, a wiping layer 14, a hot air blower 15, a feed opening 16, a storage tank 17, an isolation pad 18, a sewage tank 19, a drying chamber 20, a filter layer 21, a conveying belt 22, a flushing chamber 23, a scrubbing chamber 24, a decontamination chamber 25, an inclined plate 26, a second motor tank 27, rollers 28, a roller shaft 29, a connecting belt 30, a second motor 31, a second rotating shaft 32, a first rotating shaft 33, a transverse plate 34, a fixed block 35 and a hairbrush 36.

The device comprises a device body 1 and is characterized in that a feed inlet 2 is arranged above one side of the device body 1, a feed opening 16 is arranged below the other side of the device body 1, one end, far away from the device body 1, of the feed opening 16 penetrates through the storage barrel 17, and a decontamination chamber 25, a scrubbing chamber 24, a flushing chamber 23, a wiping layer 14 and a drying chamber 20 are sequentially arranged above the interior of the device body 1 along the direction of the feed opening 16 from the feed inlet 2.

The cleaning layer 14 is made of non-woven fabric materials, the thickness of the cleaning layer 14 is 10-20cm, washed parts can be effectively cleaned, a plurality of baffles 3 are fixed on one side of the inside of the device main body 1, the baffles 3 are distributed in an inclined downward arrangement mode, the baffles 3 are made of rubber, the baffles 3 can buffer the falling parts, and the parts cannot be damaged by the rubber materials.

The inside top of scrubbing room 25 is fixed with washing tank 4, the bottom of washing tank 4 is fixed with first water pump 5, the output of first water pump 5 is connected with fluid-discharge tube 6, the one end that first water pump 5 was kept away from to fluid-discharge tube 6 is connected with hydrojet head 7, the inside top of brushing room 24 is fixed with first motor 8, first motor 8's output is connected with first pivot 33, the one end that first motor 8 was kept away from to first pivot 33 is fixed with diaphragm 34, the surface bottom of diaphragm 34 is fixed with a plurality of fixed blocks 35, and is a plurality of the both sides of fixed block 35 all are fixed with brush 36, brush 36 is provided with ten, just brush 36 is two a set of, divide into five groups altogether, and every group all is fixed with fixed block 35, can effectually brush the spare part.

A water tank 9 is fixed above the inside of the flushing chamber 23, a second water pump 10 is fixed at the bottom of the water tank 9, the output end of the second water pump 10 is connected with a main drainage pipe 11, one end, far away from the second water pump 10, of the main drainage pipe 11 is connected with a plurality of branch drainage pipes 12, a plurality of water spraying heads 13 are arranged at the bottoms of the branch drainage pipes 12, and an air heater 15 is fixed above the inside of the drying chamber 20.

The device comprises a device main body 1, wherein a conveying belt 22 is arranged in the middle of the inside of the device main body 1, the conveying belt 22 is positioned at the bottom of a decontamination chamber 25, a scrubbing chamber 24, a washing chamber 23, a wiping layer 14 and a drying chamber 20, the conveying belt 22 is provided with holes which are arranged in order, so that water filtration can be realized on parts in the decontamination process, a plurality of rollers 28 are arranged in the conveying belt 22, roller shafts 29 are arranged in the rollers 28, a sewage tank 19 is fixed at the bottom of the conveying belt 22, the sewage tank 19 is positioned at one side of a storage barrel 17, an inclined plate 26 is arranged at one side of the sewage tank 19, a filter layer 21 is connected at one side of the inclined plate 26, the filter layer 21 is positioned at one side of the inclined plate 26, the filter layer 21 is made of an activated carbon material, and the activated carbon can realize the decontamination effect, so that sewage can be filtered by the filter layer 21, one side of sewage case 19 is fixed with second motor case 27, the inside of second motor case 27 is provided with second motor 31, the output of second motor 31 is connected with second pivot 32, the surface of second pivot 32 has cup jointed connecting band 30, just one side that second pivot 32 was kept away from to connecting band 30 is cup jointed in the surface of gyro wheel axle 29, the bottom of sewage case 19 is fixed with isolation pad 18.

The working principle is as follows: firstly, a worker checks whether the performance of each part is normal, if some parts are found to be abnormal, the parts are timely maintained or replaced, the parts to be checked are well installed after the performance of the parts is normal, a power supply is switched on, the parts firstly enter from a feed inlet 2, fall onto a conveying belt 22 through a plurality of baffle plates 3, are sequentially conveyed by the conveying belt 22 and respectively pass through a decontamination chamber 25, a scrubbing chamber 24, a flushing chamber 23, a wiping layer 14 and a drying chamber 20, when the parts pass through the decontamination chamber 25, washing liquid in a washing tank 4 is pumped by a first water pump 5 to be sprayed opposite to the parts passing through the decontamination chamber 25 through a liquid spraying head 7 connected with a liquid discharge pipe 6, as the parts pass through the scrubbing chamber 24, a first rotating shaft 33 is rotated by operation of a first motor 8, so that a plurality of brushes 36 brush the parts are used for scrubbing, then the parts enter into the flushing chamber 23, clean water in a water tank 9 is pumped by operation of a second water pump 10, passes through a plurality of branch water discharge pipes 12 and is respectively passed through 13 spill out, wash the part, wipe layer 14 and can make the water stain in the part tentatively wipe through wiping layer 14 time with the part, the part gets into the drying chamber 20 afterwards, make remaining water stain on the part dried, deposit in getting into storage case 17 through feed opening 16 afterwards, simultaneously in the cleaning process, sewage can get into sewage case 19 through transport area 22, filter through filter layer 21, after using, after that, the power can be closed, at last when sewage case 19 is handled to needs, delivery port discharge sewage through sewage case 19 can, when needing to take out the part, it can to open the discharge gate of storage case 17 and take out.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an environment-friendly machine part scrubbing equipment, includes device main part (1), its characterized in that: a feeding hole (2) is formed in the upper portion of one side of the device main body (1), a blanking hole (16) is formed in the lower portion of the other side of the device main body (1), one end, far away from the device main body (1), of the blanking hole (16) penetrates through the interior of the storage barrel (17), and a decontamination chamber (25), a scrubbing chamber (24), a washing chamber (23), a wiping layer (14) and a drying chamber (20) are sequentially arranged in the upper portion of the interior of the device main body (1) from the feeding hole (2) along the direction of the blanking hole (16);

the device is characterized in that a plurality of baffle plates (3) are fixed on one side in the device body (1), a washing box (4) is fixed on the upper portion in the decontamination chamber (25), a first water pump (5) is fixed on the bottom of the washing box (4), the output end of the first water pump (5) is connected with a liquid discharge pipe (6), one end, far away from the first water pump (5), of the liquid discharge pipe (6) is connected with a liquid spraying head (7), a first motor (8) is fixed on the upper portion in the brushing chamber (24), the output end of the first motor (8) is connected with a first rotating shaft (33), a transverse plate (34) is fixed on one end, far away from the first motor (8), of the first rotating shaft (33), a plurality of fixing blocks (35) are fixed on the bottom of the outer surface of the transverse plate (34), brushes (36) are fixed on two sides of the fixing blocks (35), a water tank (9) is fixed on the upper portion in the flushing chamber (, a second water pump (10) is fixed at the bottom of the water tank (9), the output end of the second water pump (10) is connected with a main drainage pipe (11), one end, far away from the second water pump (10), of the main drainage pipe (11) is connected with a plurality of branch drainage pipes (12), the bottoms of the branch drainage pipes (12) are provided with sprinkler heads (13), and a hot air blower (15) is fixed above the inside of the drying chamber (20);

the device is characterized in that a conveying belt (22) is arranged in the middle of the inside of the device main body (1), a plurality of rollers (28) are arranged in the conveying belt (22), roller shafts (29) are arranged in the plurality of rollers (28), a sewage tank (19) is fixed at the bottom of the conveying belt (22), the sewage tank (19) is located on one side of the storage barrel (17), an inclined plate (26) is arranged on one side of the sewage tank (19), a filter layer (21) is connected to one side of the inclined plate (26), a second motor box (27) is fixed to one side of the sewage tank (19), a second motor (31) is arranged in the second motor box (27), the output end of the second motor (31) is connected with a second rotating shaft (32), a connecting belt (30) is sleeved on the outer surface of the second rotating shaft (32), and one side, far away from the second rotating shaft (32), of the connecting belt (30) is sleeved on the outer surface of the roller shafts (29), an isolation pad (18) is fixed at the bottom of the sewage tank (19).

2. The environment-friendly machine part decontamination equipment of claim 1, wherein: the conveyer belt (22) is positioned at the bottom of the decontamination chamber (25), the brushing chamber (24), the washing chamber (23), the wiping layer (14) and the drying chamber (20), and the conveyer belt (22) is distributed with holes which are arranged in order.

3. The environment-friendly machine part decontamination equipment of claim 1, wherein: the filter layer (21) is positioned on one side of the inclined plate (26), and the filter layer (21) is made of an activated carbon material.

4. The environment-friendly machine part decontamination equipment of claim 1, wherein: the wiping layer (14) is made of non-woven fabric materials, and the thickness of the wiping layer (14) is 10-20 cm.

5. The environment-friendly machine part decontamination equipment of claim 1, wherein: the hairbrush (36) is provided with ten, the hairbrush (36) is divided into five groups, and each group is fixed with a fixed block (35).

6. The environment-friendly machine part decontamination equipment of claim 1, wherein: the baffle plates (3) are uniformly distributed in an inclined downward arrangement mode, and the baffle plates (3) are all made of rubber.
