The utility model discloses an energy-concerving and environment-protective agricultural machine irrigation equipment, the camera includes a supporting plate, the right side fixedly connected with connecting plate of backup pad, one side fixedly connected with handle of backup pad is kept away from to the connecting plate, the right side fixedly connected with control panel of connecting plate, the right side fixedly connected with box at backup pad top. The utility model discloses a set up the backup pad, the connecting plate, the handle, control panel, the box, the dead lever, solar cell panel, the battery, the dc-to-ac converter, the baffle, the water filling port, a water pump, the drinking-water pipe, the drainage hose, the spray pipe, the sprinkler bead, the fixed column, first movable block, first connecting block, the second movable block, the second connecting block, electric telescopic handle, third movable block and running gear's cooperation is used, current agricultural machinery irrigation equipment has been solved because lack energy-concerving and environment-protective, irrigate even effect inconvenient user's problem, the practicality of this equipment has been improved, user's use has been made things convenient for.
Description
Technical Field
The utility model relates to the technical field of agricultural machinery, specifically be an energy-concerving and environment-protective agricultural machine irrigation equipment.
Background
Agricultural machinery refers to various machines used in the production process of crop planting and animal husbandry, and the primary processing and treatment process of agricultural and animal products, the agricultural machinery comprises agricultural power machinery, farmland construction machinery, soil cultivation machinery, planting and fertilizing machinery, plant protection machinery, farmland irrigation and drainage machinery, crop harvesting machinery, agricultural product processing machinery, animal husbandry machinery, agricultural transportation machinery and the like, the existing agricultural machinery irrigation equipment cannot adjust the angle of a water spray head, so that irrigation is not uniform, and due to lack of power supply equipment, a power supply needs to be connected to charge a storage battery, resources are wasted, energy conservation and environmental protection are not facilitated, the practicability of the equipment is reduced, and the equipment is inconvenient for a user to use.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an energy-concerving and environment-protective agricultural machine irrigation equipment possesses energy-concerving and environment-protective, irrigates even advantage, has solved current agricultural machine irrigation equipment because lack energy-concerving and environment-protective, irrigate even effect inconvenient user's problem.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: an energy-saving and environment-friendly agricultural machinery irrigation device comprises a supporting plate, wherein a connecting plate is fixedly connected to the right side of the supporting plate, a handle is fixedly connected to one side, away from the supporting plate, of the connecting plate, a control panel is fixedly connected to the right side of the connecting plate, a box body is fixedly connected to the right side of the top of the supporting plate, a fixing rod is fixedly connected to the right side of the top of the box body, a solar cell panel is fixedly connected to the top of the fixing rod, a storage battery is fixedly connected to the right side of the bottom of an inner cavity of the box body, an inverter is fixedly connected to the right side of the inner cavity of the box body, partition plates are fixedly connected to the center shaft at the top of the inner cavity of the box body and the center shaft at the bottom of the inner cavity of the box, the bottom of drinking-water pipe runs through the box and extends to the inner chamber of box, the left side fixedly connected with drainage hose of water pump, the left side intercommunication of drainage hose has the spray pipe, the left side fixedly connected with sprinkler bead of spray pipe, the both sides of backup pad bottom all are provided with running gear.
Preferably, the left side fixedly connected with fixed column at backup pad top, the top swing joint of fixed column has first movable block, the top swing joint of first movable block has first connecting block, the top and the spray pipe fixed connection of first connecting block, the top of backup pad is located the left side fixedly connected with second movable block of axis department, the top swing joint of second movable block has the second connecting block, the top fixedly connected with electric telescopic handle of second connecting block, electric telescopic handle's top swing joint has the third movable block, the top and the spray pipe fixed connection of third movable block.
Preferably, the top of the left side of the inner cavity of the box body and the top of the left side of the partition plate are both fixedly connected with a filter screen.
Preferably, the right side of the front surface of the box body is movably connected with a movable door.
Preferably, a cover plate is arranged at the top of the water filling port.
(III) advantageous effects
Compared with the prior art, the utility model provides an energy-concerving and environment-protective agricultural machine irrigation equipment possesses following beneficial effect:
1. the utility model discloses a set up the backup pad, the connecting plate, the handle, control panel, the box, the dead lever, solar cell panel, the battery, the dc-to-ac converter, the baffle, the water filling port, a water pump, the drinking-water pipe, the drainage hose, the spray pipe, the sprinkler bead, the fixed column, first movable block, first connecting block, the second movable block, the second connecting block, electric telescopic handle, third movable block and running gear's cooperation is used, current agricultural machinery irrigation equipment has been solved because lack energy-concerving and environment-protective, irrigate even effect inconvenient user's problem, the practicality of this equipment has been improved, user's use has been made things convenient for, be worth promoting.
2. The utility model discloses a set up the fixed column, first movable block, first connecting block, the second movable block, the second connecting block, electric telescopic handle uses with the cooperation of third movable block, made things convenient for the user to adjust the angle of sprinkler bead, avoided spraying inhomogeneous phenomenon, through setting up the filter screen, water to the water pump is filtered, avoided impurity to be inhaled by the water pump and caused the phenomenon of damage, through setting up the dodge gate, the convenience is maintained equipment, the phenomenon of the inconvenient maintenance of equipment damage has been avoided, through setting up the apron, avoided a large amount of impurity to fall into on the filter screen, make the filter screen block up the phenomenon that is difficult to the clearance.
Drawings
FIG. 1 is a front view of the present invention;
FIG. 2 is a schematic view of the internal structure of the present invention;

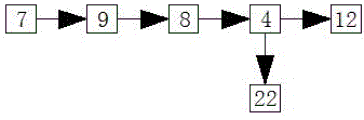

fig. 3 is a schematic diagram of the system of the present invention.
In the figure: the solar water heater comprises a supporting plate 1, a connecting plate 2, a handle 3, a control panel 4, a box 5, a fixing rod 6, a solar cell panel 7, a storage battery 8, an inverter 9, a partition plate 10, a water filling port 11, a water pump 12, a water pumping pipe 13, a water draining hose 14, a water spraying pipe 15, a water spraying head 16, a fixed column 17, a first movable block 18, a first connecting block 19, a second movable block 20, a second connecting block 21, an electric telescopic rod 22, a third movable block 23 and a travelling mechanism 24.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, an energy-saving and environment-friendly agricultural machinery irrigation device comprises a support plate 1, a connecting plate 2 is fixedly connected to the right side of the support plate 1, a handle 3 is fixedly connected to one side of the connecting plate 2 away from the support plate 1, a control panel 4 is fixedly connected to the right side of the connecting plate 2, a box body 5 is fixedly connected to the right side of the top of the support plate 1, a movable door is movably connected to the right side of the front surface of the box body 5, the device is convenient to maintain by arranging the movable door, the phenomenon that the device is damaged and inconvenient to maintain is avoided, a fixed rod 6 is fixedly connected to the right side of the top of the box body 5, a solar cell panel 7 is fixedly connected to the top of the fixed rod 6, a storage battery 8 is fixedly connected to the right side of the bottom of the inner cavity of the, the water injection port 11 is arranged at the top of the inner cavity of the box body 5 and positioned on the left side of the center shaft, the water pump 12 is fixedly connected to the left side of the top of the box body 5, the filter screen is fixedly connected to the left top of the inner cavity of the box body 5 and the left top of the partition board 10, water pumped by the water pump 12 is filtered by arranging the filter screen, the phenomenon that impurities are sucked by the water pump 12 to cause damage is avoided, the cover plate is arranged at the top of the water injection port 11, a large amount of impurities fall onto the filter screen to cause the phenomenon that the filter screen is blocked and difficult to clean is avoided by arranging the cover plate, the water pumping pipe 13 is fixedly connected to the bottom of the water pump 12, the bottom of the water pumping pipe 13 penetrates through the box body 5 and extends to the inner cavity of the box body 5, the drainage hose 14 is fixedly connected to the left side of the water pump 12, the left side of the top of the support plate 1 is fixedly connected with a fixed column 17, the top of the fixed column 17 is movably connected with a first movable block 18, the top of the first movable block 18 is movably connected with a first connecting block 19, the top of the first connecting block 19 is fixedly connected with a water spray pipe 15, the left side of the top of the support plate 1, which is positioned at the middle shaft, is fixedly connected with a second movable block 20, the top of the second movable block 20 is movably connected with a second connecting block 21, the top of the second connecting block 21 is fixedly connected with an electric telescopic rod 22, the top of the electric telescopic rod 22 is movably connected with a third movable block 23, the top of the third movable block 23 is fixedly connected with the water spray pipe 15, and the angle of the water spray head 16 can be conveniently adjusted by the cooperation of the fixed column 17, the first movable block 18, the first connecting block 19, the second movable block 20, the second connecting block 21, the electric telescopic rod 22, the phenomenon of uneven spraying is avoided.
When using, solar cell panel 7 passes through inverter 9's cooperation, turn into the electric energy storage with absorptive too light in battery 8, give control panel 4 through battery 8, water pump 12 and electric telescopic handle 22 power supply, energy-concerving and environment-protective effect has been reached, through fixed column 17, first movable block 18, first connecting block 19, second movable block 20, second connecting block 21, electric telescopic handle 22 and third movable block 23's cooperation, adjust the angle of sprinkling irrigation, make and spray evenly, solved current agricultural machinery irrigation equipment because lack energy-concerving and environment-protective, irrigate the inconvenient user's of even effect problem, and convenient to use.
To sum up, this energy-concerving and environment-protective agricultural machinery irrigation equipment, through setting up backup pad 1, connecting plate 2, handle 3, control panel 4, box 5, dead lever 6, solar cell panel 7, battery 8, dc-to-ac converter 9, baffle 10, water filling port 11, water pump 12, drinking-water pipe 13, drainage hose 14, spray pipe 15, sprinkler bead 16, fixed column 17, first movable block 18, first connecting block 19, second movable block 20, second connecting block 21, electric telescopic handle 22, third movable block 23 and running gear 24's cooperation is used, solved current agricultural machinery irrigation equipment because lack energy-concerving and environment-protective, irrigate the inconvenient user's of even effect problem.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides an energy-concerving and environment-protective agricultural machine irrigation equipment, includes backup pad (1), its characterized in that: a connecting plate (2) is fixedly connected to the right side of the supporting plate (1), a handle (3) is fixedly connected to one side, away from the supporting plate (1), of the connecting plate (2), a control panel (4) is fixedly connected to the right side of the connecting plate (2), a box body (5) is fixedly connected to the right side of the top of the supporting plate (1), a fixing rod (6) is fixedly connected to the right side of the top of the box body (5), a solar cell panel (7) is fixedly connected to the top of the fixing rod (6), a storage battery (8) is fixedly connected to the right side of the bottom of an inner cavity of the box body (5), an inverter (9) is fixedly connected to the right side of the inner cavity of the box body (5), partition plates (10) are fixedly connected to the center shaft at the top and the center shaft at the bottom of the inner cavity of, the utility model discloses a solar water heater, including box (5), left side fixedly connected with water pump (12) at box (5) top, the bottom fixedly connected with drinking-water pipe (13) of water pump (12), the inner chamber that box (5) and box (5) are run through to the bottom of drinking-water pipe (13), the left side fixedly connected with drainage hose (14) of water pump (12), the left side intercommunication of drainage hose (14) has spray pipe (15), the left side fixedly connected with sprinkler bead (16) of spray pipe (15), the both sides of backup pad (1) bottom all are provided with running gear (24).
2. The energy-saving and environment-friendly agricultural machinery irrigation equipment as claimed in claim 1, wherein: the utility model discloses a bearing bracket for the water spray pipe, including backup pad (1), left side fixedly connected with fixed column (17) at backup pad (1) top, the top swing joint of fixed column (17) has first movable block (18), the top swing joint of first movable block (18) has first connecting block (19), the top and the spray pipe (15) fixed connection of first connecting block (19), the top of backup pad (1) is located the left side fixedly connected with second movable block (20) of axis department, the top swing joint of second movable block (20) has second connecting block (21), the top fixedly connected with electric telescopic handle (22) of second connecting block (21), the top swing joint of electric telescopic handle (22) has third movable block (23), the top and the spray pipe (15) fixed connection of third movable block (23).
3. The energy-saving and environment-friendly agricultural machinery irrigation equipment as claimed in claim 1, wherein: the top of the left side of the inner cavity of the box body (5) and the top of the left side of the partition board (10) are fixedly connected with filter screens.
4. The energy-saving and environment-friendly agricultural machinery irrigation equipment as claimed in claim 1, wherein: the right side of the front surface of the box body (5) is movably connected with a movable door.
5. An energy-saving and environment-friendly agricultural machinery irrigation device as claimed in claim 3, wherein: the top of the water injection port (11) is provided with a cover plate.
