Abstract
The utility model discloses an agricultural equipment for agricultural improvement soil, which comprises a supporting column, the top fixedly connected with roof of support column, the top of roof is provided with infusion mechanism, infusion mechanism includes the liquid reserve tank, liquid reserve tank fixed connection is in the left end at roof top, lower extreme fixed mounting on liquid reserve tank right side has the pump machine, the end of intaking of pump machine is through pipeline and the bottom intercommunication on liquid reserve tank right side. The utility model discloses a step motor, drive pulley, belt, driven pulley, threaded rod, connecting plate, intubate, hole and thread bush's effect, it is poor to have solved current soil improvement equipment improvement effect, and traditional improvement equipment sprays the liquid medicine on the surface of soil, and this mode not only can not make the soil degree of depth absorb the improvement, and the mode that utilizes to spray moreover sprays efficiency slowly to need spray many times repeatedly, not only waste time and energy, and reduce work efficiency's problem.
Description
Technical Field
The utility model relates to an agricultural equipment technical field specifically is an agricultural equipment for agricultural improvement soil.
Background
The agriculture is an industry for obtaining products by artificial cultivation by utilizing growth and development rules of animals and plants, the agriculture belongs to the first industry, the science of researching the agriculture is the agriculture, the working object of the agriculture is living animals and plants, the obtained products are the animals and plants, the agriculture is a basic industry for supporting national economic construction and development, and the agriculture needs various agricultural equipment in the planting process, wherein the agricultural equipment comprises equipment for improving soil;
however, the existing soil improvement equipment is poor in improvement effect, the traditional improvement equipment sprays liquid medicine on the surface of soil, the mode cannot enable the soil to be deeply absorbed and improved, the spraying efficiency is low by the spraying mode, repeated spraying is needed, time and labor are wasted, and the working efficiency is reduced, so that the agricultural equipment for improving the soil in agriculture is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an agricultural equipment for agricultural improvement soil possesses the effectual advantage of improvement, and it is poor to have solved current soil improvement equipment improvement effect, and traditional improvement equipment sprays the liquid medicine on the surface of soil, and this mode not only can not make the soil degree of depth absorb the improvement, and the mode that utilizes to spray moreover sprays efficiency slowly to need spray many times repeatedly, not only waste time and energy, and reduce work efficiency's problem.
In order to achieve the above object, the utility model provides a following technical scheme: an agricultural device for agricultural soil improvement comprises a supporting column, wherein the top of the supporting column is fixedly connected with a top plate, the top of the top plate is provided with an infusion mechanism, the infusion mechanism comprises a liquid storage tank, the liquid storage tank is fixedly connected with the left end of the top plate, the lower end of the right side of the liquid storage tank is fixedly provided with a pump, the water inlet end of the pump is communicated with the bottom of the right side of the liquid storage tank through a pipeline, the water outlet end of the pump is communicated with an infusion tube through a pipeline, the bottom of the infusion tube is communicated with a hose, the inner side of the supporting column is provided with a soil inserting mechanism, the soil inserting mechanism comprises a stepping motor, the stepping motor is fixedly connected with the upper end of the right side of the supporting column, the output end of the stepping motor is fixedly connected with a driving belt pulley, the inside fixedly connected with threaded rod of driven pulley, the outside threaded connection of threaded rod has the thread bush, the inboard fixedly connected with connecting plate of thread bush, the surface intercommunication of connecting plate has the intubate, the hole has all been seted up to the both sides of intubate lower extreme.
Preferably, the inner side of the supporting column is provided with a sliding groove, the inner cavity of the sliding groove is connected with a sliding block in a sliding manner, and one end, far away from the sliding groove, of the sliding block is fixedly connected with the outer side of the threaded sleeve.
Preferably, the top and the bottom of threaded rod all swing joint have a bearing, and bearing fixed connection is in the bottom of roof and the inboard lower extreme of support column.
Preferably, the bottom of the hose is in communication with the top of the cannula, the hose being of a telescopic design.
Preferably, the periphery of the bottom of the support column is movably provided with rollers, and the lower end of the outer side of the support column on the left side is fixedly connected with a push rod.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model is provided with the soil-inserting mechanism and the liquid-conveying mechanism, which can effectively improve the improvement effect, not only save time and labor, but also improve the working efficiency, firstly, the external controller is utilized to start the stepping motor, the stepping motor is utilized to drive the driving belt pulley to rotate, the driving belt pulley drives the driven belt pulley through the belt, the driven belt pulley drives the threaded rod to rotate, thereby the threaded sleeve drives the connecting plate, the connecting plate drives the inserting pipe to insert into the soil, then, the external controller is utilized to start the pump machine, the liquid in the liquid storage box is pumped out by the pump machine and is conveyed into the inserting pipe through the liquid-conveying pipe and the hose, and flows out from the holes at the two sides of the inserting pipe, so that the soil is absorbed for improving the soil, the problem that the improvement effect of the existing soil improvement equipment is poor is solved, the traditional improvement equipment sprays the liquid medicine on the surface of the soil, and the spraying efficiency is slow by utilizing the spraying mode, so that the spraying is required to be repeated for multiple times, time and labor are wasted, and the working efficiency is reduced.
Drawings

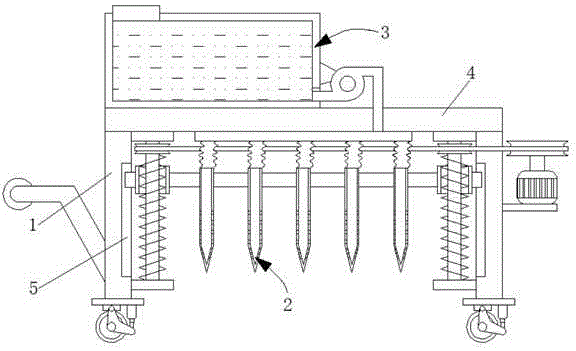

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the soil-inserting mechanism of the present invention;
fig. 3 is a schematic view of the structure of the infusion mechanism of the present invention.
In the figure: 1. a support pillar; 2. a soil inserting mechanism; 201. a stepping motor; 202. a drive pulley; 203. a belt; 204. a driven pulley; 205. a threaded rod; 206. a connecting plate; 207. inserting a tube; 208. a hole; 209. a threaded sleeve; 210. a slider; 3. a transfusion mechanism; 301. a liquid storage tank; 302. a pump machine; 303. a transfusion tube; 304. a hose; 4. a top plate; 5. a chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, an agricultural apparatus for agricultural soil improvement comprises a supporting column 1, a sliding groove 5 is formed in the inner side of the supporting column 1, a sliding block 210 is slidably connected to the inner cavity of the sliding groove 5, one end of the sliding block 210, which is far away from the sliding groove 5, is fixedly connected to the outer side of a threaded sleeve 209, rollers are movably mounted around the bottom of the supporting column 1, a push rod is fixedly connected to the lower end of the outer side of the supporting column 1 on the left side, a top plate 4 is fixedly connected to the top of the supporting column 1, and a transfusion mechanism 3 is arranged on the top of the top plate 4, so that the improvement effect can be effectively improved, time and labor are saved, the working efficiency is improved, the problem that the improvement effect of the existing soil improvement apparatus is poor is solved, the traditional improvement apparatus sprays liquid medicine on the surface of soil, the mode not only cannot, not only wastes time and labor, but also reduces the working efficiency, the transfusion mechanism 3 comprises a liquid storage tank 301, the liquid storage tank 301 is fixedly connected with the left end of the top of a top plate 4, a pump 302 is fixedly installed at the lower end of the right side of the liquid storage tank 301, the water inlet end of the pump 302 is communicated with the bottom of the right side of the liquid storage tank 301 through a pipeline, the water outlet end of the pump 302 is communicated with a transfusion tube 303 through a pipeline, the bottom of the transfusion tube 303 is communicated with a hose 304, the bottom of the hose 304 is communicated with the top of an insertion tube 207, the hose 304 is of a telescopic design, the soil inserting mechanism 2 is arranged at the inner side of a support column 1, the soil inserting mechanism 2 comprises a stepping motor 201, the stepping motor 201 is fixedly connected with the upper end of the right side of the support column 1, a driving pulley 202 is fixedly connected with the, driven pulley 204's inboard fixedly connected with threaded rod 205, the top and the equal swing joint in bottom of threaded rod 205 have a bearing, and bearing fixed connection is in the bottom of roof 4 and the inboard lower extreme of support column 1, and the outside threaded connection of threaded rod 205 has thread bush 209, and the inboard fixedly connected with connecting plate 206 of thread bush 209, the surface intercommunication of connecting plate 206 has intubate 207, and hole 208 has all been seted up to the both sides of intubate 207 lower extreme.
When in use, the soil inserting mechanism 2 and the liquid conveying mechanism 3 are arranged, so that the improvement effect can be effectively improved, time and labor are saved, and the working efficiency is improved, firstly, the stepping motor 201 is started by the external controller, the driving belt pulley 202 is driven by the stepping motor 201 to rotate, the driving belt pulley 202 drives the driven belt pulley 204 through the belt 203, the driven belt pulley 204 drives the threaded rod 205 to rotate, so that the threaded sleeve 209 drives the connecting plate 206, the connecting plate 206 drives the insertion tube 207 to be inserted into the soil, then, the external controller is used for starting the pump 302, the liquid in the liquid storage tank 301 is pumped out by the pump 302 and is conveyed into the insertion tube 207 through the liquid conveying tube 303 and the hose 304, and flows out from the holes 208 at the two sides of the insertion tube 207, so that the soil is absorbed for improving the soil, the problem of poor improvement effect of the existing soil improvement equipment is solved, the traditional improvement equipment sprays the liquid, the mode not only can not make soil degree of depth absorption improvement, and the mode that utilizes to spray moreover sprays efficiency slowly to need spray many times repeatedly, not only waste time and energy, and reduce work efficiency's problem.
The standard parts used in the present application document can be purchased from the market, and can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts the conventional means of mature bolt, rivet, welding and the like in the prior art, the machinery, parts and equipment adopt the conventional models in the prior art, and the structure and principle of the parts known by the skilled person can be known by the technical manual or by the conventional experimental method.
The control mode of the present application is automatically controlled by a controller, the control circuit of the controller can be realized by simple programming by those skilled in the art, and the present application belongs to the common knowledge in the field, and the present application mainly protects the mechanical device, so the present application does not explain the control mode and the circuit connection in detail.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. An agricultural apparatus for agricultural soil improvement, comprising a support column (1), characterized in that: the top fixedly connected with roof (4) of support column (1), the top of roof (4) is provided with infusion mechanism (3), infusion mechanism (3) include liquid reserve tank (301), liquid reserve tank (301) fixed connection is in the left end at roof (4) top, the lower extreme fixed mounting on liquid reserve tank (301) right side has pump machine (302), the end of intaking of pump machine (302) passes through pipeline and the bottom intercommunication on liquid reserve tank (301) right side, the delivery port of pump machine (302) has transfer line (303) through the pipeline intercommunication, the bottom intercommunication of transfer line (303) has hose (304), the inboard of support column (1) is provided with soil inserting mechanism (2), soil inserting mechanism (2) include step motor (201), step motor (201) fixed connection is in the upper end on support column (1) right side, the output fixedly connected with driving pulley (202) of step motor (201), the outside cover of drive pulley (202) is equipped with belt (203), the one end transmission that drive pulley (202) were kept away from in belt (203) is connected with driven pulley (204), inboard fixedly connected with threaded rod (205) of driven pulley (204), the outside threaded connection of threaded rod (205) has thread bush (209), the inboard fixedly connected with connecting plate (206) of thread bush (209), the surface intercommunication of connecting plate (206) has intubate (207), hole (208) have all been seted up to intubate (207) lower extreme both sides.
2. An agricultural apparatus for agricultural soil improvement according to claim 1, wherein: spout (5) have been seted up to the inboard of support column (1), the inner chamber sliding connection of spout (5) has slider (210), the outside fixed connection of the one end and thread bush (209) of spout (5) is kept away from in slider (210).
3. An agricultural apparatus for agricultural soil improvement according to claim 1, wherein: the top and the bottom of threaded rod (205) all swing joint have the bearing, and bearing fixed connection is in the bottom of roof (4) and the inboard lower extreme of support column (1).
4. An agricultural apparatus for agricultural soil improvement according to claim 1, wherein: the bottom of the hose (304) is communicated with the top of the insertion pipe (207), and the hose (304) is of a telescopic design.
5. An agricultural apparatus for agricultural soil improvement according to claim 1, wherein: all movable mounting all around of support column (1) bottom has the gyro wheel, the left side the lower extreme fixedly connected with push rod in support column (1) outside.
