Abstract
A kitchen basin convenient to clean comprises a fixed platform, a kitchen basin body and a water faucet which are fixed on the fixed platform, and a filtering mechanism which is fixed at the bottom of the kitchen basin body; the top surface of the fixed platform is provided with a first opening, the kitchen basin body is fixed in the first opening, the top of the side surface of the kitchen basin body is fixedly connected with the first opening, a water containing groove is arranged in the kitchen basin body, the bottom of the water containing groove is provided with a water outlet, a water tap is fixed on one side of the kitchen basin body, and the water outlet of the water tap faces the water containing groove; the kitchen basin comprises a kitchen basin body and is characterized in that an accommodating shell is fixed at the bottom of the kitchen basin body, an accommodating cavity is arranged in the accommodating shell, a second opening communicated with the accommodating cavity is formed in the top surface of the accommodating shell, the side edge of the accommodating shell is connected with the kitchen basin body in a sealing mode, a filter plate is fixed in the accommodating shell, the accommodating cavity is separated into a filtering cavity and a drainage cavity by the filter plate, the filter plate is detachably connected with the accommodating shell, and a drainage pipe communicated with the accommodating cavity is fixed at the bottom of the accommodating shell. The utility model has the advantages of convenient cleaning and difficult blockage.
Description
Technical Field
The utility model relates to a kitchen utensil technical equipment field, more specifically relates to a kitchen basin of convenient clearance.
Background
Kitchen sink is the indispensable equipment in modern kitchen, a be used for interim water storage, wash hands, wash vegetables, cook dishes, etc, current kitchen sink is to inlay on the basin platform and is established and be fixed with the kitchen basin usually, be equipped with down the mouth of a river in the kitchen basin, the bottom fixedly connected with downcomer of lower mouth of a river, and be equipped with the grate in the lower mouth of a river usually, be used for blockking that some bulky debris fall into in the downcomer, avoid causing the jam, and this kind of grate usually with lower mouth of a river fixed connection, some bones, the debris of dish stalk etc. also can be kept off on the grate, untimely clearance had both influenced the pleasing to the eye of basin and breed the bacterial virus easily, still can form the jam in lower mouth of a river department, need the manual clearance of digging it out of user, waste time and energy. In view of the above problems, effective solutions need to be provided.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects of the prior art, the utility model provides a kitchen basin convenient to clean, which is used for solving the problems that sundries are difficult to clean and easy to block in the kitchen basin existing in the prior art.
A kitchen basin convenient to clean comprises a fixed platform, a kitchen basin body and a water faucet which are fixed on the fixed platform, and a filtering mechanism fixed at the bottom of the kitchen basin body;
the top surface of the fixed platform is provided with a first opening, the kitchen basin body is fixed in the first opening, the top of the side surface of the kitchen basin body is fixedly connected with the first opening, a water containing groove is arranged in the kitchen basin body, the bottom of the water containing groove is provided with a water outlet, the water faucet is fixed on one side of the kitchen basin body, and the water outlet of the water faucet faces the water containing groove;
the kitchen basin comprises a kitchen basin body and is characterized in that an accommodating shell is fixed at the bottom of the kitchen basin body, an accommodating cavity is arranged in the accommodating shell, a second opening communicated with the accommodating cavity is formed in the top surface of the accommodating shell, the side edge of the accommodating shell is connected with the kitchen basin body in a sealing mode, a filter plate is fixed in the accommodating shell, the accommodating cavity is divided into a filtering cavity and a drainage cavity by the filter plate, the filter plate is detachably connected with the accommodating shell, and a drainage pipe communicated with the accommodating cavity is fixed at the bottom of the accommodating shell.
Optionally, the two side surfaces of the accommodating chamber are respectively provided with a sliding groove, the two side edges of the filter plate are in sliding fit with the sliding grooves, one side surface of the accommodating shell is provided with a disassembling port for the filter plate to extend into, the other side edge of the filter plate is fixed with a sealing plate, and the side surface of the sealing plate is in sealing fit with the side surface of the disassembling port.
Optionally, the filtering surface of the filtering plate is made of stainless steel, and the filtering surface of the filtering plate is provided with a plurality of filtering holes.
Optionally, rubber strips are laid on four edges of the sealing plate.
Optionally, a lifting handle is fixed to the outer side surface of the sealing plate.
Optionally, the bottom surface of the lower water chamber is in an inverted cone shape, and the lower water pipe is fixed at the vertex of the inverted cone shape.
The utility model has the advantages that:
the utility model provides a convenient kitchen basin of clearance is through setting up the filtering mechanism in kitchen basin body bottom, make washing debris on the kitchen basin body fall into the holding casing smoothly uniformly, blocked by the filter, when needing to clear up kitchen sink, only need take the filter out from crossing the filter casing, clear up the filter alone can, and need not the user and will stop the debris on the grate and waste time and energy and scratch out, and the filter area of filter is big moreover, it is compatible to have bigger debris than traditional offal grate, be difficult to take place to block up.
Drawings
In order to make the objects, technical solutions and advantages of the present invention clearer, the present invention will be further described in detail with reference to the accompanying drawings, in which:

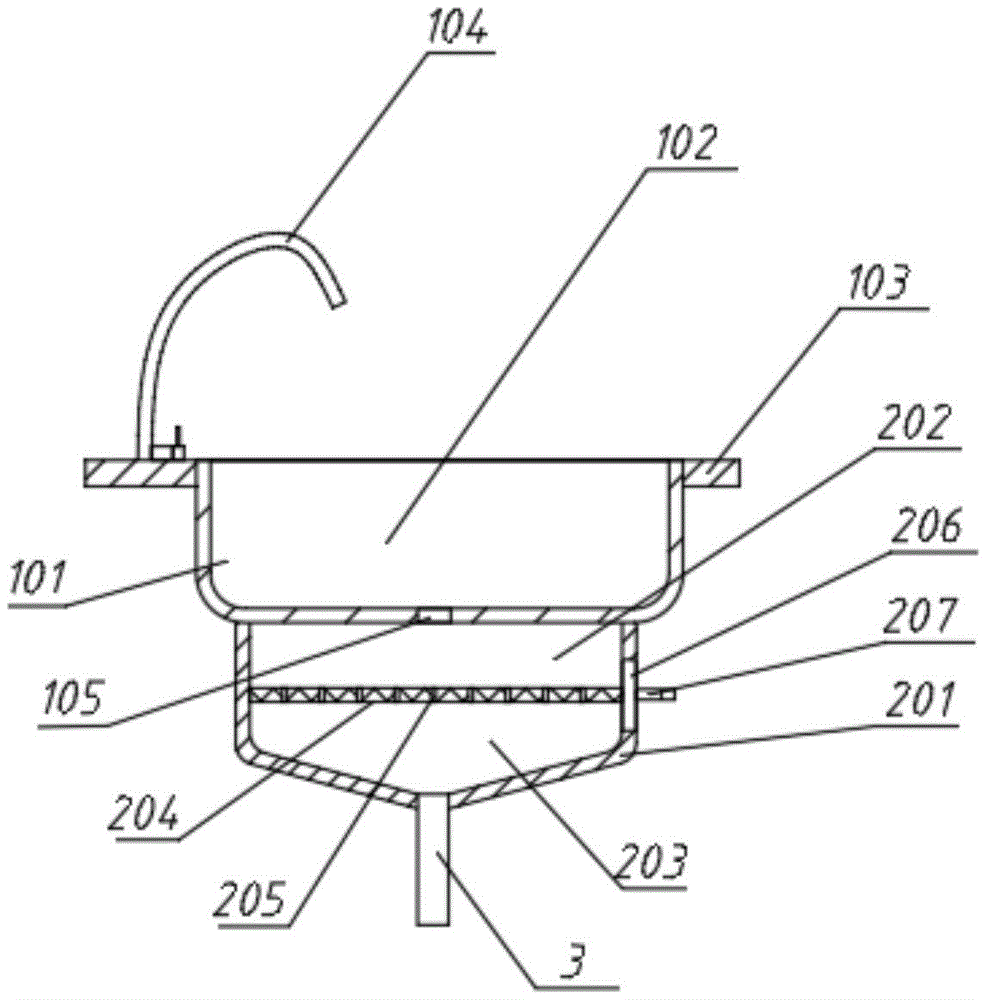

FIG. 1 is a schematic view of an overall structure of a kitchen basin convenient for cleaning provided by the present invention;
fig. 2 is a front view of the filtering mechanism in the kitchen basin convenient for cleaning provided by the utility model.
In the figure:
101. a kitchen basin body; 102. a water containing tank; 103. a fixed platform; 104. a faucet; 105. a water outlet; 201. an accommodating case; 202. a filtration chamber; 203. a launching chamber; 204. a filter plate; 205. a filtration pore; 206. a sealing plate; 207. lifting the handle; 208. a chute; 3. a sewer pipe.
Detailed Description
The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.
As shown in fig. 1 and fig. 2, the present invention provides the following technical solutions:
a kitchen basin convenient to clean comprises a fixed platform 103, a kitchen basin body 101 and a water faucet 104 which are fixed on the fixed platform 103, and a filtering mechanism fixed at the bottom of the kitchen basin body 101; the top surface of the fixed platform 103 is provided with a first opening, the kitchen basin body 101 is fixed in the first opening, the top of the side surface of the kitchen basin body 101 is fixedly connected with the first opening, a water containing groove 102 is arranged in the kitchen basin body 101, the bottom of the water containing groove 102 is provided with a water outlet 105, a water tap 104 is fixed on one side of the kitchen basin body 101, and the water outlet of the water tap 104 faces the water containing groove 102; the kitchen basin comprises a kitchen basin body 101, and is characterized in that an accommodating shell 201 is fixed at the bottom of the kitchen basin body 101, an accommodating chamber is arranged in the accommodating shell 201, a second opening communicated with the accommodating chamber is arranged on the top surface of the accommodating shell 201, the side edge of the accommodating shell 201 is hermetically connected with the kitchen basin body 101, a filter plate 204 is fixed in the accommodating shell 201, the filter plate 204 separates the accommodating chamber into a filter chamber 202 and a lower water chamber 203, the filter plate 204 is detachably connected with the accommodating shell 201, and a lower water pipe 3 communicated with the accommodating chamber is fixed at the bottom of the accommodating.
The kitchen basin convenient to clean is implemented above, particularly, cleaning sundries on the kitchen basin body 101 can uniformly and smoothly fall into the accommodating shell 201 through the filtering mechanism arranged at the bottom of the kitchen basin body 101 and are blocked by the filtering plate 204, when a kitchen sink needs to be cleaned, the filtering plate 204 only needs to be pulled out of the filtering shell, and the filtering plate 204 can be cleaned independently, so that the sundries staying on a grate do not need to be scraped out by a user in a time-consuming and labor-consuming manner, the filtering area of the filtering plate 204 is large, and the kitchen basin has higher sundry compatibility than a traditional draining grate, and is not easy to block; in the production and assembly process, the accommodating shell 201 and the kitchen basin body 101 are made of common stainless steel materials, the top of the accommodating shell 201 is fixedly connected with the bottom of the kitchen basin body 101 in a welding and fixing mode, and the filter plate 204 can be detachably arranged in the accommodating shell 201 in a drawer type mode, so that the filter plate can be conveniently taken out and cleaned.
Further, the both sides face of accommodation chamber is equipped with spout 208 respectively, the both sides limit and the spout 208 sliding fit of filter 204, a side of accommodation casing 201 is equipped with the dismantlement mouth that supplies filter 204 to stretch into, the opposite side limit of filter 204 is fixed with closing plate 206, closing plate 206 side and the sealed cooperation of dismantlement mouth side, based on this design, the both sides limit of filter 204 is direct to slide spacingly with spout 208 in the accommodation chamber, moreover, the steam generator is simple in structure and reliable, the cost has been practiced thrift and the production installation has also been made things convenient for, closing plate 206 then is favorable to preventing rivers and impurity from spilling over from dismantling the mouth, cause bad life experience for the user.
Further, the filtering surface of the filtering plate 204 is made of stainless steel, the filtering surface of the filtering plate 204 is provided with a plurality of filtering holes 205, the stainless steel has a good waterproof and anti-corrosion effect, the anti-corrosion effect is a main factor influencing the whole service life of the filtering plate 204 which needs to be frequently contacted with water, the filtering holes 205 are easier to clean than common filtering screens, stains are not easy to accumulate, a punching mode can be adopted for processing, and the production cost is saved.
Further, the rubber strip has all been laid along the four sides of closing plate 206, and the rubber strip has good waterproof performance and sealing performance, is used for the utility model discloses, except playing the effect that the rivers of preventing overflow spilled over, still can effectively restrain the peculiar smell that food impurity residue that falls on filter 204 distributes out, the environment that the homoenergetic made the kitchen around messenger's impurity was cleared up keeps the air fresh.
Further, the outer side of the sealing plate 206 is fixed with a lifting handle 207, the lifting handle 207 is beneficial for a user to pull out and clean the filter plate 204, in practical application, after the user pulls out the filter plate 204 by the lifting handle 207, the residue on the filter plate 204 is poured into the garbage can by the lifting filter plate 204, and the filter plate 204 is thoroughly washed by the water tap 104 and can be installed and returned, so that the filter plate 204 can exert the effect again.
Further, the bottom surface of the lower water cavity 203 is in an inverted cone shape, the lower water pipe 3 is fixed at the top position of the inverted cone shape, and based on the design, accumulated water in the lower water cavity 203 can fall into the lower water pipe 3 along the side wall of the inverted cone shape in time, so that excessive accumulated water is prevented from being remained in the accommodating shell 201, and germs and pests are bred.
While the invention has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes may be made and equivalents may be substituted for elements thereof without departing from the spirit and scope of the invention. The present invention is not to be limited by the specific embodiments disclosed herein, and other embodiments that fall within the scope of the claims of the present application are intended to be within the scope of the present invention.
Claims (6)
1. The utility model provides a kitchen basin of convenient clearance which characterized in that:
comprises a fixed platform (103), a kitchen basin body (101) and a water tap (104) which are fixed on the fixed platform (103), and a filtering mechanism which is fixed at the bottom of the kitchen basin body (101);
the top surface of the fixed platform (103) is provided with a first opening, the kitchen basin body (101) is fixed in the first opening, the top of the side surface of the kitchen basin body (101) is fixedly connected with the first opening, a water containing groove (102) is arranged in the kitchen basin body (101), the bottom of the water containing groove (102) is provided with a water outlet (105), the water tap (104) is fixed on one side of the kitchen basin body (101), and the water outlet of the water tap (104) faces the water containing groove (102);
the kitchen basin is characterized in that an accommodating shell (201) is fixed to the bottom of the kitchen basin body (101), an accommodating cavity is arranged in the accommodating shell (201), a second opening communicated with the accommodating cavity is formed in the top surface of the accommodating shell (201), the side edge of the accommodating shell (201) is connected with the kitchen basin body (101) in a sealing mode, a filter plate (204) is fixed in the accommodating shell (201), the filter plate (204) separates the accommodating cavity into a filtering cavity (202) and a drainage cavity (203), the filter plate (204) is detachably connected with the accommodating shell (201), and a drainage pipe (3) communicated with the accommodating cavity is fixed to the bottom of the accommodating shell (201).
2. The kitchen basin of claim 1, wherein:
the two side surfaces of the containing cavity are respectively provided with a sliding groove (208), the two side edges of the filter plate (204) are in sliding fit with the sliding grooves (208), one side surface of the containing shell (201) is provided with a disassembling port for the filter plate (204) to stretch into, the other side edge of the filter plate (204) is fixed with a sealing plate (206), and the side surface of the sealing plate (206) is in sealing fit with the side surface of the disassembling port.
3. The kitchen basin of claim 1, wherein:
the filtering surface of the filtering plate (204) is made of stainless steel, and the filtering surface of the filtering plate (204) is provided with a plurality of filtering holes (205).
4. A sink facilitating cleaning as claimed in claim 2, wherein:
rubber strips are paved on the four edges of the sealing plate (206).
5. A sink facilitating cleaning as claimed in claim 2, wherein:
a lifting handle (207) is fixed on the outer side surface of the sealing plate (206).
6. The kitchen basin of claim 1, wherein:
the bottom surface of the lower water cavity (203) is in an inverted cone shape, and the lower water pipe (3) is fixed at the position of the top point of the inverted cone shape.
