Abstract
The utility model provides a distribution network earth connection insulation earthing device, including the fixed horizontal insulation backup pad of insulating motor shell and insulating motor shell lower extreme, be provided with the vertical gear motor who runs through the insulation backup pad of motor shaft in the insulating motor shell, the motor shaft lower extreme then is fixed with interior hexagonal sleeve, the upper end that electrically conducts and bores the ground threaded rod is outer hexagonal, and fixed cover has the insulating plastic cover, the insulating plastic cover is inserted in interior hexagonal sleeve, the top both ends that electrically conducts and bore the ground threaded rod still are provided with integrative and bilateral symmetry's wiring hangers respectively, insulating motor shell top is fixed with the rechargeable battery who takes the shell, rechargeable battery supplies power for gear motor, and move through reversing the positive reverse rotation of on-off control. The utility model is not only labor-saving, but also high in efficiency, and convenient for fixing and disassembling; has good insulating effect and is safer to use.
Description
Technical Field
The utility model relates to an earthing device, a distribution network earth connection insulation earthing device specifically says so.
Background
During the construction of a power distribution network, some operations need to be grounded so as to ensure the safety of workers, and the conventional grounding mode is to drill underground by adopting long screws, hand-cranking modes and the like so as to achieve the purpose of grounding. However, the conventional grounding device is relatively laborious to install and has poor insulation during operation.
SUMMERY OF THE UTILITY MODEL
In order to solve the problem, the utility model aims at providing a distribution network earth connection insulation earthing device.
In order to achieve the above purpose, the technical scheme of the utility model is that: the utility model provides a distribution network earth connection insulation earthing device, including the fixed horizontal insulation backup pad of insulating motor shell and insulating motor shell lower extreme, insulating motor shell is cylinder and vertical setting, be provided with the vertical gear motor who runs through insulating backup pad of motor shaft in the insulating motor shell, the motor shaft lower extreme then is fixed with interior hexagonal sleeve, the upper end of electrically conductive earth-boring threaded rod is outer hexagonal, and fixed cover has the insulating plastic cover, the insulating plastic cover is inserted in interior hexagonal sleeve, the top both ends of electrically conductive earth-boring threaded rod still are provided with integrative and bilateral symmetry's wiring hangers respectively, the insulating motor shell top is fixed with the rechargeable battery who takes the shell, rechargeable battery supplies power for gear motor, and just rotate through reversing the on-off control positive reversal.
The utility model adopts the mode that the speed reducing motor drives the conductive ground screw rod to rotate to drill underground, thereby not only saving labor, but also having high efficiency and being convenient for fixing and disassembling; the conductive ground drilling threaded rod can be fully contacted with the ground, so that a good conductive effect is achieved; the conductive earth-drilling threaded rod is used for grounding, the conductive earth-drilling threaded rod is in contact with the inner hexagonal sleeve, the speed reduction motor and the like through the insulating plastic sleeve, the insulating plastic sleeve is in contact with hands during operation, a good insulating effect can be achieved, contact of the conductive earth-drilling threaded rod with an underground wire and the like during earth drilling is avoided, and the conductive earth-drilling threaded rod is safer to use.
Drawings

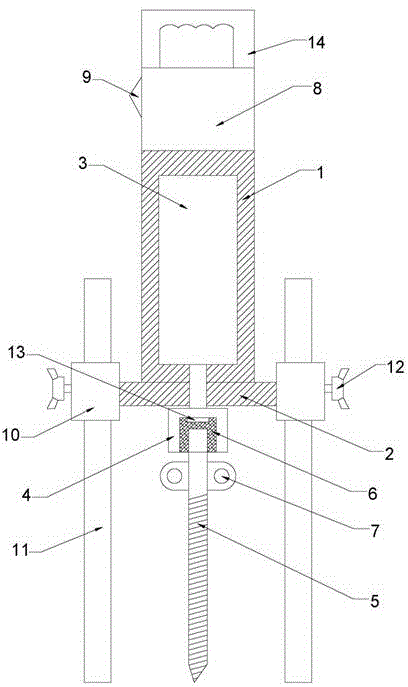

Fig. 1 is a schematic view of the structure of the present invention.
Detailed Description
As shown in fig. 1, a distribution network earth connection insulation earthing device, including insulating motor housing 1 and the fixed horizontal insulation backup pad 2 of insulating motor housing 1 lower extreme, be provided with the gear motor 3 that the motor shaft is vertical to run through insulating backup pad 2 in insulating motor housing 1, like the direct current gear motor of the company Limited of selunt industry of east guan city, voltage: 24V, load moment: CM of 50KG, power of 30W, load rotating speed: 2000RPM, the lower end of a motor shaft is fixed with an inner hexagonal sleeve 4, the upper end of a conductive ground drilling threaded rod 5 is an outer hexagonal, an insulating plastic sleeve 6 is fixedly sleeved on the upper end of the conductive ground drilling threaded rod, the insulating plastic sleeve 6 is inserted into the inner hexagonal sleeve 4, two ends of the top of the conductive ground drilling threaded rod 5 are respectively provided with an integrated wiring hanging lug 7 in bilateral symmetry, the wiring hanging lugs 7 are used for connecting a grounding wire, a rechargeable battery 8 with a shell is fixed on the top of an insulating motor shell 1, the rechargeable battery 8 supplies power to a speed reducing motor 3, and forward and reverse rotation is controlled through a reversing switch 9.
In order to better support the insulating support plate 2, vertical guide sleeves 10 are respectively fixed at four corners of the insulating support plate 2, a vertical guide support rod 11 is respectively inserted into each guide sleeve 10, a fixed butterfly bolt 12 with the inner end clamping the guide support rod 11 is further respectively screwed through the outer side wall of each guide sleeve 10, each fixed butterfly bolt 12 is unscrewed when the electric drill is used, each guide support rod 11 can move at the moment, and the guide support rods 11 are supported at four corners, so that when the electric drill ground threaded rod 5 of the speed reduction motor 3 is started to drill the ground, the electric drill ground threaded rod 5 vertically faces downwards under the action of the four guide support rods 11, scales can be further arranged on the guide support rods 11, and the electric drill ground threaded rod 5 can be further fully guaranteed to vertically drill into a plane through the scales.
In order to fix the conductive ground drilling threaded rod 5 and conveniently take down the conductive ground drilling threaded rod 5, the magnet piece 13 which is mutually attracted with the inner end side wall of the inner hexagonal sleeve 4 is arranged on the upper end face of the insulating plastic sleeve 6, and the conductive ground drilling threaded rod is convenient to take down while being fixed in a magnet mutual attraction mode.
For better handheld use, the upper surface of the rechargeable battery 8 is also provided with an upright handle 14.
Of course, the above description is not intended to limit the present invention, and the present invention is not limited to the above examples, and those skilled in the art should be able to make changes, alterations, additions or substitutions within the scope of the present invention.
Claims (4)
1. The utility model provides a distribution network earth connection insulation earthing device which characterized in that: the horizontal insulation support plate (2) is fixed to the lower end of an insulation motor shell (1) and the lower end of the insulation motor shell (1), a speed reduction motor (3) with a motor shaft vertically penetrating through the insulation support plate (2) is arranged in the insulation motor shell (1), an inner hexagonal sleeve (4) is fixed to the lower end of the motor shaft, the upper end of a conductive ground drilling threaded rod (5) is an outer hexagonal, an insulation plastic sleeve (6) is fixedly sleeved on the upper end of the insulation motor shell, the insulation plastic sleeve (6) is inserted into the inner hexagonal sleeve (4), wiring lugs (7) which are integrated and bilaterally symmetrical are further arranged at two ends of the top of the conductive ground drilling threaded rod (5) respectively, a charging battery (8) with a shell is fixed to the top of the insulation motor shell (1), the charging battery (8) supplies power to the speed reduction motor (3), and.
2. The grounding device for grounding wire insulation of power distribution network of claim 1, wherein: vertical guide sleeves (10) are fixed at four corners of the insulating support plate (2) respectively, a vertical guide support rod (11) is inserted into each guide sleeve (10), and a fixing butterfly bolt (12) with an inner end clamping the guide support rod (11) is screwed on the outer side wall of each guide sleeve (10) in a penetrating manner respectively.
3. The grounding device for grounding wire insulation of power distribution network of claim 2, wherein: the upper end face of the insulating plastic sleeve (6) is provided with a magnet piece (13) which is mutually attracted with the inner end side wall of the inner hexagonal sleeve (4).
4. The grounding device for grounding wire insulation of power distribution network of claim 1, wherein: the upper surface of the rechargeable battery (8) is also provided with a vertical handle (14).
