The utility model discloses a separation garbage disposing device capable of separating solid from liquid as well as separating organic matters from inorganic matters. According to the garbage disposing device disclosed by the utility model, a garbage bag breaking device is connected with a garbage washing device, the garbage washing device is connected with a solid and liquid separation device, the solid and liquid separation device is connected with a sorting device, an organic garbage outlet formed in the sorting device is connected with a bio-carbon making device, an inorganic garbage outlet formed in the sorting device is connected with an inorganic garbage crushing device, a garbage water outlet formed in an organic garbage dewatering device is connected with a garbage water anaerobic treatment device, the solid and liquid separation device is connected with a settling basin used for carrying out precipitation on the garbage water, the settling basin is connected with the garbage water anaerobic treatment device, the garbage water anaerobic treatment device is connected with an active coke filtration and adsorption device, the active coke filtration and adsorption device is connected with a circulation pool, due to the circulation pool, clean water subjected to purification treatment is used for washing in the garbage bag breaking treatment process, the garbage washing treatment process and the sorting treatment process in a circulating way by virtue of a circulating water pump, the garbage water anaerobic treatment device is provided with a biogas outlet, and the biogas outlet is connected with the bio-carbon making device.
Description
Technical field
The utility model belongs to refuse treatment plant, is specifically related to a kind of solid-liquid separately and refuse disposal installation that organic matter and inorganic matter separate.
Background technology
China is one of the most serious country of Problem of Urban Waste in the world.
According to statistics, National urban house refuse annual production: be 1.15 hundred million tons the eighties, has reached 1.43 hundred million tons (are only second to the U.S., occupy the second in the world) nineties;
National urban rubbish is stacked total amount over the years up to 7,000,000,000 tons at present, and generation is every year with approximately 8.98% speed increase.Dumping accounts for the soil gross area and has reached 500,000,000 square metres, approximately amounts to 750,000 mu of arable lands;
In more than 600 big and medium-sized cities, the whole nation, have 70% by rubbish, to be surrounded, have a strong impact on urban development and periphery resident's living environment.
China's garbage disposal adopts the methods such as traditional landfill, compost, burning to process at present substantially, and above-mentioned traditional technology of garbage disposal exists well-known defect:
One, garbage compost is processed
It is to utilize microorganism to decompose the Biochemical processes of rubbish organic principle that garbage compost is processed.In biochemical reaction process, organic matter, oxygen and bacterial interactions, separate out carbon dioxide, water and heat, generates humus simultaneously.
The shortcoming that garbage compost is processed has three:
1, the stone in rubbish, metal, glass, plastics the like waste can not be decomposed by microorganism, these discarded objects must go-no-go out, otherwise processed;
2, the garbage compost cycle long, floor space is large, garbage compost field periphery sanitary condition is poor;
3, fertilizer efficiency is low, cost is high, sales difficulty, deficiency in economic performance.
It is the organic matter that can be decomposed by microorganism in rubbish that garbage compost is processed, so it is the treatment technology for organic principle in rubbish, rather than the final treatment technology to whole rubbish.
There is obvious shortcoming in garbage compost technology, can not process not putrescible organic matter and inorganic matter, therefore subtracts appearance, decrement and innoxious degree low.Therefore only rely on compost treatment still can not thoroughly solve garbage problem.At present in some places by consumer waste filling and embedding, by spontaneous fermentation, after the several years, excavate out again, sieve goes to be just used as fertilizer after the material of the without putrefactions such as plastics wherein and sells.In fact with this fertilizer raise fruit trees, vegetables and grain is dangerous, reason is the heavy metal (Pb due to not perishable organic component (paper, plastics, cloth, rubber etc.) in rubbish, Cd, H steals) content is very high, if it is underground that this class material and perishable organic matter are embedded in for a long time altogether, add the effect of rainwater, heavy metal will inevitably infiltrate in final organic fertilizer product, with this seed manure kind food content of beary metal out, must exceed standard, be detrimental to health.
Two, incineration treatment of garbage
Waste incineration is rubbish to be sent into incinerator carry out combustion process.After waste incineration, discharge heat energy, produce flue gas and solid residue simultaneously.Heat energy will reclaim, and flue gas will purify, and residue will digest, and this is the requisite technical process of burning disposal.
The shortcoming of incineration treatment of garbage:
1, in incineration firing process, discharge toxic gas, as mercuryvapour in dioxin, battery etc., the flue gas of generation must purify, and purification techniques difficulty is large, operating cost is high;
2, in incineration firing process, produce and account for original vol 20%-30% poisonous and harmful slag and dust, burn the poisonous and harmful slag and the dust that produce and also must process;
3, in rubbish, the resource of recoverable is destroyed, and is a kind of processing method of wasting resource;
4, burning disposal there are certain requirements rubbish Lower heat value, is not that any rubbish can burn;
5, burning facility one-time investment is large.
Three, garbage loading embeading
The shortcoming that garbage loading embeading is processed:
The rubbish of landfill does not carry out harmless treatment, residual a large amount of bacteriums, virus; The hidden danger such as biogas, heavy metal pollution also lie dormant; Its garbage leaching liquid is ground contamination groundwater resources for a long time also, so, this method potential greatly harm, can bring infinite future trouble to descendants.This method does not only realize the recycling treatment of rubbish, and a large amount of land occupation, and pollution sources are retained to descendants.Most critical be that each landfill factory and office reason is limited in one's ability, after filling up, still need the landfill yard that investment construction is new, further land occupation resource.Current many developed countries prohibite landfill waste.
Comprehensive analysis, the technology of garbage disposal that China adopts at present, does not have a kind of method can really realize the general objective of garbage as resource, innoxious, minimizing.
Utility model content
The refuse disposal installation that the purpose of this utility model is to provide a kind of solid-liquid separately and organic matter and inorganic matter separate.
For achieving the above object, the refuse disposal installation that the utility model provides, comprising:
Garbage bag breaking device connects one water-soluble organic matter in domestic waste is washed rubbish wash mill;
Rubbish wash mill connects the equipment for separating liquid from solid that the domestic waste after a pair of washing carries out Separation of Solid and Liquid processing;
Equipment for separating liquid from solid connects the sorting unit that isolated solid refuse is carried out to sorting process;
The organic waste outlet arranging in sorting unit is connected with the dewater unit that organic waste is dewatered by organic garbage crushing device manufactures biological carbon device;
The inorganic refuse outlet arranging in sorting unit connects inorganic refuse breaker;
The outlet of sewer arranging in organic waste dewater unit connects the rubbish water anaerobic processing device that isolated sewage is carried out to Anaerobic Treatment and the organic matter in sewage is converted into biogas;
Equipment for separating liquid from solid connects the settling pit that rubbish water is precipitated;
Settling pit connects the rubbish water anaerobic processing device that isolated rubbish water is carried out to Anaerobic Treatment after precipitation and the organic matter in rubbish water is converted into biogas;
Rubbish water anaerobic processing device connects the activated coke filtering adsorpting device that the rubbish water after Anaerobic Treatment is carried out to purified treatment;
Activated coke filtering adsorpting device connects circulating water pool;
Circulating water pool connects garbage bag breaking device, rubbish wash mill and sorting unit by water circulating pump, and the clear water after purified treatment is cycled to used in to the washing in garbage bag breaking processing, rubbish carrying out washing treatment and separation treatment process;
Rubbish water anaerobic processing device is provided with methane outlet, and this methane outlet connects manufactures biological carbon device.
In described device, rubbish water anaerobic processing device is connected and is manufactured biological carbon device by the dewater unit that natural pond slag is dewatered.
In described device, the dewater unit of natural pond slag connects rubbish water anaerobic processing device by outlet of sewer.
In described device, circulating water pool connects a filling pipe that carries out moisturizing.
Feature of the present utility model is:
(1) realized the solid in domestic waste and liquid have separately been processed; Inorganic refuse and organic waste are separately processed; The integrated treatment that washing rubbish purifying water process recycles.
(2) overcome the significant deficiency that traditional city domestic garbage treating process technology exists, as: waste land resource, polluted underground water resource defect that garbage loading embeading treatment technology exists; Contaminated air and environment that incineration treatment of garbage technology exists, available resources defect etc. in waste rubbish.
(3) make available resources in domestic waste obtain cleaning to greatest extent recovery.
(4) for city, saved the land resource of a large amount of preciousnesses.
(5) in urban garbage disposal process, do not produce any air or environmental pollution.
(6) make urban garbage disposal realize fully and completely resource, innoxious, minimizing, low-cost processes.
Accompanying drawing explanation

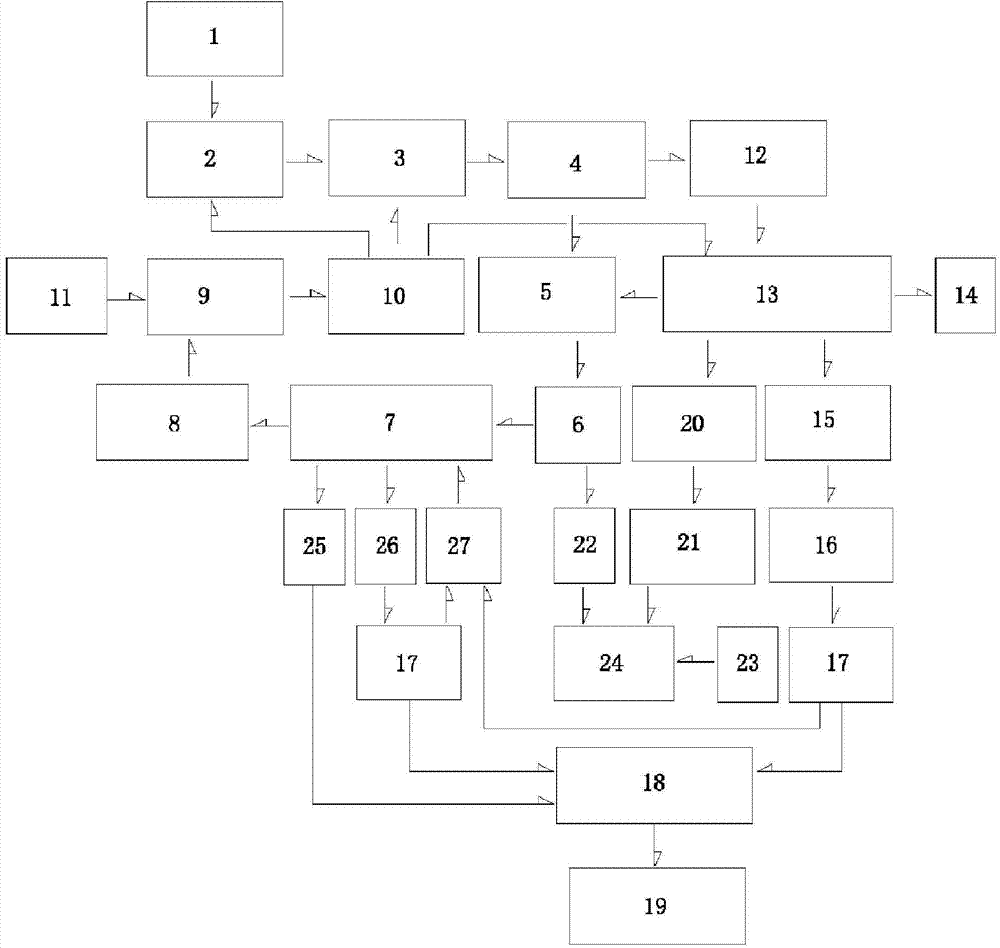

The city domestic garbage treating process flow chart that Fig. 1 provides for the utility model one embodiment.
Symbol description in accompanying drawing:
1 domestic waste; 2 garbage bag breaking devices; 3 rubbish wash mills; 4 equipment for separating liquid from solid; 5 rubbish water; 6 settling pits; 7 rubbish water anaerobic processing devices; 8 activated coke filtering adsorpting devices; 9 circulating water pools; 10 water circulating pumps; 11 filling pipes; 12 solid refuses; 13 sorting units; The article such as 14 plastic-metal batteries; 15 insoluble in water organic wastes; 16 organic garbage crushing devices; 17 dewater units; 18 manufacture biological carbon device; 19 biological carbon; 20 inorganic refuses; 21 inorganic refuse breakers; 22 silts; 23 cement; 24 grass-planting bricks; 25 biogas; 26 natural pond slags; 27 sewage.
The specific embodiment
The refuse disposal installation that the utility model provides, comprising:
Garbage bag breaking device connects rubbish wash mill, so that water-soluble organic matter in domestic waste is washed;
Rubbish wash mill connects equipment for separating liquid from solid, with the domestic waste to after washing, carries out Separation of Solid and Liquid processing;
Equipment for separating liquid from solid connects sorting unit, so that isolated solid refuse is carried out to sorting process;
The organic waste outlet arranging in sorting unit is connected with the dewater unit that organic waste is dewatered by organic garbage crushing device manufactures biological carbon device;
The inorganic refuse outlet arranging in sorting unit connects inorganic refuse breaker;
The outlet of sewer arranging in organic waste dewater unit connects rubbish water anaerobic processing device, and isolated sewage is carried out to Anaerobic Treatment, and the organic matter in sewage is converted into biogas;
Equipment for separating liquid from solid connects settling pit, and rubbish water is precipitated;
Settling pit connects rubbish water anaerobic processing device, and isolated rubbish water is carried out to Anaerobic Treatment after precipitation, and the organic matter in rubbish water is converted into biogas;
Rubbish water anaerobic processing device connects activated coke filtering adsorpting device, the rubbish water after Anaerobic Treatment is filtered to absorption through activated coke and carry out purified treatment;
Activated coke filtering adsorpting device connects circulating water pool, and circulating water pool connects a filling pipe that carries out moisturizing;
Circulating water pool connects garbage bag breaking device, rubbish wash mill and sorting unit by water circulating pump, and the clear water after purified treatment is cycled to used in to the washing in garbage bag breaking processing, rubbish carrying out washing treatment and separation treatment process;
Rubbish water anaerobic processing device is provided with methane outlet, and this methane outlet connects manufactures biological carbon device.
In described device, rubbish water anaerobic processing device is connected and is manufactured biological carbon device by the dewater unit that natural pond slag is dewatered.
In described device, the dewater unit of natural pond slag connects rubbish water anaerobic processing device by outlet of sewer.
The use flow process of refuse disposal installation of the present utility model comprises:
1) domestic waste is carried out to broken bag processing and washes with water;
2) the domestic waste water after broken bag is processed is carried out to carrying out washing treatment, water-soluble organic matter in domestic waste is washed;
3) domestic waste after washing carries out Separation of Solid and Liquid processing, isolated solid refuse carries out sorting process, isolated rubbish water carries out Anaerobic Treatment after precipitation, organic matter in rubbish water is converted into biogas, and the rubbish water after Anaerobic Treatment is filtered to absorption through activated coke and carry out purified treatment, the clear water after purified treatment is used;
In sorting process, continue solid refuse to carry out spray washing, the rubbish water washing carries out Anaerobic Treatment after precipitation, and the organic matter in rubbish water is converted into biogas, and the clear water after purified treatment is used;
4) will after the insoluble in water organic garbage crushing processing sub-electing, carry out processed, and under anaerobic condition, carry out pyrolysis processing and make biological carbon, the sewage producing in processed process carries out Anaerobic Treatment, makes the organic matter in sewage be converted into biogas, and the clear water after purified treatment is used;
The silt that the inorganic refuse sub-electing is carried out to go out with rubbish water sedimentation after broken mixes and is used;
The plastics that sub-elect, metal, battery are directly reclaimed;
5) the natural pond slag after rubbish water generates biogas dewaters and makes biological carbon; The sewage that natural pond slag dehydration produces carries out Anaerobic Treatment, and collects the biogas that Anaerobic Treatment produces and be used.
In described waste disposal method, the clear water after purified treatment is cycled to used in the washing in garbage bag breaking processing, rubbish carrying out washing treatment and separation treatment process.
The biogas producing in above-mentioned flow process is as the fuel of preparation biological carbon.
The biological carbon of making in above-mentioned flow process is for the production of soil conditioner.
After the silt that inorganic refuse particle in above-mentioned flow process after fragmentation goes out with rubbish water sedimentation mixes, add cement to manufacture grass-planting brick.
In above-mentioned flow process, natural pond slag is under anaerobic condition, to carry out making biological carbon after destructive distillation processing.
In order to make the purpose of this utility model, technical scheme and advantage clearer, below in conjunction with accompanying drawing, the utility model is described in further detail.
The utility model provide a kind of by domestic waste solid and liquid separate processing, inorganic refuse separates processing with organic waste, the treating apparatus that rubbish purifying water process recycles, the use procedure of this device is:
1) domestic waste is carried out to carrying out washing treatment
Adopt clear water to wash the domestic waste after broken bag is processed:
(1) water-soluble organic matter in domestic waste is washed, avoid in garbage processing procedure, the liquid in rubbish rots, distributes odor pollution environment;
(2) recyclable materials in rubbish is realized to clean recovery.
2) will after the rubbish purifying water process after washing rubbish, recycle
Rubbish water after washing rubbish is transported in equipment for separating liquid from solid and carries out being transported to settling pit after Separation of Solid and Liquid processing.Rubbish water after settling pit is processed is transported in rubbish water anaerobic processing device and carries out Anaerobic Treatment, makes the organic matter in rubbish water be converted into biogas; Rubbish water, the natural pond liquid that rubbish water anaerobic processing device is discharged is transported to activated coke filtering adsorpting device and filters adsorption cleaning processing; The clear water filtering after adsorption cleaning is processed is transported to circulating water pool, with water pump, the water in circulating water pool is transported to and in rubbish wash mill, is reused for rubbish washing.
3) solid refuse after washing is cleaned to sorting
The solid refuse that equipment for separating liquid from solid is separated is transported to sorting unit and carries out sorting process, continues rubbish to clean in solid refuse assorting room.Sorting unit is divided into recyclable rubbish, insoluble in water organic waste and inorganic refuse by the rubbish after carrying out washing treatment, and recyclable rubbish is reclaimed.
4), by the insoluble in water organic waste biological carbon processed sorting out, with the inorganic refuse sorting out, produce grass-planting brick etc.
The insoluble in water organic waste sorting out is transported to organic garbage crushing device and carries out after break process, be transported to dewater unit and carry out processed.Insoluble in water organic waste after processed is transported in destructive distillation biological carbon device processed, under anaerobic condition, processes and makes biological carbon.The biological carbon of making is for the production of soil conditioner.The inorganic refuse that separator is separated is transported to inorganic refuse breaker, after the silt that the inorganic refuse particle after fragmentation is discharged with settling pit mixes, adds cement to manufacture grass-planting brick etc.
5) the natural pond slag in rubbish water treatment procedure is made to biological carbon
The natural pond slag that rubbish water anaerobic processing device is discharged is transported to dewater unit to carry out after processed, is transported in destructive distillation biological carbon device processed, under anaerobic condition, processes and makes biological carbon.
6) fuel using the biogas producing in rubbish water treatment procedure as destructive distillation biological carbon device processed
The biogas that rubbish water anaerobic processing device is produced is transported to destructive distillation biological carbon device processed, processes the fuel of insoluble in water organic waste and natural pond slag biological carbon processed as the destructive distillation of destructive distillation biological carbon device processed.
Above-mentionedly solid in domestic waste and liquid are separated to processing, inorganic refuse and organic waste separately process, integrated conduct method and device that washing rubbish purifying water process recycles, waste land resource, the polluted underground water resource that can avoid at present traditional garbage loading embeading treatment technology to exist; Contaminated air and environment that incineration treatment of garbage technology exists, the significant deficiency such as available resources in waste rubbish, really realizes garbage as resource, innoxious, minimizing, cleans processing.
Below in conjunction with accompanying drawing, preferred embodiment of the present utility model is described in detail, should be appreciated that preferred embodiment is only for the utility model is described, rather than in order to limit protection domain of the present utility model.
As shown in the figure, domestic waste solid of the present utility model separates processing with liquid, inorganic refuse separates processing with organic waste, and the processing method that rubbish purifying water process recycles and device are:
1, by domestic waste 1 washing, and rubbish water 5 purified treatment are recycled.
1) domestic waste 1 is transported in bag-breaking device 2 and carries out broken bag processing, among broken bag process, water carries out spray washing.Garbage bag breaking device 2 is known equipment;
2) domestic waste after broken bag is processed 1 is transported to water in rubbish wash mill 3 and carries out carrying out washing treatment, water-soluble organic matter in domestic waste 1 is washed.Rubbish wash mill 3 is known equipment;
3) domestic waste 1 after washing is transported to and in equipment for separating liquid from solid 4, carries out Separation of Solid and Liquid processing.Equipment for separating liquid from solid 4 is known equipment; Rubbish water 5 after Separation of Solid and Liquid is processed is transported to settling pit 6; Rubbish water 5 after settling pit 6 is processed is transported in rubbish water anaerobic processing device 7 and carries out Anaerobic Treatment, makes the organic matter in rubbish water 5 be converted into biogas 25.Rubbish water anaerobic processing device 7 is known equipment; Rubbish water 5 after Anaerobic Treatment is transported to activated coke filtering adsorpting device 8 and carries out purified treatment, activated coke filtering adsorpting device 8 is known equipment, can adopt " a kind of rubbish water treatment facilities " (patent No. ZL200610011667.7, Granted publication CN100496664C); Clear water after purified treatment is transported to circulating water pool 9, with water circulating pump 10, the water in circulating water pool 9 is transported to rubbish wash mill 3, garbage bag breaking device 2 and sorting unit 13 and is reused for rubbish washing.Circulating water pool 9 connects a filling pipe 11 that carries out moisturizing.
2, by solid refuse 12 sortings and recycling after washing
The solid refuse 12 that equipment for separating liquid from solid 4 is separated is transported to sorting unit 13 and carries out sorting process, continues solid refuse 12 to carry out spray washing in assorting room, and the rubbish water 5 washing is transported to settling pit 6; Sorting unit 13 sorts out the article 14 such as plastic-metal battery in the domestic waste after carrying out washing treatment 1; Insoluble in water organic waste 15 is transported to organic garbage crushing device 16 to carry out being transported to dewater unit 17 after break process and carries out processed.Organic garbage crushing device 16 is known equipment.Insoluble in water organic waste 15 after processed is transported to manufacture in biological carbon device 18 and under anaerobic condition, carries out pyrolysis processing, makes biological carbon 19, and biological carbon 19 is for the production of soil conditioner.Manufacturing biological carbon device 18 is known equipment, can adopt " a kind of device of manufacturing biological carbon " (patent No. ZL201020562292.5, Granted publication CN201825737U).The rubbish water anaerobic processing device 7 that the sewage 27 that the broken insoluble in water organic waste 15 of 17 pairs of processes of dewater unit carries out producing in dehydration is carried is processed; The inorganic refuse 20 that sorting unit 13 is separated is transported to inorganic refuse breaker 21, after the silt 22 that inorganic refuse 20 particles after fragmentation are discharged with settling pit 6 mixes, adds cement 23 to manufacture grass-planting brick 24 etc.
3, by the biogas 25 producing in rubbish water 5 processing procedures, natural pond slag 26 recycling treatment and utilization
The natural pond slag 26 that rubbish water anaerobic processing device 7 is discharged is transported to dewater unit 17; Natural pond slag 26 after processed is transported to manufacture in biological carbon device 18 and under anaerobic condition, carries out destructive distillation processing, make biological carbon 19, biological carbon 19 is for the production of soil conditioner.The rubbish water anaerobic processing device 7 that the sewage 27 that 17 pairs of natural pond slags of dewater unit 26 carry out producing in dehydration is carried is processed; The biogas 25 that rubbish water anaerobic processing device 7 is discharged is transported to manufactures biological carbon device 18 as the fuel of destructive distillation processing insoluble in water organic waste 15 and 26 natural pond slag biological carbon 19 processed.
Claims (4)
1. solid-liquid separates and organic matter and the refuse disposal installation that inorganic matter separates, and it is characterized in that, comprising:
Garbage bag breaking device connects one water-soluble organic matter in domestic waste is washed rubbish wash mill; Rubbish wash mill connects the equipment for separating liquid from solid that the domestic waste after a pair of washing carries out Separation of Solid and Liquid processing;
Equipment for separating liquid from solid connects the sorting unit that isolated solid refuse is carried out to sorting process;
The organic waste outlet arranging in sorting unit is connected with the dewater unit that organic waste is dewatered by organic garbage crushing device manufactures biological carbon device;
The inorganic refuse outlet arranging in sorting unit connects inorganic refuse breaker;
The rubbish water out arranging in organic waste dewater unit connects the rubbish water anaerobic processing device that isolated rubbish water is carried out to Anaerobic Treatment and the organic matter in rubbish water is converted into biogas;
Equipment for separating liquid from solid connects the settling pit that rubbish water is precipitated;
Settling pit connects the rubbish water anaerobic processing device that isolated rubbish water is carried out to Anaerobic Treatment after precipitation and the organic matter in rubbish water is converted into biogas;
Rubbish water anaerobic processing device connects the activated coke filtering adsorpting device that the rubbish water after Anaerobic Treatment is carried out to purified treatment;
Activated coke filtering adsorpting device connects circulating water pool;
Circulating water pool connects garbage bag breaking device, rubbish wash mill and sorting unit by water circulating pump, and the clear water after purified treatment is cycled to used in to the washing in garbage bag breaking processing, rubbish carrying out washing treatment and separation treatment process;
Rubbish water anaerobic processing device is provided with methane outlet, and this methane outlet connects manufactures biological carbon device.
2. device according to claim 1, is characterized in that, rubbish water anaerobic processing device is connected and manufactured biological carbon device by the dewater unit that natural pond slag is dewatered.
3. device according to claim 1, is characterized in that, the dewater unit of natural pond slag connects rubbish water anaerobic processing device by rubbish water out.
4. device according to claim 1, is characterized in that, circulating water pool (9) connects a filling pipe that carries out moisturizing.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201320672836.7U CN203556629U (en) | 2013-10-29 | 2013-10-29 | Garbage disposing device capable of separating solid from liquid as well as separating organic matter from inorganic matter |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201320672836.7U CN203556629U (en) | 2013-10-29 | 2013-10-29 | Garbage disposing device capable of separating solid from liquid as well as separating organic matter from inorganic matter |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN203556629U true CN203556629U (en) | 2014-04-23 |
Family
ID=50506381
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201320672836.7U Expired - Fee Related CN203556629U (en) | 2013-10-29 | 2013-10-29 | Garbage disposing device capable of separating solid from liquid as well as separating organic matter from inorganic matter |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN203556629U (en) |
Cited By (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN104138891A (en) * | 2014-08-12 | 2014-11-12 | 曾庆汛 | Household garbage treatment system and treatment method thereof |
| CN111392279A (en) * | 2020-03-16 | 2020-07-10 | 同济大学 | Ecological intelligent collection method for household garbage for realizing clean epidemic prevention and resource utilization in source |
| JP2024083900A (en) * | 2022-12-12 | 2024-06-24 | トヨタ自動車株式会社 | Seaweed resource recovery system and seaweed resource recovery method |
-
2013
- 2013-10-29 CN CN201320672836.7U patent/CN203556629U/en not_active Expired - Fee Related
Cited By (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN104138891A (en) * | 2014-08-12 | 2014-11-12 | 曾庆汛 | Household garbage treatment system and treatment method thereof |
| CN104138891B (en) * | 2014-08-12 | 2016-08-24 | 广州拯绿环保科技有限公司 | Domestic garbage treating system and processing method thereof |
| CN111392279A (en) * | 2020-03-16 | 2020-07-10 | 同济大学 | Ecological intelligent collection method for household garbage for realizing clean epidemic prevention and resource utilization in source |
| CN111392279B (en) * | 2020-03-16 | 2021-09-24 | 同济大学 | An ecological and intelligent collection method of domestic waste that realizes source cleaning, epidemic prevention and resource utilization |
| JP2024083900A (en) * | 2022-12-12 | 2024-06-24 | トヨタ自動車株式会社 | Seaweed resource recovery system and seaweed resource recovery method |
| JP7650426B2 (en) | 2022-12-12 | 2025-03-25 | トヨタ自動車株式会社 | Seaweed resource recovery system and seaweed resource recovery method |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN103599920A (en) | Refuse treatment method for solid-liquid separation and separation between organic matters and inorganic matters and device thereof | |
| CN102327888B (en) | Municipal domestic waste resource recovery processing method with zero pollution, zero release and harmlessness | |
| CN102896135B (en) | Washing junk-free production department logos | |
| CN202283543U (en) | Innocent and recycling treatment system for municipal domestic garbage | |
| CN101318192B (en) | Comprehensive treatment and utilization technique for urban domestic garbage | |
| CN110976472B (en) | Kitchen waste and household waste co-processing method | |
| CN102357506B (en) | Method for wet treatment and resource utilization of household garbage | |
| CN102728601A (en) | Technology for full classification recycling treatment on household waste | |
| CN1850365A (en) | Garbage comprehensive treatment method and apparatus | |
| CN102319722A (en) | Mixed municipal domestic garbage resource treatment process | |
| CN102921695A (en) | Water-sorting resource, harmlessness and natural-derivation recycling eco-system of municipal domestic wastes | |
| WO2021129819A1 (en) | Kitchen waste recycling method and treatment system | |
| CN104907321B (en) | Comprehensive garbage treatment method | |
| CN1181935C (en) | Disposal method of municipal solid waste and waste water as resources | |
| CN102658284A (en) | Advanced municipal refuse harmless reclamation treatment method | |
| CN103357653A (en) | Household refuse and domestic sewage synchronous processing method | |
| CN202667239U (en) | Household garbage recycling recovery processing system | |
| CN203556629U (en) | Garbage disposing device capable of separating solid from liquid as well as separating organic matter from inorganic matter | |
| CN220379674U (en) | System for garbage incinerator is disposed of urban pollutant in coordination | |
| CN106269791A (en) | A method for domestic waste water treatment | |
| CN107457245B (en) | A kind of residents in rural community recycling processing method | |
| RU2734832C1 (en) | Incineration plant, device and method | |
| CN108787705A (en) | City domestic garbage treating process method | |
| CN104128351A (en) | Paper mill waste pretreatment technology | |
| CN112108484A (en) | Environment-friendly garbage treatment method for smart city |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C14 | Grant of patent or utility model | ||
| GR01 | Patent grant | ||
| CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20140423 Termination date: 20161029 |
|
| CF01 | Termination of patent right due to non-payment of annual fee |
