Abstract
The utility model relates to a UAC novel light partition board which is tabulate. The partition board comprises a middle core body and two cement-fiber boards on the upper and lower surfaces of the middle core body, wherein the middle core body is a light aggregate concrete layer; a semicircular protrusion extending on one side of the whole board body of the partition board is arranged on at least the side of the partition board; a semicircular groove extending on the other side of the whole board body of the partition board is formed in at least the latter side of the partition board. The partition board is light, solid, thin, high-strength, sound-proof, insulated, water-proof, fire-proof, damp-proof, anti-freezing, anti-aging, high in bearing capacity and impact-resistant, and is highly decorative, can be nailed and sawed without environmental pollution, can be slotted directly for spool embedding, is simple in construction, and can be widely applied to various buildings.
Description
Technical field
The utility model relates to the wallboard field that construction industry is used, and relates in particular to a kind of UAC light wall plate.
Background technology
Modern building majority all adopts frame construction, between inside is divided with partition material again.Separate the material of use except traditional Hollow brick, in order further to alleviate the load-bearing load of built on stilts lintel, interior separation wall adopts light material more in recent years, as: cement light brick, gypsum plank; Also the use three-ply board having, shaving board, Baoli polywood laminate etc.But it is heavy that cement brick, gypsum plank etc. are also disliked, and thickness is also disliked the usable area taking in room.Shaving board, Baoli polywood laminate fireproof performance are not good enough.
As can be seen here, existing wallboard have that cost is high, easily produce toxic gas when Heavy Weight, chance fire, fire-retardant poor, realize many defects such as integral heat insulation difficulty is large.
For this reason, designer of the present utility model is because above-mentioned defect, by concentrating on studies and designing, is comprehensively engaged in for a long time experience and the achievement of related industry for many years, and research and design goes out a kind of UAC light wall plate, to overcome above-mentioned defect.
Utility model content
The technical problems to be solved in the utility model is: existing wallboard exists that cost is high, easily produce toxic gas when Heavy Weight, chance fire, fire-retardant poor, realize many defects such as integral heat insulation difficulty is large, a kind of UAC light wall plate that can effectively improve fire prevention, the performance such as fire-retardant is provided.
For addressing the above problem, the utility model discloses a kind of UAC light wall plate, be tabular, it is characterized in that:
This partition board comprises middle core body and is positioned at two cement fibrolite plates of middle core body upper and lower surface, in the middle of described, core body is layer of concrete, at least one side of this partition board is provided with the semi-circular projection that extends whole plate body sidepiece, and at least opposite side of this partition board is provided with the semicircle groove that extends whole plate body sidepiece.
Wherein: this partition board also can comprise at least one fixture that is arranged at sidepiece, this fixture comprises the insert plate embedding in partition board and the junction plate arranging perpendicular to insert plate, and described junction plate is provided with at least two connecting holes.
Wherein: also comprise and run through the expansion bolt of described connecting hole to be fixed.
Wherein: a side of this partition board is fixed on ，Qie ground, ground and is coated with successively backplane level, setting course and leveling layer by fixture and expansion bolt.
Wherein: a side of this partition board is fixed on structure wall by fixture and expansion bolt, on this structure wall, is coated with floated coat.
By said structure, the utility model has been realized following technique effect:
1, have lightweight, solid, thin body, high strength, sound insulation, heat insulation, waterproof, fire prevention, protection against the tide, antifreeze, ageing-resistant, hang the features such as gravity is strong, shock-resistant, there is again good decorative property simultaneously, can follow closely, can saw, non-environmental-pollution, can directly slot and bury spool underground, the advantage such as construct simple;
2, can reduce wall facing engineering quantity, shorten the wall construction cycle; Increase the practical space of building, the load that alleviates agent structure, the investment of minimizing Structural Engineering, reduce comprehensive cost;
3, widely applicable, simple installation, can be widely used in all kinds of buildings.
Detailed content of the present utility model can obtain by explanation described later and institute's accompanying drawing.
Accompanying drawing explanation
Fig. 1 has shown the structural representation of the utility model UAC light wall plate.
Fig. 2 has shown the scheme of installation of the utility model UAC light wall plate.
Fig. 3 has shown another scheme of installation of the utility model UAC light wall plate.
Fig. 4 A-4C has shown dissimilar outside drawing of the present utility model.
Fig. 5 has shown the structural representation of the utility model fixture.
Fig. 6 has shown that the utility model is installed on the schematic diagram on ground.
Fig. 7 has shown that the utility model is installed on the schematic diagram of structure wall.
Reference numeral:
1, cement fibrolite plate; 2, middle core body; 3, semi-circular projection; 4, semicircle groove; 5, reinforcing rib; 6, depression; 7, fixture; 71, insert plate; 72, connector; 73, connecting hole; 8, expansion bolt; 91, backplane level; 92, setting course, 93, leveling layer; 94, ground; 95, structure wall; 96, floated coat.
The specific embodiment
Referring to Fig. 1, shown UAC light wall plate of the present utility model (the fiber cement light weight concrete construction sandwich type wall panel that does not contain asbestos), this partition board is tabular, two cement fibrolite plates 1 that it comprises middle core body 2 and is positioned at middle core body 2 upper and lower surfaces, in the middle of described, core body 2 is layer of concrete, be preferably light aggregate concrete layer, at least one side of this partition board is provided with the semi-circular projection 3 that extends whole plate body sidepiece, and at least opposite side of this partition board is provided with the semicircle groove 4 that extends whole plate body sidepiece.
Referring to Fig. 4 A, shown that both sides that this partition board is relative arrange respectively the schematic diagram of semi-circular projection 3 and semicircle groove 4, the difference of Fig. 4 B and Fig. 4 A is, the soffit of this partition board is provided with the schematic diagram that both sides that depression 6, Fig. 4 C shown that this partition board is adjacent arrange respectively semi-circular projection 3 and semicircle groove 4.
Referring to Fig. 2 and Fig. 3, the scheme of installation that has shown the utility model UAC light wall plate, as can be seen from Figure, partition board of the present utility model is by the mutual engaging of semi-circular projection and semicircle groove, a plurality of partition boards can be connected, to form the whole body of wall of Len req, and semicircular syndeton, make the connection between body of wall more convenient, and the bias that circular connection can realize a little connects, need not align completely, make can also realize connection accurately when there is manufacture deviation a little.
Referring to Fig. 2, this partition board also can be provided with at the reinforcing rib between plate body between two, to improve bonding strength.
This partition board also can comprise at least one fixture 7 that is arranged at sidepiece, referring to Fig. 5, this fixture 7 comprises the insert plate 71 embedding in partition board and the junction plate 72 arranging perpendicular to insert plate 71, described junction plate 72 is provided with at least two connecting holes 73, and described connecting hole 73 can be fixed on desired location by expansion bolt.
Referring to Fig. 6, shown that the utility model application fixture is installed on the schematic diagram on ground, a side of this partition board is fixed on and on 94，Qie ground, ground 94, is coated with successively backplane level 91, setting course 92, leveling layer 93 by fixture 7 and expansion bolt 8.
Referring to Fig. 7, shown that the utility model application fixture is installed on the schematic diagram of structure wall, a side of this partition board is fixed on structure wall 95 by fixture 7 and expansion bolt 8, on this structure wall 95, is coated with floated coat 96.
Thus, by being connected and fixed of fixture and expansion bolt, make partition board can firmly be fixed on each position of the buildings such as ground, structure wall, top board.

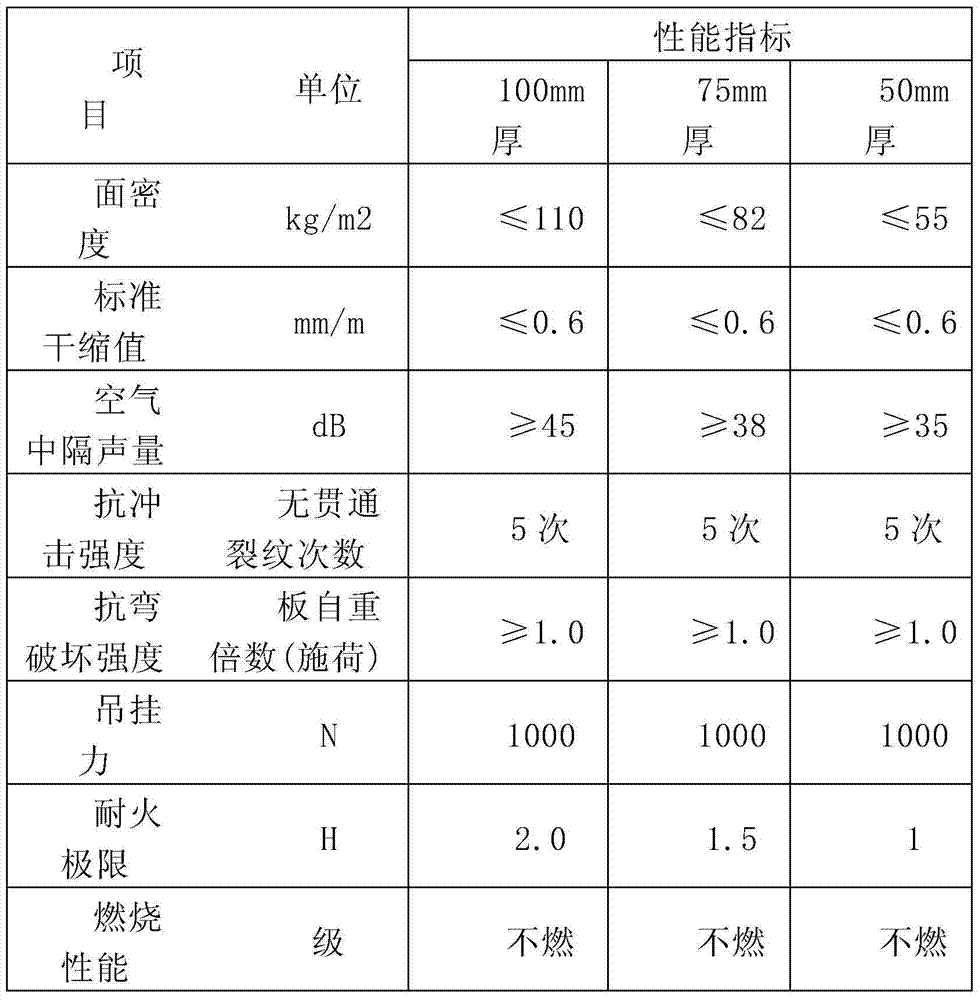

The actual test value of physical and mechanical property of UAC light wall plate of the present utility model is as following table:
As can be seen here, UAC light wall plate of the present utility model meets existing building requirements completely, and tool has the following advantages:
1, board wall is comprised of double-side fibre refinforced cement panel and light aggregate concrete core body, have lightweight, solid, thin body, high strength, sound insulation, heat insulation, waterproof, fire prevention, protection against the tide, antifreeze, ageing-resistant, hang the features such as gravity is strong, shock-resistant;
2, there is good decorative property, can follow closely, can saw, non-environmental-pollution, can directly slot and bury spool underground, the advantage such as construct simple;
3, can reduce wall facing engineering quantity, shorten the wall construction cycle; Increase the practical space of building, the load that alleviates agent structure, the investment of minimizing Structural Engineering, reduce comprehensive cost, can be widely used in the non-bearing wall of all kinds of buildings.
It is evident that above description and to record be only for example rather than in order to limit disclosure of the present utility model, application or use.Although described in an embodiment and be described in the drawings embodiment, but the optimal mode that the utility model does not limit by accompanying drawing example and the conduct of describing is in an embodiment thought to be at present to implement the specific examples of instruction of the present utility model, scope of the present utility model will comprise any embodiment of the manual that falls into above and appended claim.
Claims (5)
1. a UAC light wall plate, is tabular, it is characterized in that:
This partition board comprises middle core body and is positioned at two cement fibrolite plates of middle core body upper and lower surface, in the middle of described, core body is layer of concrete, at least one side of this partition board is provided with the semi-circular projection that extends whole plate body sidepiece, and at least opposite side of this partition board is provided with the semicircle groove that extends whole plate body sidepiece.
2. partition board as claimed in claim 1, it is characterized in that: this partition board also can comprise at least one fixture that is arranged at sidepiece, this fixture comprises the insert plate embedding in partition board and the junction plate arranging perpendicular to insert plate, and described junction plate is provided with at least two connecting holes.
3. partition board as claimed in claim 2, is characterized in that: also comprise and run through the expansion bolt of described connecting hole to be fixed.
4. partition board as claimed in claim 3, is characterized in that: a side of this partition board is fixed on ，Qie ground, ground and is coated with successively backplane level, setting course and leveling layer by fixture and expansion bolt.
5. partition board as claimed in claim 3, is characterized in that: a side of this partition board is fixed on structure wall by fixture and expansion bolt, on this structure wall, is coated with floated coat.
