CN203323760U - Electric pole perpendicularity viewer - Google Patents
Electric pole perpendicularity viewer Download PDFInfo
- Publication number
- CN203323760U CN203323760U CN2013203172439U CN201320317243U CN203323760U CN 203323760 U CN203323760 U CN 203323760U CN 2013203172439 U CN2013203172439 U CN 2013203172439U CN 201320317243 U CN201320317243 U CN 201320317243U CN 203323760 U CN203323760 U CN 203323760U
- Authority
- CN
- China
- Prior art keywords
- electric pole
- main panel
- moulds
- viewer
- perpendicularity
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000005516 engineering process Methods 0.000 description 2
- 241001504664 Crossocheilus latius Species 0.000 description 1
- 229910001651 emery Inorganic materials 0.000 description 1
- 239000010977 jade Substances 0.000 description 1
- 238000012544 monitoring process Methods 0.000 description 1
- 230000035807 sensation Effects 0.000 description 1
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 1
Images
Landscapes
- Suspension Of Electric Lines Or Cables (AREA)
Abstract
The utility model provides an electric pole perpendicularity viewer. The electric pole perpendicularity viewer comprises a main panel, wherein two moulds are arranged on one face of the main panel; a platform is mounted on the other face of the main panel; a circular level is placed on the platform; the moulds are conical and the taper of each mould is the same as that of an electric pole to be detected; the two moulds are arranged on the main panel inversely and symmetrically; fixing bands are further arranged on the two sides of the main panel and the viewer is fixed on the electric pole to be detected by the fixing bands. According to the electric pole perpendicularity viewer provided by the utility model, the taper of each mould is the same as that of the electric pole to be detected and the moulds are mounted inversely, so that the moulds and the electric pole can be fitted completely; then the direction of the electric pole is adjusted according to an instruction of the circular level until an air bubble of the circular level is located in the middle, and the electric pole is in the vertical state. The device is simple in structure, convenient to use, accurate in result, low in cost and easy to popularize.
Description
Technical field
The utility model relates to a kind of electric pole vertical observation instrument.
Background technology
Existing electric pole vertical observation in real work, be one time-consuming and be not easy the work of accurate surveying, measuring the electric pole verticality the most unmanageable is that electric pole is perpendicular to ground the time, the electric pole outside can with ground shape in an angle, with the light water leveling ruler, can't measure, to repeatedly observe, adjust from positive, side, just can adjust to the right place, have fully with sensation, this can be because the surrounding terrain landforms produce larger error; What have cuts or polish jade with an emery wheel with messenger wire, and the messenger wire stone roller can because arm shakes, double swerve be inconvenient to observe; The object of reference that utilizes had is observed as corner etc., but a lot of place does not have object of reference, or the object of reference lazy weight; Very accurate with total powerstation observation, but high cost.
Summary of the invention
The purpose of this utility model provides a kind of electric pole vertical observation instrument, simple in structure, easy to carry, measures accurately, is easy to promote.
In order to solve the problems of the technologies described above, the technical solution of the utility model is: a kind of electric pole vertical observation instrument, comprise main panel, the one side of main panel is provided with two moulds, and the another side of main panel is equipped with platform, is placed with circular bubble on platform, described mould is conical molds, its tapering is identical with the tapering of electric pole to be measured, and two moulds stand upside down and to be symmetricly set on main panel, and the axis of two moulds is vertical with circular bubble.
The both sides of described main panel also are provided with fixed band, by fixed band, this device are fixed on electric pole to be measured.
The electric pole vertical observation instrument that the utility model provides, owing to being provided with and the identical mould of electric pole tapering to be measured, mould stand upside down is installed and while closely adhering on electric pole to be measured, the axis of the axis of mould, the axis of electric pole and circular bubble is parallel to each other, now, according to circular bubble, electric pole is adjusted, when the bubble of circular bubble is placed in the middle, the axis of circular bubble is positioned at plumb position, and electric pole to be measured is also inevitable in plumbness.
Observe the verticality of monitoring electric pole by the utility model, can directly be adjusted electric pole according to the bubble offset direction of circular bubble, quick and convenient, result is accurate, and this device is simple in structure, and cost is lower, is easy to popularization.
The accompanying drawing explanation
Below in conjunction with drawings and Examples, the utility model is described in further detail.

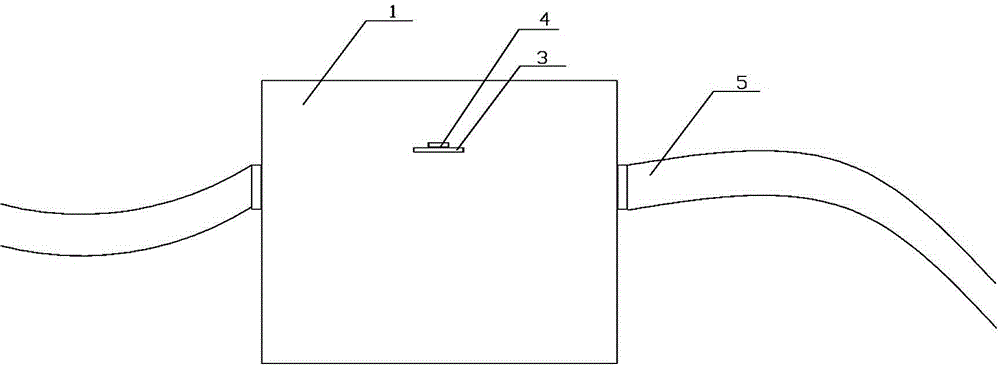

Fig. 1 is front view of the present utility model;
Fig. 2 is side view of the present utility model;
Fig. 3 is vertical view of the present utility model.
Embodiment
As shown in Figure 1-Figure 3, the utility model comprises main panel 1, the one side of main panel is provided with two moulds 2, the another side of main panel is equipped with platform 3, be placed with circular bubble 4 on platform 3, described mould 2 is conical molds, and its tapering is identical with the tapering of electric pole to be measured, and two moulds 2 stand upside down and are symmetricly set on main panel, and the axis of two moulds is vertical with circular bubble.
The both sides of described main panel 1 also are provided with fixed band 5, by fixed band, this device can be fixed on electric pole to be measured fast.
In embodiment, the diameter of conical molds bottom surface is 20mm, and the distance between described two moulds 2 is 130mm, and when this device guarantee to be installed, two moulds and electric pole can fit tightly, and main panel contact measured electric pole not.
During use, first this device is bundled on electric pole by fixed band 5, because the tapering of mould is identical with the tapering of electric pole, and mould stands upside down and installs, now between mould and electric pole, can fit fully, then according to the indication of circular bubble adjust electric pole direction until the bubble of circular bubble in middle, now electric pole is in plumbness.
Claims (2)
1. an electric pole vertical observation instrument, it is characterized in that: comprise main panel (1), the one side of main panel is provided with two moulds (2), the another side of main panel is equipped with platform (3), be placed with circular bubble (4) on platform (3), described mould (2) is conical molds, and its tapering is identical with the tapering of electric pole to be measured, and two moulds (2) stand upside down and are symmetricly set on main panel, and the axis of two moulds (2) is vertical with circular bubble (4).
2. electric pole vertical observation instrument according to claim 1, it is characterized in that: the both sides of described main panel (1) also are provided with fixed band.
